TAILLIGHT, POSITION LIGHT, REAR SIDE MARKER LIGHT, LICENSE PLATE LIGHT AND LIGHTING MONITOR TONE ALARM

TSB Revision

CIRCUIT DIAGRAMS

90-125

NOTES

HEADLIGHT MANUAL LEVELING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-126

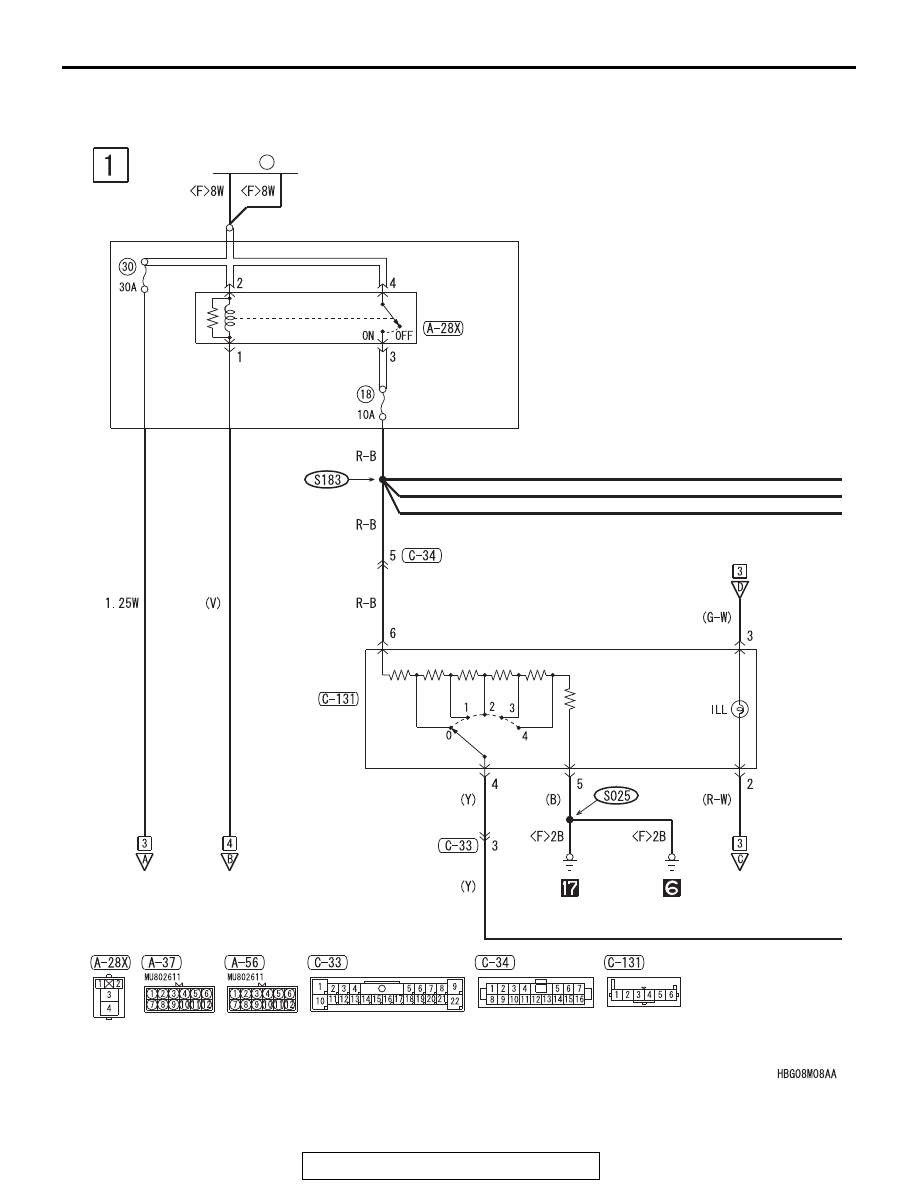

HEADLIGHT MANUAL LEVELING SYSTEM

M1901025301322

RELAY BOX
(ENGINE COMPARTMENT)

HEADLIGHT
RELAY (LOW)

COMBINATION
METER

HEADLIGHT
LEVELING
SWITCH

FUSIBLE
LINK

36

HEADLIGHT MANUAL LEVELING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-127

HEADLIGHT
ASSEMBLY
(LH)

HEADLIGHT
ASSEMBLY
(RH)

IC

IC

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

HEADLIGHT MANUAL LEVELING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-128

HEADLIGHT MANUAL LEVELING SYSTEM (CONTINUED)

CPU

CAN TRANSCEIVER
CIRCUIT

RELAY BOX

(FUSE     )

30

INTERFACE
CIRCUIT

INTERFACE
CIRCUIT

COMBINATION
METER

RHEOSTAT

CAN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

JOINT
CONNECTOR
(CAN1)

FRONT SIDE

ETACS-ECU

HEADLIGHT
LEVELING
SWITCH

THEFT-ALARM
SYSTEM

·AIR CONDITIONING
 SYSTEM
·ANTI-LOCK BRAKING
 SYSTEM (ABS) AND
 ACTIVE STABILITY
 CONTROL SYSTEM
 (ASC)
·AUDIO SYSTEM
·CRUISE CONTROL
 SYSTEM
·ELECTRONIC
 CONTROLLED AWD
·HANDS-FREE INTERFACE
 SYSTEM
·INVECS-II 6A/T
·MITSUBISHI
 MULTI-COMMUNICATION
 SYSTEM (MMCS)
·REAR SEAT ENTERTAINMENT
 SYSTEM
·S-AWC
·SPARE CONNECTOR
 (FOR REAR DISPLAY)
·TURN-SIGNAL LIGHT AND
 HAZARD WARNING LIGHT
·UNIVERSAL SERIAL BUS
 (USB) BOX

·AIR CONDITIONING
 SYSTEM
·ANTI-LOCK BRAKING
 SYSTEM (ABS) AND
 ACTIVE STABILITY
 CONTROL SYSTEM
 (ASC)
·AUDIO SYSTEM
·ELECTRONIC
 CONTROLLED AWD
·HANDS-FREE INTERFACE
 SYSTEM
·INVECS-II 6A/T
·S-AWC
·TURN-SIGNAL LIGHT
 AND HAZARD WARNING
 LIGHT
·UNIVERSAL SERIAL BUS
 (USB) BOX
