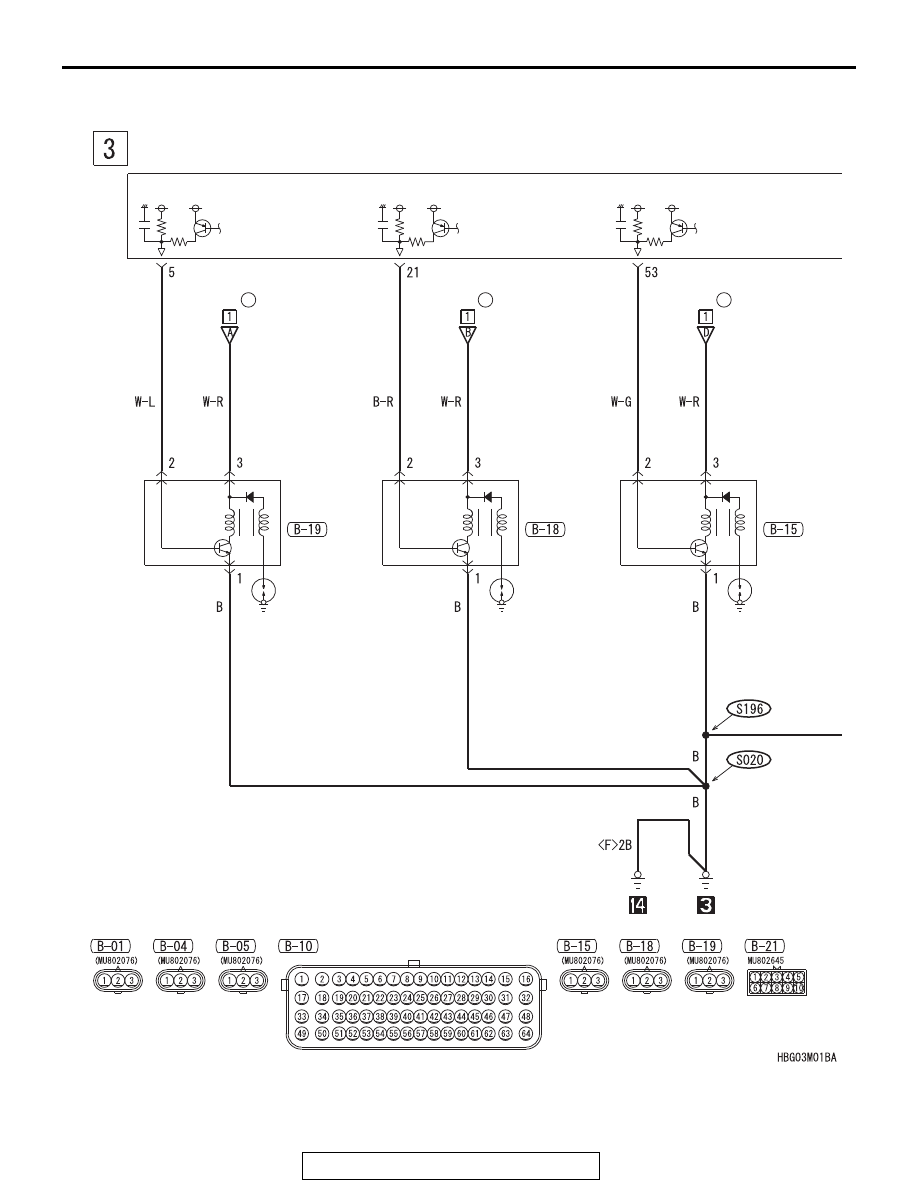

IGNITION SYSTEM <2.4L ENGINE>

TSB Revision

CIRCUIT DIAGRAMS

90-37

NO.3
IGNITION
COIL

NO.4
IGNITION
COIL

SPARK
PLUG

SPARK
PLUG

ENGINE
CONTROL
MODULE

RELAY BOX

(FUSE     )

21

RELAY BOX

(FUSE     )

21

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

IGNITION SYSTEM <3.0L ENGINE>

TSB Revision

CIRCUIT DIAGRAMS

90-38

IGNITION SYSTEM <3.0L ENGINE>

M1901000605997

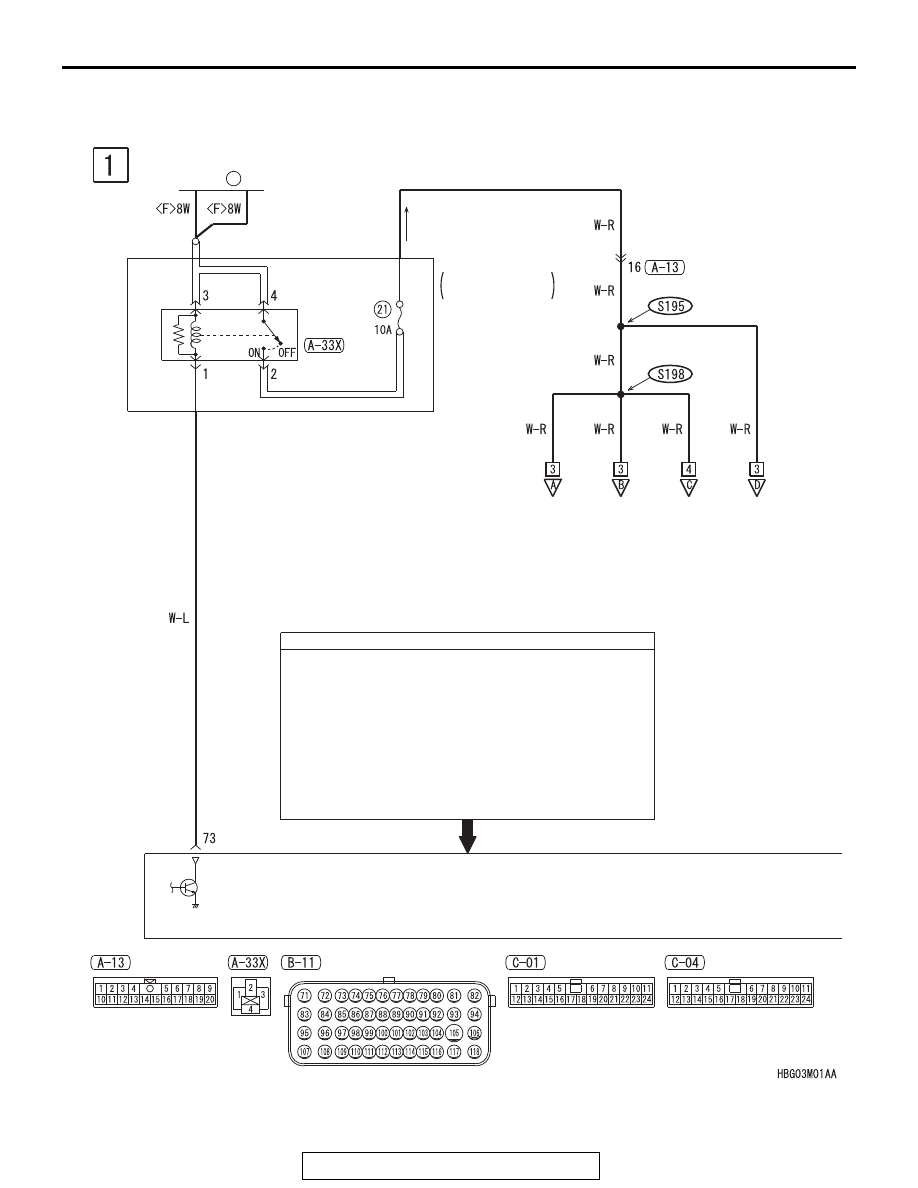

FUSIBLE
LINK

36

MFI
RELAY

ENGINE
COMPARTMENT

RELAY BOX

INPUT SIGNAL

·ACCELERATOR PEDAL
 POSITION SENSOR
·CAMSHAFT POSITION
 SENSOR
·CRANKSHAFT
 POSITION SENSOR
·ENGINE COOLANT
 TEMPERATURE SENSOR
·FUEL TANK DIFFERENTIAL
 PRESSURE SENSOR

·HEATED OXYGEN SENSOR
·IGNITION SWITCH (ST)
·KNOCK SENSOR
·MANIFOLD ABSOLUTE
 PRESSURE SENSOR
·MASS AIRFLOW
 SENSOR
·THROTTLE POSITION
 SENSOR

IGNITION SYSTEM <3.0L ENGINE>

TSB Revision

CIRCUIT DIAGRAMS

90-39

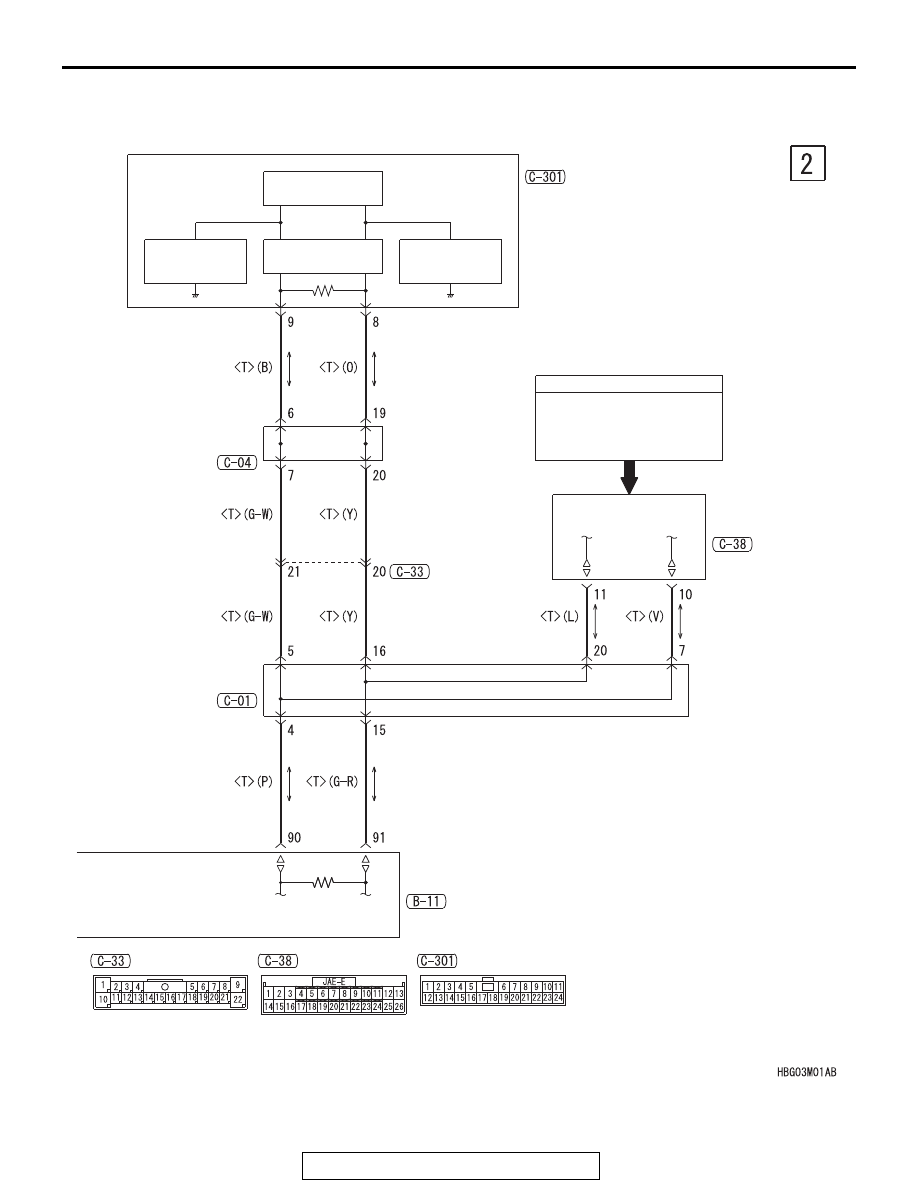

ETACS-ECU

CAN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

ANALOG
INTERFACE
CIRCUIT

ANALOG
INTERFACE
CIRCUIT

ENGINE
CONTROL
MODULE

INPUT SIGNAL

·OUTPUT SHAFT SPEED
 SENSOR
·TRANSMISSION RANGE
 SWITCH (N)

TRANSAXLE
CONTROL
MODULE

JOINT
CONNECTOR
(CAN2)

JOINT
CONNECTOR
(CAN3)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

IGNITION SYSTEM <3.0L ENGINE>

TSB Revision

CIRCUIT DIAGRAMS

90-40

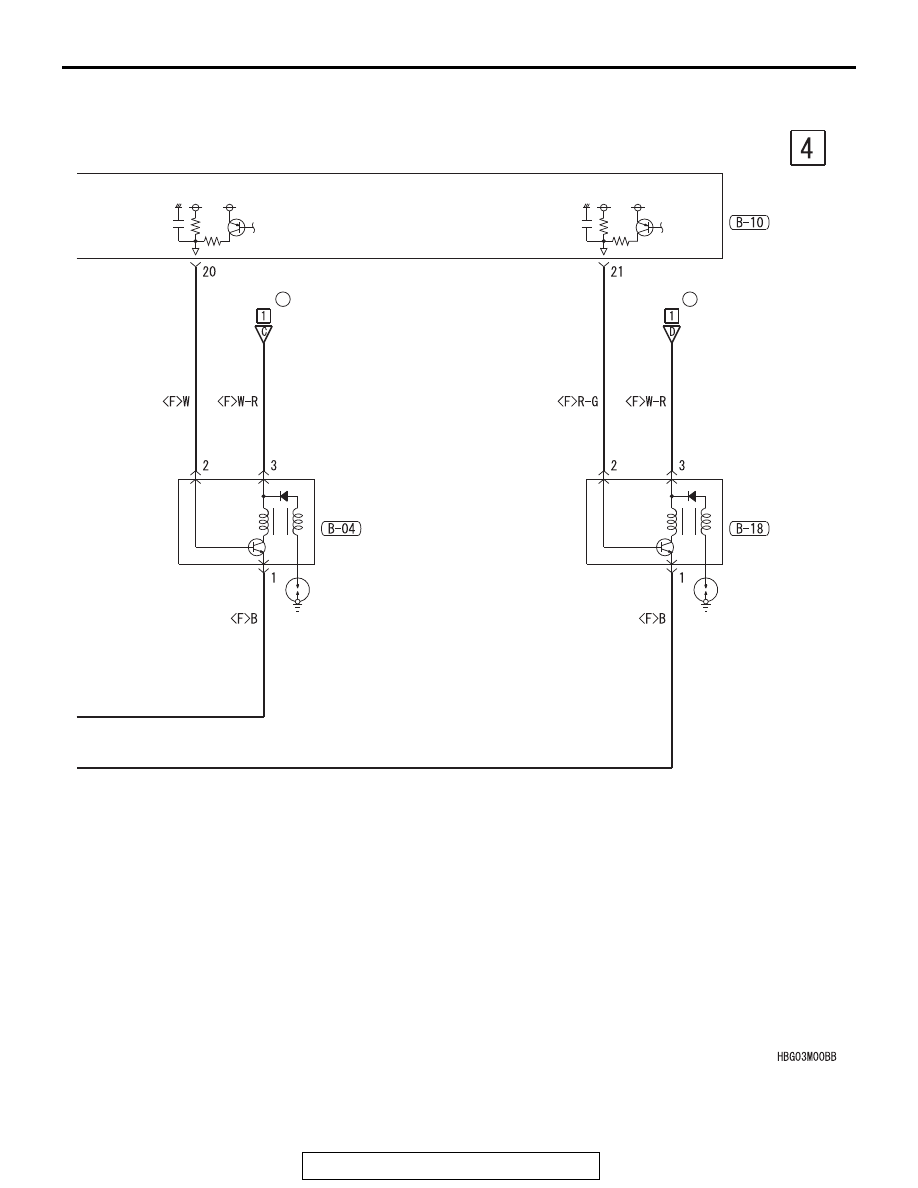

IGNITION SYSTEM <3.0L ENGINE> (CONTINUED)

SPARK
PLUG

NO.2
IGNITION
COIL

NO.4
IGNITION
COIL

NO.6
IGNITION
COIL

SPARK
PLUG

SPARK
PLUG

RELAY BOX

(FUSE     )

21

RELAY BOX

(FUSE     )

21

RELAY BOX

(FUSE     )

21
