THEFT ALARM

TSB Revision

CHASSIS ELECTRICAL

54A-853

STEP 2. Using scan tool MB991958, check for any
diagnostic trouble code.
Check if DTC is set to the KOS-ECU <vehicles with KOS> or
WCM <vehicles with WCM>.
(1) Turn the ignition switch to the "ON" position.
(2) Check whether the KOS or WCM related DTC is set.
(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES <vehicles with KOS>  : Troubleshoot the KOS (Refer

to GROUP 42B, KOS

P.42B-35

).

YES <vehicles with WCM>  : Troubleshoot the WCM

(Refer to GROUP 42C, WCM

P.42C-18

).

NO  :  Go to Step 3.

STEP 3. Check the keyless operation key <KOS> or
keyless entry transmitter <WCM>.
Q: is the keyless operation key <KOS> or keyless entry

transmitter <WCM> normally?
YES : Go to Step 4.
NO <vehicles with KOS>  : Troubleshoot the KOS (Refer

to GROUP 42B, KOS

P.42B-35

).

NO <vehicles with WCM>  : Troubleshoot the WCM (Refer

to GROUP 42C, WCM

P.42C-18

).

THEFT ALARM

TSB Revision

CHASSIS ELECTRICAL

54A-854

STEP 4. Using scan tool MB991958, check data list.
Use the ETACS-ECU data list to check the signals related to
the theft-alarm function.

• Turn the ignition switch to the "ACC" position.

• Turn the ignition switch to the "LOCK" (OFF) position (with

ignition key <vehicles with WCM> or emergency key <vehi-
cles with KOS> inserted).

• Open each door.

• Open the liftgate.

• Open the hood.

• Close each door.

• Close the liftgate.

• Open the hood.

Q: Does scan tool MB991958 display the items "Dr door

ajar switch", "As door ajar switch", "RR door ajar

Item No.

Item name

Normal
condition

Item 288

ACC switch

ON

Item No.

Item name

Normal
condition

Item 264

Handle lock switch

Key in

Item 288

ACC switch

OFF

Item No.

Item name

Normal
condition

Item 256

Dr door ajar switch

Open

Item 257

As door ajar switch

Open

Item 258

RR door ajar switch

Open

Item 259

RL door ajar switch

Open

Item 260

Trunk/gate trunk ajar
switch

Open

Item 266

Hood switch

ON

Item No.

Item name

Normal
condition

Item 256

Dr door ajar switch

Close

Item 257

As door ajar switch

Close

Item 258

RR door ajar switch

Close

Item 259

RL door ajar switch

Close

Item 260

Trunk/gate trunk ajar
switch

Close

Item 266

Hood switch

OFF

THEFT ALARM

TSB Revision

CHASSIS ELECTRICAL

54A-855

switch", "RL door ajar switch", "Trunk/gate trunk ajar
switch" , "Handle lock switch", "Hood switch" and "ACC
switch" as normal condition?
YES <Normal conditions are displayed for all items.> :

Go to Step 5.

NO <Normal condition is not displayed for item No.
256.> : Troubleshoot the ETACS-ECU. Refer to Inspection

Procedure 5 "ETACS-ECU does not receive any
signal from the front door switch (LH)"

P.54A-802

.

NO <Normal condition is not displayed for item No.
257.> : Troubleshoot the ETACS-ECU. Refer to Inspection

Procedure 6 "ETACS-ECU does not receive any
signal from the front door switch (RH)"

P.54A-804

.

NO <Normal condition is not displayed for item No.
258.> : Troubleshoot the ETACS-ECU. Refer to Inspection

Procedure 7 "ETACS-ECU does not receive any
signal from the rear door switch (LH)"

P.54A-806

.

NO <Normal condition is not displayed for item No.
259.> : Troubleshoot the ETACS-ECU. Refer to Inspection

Procedure 8 "ETACS-ECU does not receive any
signal from the rear door switch (RH)"

P.54A-809

.

NO <Normal condition is not displayed for item No.
260.> : Troubleshoot the ETACS-ECU. Refer to Inspection

Procedure 9 "ETACS-ECU does not receive any
signal from liftgate latch switch"

P.54A-811

.

NO <Normal condition is not displayed for item No.
264.> : Troubleshoot the ETACS-ECU. Refer to Inspection

Procedure 3 "ETACS-ECU does not receive any
signal from key reminder switch"

P.54A-792

.

NO <Normal condition is not displayed for item No.
266.> : Troubleshoot the ETACS-ECU. Refer to Inspection

Procedure 10 "ETACS-ECU does not receive any
signal from the Hood latch switch"

P.54A-814

.

NO <Normal condition is not displayed for item No.
288.> : Troubleshoot the ETACS-ECU. Refer to GROUP

54A, Diagnosis - Inspection Procedure 1
"ETACS-ECU does not receive any signal from the
ignition switch (ACC) signal"

P.54A-787

.

STEP 5. Check center panel unit connector C-104 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is center panel unit connector C-104 in good condition?

YES : Go to Step 6.
NO :  Repair the damaged parts.

THEFT ALARM

TSB Revision

CHASSIS ELECTRICAL

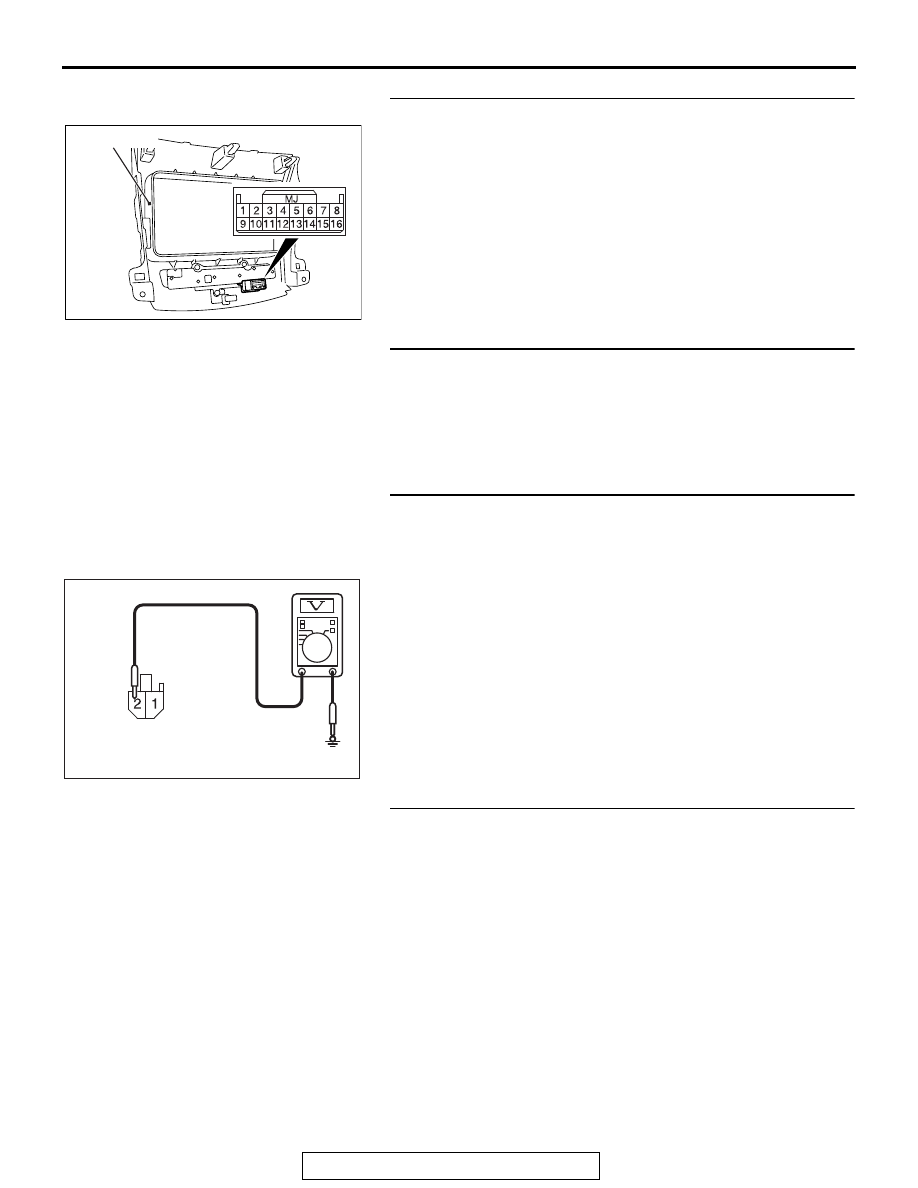

54A-856

STEP 6. Check the theft-alarm indicator.
Q: Is the theft-alarm indicator in good condition?

YES : Go to Step 7.
NO :  Replace the center panel unit.

STEP 7. Check ETACS-ECU connector C-307 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is the ETACS-ECU connector C-307 in good condition?

YES : Go to Step 8.
NO :  Repair the damaged parts.

STEP 8. Measure the voltage at ETACS-ECU connector
C-307.
(1) Disconnect ETACS-ECU connector C-307, and measure

the voltage wiring harness side.

(2) Measure the voltage between ETACS-ECU connector-307

(terminal No. 2) and the body ground.

• The voltage should measure approximately 12 volts

(battery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 10.
NO :  Go to Step 9.

STEP 9. Check the Wiring harness between ETACS-ECU
connector C-307 (terminal No. 2) and fusible link (36).

• Check the power supply line for open circuit and short cir-

cuit.

Q: Is the check result normal?

YES : The trouble can be an intermittent malfunction (Refer

to GROUP 00, How to use
Troubleshooting/inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-15

).

NO :  Repair the wiring harness between ETACS-ECU

connector C-307 and fusible link (36).

AC703574 AB

Center panel

AC702831AO

Connector C-307
(Harness side)
