ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-825

NOTE: *: F.A.S.T. (Free-hand Advanced Security
Transmitter)

Panic alarm
switch

With/without panic
alarm function

Disable

Without function

Enable

With function (initial condition)

F.A.S.T.

*

 key

detect out fm
window

With/without KOS
key exterior
detection function

Enable

Without function

Disable

With function (initial condition)

F.A.S.T.

*

 feature KOS function

adjustment

Both enable

All KOS functions are enabled (initial
condition).

DoorEntry enable

Only door entry function is enabled.

ENG strt enable

Only engine starting function is enabled.

Both disabled

All KOS functions are disabled.

F.A.S.T.

*

 unlock

disable time

Adjusts the door
unlock inhibition
period after door
lock is activated.

0 sec

0 second

3 sec

3 seconds (initial condition)

5 sec

5 seconds

Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting contents
(scan tool MB991958
display)

Adjusting contents

ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-826

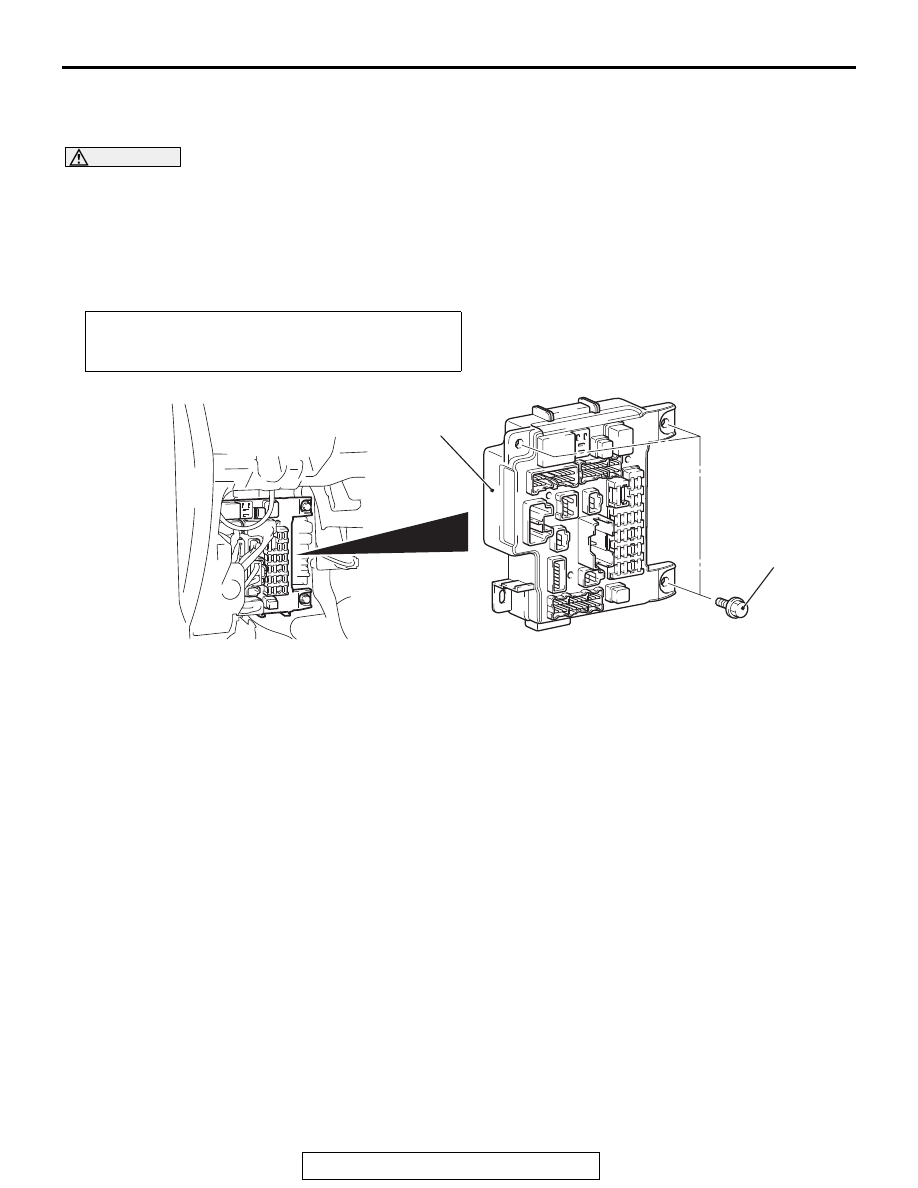

ETACS-ECU

REMOVAL AND INSTALLATION

M1545004700319

CAUTION

When the ETACS-ECU is replaced, chassis num-
ber writing and coding must be performed. When
diagnostic trouble code No.B1761 "Chassis No.
not programmed" or No.B222C "Coding not com-
pleted" is set to the ETACS-ECU, perform chas-
sis number writing and coding. Refer to the
"M.U.T.-III Owner’s Manual" and perform coding.

Pre-removal and Post-installation Operation
• Side lower panel assembly (Refer to GROUP 52A, Instru-

ment Panel Assembly

P.52A-2

).

AC610001

1

AB

4.0 ± 2.0 N·m
36 ± 17 in-lb

Removal Step

1.

ETACS-ECU

ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-827

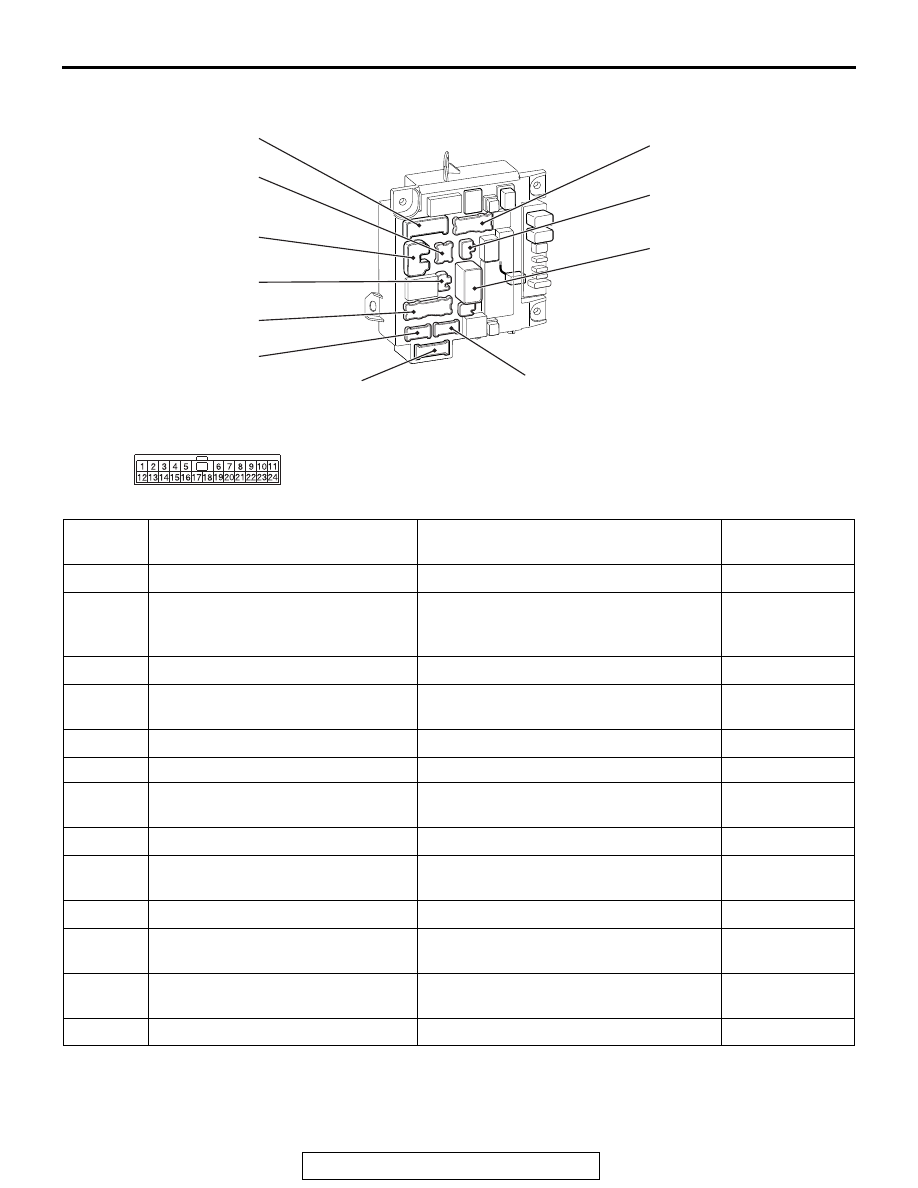

CHECK WITH TERMINAL VOLTAGE

M1545004800554

CONNECTOR: C-301

ACA01377

C-304

C-307

C-309

C-312

C-301

C-313

C-311

C-314

C-315

C-317

C-316

AB

AC507030AB

Terminal
No.

Check item

Check condition

Normal
condition

1

−

−

−

2

Input from power window main
switch or front power window sub
switch (central door lock switch)

Central door lock switch: Locked

1 V or less

3

−9

−

−

−

10

Input from front passenger's door
lock actuator (unlock)

Front passenger's door lock: Unlocked

1 V or less

11

−

−

−

12

Output to defogger switch

Defogger switch: ON

1 V or less

13

Theft-alarm system communication
signal input

Theft-alarm system activated

Pulse signal

14

−18

−

−

−

19

Input from hazard warning light
switch

Hazard warning light switch: ON

1 V or less

20

−

−

−

21

Input from windshield wiper backup
switch

Windshield low-speed wiper switch or
windshield high-speed wiper switch: ON

1 V or less

22

Input from driver's door lock
actuator (unlock)

Driver's door lock: Unlocked

1 V or less

23, 24

−

−

−

ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-828

CONNECTOR: C-304

AC507031AB

Terminal
No.

Check item

Check condition

Normal
condition

1

Stop light switch power supply

Stop light switch: ON

Battery positive
voltage

2

Input from transmission range
switch (R)

Ignition switch: ON and selector lever: R Battery positive

voltage

3

Output to position light (LH)

When position light is illuminated

Battery positive
voltage

4

Theft-alarm siren power supply

Always

Battery positive
voltage

5

Output to windshield wiper (HI)

When windshield wipers are operating
at high speed

Battery positive
voltage

6

Output to windshield wiper (LO)

When windshield wipers are operating
at low speed

Battery positive
voltage

7

Output position light (RH)

When position light illuminated

Battery positive
voltage

8

Input from windshield wiper auto
stop switch

When windshield wipers are operating

Battery positive
voltage

9

Output to front and side turn-signal
light (LH)

When front and side turn-signal light
(LH) is illuminated

Battery positive
voltage

10

Output to engine control module
(IG1)

Ignition switch: ON

Battery positive
voltage

11

Input from engine control module
(fuel control)

Engine: Started

1 V or less

12

Output to windshield wiper (ACC)

Ignition switch: ACC

Battery positive
voltage

13

Output to windshield washer

When windshield washer is operating

Battery positive
voltage

14

Output to rear washer output

When rear washer is operating

Battery positive
voltage

15

Output to engine control module
(START)

Ignition switch: START

Battery positive
voltage

16

Output to front and side turn-signal
light (RH)

When front and side turn-signal light
(RH) is illuminated

Battery positive
voltage
