ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-793

STEP 1. Check key reminder switch connector C-211 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is key reminder switch connector C-211 in good

condition?
YES : Go to Step 2.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the input signal of key reminder

switch is normal.

STEP 2. Check the key reminder switch.
Disconnect key reminder switch connector C-211. Then check
continuity between terminals.

Q: Is the key reminder switch in good condition?

YES : Go to Step 3.
NO :  Replace the key reminder switch. Check that the input

signal of key reminder switch is normal.

STEP 3. Check the ground circuit to the key reminder
switch. Measure the resistance at key reminder switch
connector C-211.
(1) Disconnect key reminder switch connector C-211 and

measure the resistance available at the wiring harness side
of the connector.

(2) Measure the resistance value between terminal 2 and

ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 5.
NO :  Go to Step 4.

Ignition key

Tester connection Specified

condition

Removed

2

− 3

Less than 2 ohms

Inserted

2

− 3

Open circuit

AC702818AV

Connector C-211
(Harness side)

ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-794

STEP 4. Check the wiring harness between key reminder
switch connector C-211 (terminal 2) and ground.
Check the ground wires for open circuit.
Q: Is the wiring harness between key reminder switch

connector C-211 (terminal 2) and ground in good
condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Check that
the input signal of key reminder switch is normal.

STEP 5. Check ETACS-ECU connector C-315 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-315 in good condition?

YES : Go to Step 6.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the input signal of key reminder

switch is normal.

STEP 6. Check the wiring harness between key reminder
switch connector C-211 (terminal 3) and ETACS-ECU
connector C-315 (terminal 13).
Check the output lines for open circuit and short circuit.
Q: Is the wiring harness between key reminder switch

connector C-211 (terminal 3) and ETACS-ECU connector
C-315 (terminal 13) in good condition?
YES : Replace the ETACS-ECU. Check that the input signal

of key reminder switch is normal.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Check that
the input signal of key reminder switch is normal.

ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-795

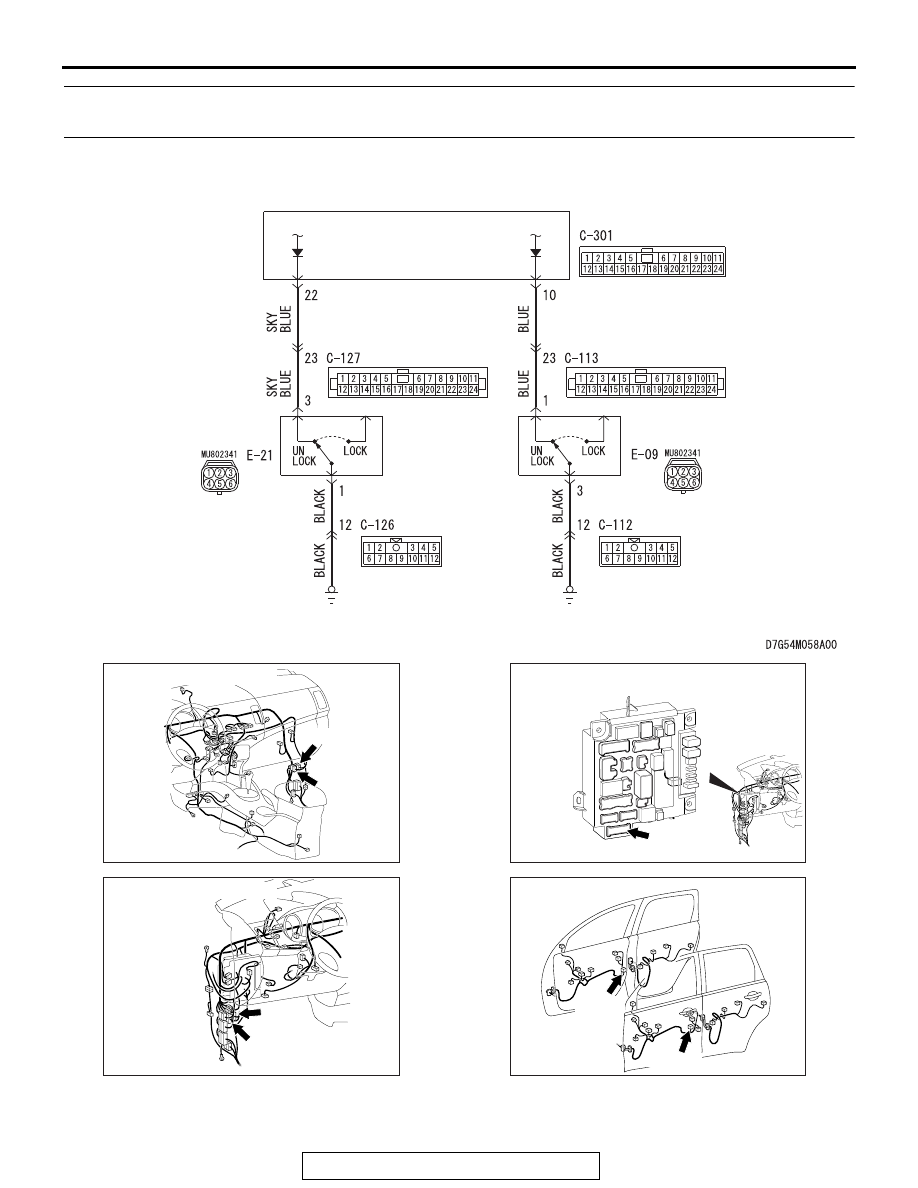

Inspection Procedure 4: ETACS-ECU cannot receive the signal of front door lock actuator (LH) or
front door lock actuator (RH).

.

AC703410

Door Look Actuator Input Circuit

FRONT DOOR
LOCK ACTUATOR (LH)

FRONT DOOR
LOCK ACTUATOR (RH)

ETACS-ECU

AB

AC703148AC

Connectors: C-112, C-113

C-112

C-113 (BR)

AC702815AL

Connectors: C-126, C-127

C-127 (BR)

C-126

ACA02655BB

Connector: C-301

AC703415 AB

Connectors: E-09, E-21

E-09 (B)

E-21 (B)

ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-796

COMMENTS ON TROUBLE SYMPTOM

The front door lock actuator (LH) or front door lock
actuator (RH) <vehicles with KOS> input signal is
used for the operation judgment of the functions
below. If the signal is abnormal, these functions will
not work normally.

• Key reminder function

• Central door locking

• KOS

• Keyless entry system

• Interior light

.

PROBABLE CAUSES

• The front door lock actuator (LH) may be defec-

tive

• The front door lock actuator (RH) may be defec-

tive <vehicles with KOS>

• The ETACS-ECU may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB992006: Extra Fine Probe

•  MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A
