ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-761

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

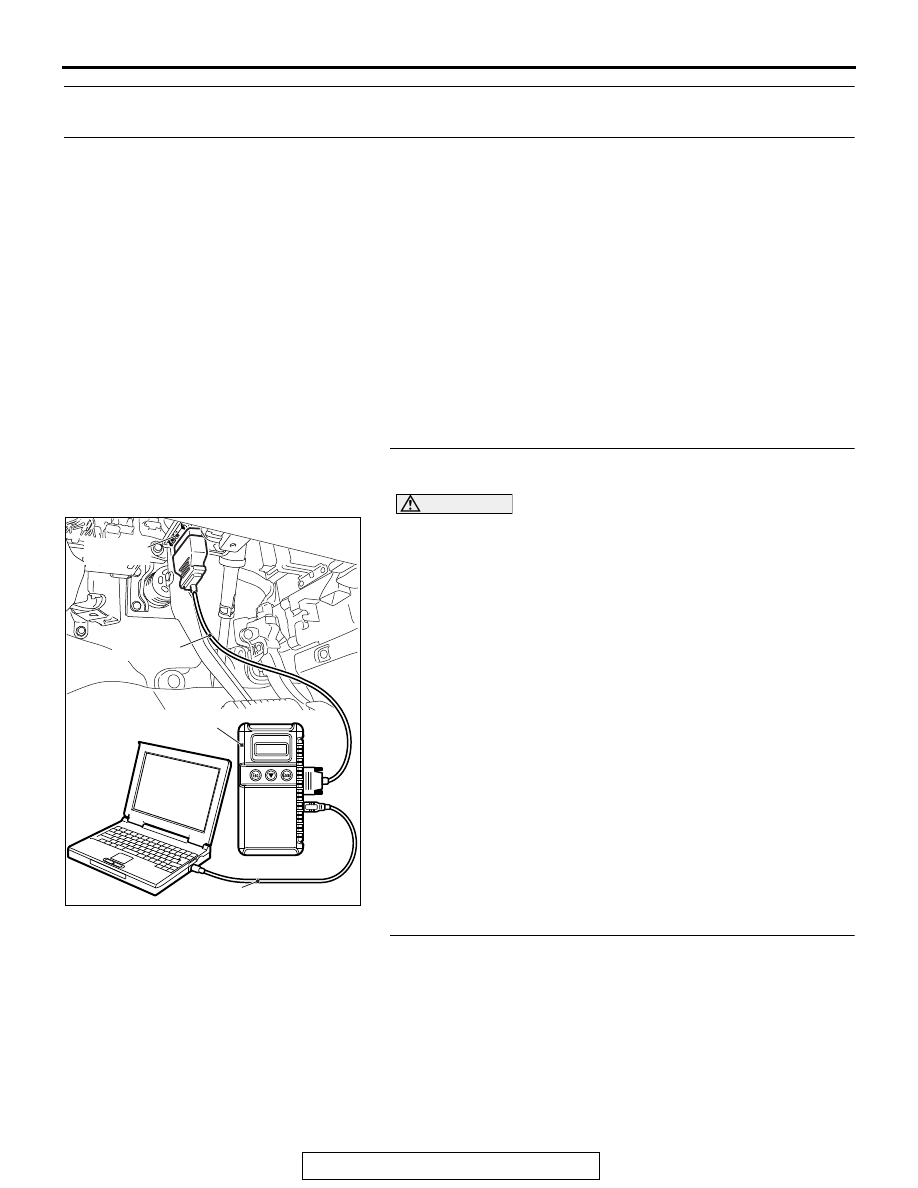

(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-730

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line. (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

STEP 2. Using scan tool MB991958, read the MMCS
diagnostic trouble code.
Check if DTC is set to the MMCS.
Q: Is the DTC set?

YES : Troubleshoot the MMCS. (Refer to

P.54A-460

.)

NO :  Go to Step 3.

STEP 3. Using scan tool MB991958, read the combination
meter diagnostic trouble code.
Check if the DTC U0245 is set to the combination meter.
Q: Is the DTC set?

YES : Go to Step 4.
NO :  Go to Step 5.

ZC501967

AC404789

AC702802

MB991824

MB991827

MB991910

Data link

connector

AB

ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-762

STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set to the ETACS-ECU.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the CAN box unit (MMCS).
NO :  The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus
lines between the CAN box unit (MMCS) and the
ETACS-ECU. (Refer to GROUP 00, How to Cope with
Intermittent Malfunction

P.00-15

)

STEP 5. Recheck for diagnostic trouble code.
Check again if the DTC is set to the ETACS-ECU.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the ETACS-ECU.
NO :  The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus
lines between the CAN box unit (MMCS) and the
ETACS-ECU. (Refer to GROUP 00, How to Cope with
Intermittent Malfunction

P.00-15

)

DTC U1108: Excess CAN-B ECU Detection

CAUTION

If the DTC U1108 is set to the ETACS-ECU, always
diagnose the CAN bus line.

.

TROUBLE JUDGMENT

If the ETACS-ECU receives the signal from the
CAN-B line ECU which does not exist in the written
variant code information, the ETACS-ECU sets DTC
U1108.

.

TROUBLESHOOTING HINTS

• The ETACS-ECU may be defective.

• The CAN bus may be defective.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-763

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-730

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line. (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

STEP 2. Variant code check.
Check the variant code written to the ETACS-ECU, and check
whether it matches the ECU connected to the CAN-B line.
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Make a correction so that the ECU connected to the

CAN-B line matches with the variant code
information, and then go to Step 3.

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the ETACS-ECU.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the ETACS-ECU.
NO :  This diagnosis is complete.

ZC501967

AC404789

AC702802

MB991824

MB991827

MB991910

Data link

connector

AB

ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-764

DTC U1120: Bus line (CAN-C) low input



DTC U1121: Bus line (CAN-C) high input

.

TROUBLE JUDGMENT

When the CAN bus line voltage is in the following
states, the ETACS-ECU set the DTC.

• If the CAN bus line voltage is 0.3 volt or less,

DTC U1120 is set.

• If the CAN bus line voltage is 4.7 volts or more,

DTC U1121 is set.

.

TROUBLESHOOTING HINTS

• The CAN bus line may be defective.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-730

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line. (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set to the ETACS-ECU.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the ETACS-ECU.
NO :  The diagnosis is complete.

ZC501967

AC404789

AC702802

MB991824

MB991827

MB991910

Data link

connector

AB
