Mitsubishi Outlander GS45X. Manual - part 1772





TRANSFER

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23D-95

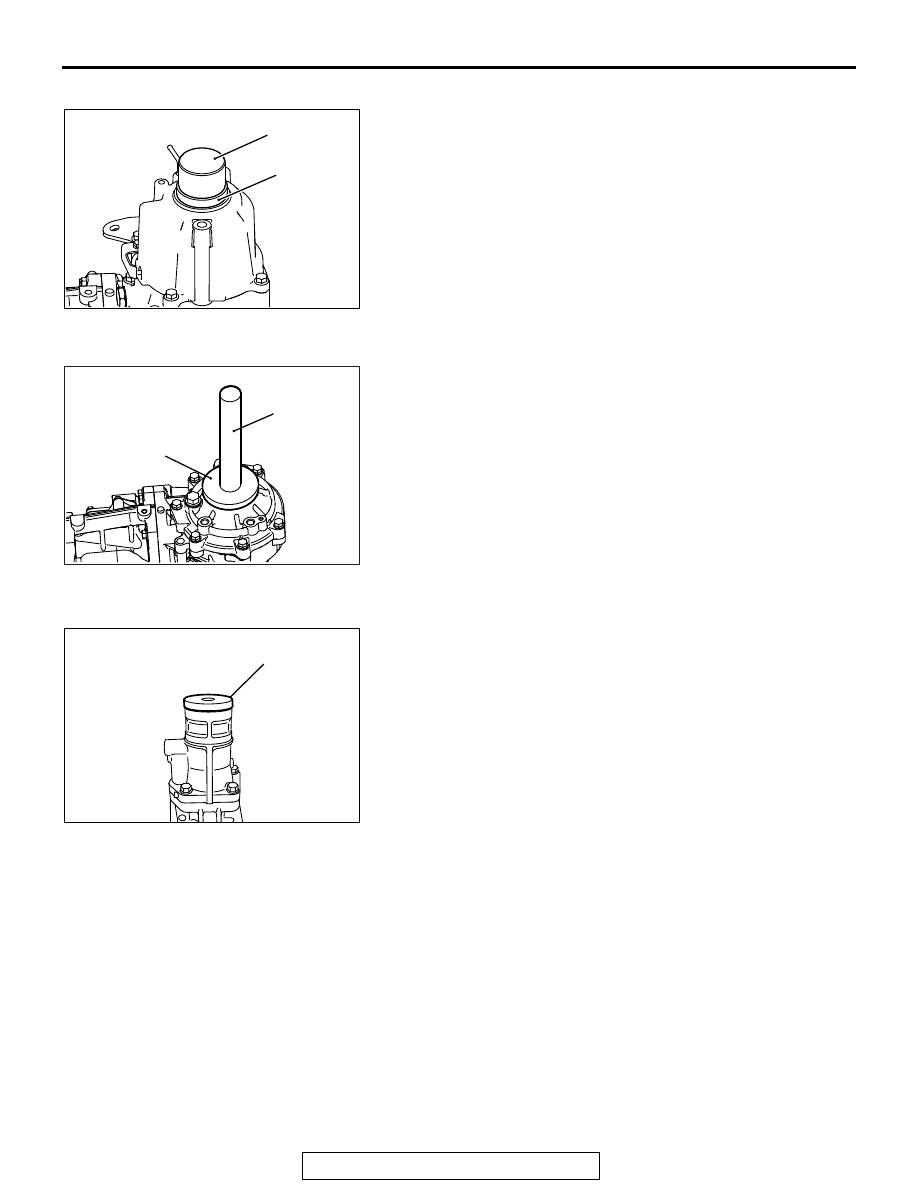

>>C<< DUST SEAL INSTALLATION

1. Using the special tool MD998777 and MD998713, install the

oil seal.

.

>>D<< OIL SEAL INSTALLATION

1. Using the special tool MB992075 and MB992142, install the

oil seal.

2. Apply specified grease to the oil seal lip area.

Specified grease: Retinax A

.

>>E<< OIL SEAL INSTALLATION

1. Using the special tool MB990936, install the oil seal.
2. Apply transfer oil to the lip of oil seal.

AK900314

MD998713

MD998777

AC

AK600036

MB992142

AD

MB992075

AK603464

MB990936

AD
