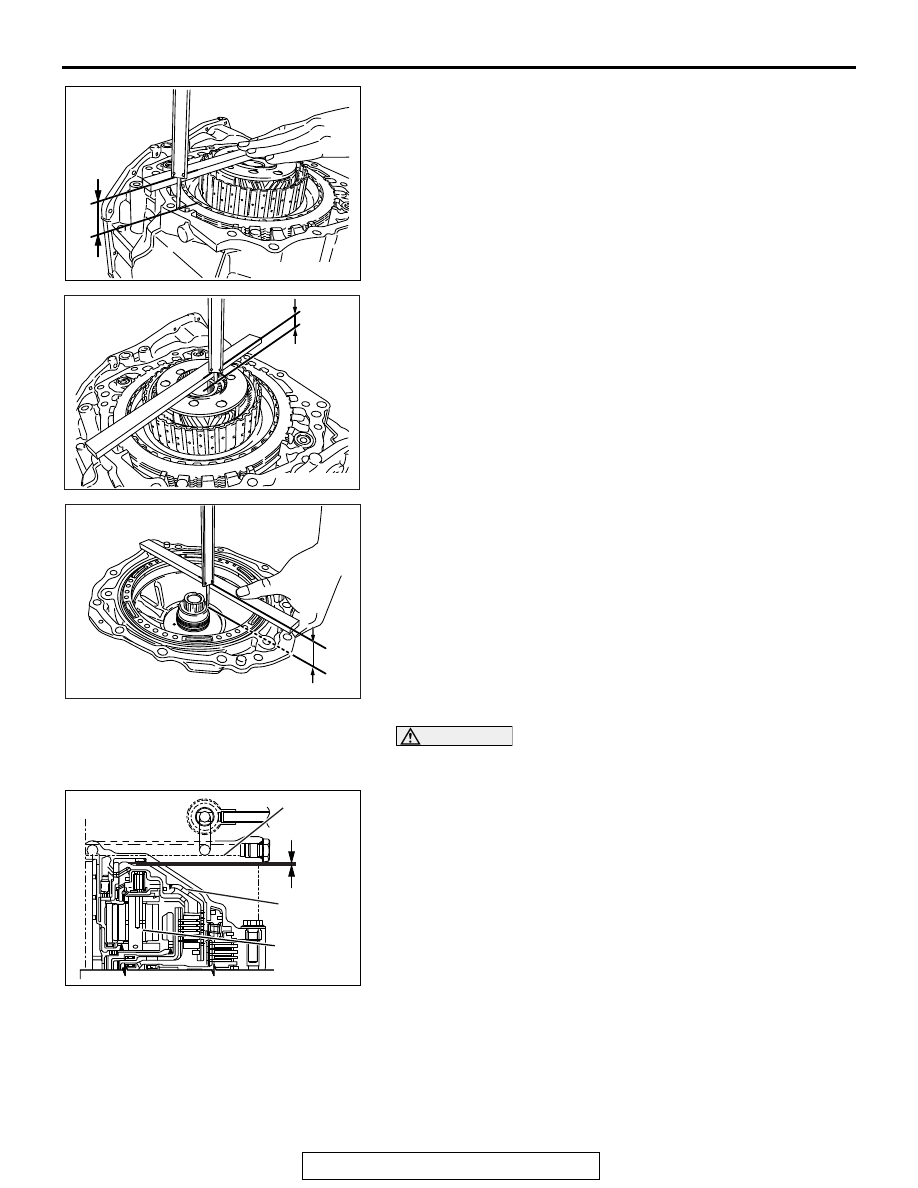

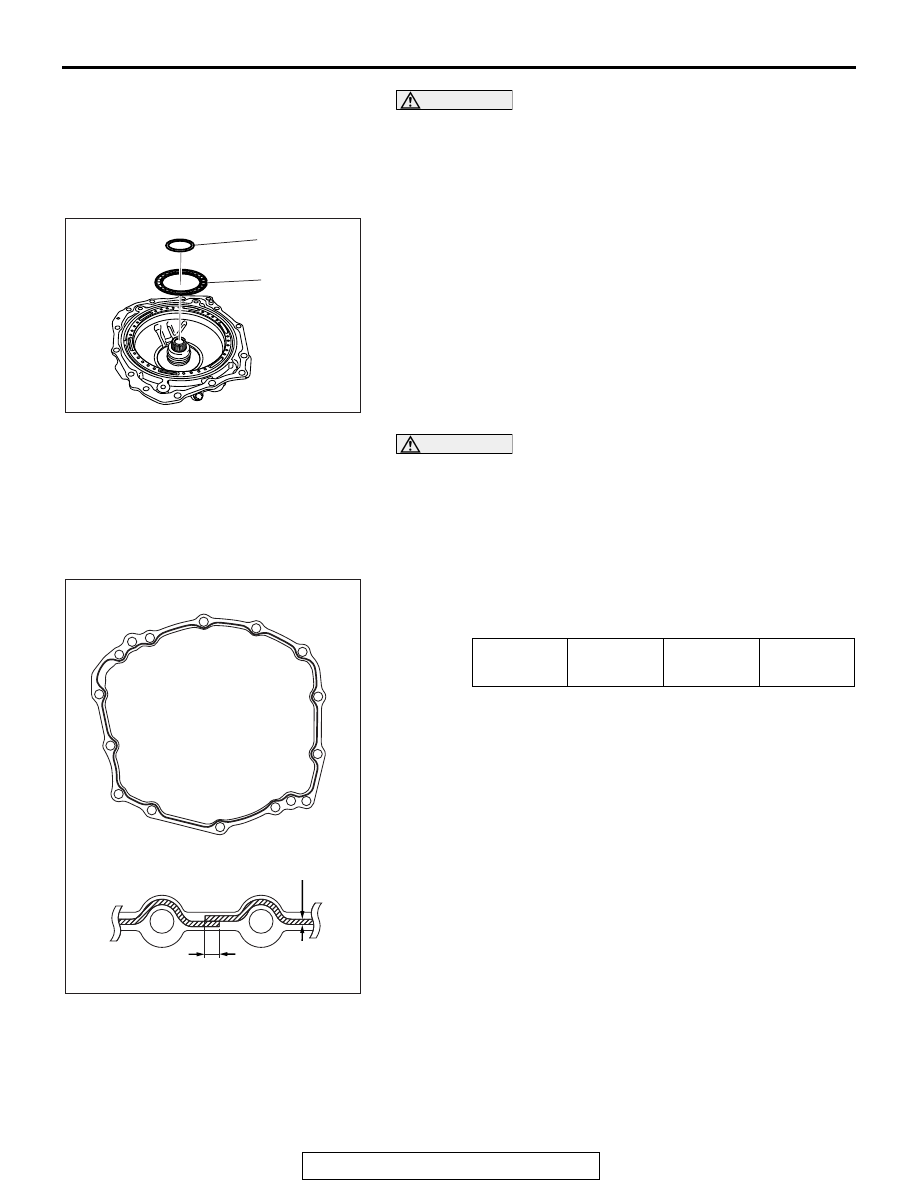

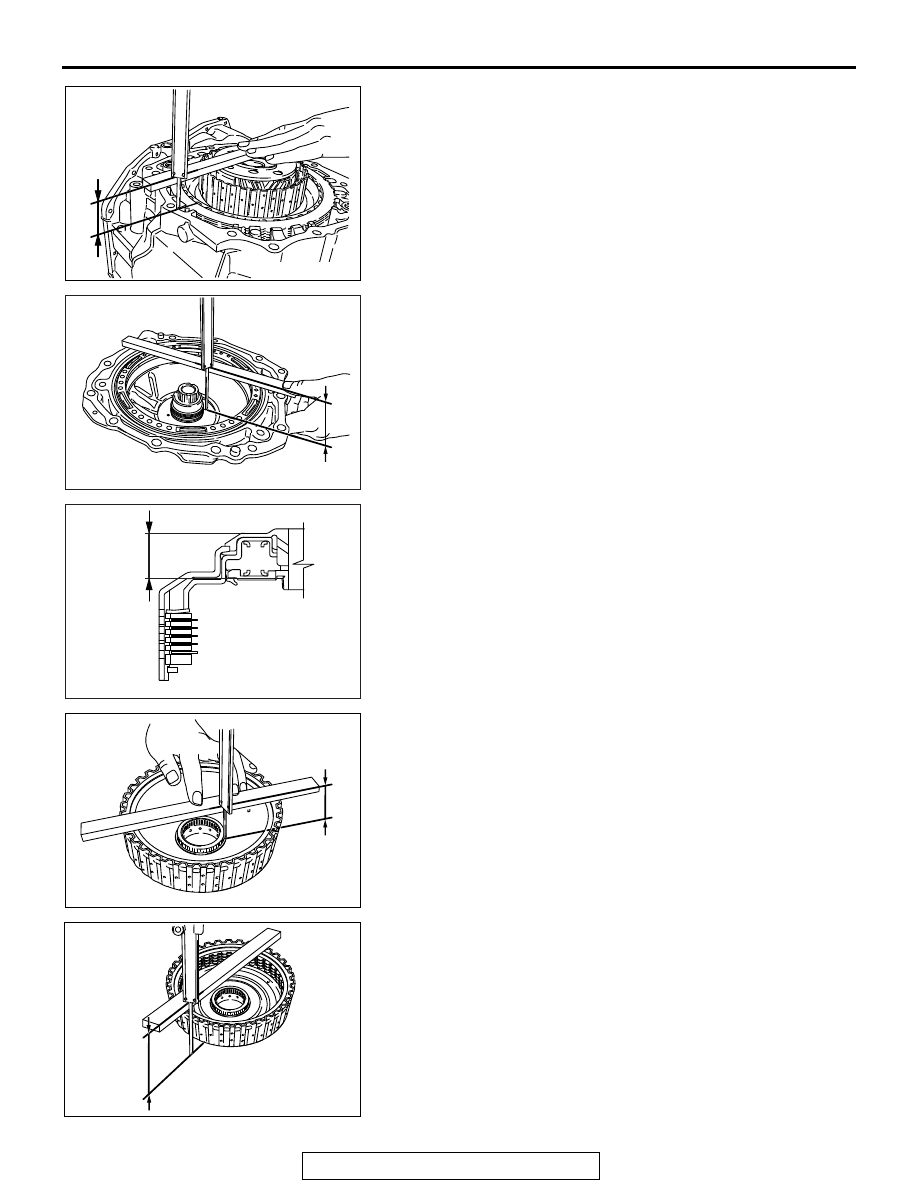

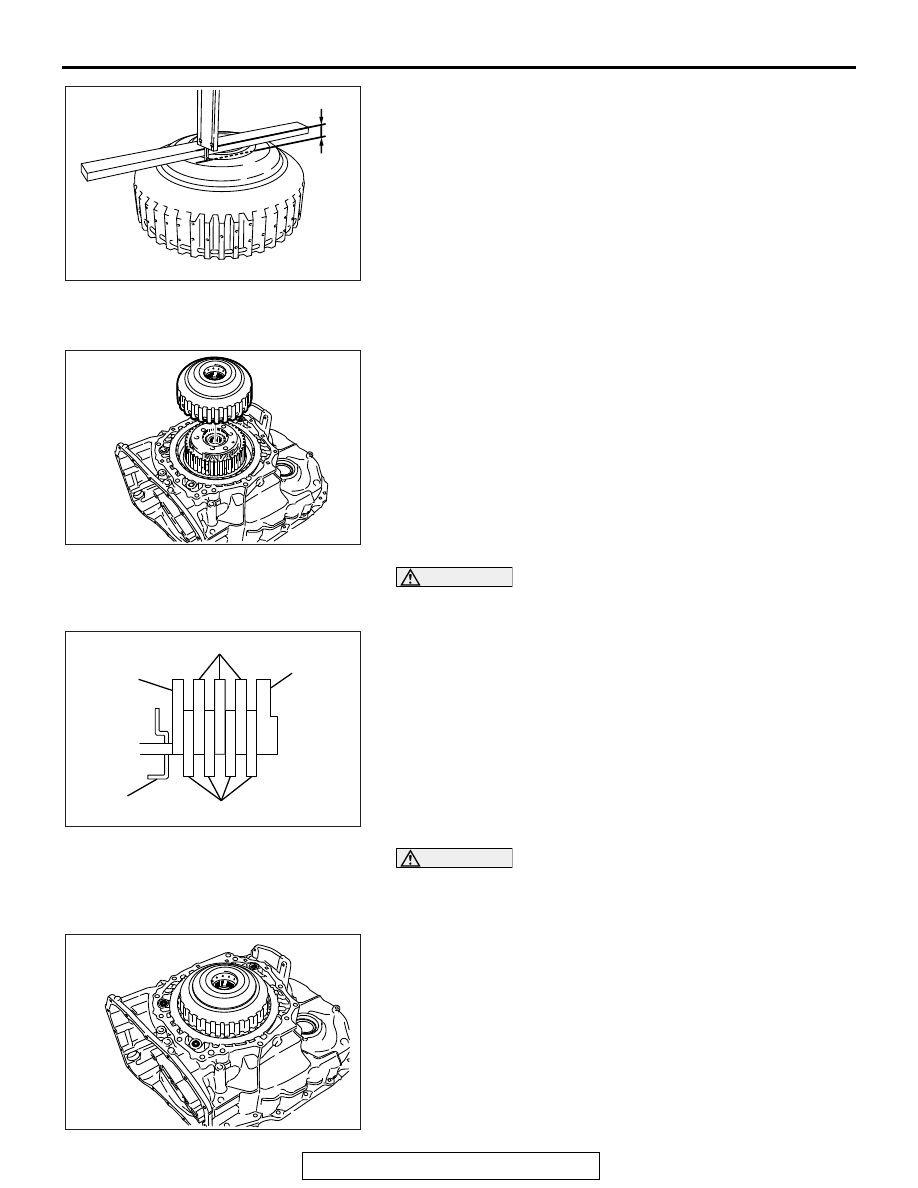

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23D-59

(1) Measure distance L1 from the reduction carrier to the end

face of the transaxle case.

(2) Measure distance L2 from the reduction carrier to the

reduction sun gear.

(3) Measure distance L3 from the end face of the side cover

to the end face of the high clutch support area.

(4) Calculate the end play using the following formula.

End play = L3 - (L1 - L2) - Thickness of straight bar -
Thickness of spacer

(5) Select an appropriate spacer so that the specified end

play is obtained. Refer to "SERVICE DATA" for selecting
the spacer.

Standard value: 0.4

− 0.7 mm (0.02 − 0.03 in)

(For reduction sun gear end play)

CAUTION

Measure the end play at more than two locations and
obtain the average of the measurements.
37.Measure the side cover end play (A) in the following

procedure. Refer to "SERVICE DATA" for the specified side
cover end play (A).

AK603401

L1

AK603402

L2

AK603403

L3

AK603404

A

Side cover

High clutch

Reduction

durm

carrier

AD

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23D-60

(1) Measure distance L1 from the reduction carrier to the end

face of the transaxle case.

(2) Measure distance L2 from the end face of the side cover

to the needle bearing mounting surface.

(3) Measure distance L3 from the contact surface with the

needle bearing of the high clutch drum to the snap ring of
the cancel cover in the following procedure.

a. Measure distance L4 from the high clutch drum edge

to the snap ring of the cancel cover.

b. Measure height L5 of the high clutch drum.

AK603401

L1

AK603405

L2

AK703809

L3

AC

AK603407

L4

AK603408

L5

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23D-61

c. Measure distance L6 from the underside of the high

clutch drum to the contact surface with the needle
bearing.

d. Calculate L3 using the following formula.

L3 = L5 - (L4 + L6) + Thickness of straight bar

(4) Calculate the end play using the following formula.

End play = L2 - (L1 + L3) - Thickness of needle bearing

(5) Select an appropriate needle bearing so that the

specified end play is obtained. Refer to "SERVICE DATA"
for selecting the needle bearing.

Standard value: 0.70

− 1.05 mm (0.028 − 0.041 in)

(For side cover end play)

38.Install the high clutch assembly.

CAUTION

Ensure that the various plates are installed in the correct
order.
39.Install the 2-6 brake drive plate, driven plate and selected

retaining plate on the transaxle case.

CAUTION

• Never reuse the O-rings.
• Apply transmission fluid to the O-rings before installa-

tion.

40.Install an O-ring on the transaxle case.

AK603409

L6

AK603310

AK603410

Driven plate

Retaining
plate

Brake piston

2-6

Drive plate

Retaining
plate

AG

AK603309

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23D-62

CAUTION

• Never reuse the spacer.
• Apply vaseline to the spacer and needle bearing before

installation.

• Ensure that the needle bearing faces the correct direc-

tion.

41.Install an appropriate spacer and the needle bearing on the

side cover.

CAUTION

• Completely degrease the FIPG-applied surface so that

water and oil including the old sealant cannot adhere to
the surface coated with the sealant. Never touch the
degreased surface by hand.

• Make sure the starting point and the ending point are

about the middle between the bolts.

42.Apply the sealant to the transaxle case mounting surface of

the side cover (almost the center line of the surface).

Specified sealant: Three Bond 1216B

AK603308

Spacer

Needle

bearing

AC

L1 mm (in) 3

− 5 (0.1 -

0.2)

L2 mm (in) 2.3 (0.09)

AK603411

L1

L2
