TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-33

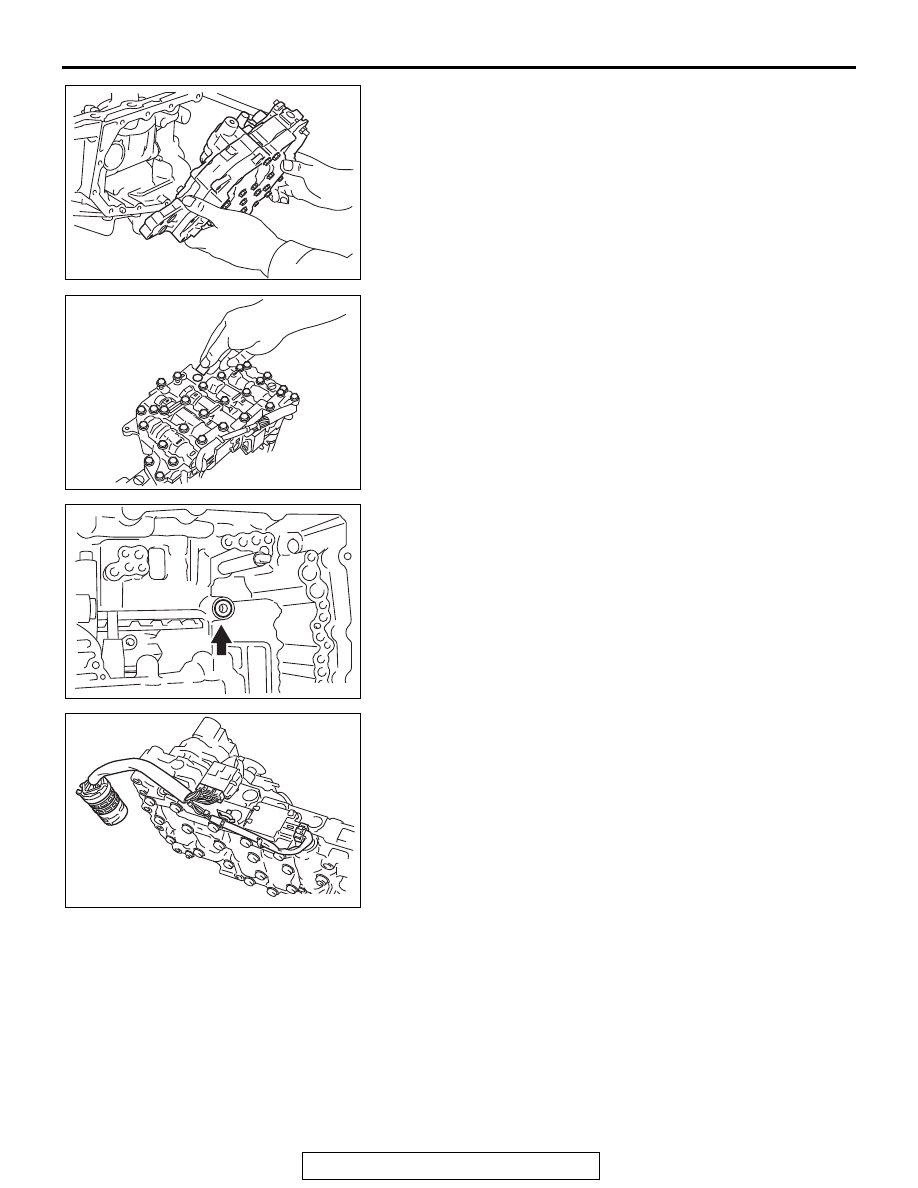

(3) Remove the control valve assembly from the transaxle

case.
NOTE: Tilt the control valve assembly, and after remov-
ing from the manual shaft side, remove the terminal body
from the transaxle case.

48.Remove the bush from the control valve.

49.Remove the lip seal from the transaxle case.

50.Remove the valve body harness from the control valve.

AKA00546

AK502228

AK502229AD

AK502233

TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-34

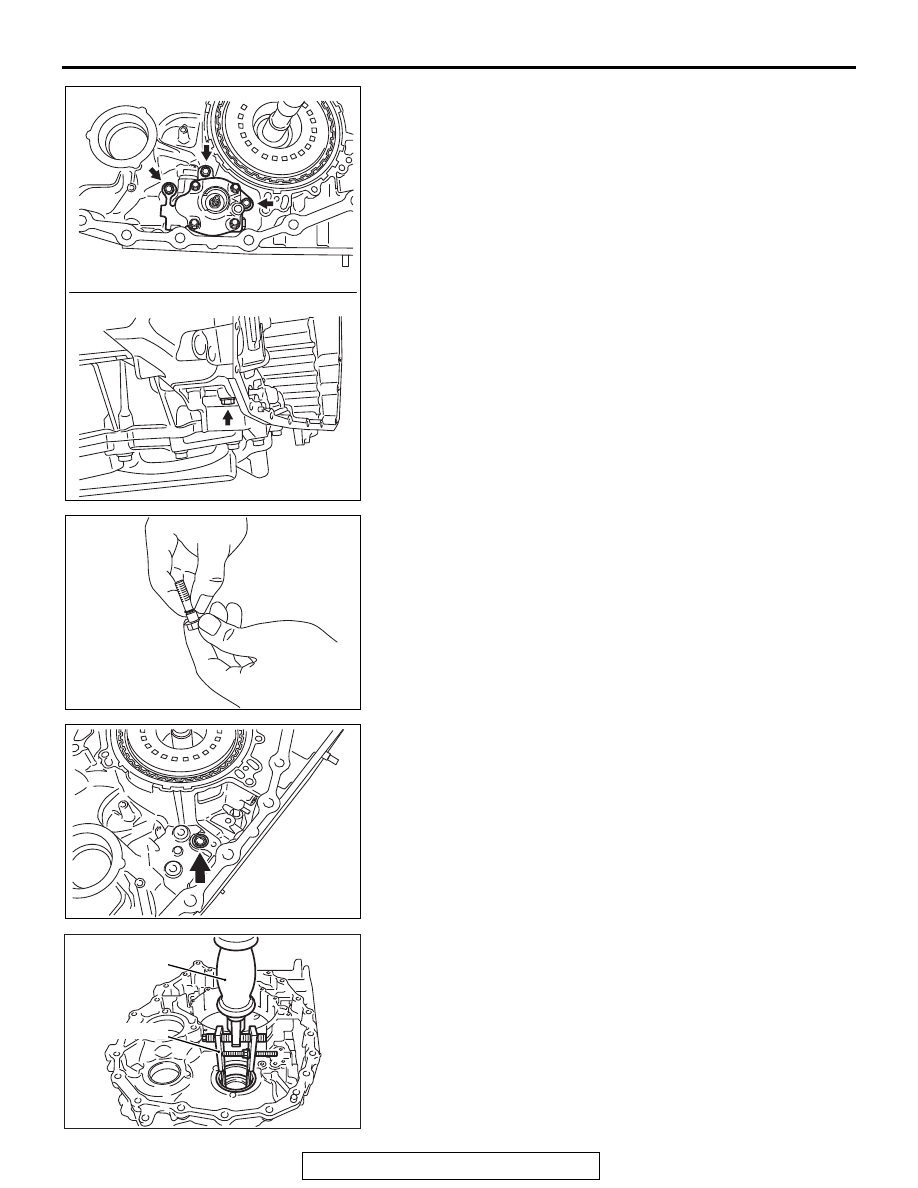

51.Remove the oil pump from the transaxle case. (One

fastening bolt is installed at the backside from the transaxle
case side.)

52.Remove the O-ring from the oil pump fastening bolt.

53.Remove the lip seal from the transaxle case.

54.Using the special tools MB990590 and MB992039, remove

outer race of the differential side bearing from the transaxle
case.

55.Using cylinder gage etc., measure the mounting bore

diameter of differential side bearing outer race at the
transaxle case side; if the standard value is not satisfied,
then replace the CVT assembly.

Standard value
φ67.949 − 67.979 mm (φ2.6752 − 2.6763 in)

AK502235AD

AK502236

AK502237AD

AK502821AD

MB992039

MB990590

TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-35

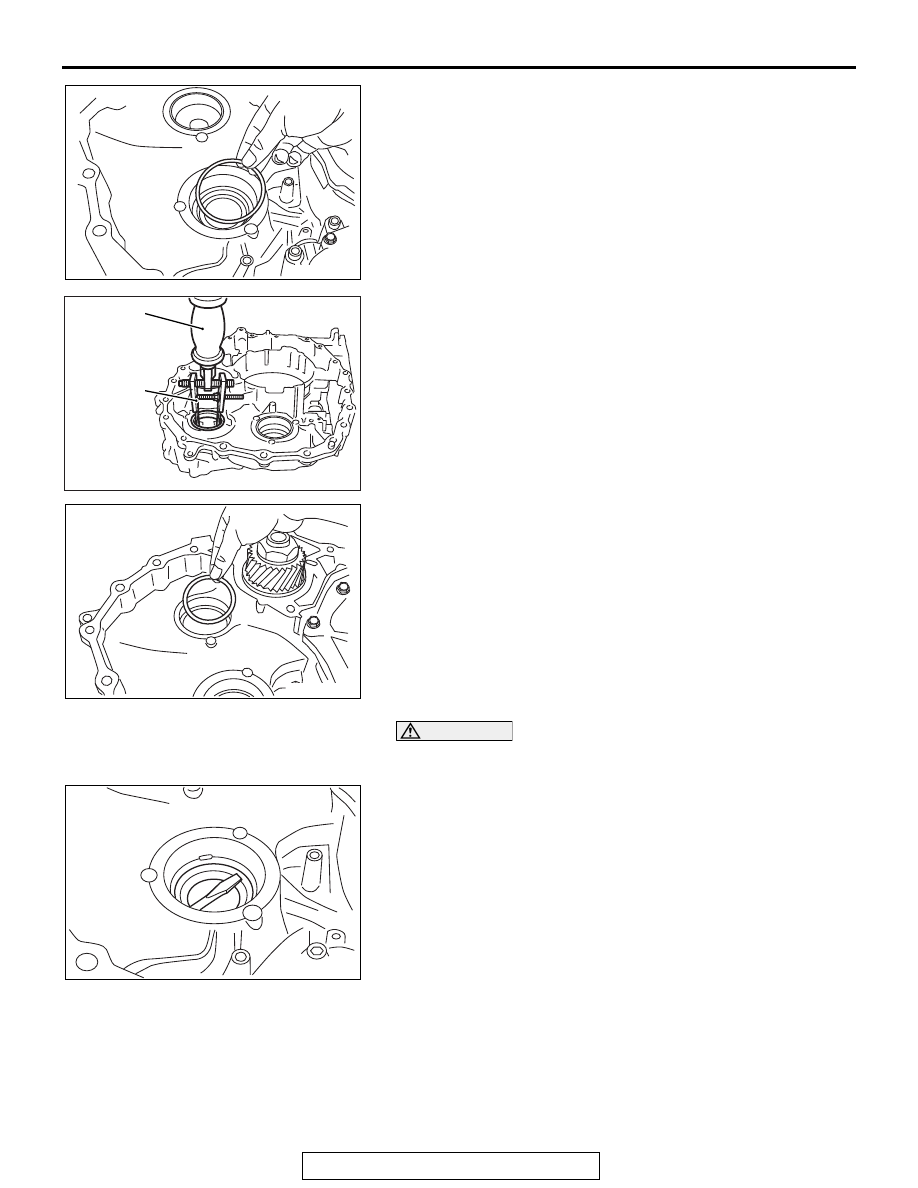

56.Remove the adjusting shim from the transaxle case.

57.Using the special tools MB990590 and MB992039, remove

outer race of the reduction gear bearing from the transaxle
case.

58.Using cylinder gage etc., measure the mounting bore

diameter of reduction gear bearing outer race at the
transaxle case side; if the standard value is not satisfied,
then replace the CVT assembly.

Standard value
φ61.949 − 61.979 mm (φ2.4389 − 2.4401 in)

59.Remove the adjusting shim from the transaxle case.

CAUTION

When removing the side oil seal, be careful not to cause
damage to the transaxle case.
60.Using a flat blade screwdriver etc., remove the side oil seal

from the transaxle case.

AK502239

AK502822 AD

MB992039

MB990590

AK502241

AK502242

TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-36

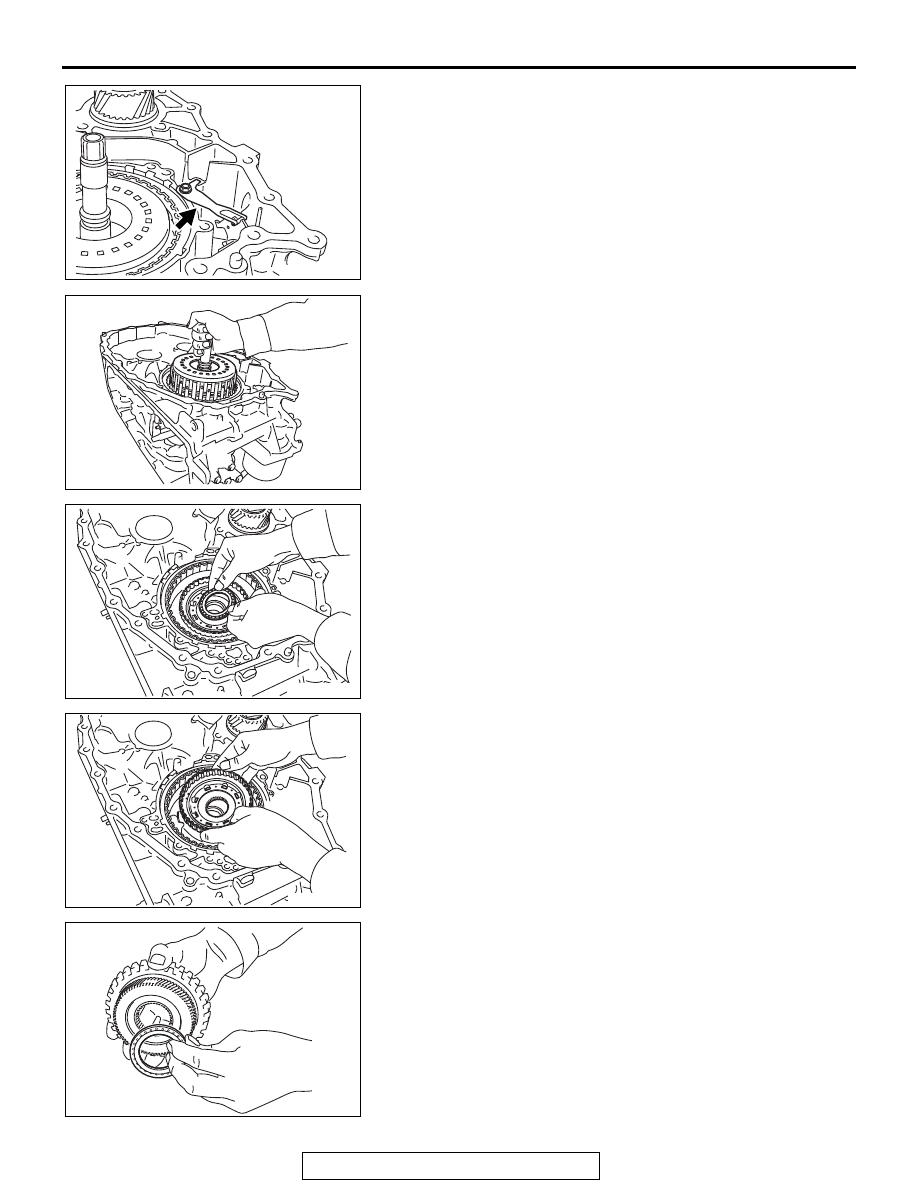

61.Remove the detent spring from the transaxle case.

62.Remove the forward clutch assembly from the transaxle

case.

63.Remove the needle bearing on forward clutch drum side

from the sun gear.

64.Remove the sun gear from the planet carrier.

65.Remove the needle bearing on primary pulley side from the

sun gear.

AK502243AD

AK502244

AK502245

AK502246

AK502247
