CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-17

.

CIRCUIT OPERATION

This circuit judges the signals of each switch
("ON/OFF", "CANCEL", "COAST/SET" and
"ACC/RES") of the cruise control switch. The ECM
detects the state of the cruise control switch by sens-
ing the voltages shown below.

• When all switches are released: 4.7 − 5.0 volts

• When the "ON/OFF" switch is pressed: 0 − 0.5

volt

• When the "CANCEL" switch is pressed: 1.0 − 1.8

volts

• When the "COAST/SET" switch is pressed: 2.3 −

3.0 volts

• When the "ACC/RES" switch is pressed: 3.5 −

4.2 volts

.

DTC SET CONDITIONS

Check Condition

• The "CRUISE" indicator light illuminates.

Judgment Criteria

• This DTC is set when the ECM terminal voltage is

different from the standard value.

• Or, this DTC is set when the "COAST/SET"

switch or "ACC/RES" switch is stuck to ON.

.

TROUBLESHOOTING HINTS (THE MOST
LIKELY CAUSES FOR THIS CASE:)

• Damaged harness or connector.

• Malfunction of the cruise control switch.

• Malfunction of the clock spring.

• Malfunction of the ECM.

DIAGNOSTIC PROCEDURE

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

• MB991223: Harness Set

• MB992006: Extra Fine Probe

• MB992110: Power Plant ECU Check Harness

ACA03171AB

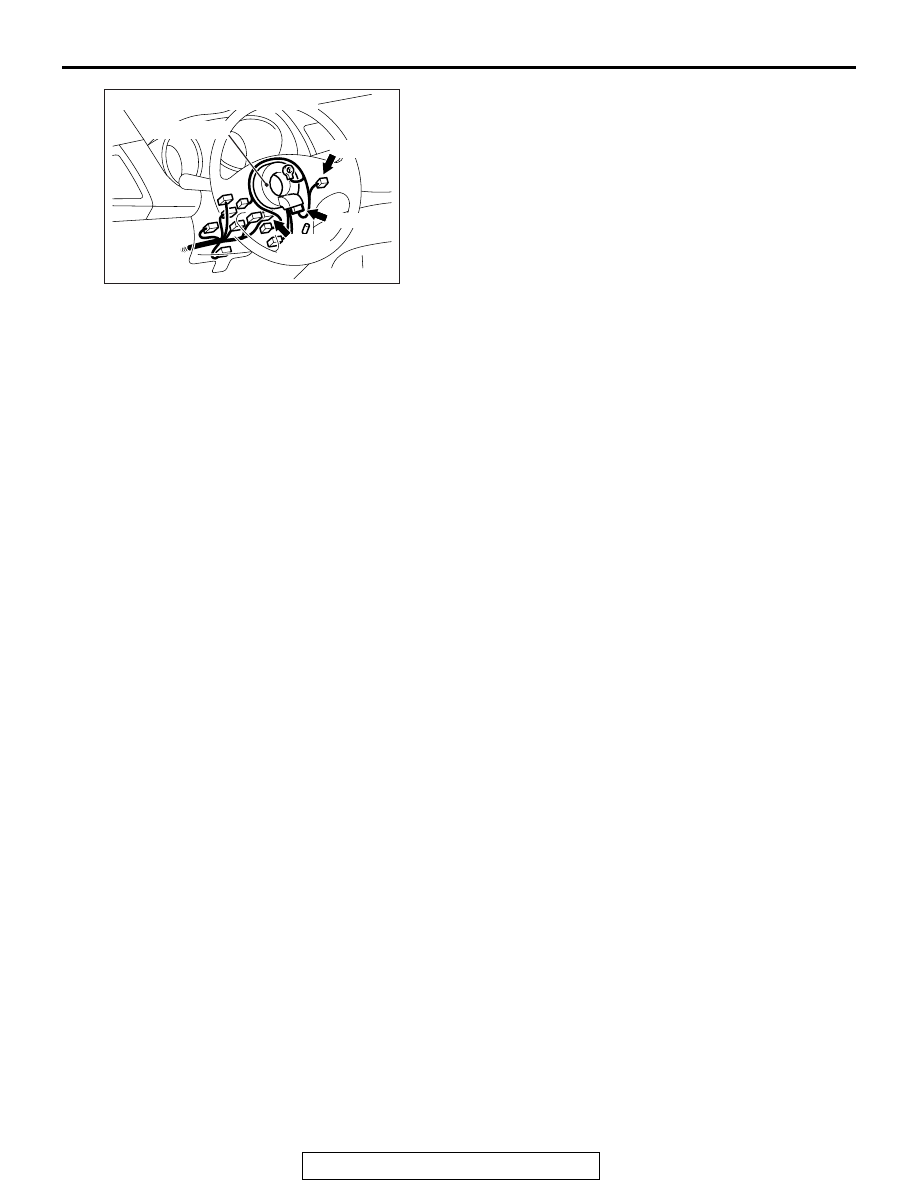

Connectors: C-201, C-202, C-204

C-201 (L)

C-204

C-202

Clock spring

CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-18

STEP 1. Using scan tool MB991958, check the data list
item 86: Main switch, item 92: Set switch, item 91: Resume
switch and item 75: Cancel switch.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

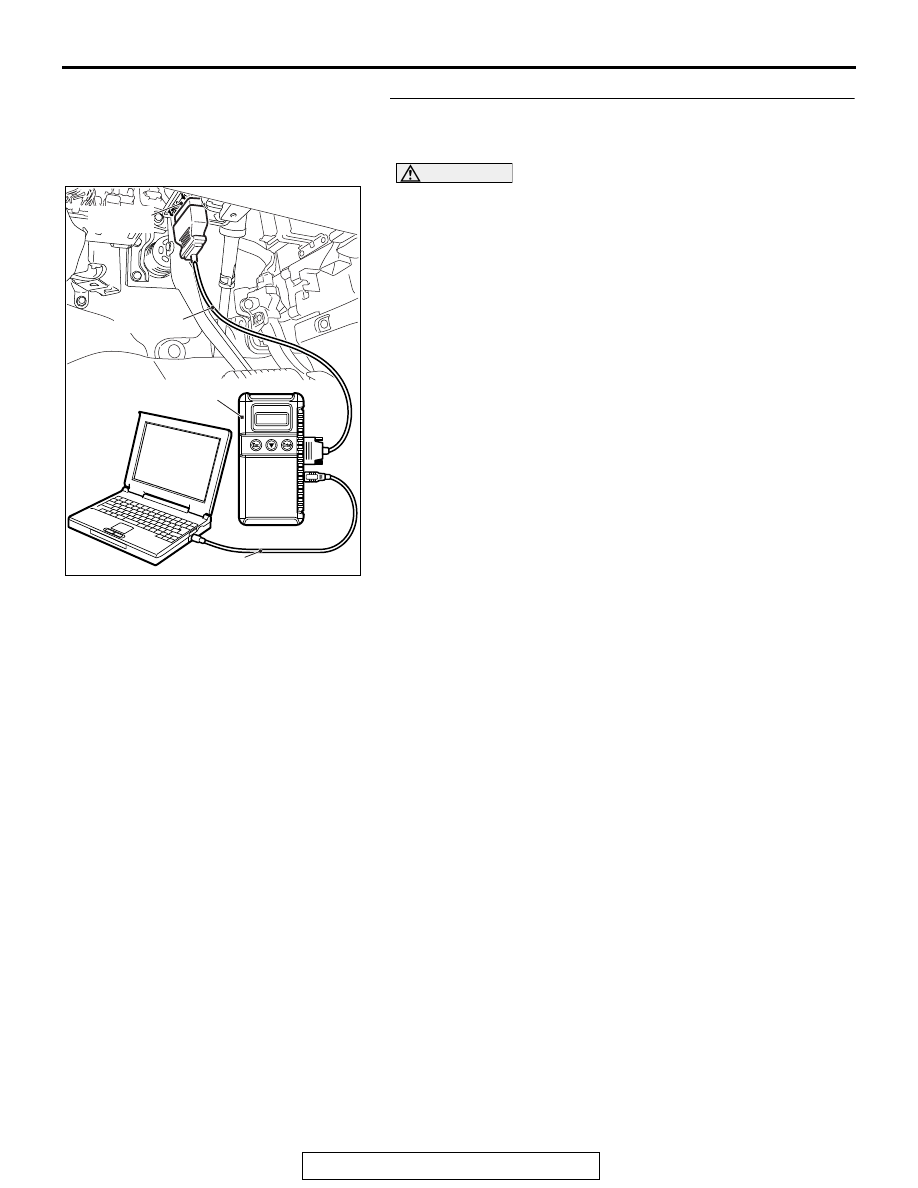

(1) Connect scan tool MB991958 to the data link connector

(Refer to

P.17-12

).

(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to data reading mode for cruise

control system (Refer to

P.17-12

).

• Item 75: Cancel switch.

• When "CANCEL" switch is pressed, the display on

scan tool MB991958 should be "ON".

• When "CANCEL" switch is released, the display on

scan tool MB991958 should be "OFF".

• Item 86: Main switch.

• When "ON/OFF" switch is pressed, the display on

scan tool MB991958 should be "ON".

• When "ON/OFF" switch is pressed again, the display

on scan tool MB991958 should be "OFF".

• Item 91: Resume switch.

• When "ACC/RES" switch is pressed, the display on

scan tool MB991958 should be "ON".

• When "ACC/RES" switch is released, the display on

scan tool MB991958 should be "OFF".

• Item 92: Set switch.

• When "COAST/SET" switch is pressed, the display

on scan tool MB991958 should be "ON".

• When "COAST/SET" switch is released, the display

on scan tool MB991958 should be "OFF".

Q: Is the switch operating properly?

YES : Go to Step 25.
NO :  Go to Step 2.

ZC501967

AC404789

AC703911AB

MB991824

MB991827

MB991910

Data link

connector

CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-19

STEP 2. Measure the power supply voltage at cruise
control switch connector C-201 by backprobing.
(1) Remove the cruise control switch from the steering wheel

with the cruise control switch connector connected (Refer to

P.17-65

).

(2) Connect the negative (

−) battery terminal that was

disconnected when the driver's air bag module was
removed.

(3) Do not disconnect cruise control switch connector C-201.
(4) Turn the ignition switch to the "ON" position.
(5) Do not operate the cruise control switch.
(6) Measure the power supply voltage between cruise control

switch connector C-201 terminal number 3 and body
ground by backprobing.

Q: Is the measured voltage between 4.7 and 5.0 volts?

YES : Go to Step 14.
NO :  Go to Step 3.

AC703921AB

C-201 Harness connector:
Harness side

CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-20

STEP 3. Measure the power supply voltage at ECM
connector B-11.
(1) Disconnect all the connectors from the ECM [Refer to

GROUP 13A, Engine Control Module (ECM)

P.13A-887

]

<2.4L Engine> or [Refer to GROUP 13B, Engine Control
Module (ECM)

P.13B-904

] <3.0L Engine>.

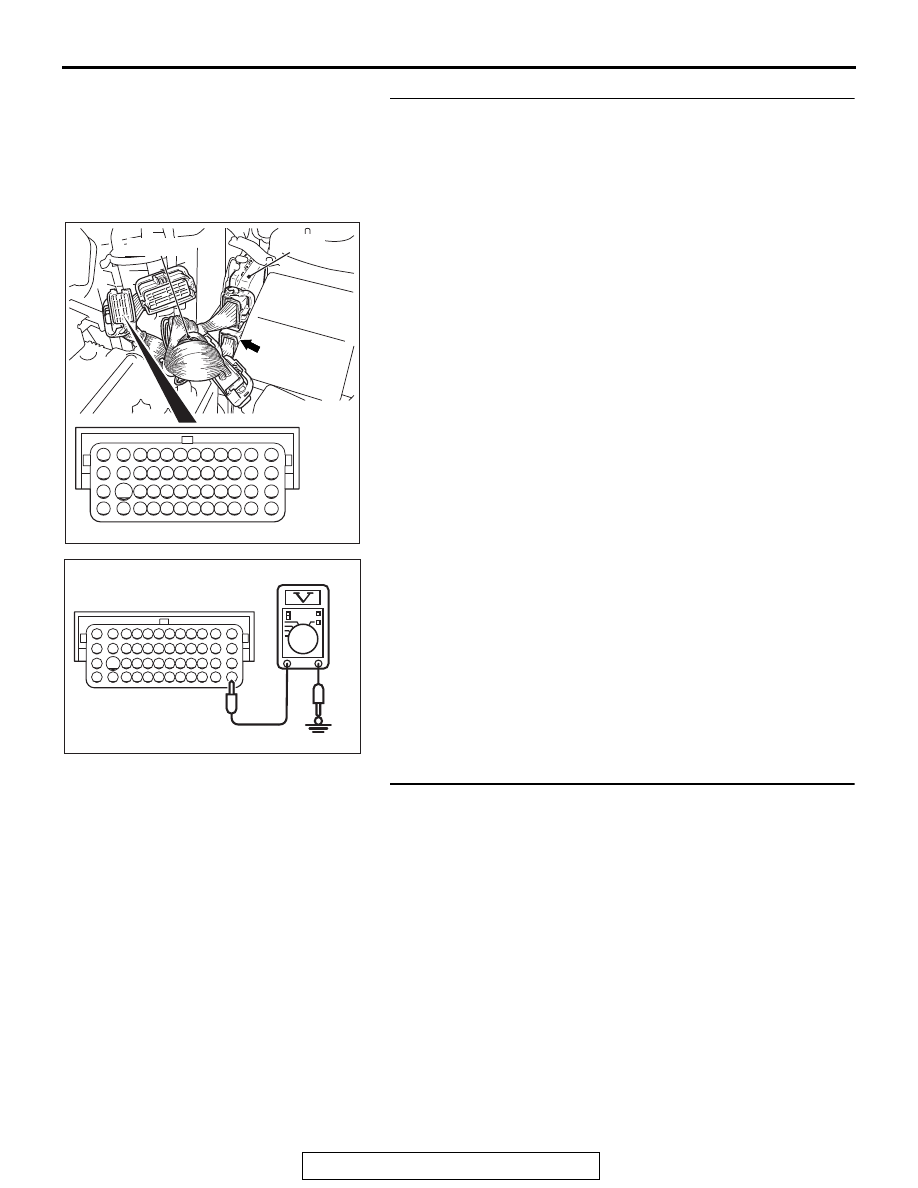

(2) Connect special tool MB992110 between the ECM and the

body-side harness connector.

(3) Turn the ignition switch to the "ON" position.
(4) Do not operate the cruise control switch.

(5) Measure the power supply voltage between special tool

48-pin connector terminal number 107 (ECM connector
B-11 terminal number 107) and body ground.

Q: Is the measured voltage between 4.7 and 5.0 volts?

YES : Go to Step 10.
NO :  Go to Step 4.

STEP 4. Check ECM connector B-11 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.
Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Are the connector and terminals in good condition?

YES : Go to Step 5.
NO :  Repair or replace the damaged connector. Then go to

Step 26.

AC707789AD

MB992110

ECM

48-pin female connector

82 81 80 79 78 77 76 75 74 73 72 71

94 93 92 91 90 89 88 87 86 85 84 83

99 98 97 96 95

100

101

102

103

104

105

106

112

113

114

109 108

107

110

111

115

116

117

118

B-11 (GR)

AC709999

82 81 80 79 78 77 76 75 74 73 72 71

94 93 92 91 90 89 88 87 86 85 84 83

99 98 97 96 95

100

101

102

103

104

105

106

112

113

114

109 108

107

110

111

115

116

117

118

AB

Special tool 48-pin connector:
Component side
