ENGINE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-9

ACCELERATOR PEDAL

REMOVAL AND INSTALLATION

M1171003001249

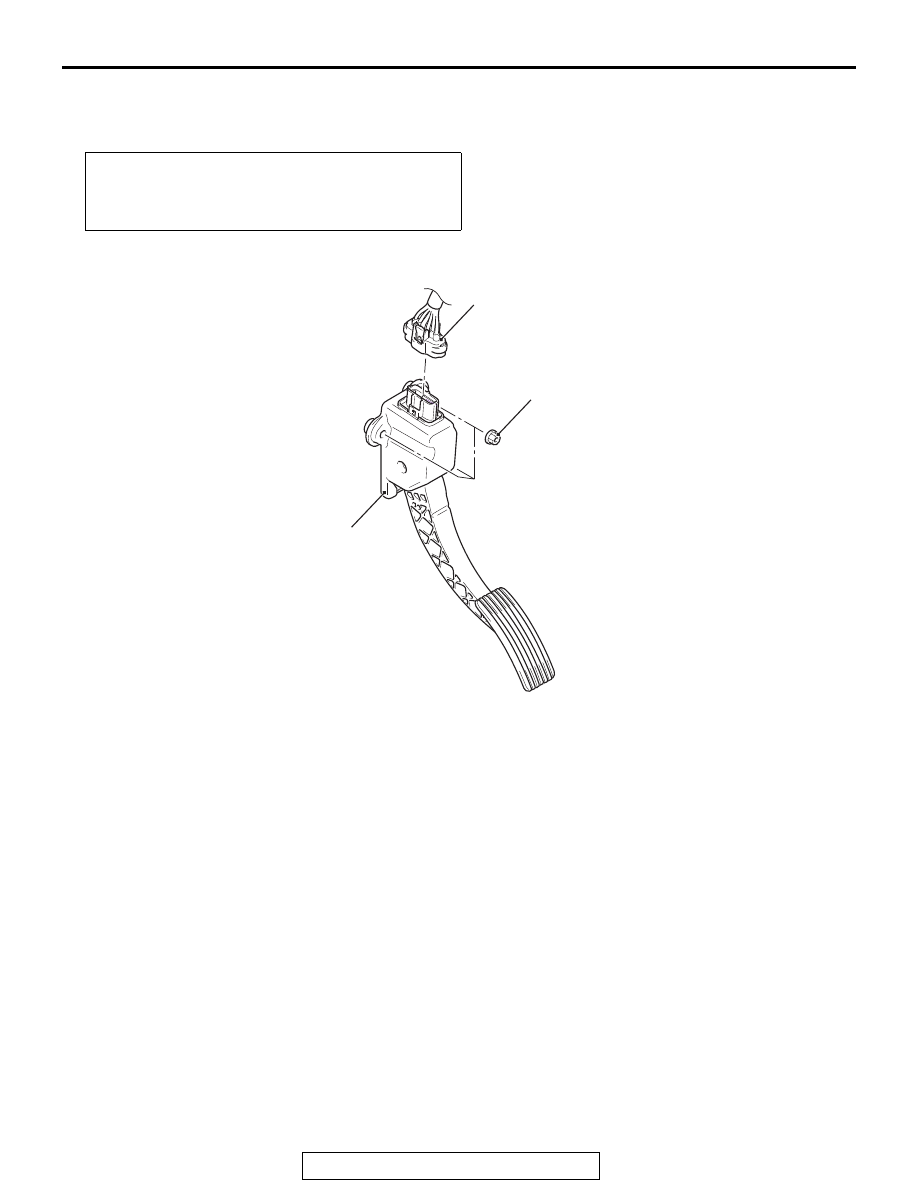

<Vehicles without aluminum pedal pad>

Pre-removal and Post-installation Operation
Bottom Cover Assembly (driver's seat) Removal and
Installation (Refer to GROUP 52A, Instrument Panel
Assembly

P.52A-2

).

AC610167AD

2

1

15 ± 3 N·m
11 ± 2 ft-lb

Removal steps

1.

Accelerator pedal position sensor
connector

2.

Accelerator pedal assembly

ENGINE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-10

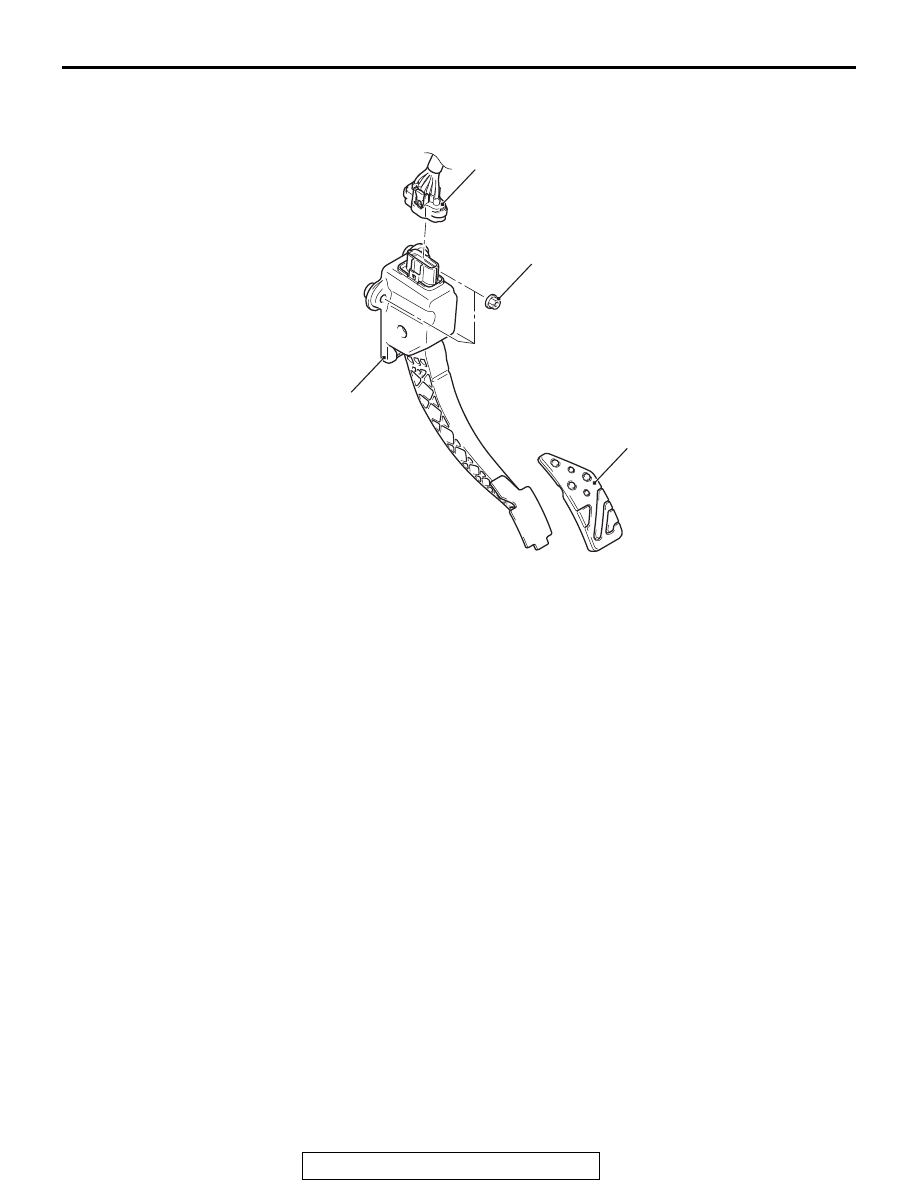

<Vehicles with aluminum pedal pad>

AC806114AB

1

3

2

15 ± 3 N·m
11 ± 2 ft-lb

Removal steps

1.

Accelerator pedal pad

2.

Accelerator pedal position sensor
connector

3.

Accelerator pedal assembly

Removal steps (Continued)

CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-11

CRUISE CONTROL

GENERAL INFORMATION

M1172000101660

By using the cruise control system, the driver can
drive at preferred speeds in a range of approximately
40 to 160 km/h (25 to 100 mph) without depressing
the accelerator pedal.

For this cruise control system, in conjunction with the
electronic throttle valve control system, the engine
control module (ECM) electronically controls the
throttle valve.

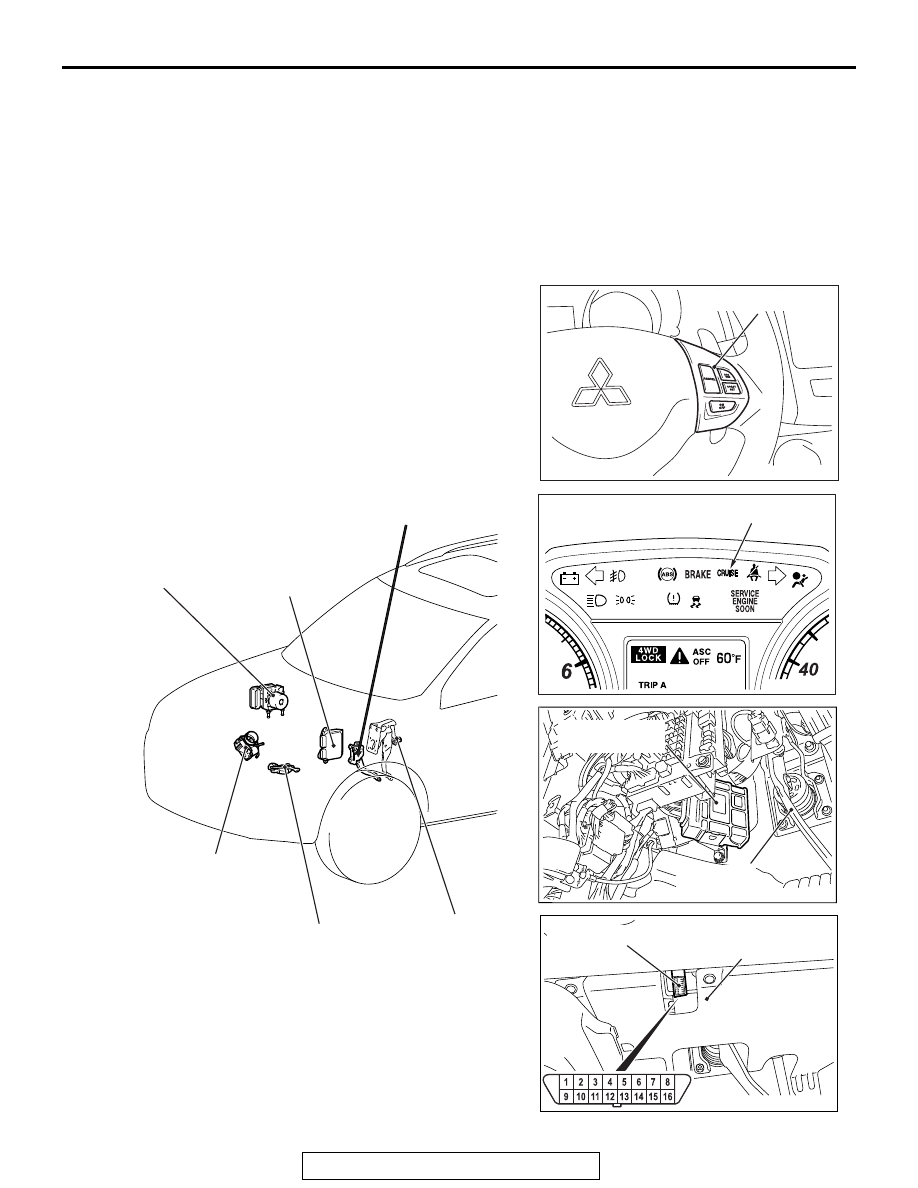

CONSTRUCTION DIAGRAM

ACA03167

AC808870

AC606634

AC601373

ACA03397

Engine control
module (ECM)

Hydraulic unit assembly
[incorporating ABS-ECU
<Vehicles without ASC>
or ASC-ECU
<Vehicles with ASC>]

AB

Throttle body assembly
(incorporating throttle
position sensor and
throttle actuator control
motor)

Transmission
range switch

Accelerator pedal assembly
[incorporating accelerator
pedal position sensor
(APP sensor)]

Stoplight switch

"CRUISE" indicator light

Cruise control switch

Transaxle control
module (TCM)

Brake pedal
assembly

Data link connector

Bottom cover assembly
(driver's side)

CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-12

CRUISE CONTROL SYSTEM DIAGNOSIS

INTRODUCTION TO CRUISE CONTROL SYSTEM DIAGNOSIS

M1172003300370

The cruise control system allows driving without
stepping on the accelerator pedal by setting a ran-
dom speed between 40 km/h (25 mph) and 160 km/h
(100 mph). Malfunctions in this system can be inves-
tigated by the following methods.

Cruise control system diagnostic trouble
codes

The cruise control system consists of the engine con-
trol module (ECM), control switches and sensors.
The switches and sensors monitor the state of the
vehicle. The ECM controls the throttle valve opening
angle in the throttle body in accordance with the
input signals from the switches and sensors. If the
ECM detects a malfunction on any of those compo-
nents, the ECM estimates where the problem may be
occurring, and will set a diagnostic trouble code.
Diagnostic trouble codes cover the cruise control
switch, stoplight switch and ECM.

DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1172002000860

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will check most of the
possible causes of an cruise control system malfunc-
tion.
1. Gather information from the customer.
2. Verify that the condition described by the

customer exists.

3. Check the vehicle for any cruise control system

DTC. (Refer to

P.17-12

, Diagnostic Function

−

How to Read Diagnostic Trouble Codes).

4. If you can verify the condition but no cruise control

system DTCs are set, the malfunction may be
intermittent. (Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How

to Cope with Intermittent Malfunctions

P.00-15

).

5. If you can verify the condition but there are no

cruise control system DTCs, find the fault. (Refer
to

P.17-38

, Symptom Chart).

6. If there is an cruise control system DTC, record

the number of the code, then erase the code.
(Refer to

P.17-12

, Diagnostic Function

− How to

Erase Diagnostic Trouble Codes).

7. Re-create the cruise control system DTC set

conditions to see if the same cruise control
system DTC will set again. (Refer to

P.17-12

,

Diagnostic Function

− How to Read Diagnostic

Trouble Codes).

• If the same cruise control system DTC sets

again, perform the diagnostic procedures for the
set code. (Refer to

P.17-15

, Diagnostic Trouble

Code Chart).

DIAGNOSTIC FUNCTION

M1172004900483

HOW TO READ DIAGNOSTIC TROUBLE CODES

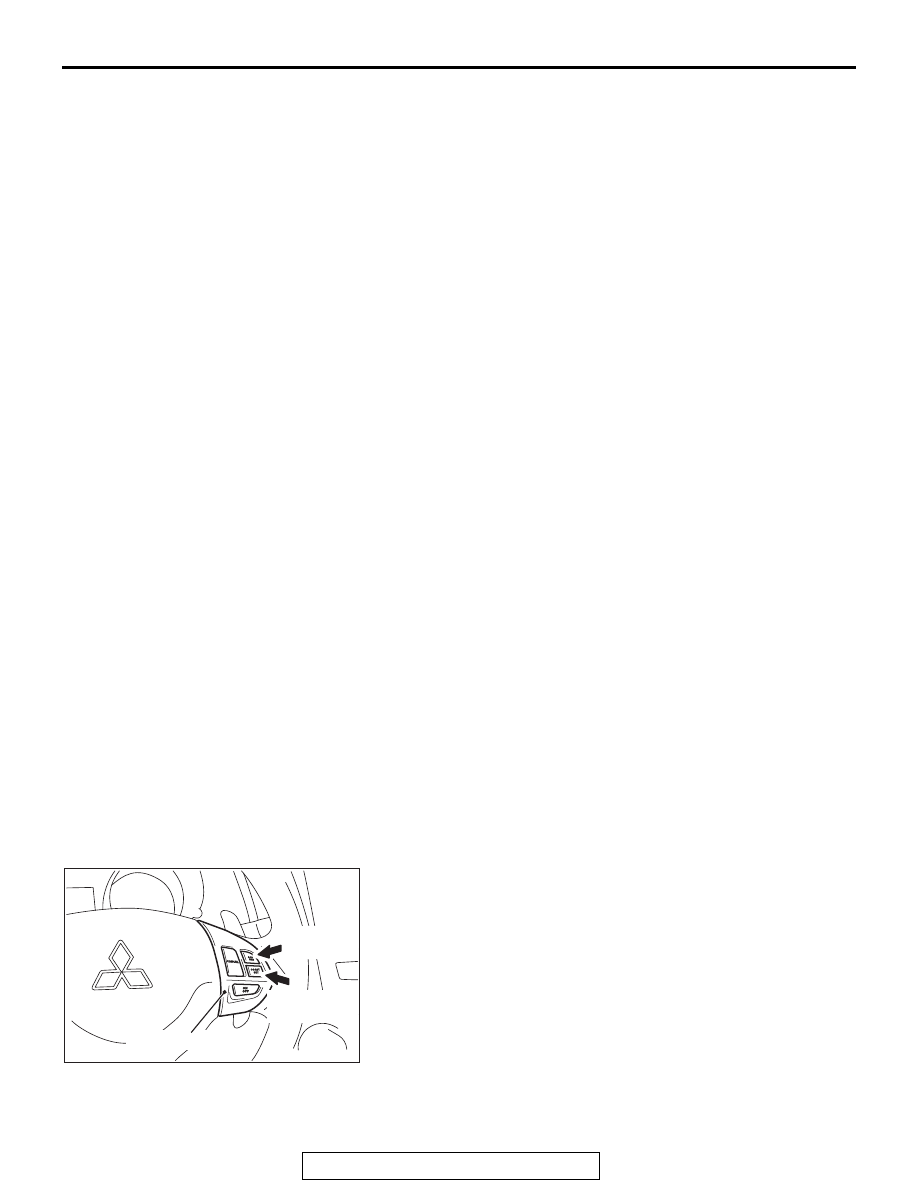

1. Turn the ignition switch to the "ON" position while press the

"COAST/SET" switch. Then, within one second, release the
"COAST/SET" switch and press the "ACC/RES" switch.

AC601371AU

"COAST/SET"
switch: ON

"ACC/RES"
switch: ON

Cruise control switch
