RADIATOR

TSB Revision

ENGINE COOLING

14-51

INSTALLATION SERVICE POINT

.

>>A<< RADIATOR HOSE/HOSE CLIP INSTALLA-
TION

CAUTION

Never reuse the hose clip whose claw is broken off to pre-
vent the rusting.
1. Make mating mark on a new hose clip in the same position

as the remove one.

2. Insert the radiator hose until the protrusion of the pipe.
3. Align the mating marks on the radiator hose and hose clip.
4. Remove the hose clip claw and shorten the hose clip, then

install the radiator hose.

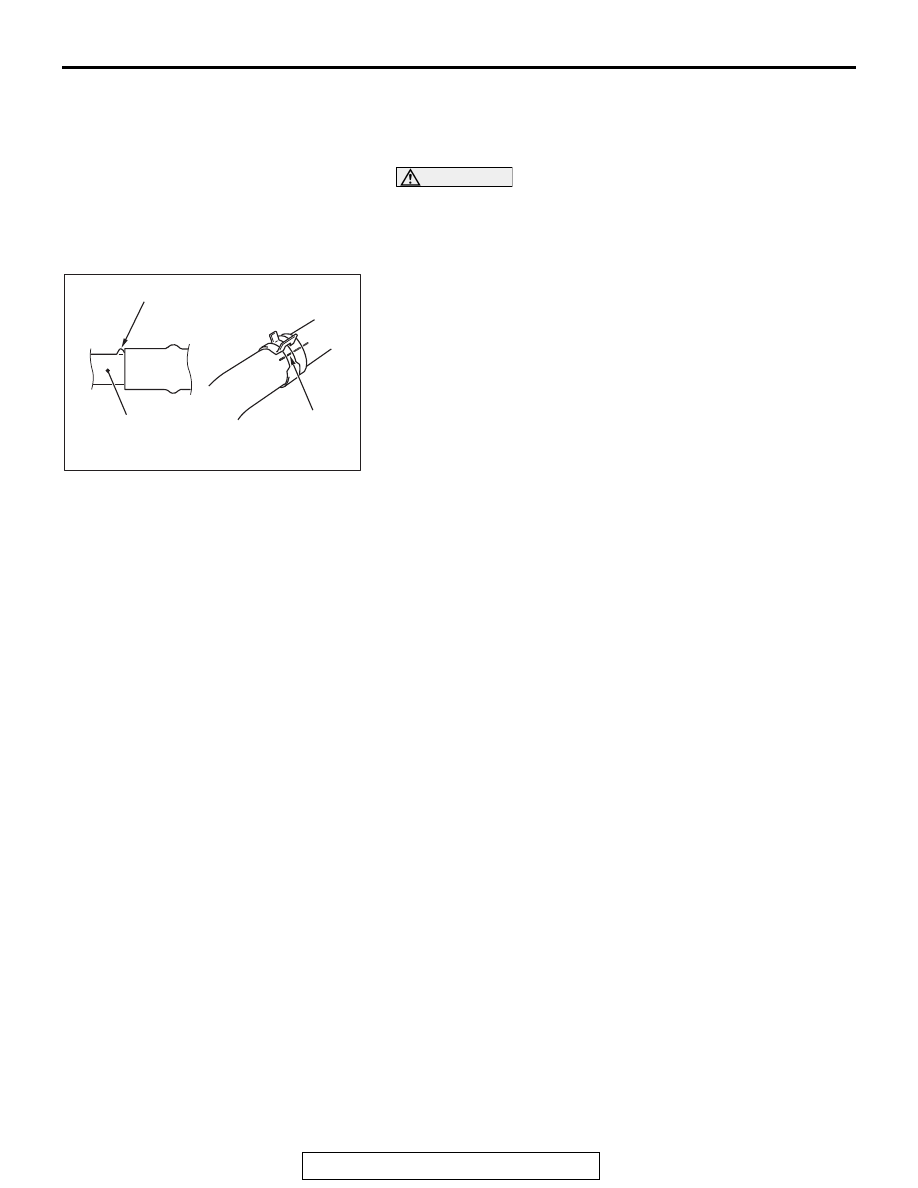

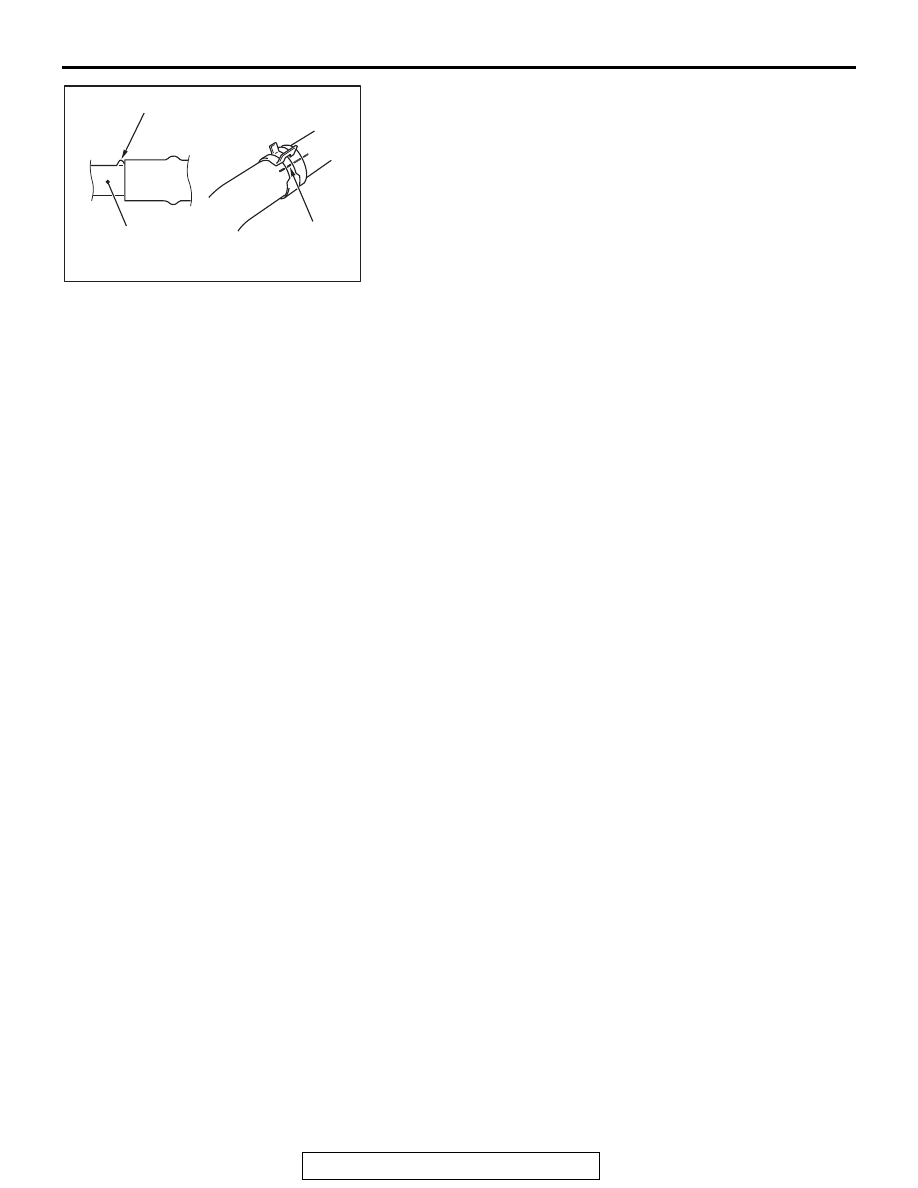

AC606082

Protrusion

Pipe, fitting, or etc.

AU

Mating marks

RADIATOR

TSB Revision

ENGINE COOLING

14-52

REMOVAL AND INSTALLATION <3.0L ENGINE>

M1141001502903

Pre-removal operation
• Engine coolant Draining (Refer to

P.14-26

).

• Air Cleaner Assembly Removal (Refer to GROUP 15, Air

Cleaner

P.15-5

).

Post-installation operation
• Air Cleaner Assembly Installation (Refer to GROUP 15,

Air Cleaner

P.15-5

).

• Engine Coolant Refilling and Check (Refer to

P.14-26

).

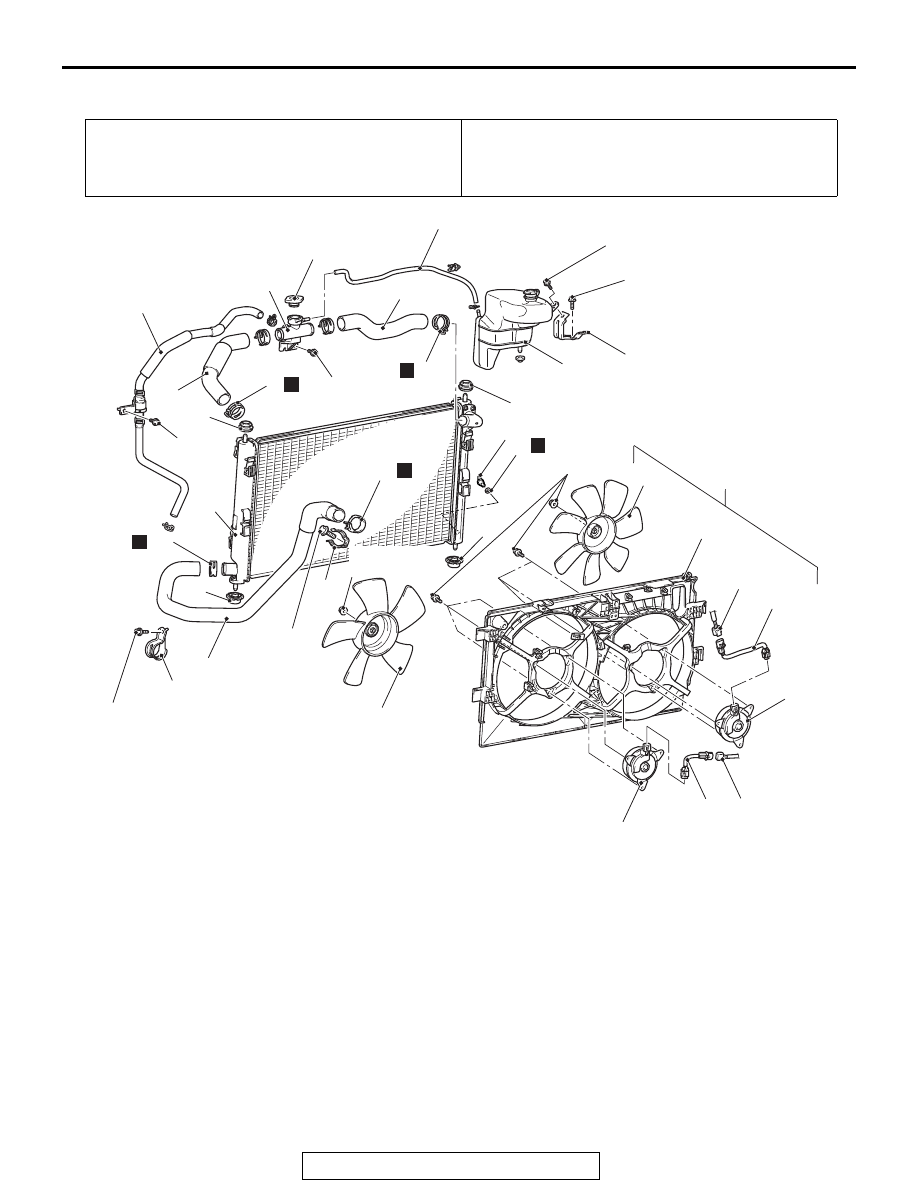

AC808978

4

3

5

7

8

10

19

19

20

11

23

21

22

29

24

16

15

AB

17

N

6

9

N

12

N

13

12

N

14

18

25

26

27

28

20

12 ± 2 N·m
106 ± 17 in-lb

12 ± 2 N·m
106 ± 17 in-lb

10 ± 2 N·m
89 ± 17 in-lb

22 ± 3 N·m
16 ± 2 ft-lb

12 ± 2 N·m
106 ± 17 in-lb

5.0 ± 1.0 N·m
44 ± 8 in-lb

3.4 ± 0.5 N·m
30 ± 4 in-lb

1

2

N

3.4 ± 0.5 N·m
30 ± 4 in-lb

Radiator removal steps

•

Engine room under cover front
(Refer to GROUP 51

− Under

Cover

P.51-22

).

1.

Radiator drain plug

2.

O-ring

3.

Radiator cap

4.

A/T fluid cooler feed hose assembly

5.

Radiator condenser tank hose

<<

A

>> >>

A

<< 6.

Hose clip

<<

A

>> >>

A

<< 7.

Radiator upper hose

8.

Radiator cap assembly

<<

A

>> >>

A

<< 9.

Hose clip

<<

A

>> >>

A

<< 10. Radiator upper hose

11. Radiator hose clamp

<<

A

>> >>

A

<< 12. Hose clip

<<

A

>> >>

A

<< 13. Radiator lower hose

14. Radiator hose support
15. Radiator fan motor connector
16. Condenser fan motor connector
17. Fan, fan motor and fan shroud

assembly

•

Headlight support upper panel
(Refer to GROUP 42A

− Loose

Panel

P.42A-222

).

18. Radiator assembly
19. Support upper insulator
20. Support lower insulator

Radiator removal steps

RADIATOR

TSB Revision

ENGINE COOLING

14-53

REMOVAL SERVICE POINT

.

<<A>> HOSE CLIP/RADIATOR HOSE REMOVAL

1. Make mating marks on the radiator hose and the hose clip

as shown to install them in the original position.

2. Break off the tip of hose clip claw and spread out the hose

clip, then disconnect the radiator hose.
NOTE: If there is a hose clip claw, the hose clip cannot
spread to capacity because the claw contacts the hose clip.

INSTALLATION SERVICE POINT

.

>>A<< RADIATOR HOSE/HOSE CLIP INSTALLA-
TION

CAUTION

Never reuse the hose clip whose claw is broken off to pre-
vent the rusting.
1. Make mating mark on a new hose clip in the same position

as the remove one.

21. Radiator condenser tank
22. Radiator condenser tank bracket

Fan shroud removal steps

5.

Radiator condenser tank hose

<<

A

>> >>

A

<< 6.

Hose clip

<<

A

>> >>

A

<< 7.

Radiator upper hose

8.

Radiator cap assembly

15. Radiator fan motor connector
16. Condenser fan motor connector
17. Fan, fan motor and fan shroud

assembly

23. Radiator fan
24. Radiator fan motor harness
25. Radiator fan motor
26. Condenser fan
27. Condenser fan motor harness
28. Condenser fan motor
29. Fan shroud

Radiator removal steps

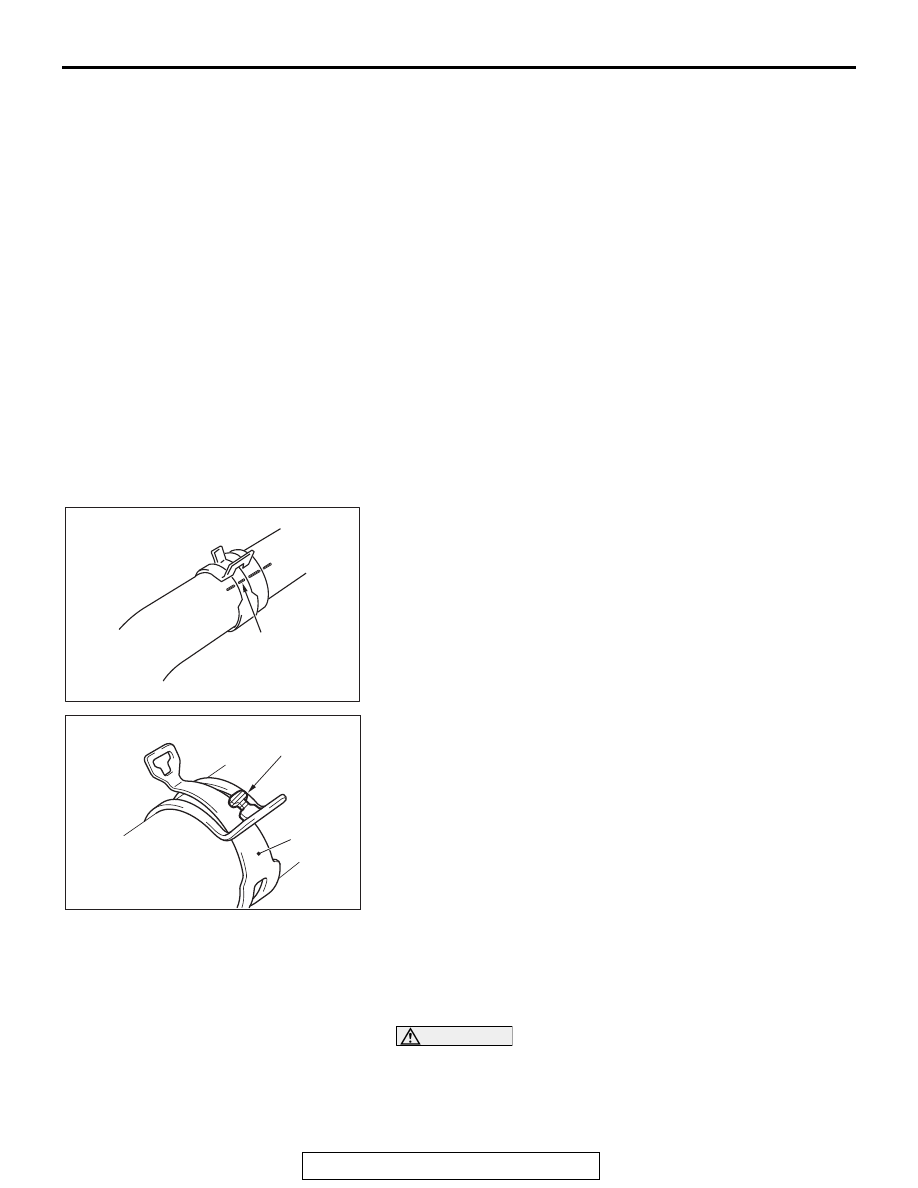

AC606081

Mating marks

AE

AC302615

Hose clip

Claw (Tip)

AE

RADIATOR

TSB Revision

ENGINE COOLING

14-54

2. Insert the radiator hose until the protrusion of the pipe.
3. Align the mating marks on the radiator hose and hose clip.
4. Remove the hose clip claw and shorten the hose clip, then

install the radiator hose.

AC606082

Protrusion

Pipe, fitting, or etc.

AU

Mating marks
