WATER HOSE AND WATER PIPE

TSB Revision

ENGINE COOLING

14-43

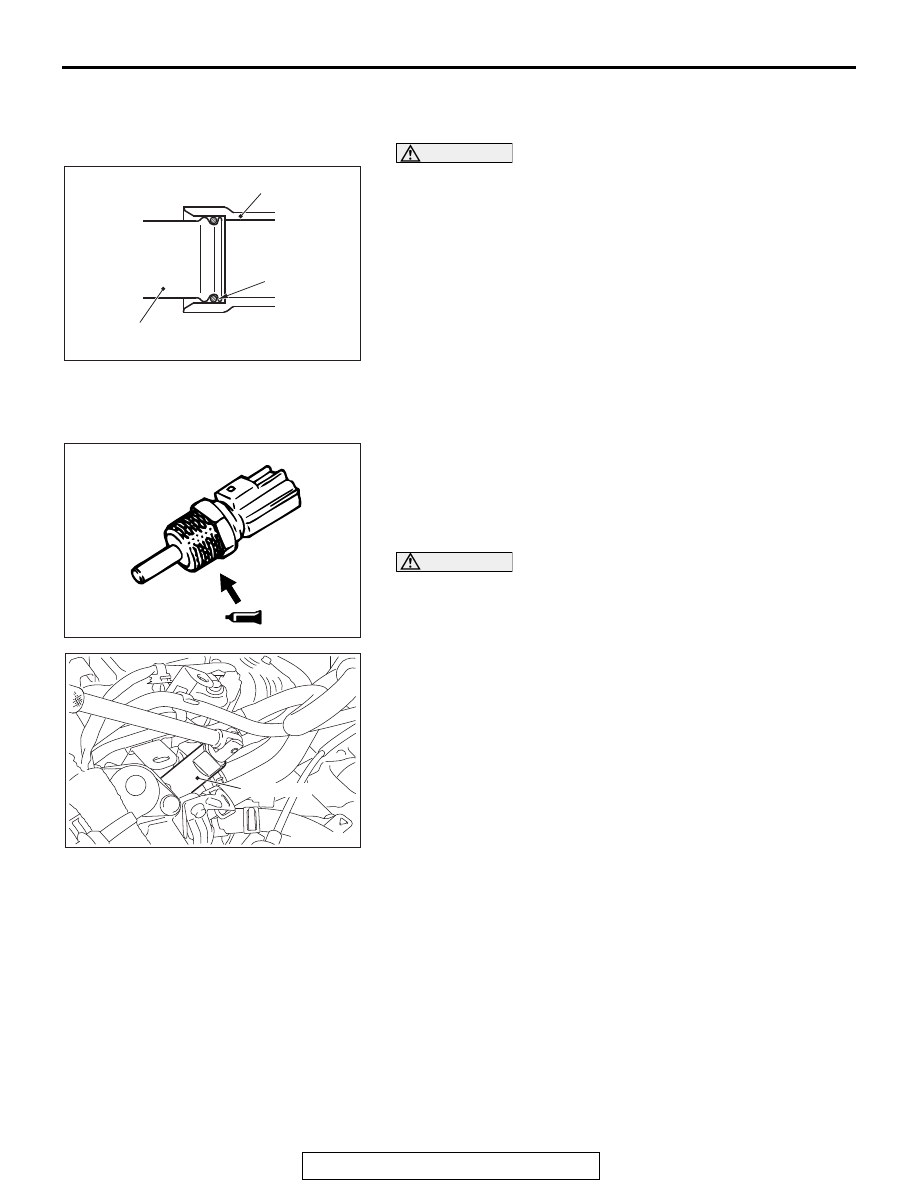

INSTALLATION SERVICE POINTS

.

>>A<< O-RING INSTALLATION

CAUTION

Avoid adhesion of engine oil or grease to the O-ring.
Fit the O-ring in the water inlet pipe groove, wet the O-ring cir-
cumference or the pipe mounting area inner wall, and then
insert the O-ring.

.

>>B<< ENGINE COOLANT TEMPERATURE
SENSOR INSTALLATION

1. Apply the specified sealant to the thread of the engine

coolant temperature sensor.

Specified Sealant: ThreeBond 1324N or equivalent

NOTE: Install the engine coolant temperature sensor imme-
diately after applying sealant.

CAUTION

After the installation, until a sufficient period of time (one
hour or more) elapses, do not apply the oil or water to the
sealant application area or start the engine.

2. Use special tool MB992042 to tighten the engine coolant

temperature sensor to the specified torque.

Tightening torque: 30

± 9 N⋅m (22 ± 7 ft-lb)

.

AC103007AG

Thermostat case

Water inlet pipe

O-ring

AC103399 AB

AC509216

MB992042

AB

WATER HOSE AND WATER PIPE

TSB Revision

ENGINE COOLING

14-44

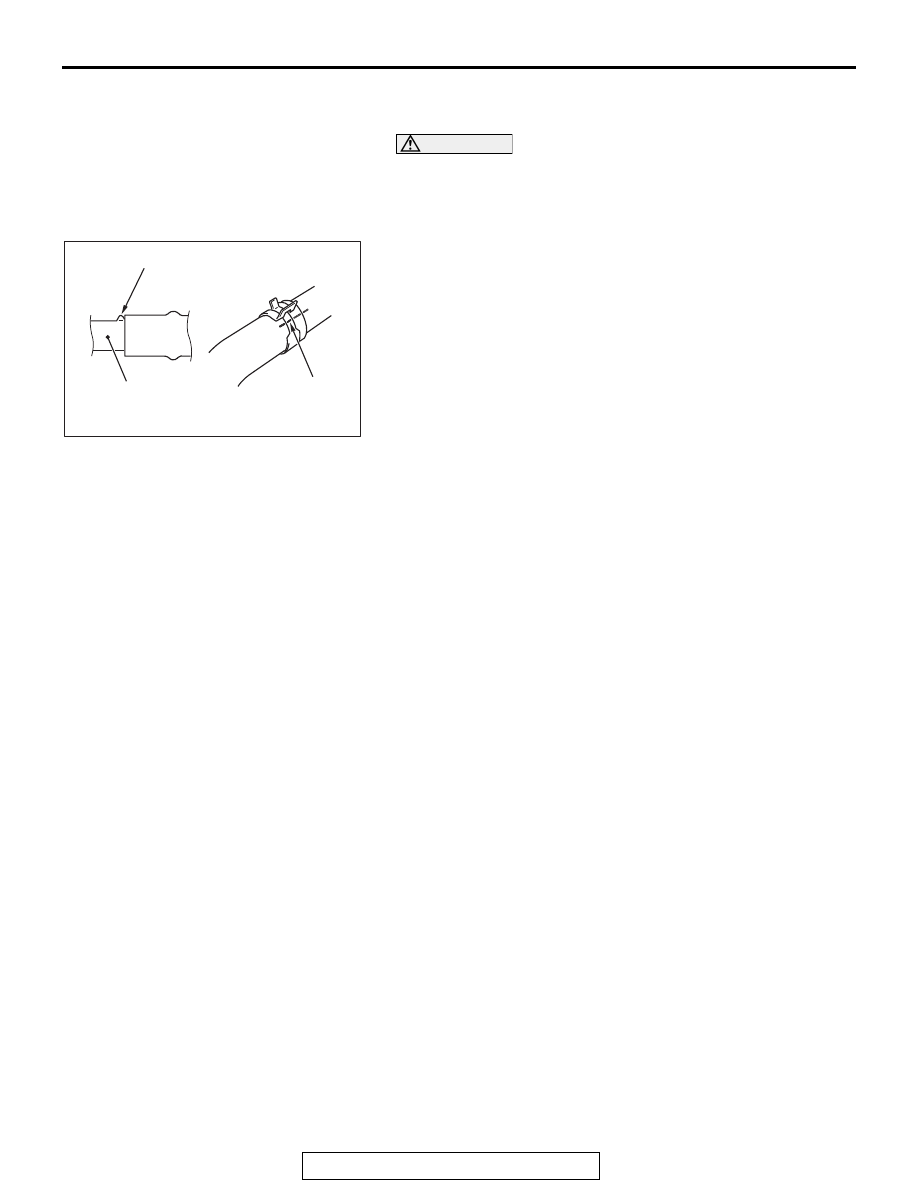

>>C<< HOSE CLIP/RADIATOR UPPER HOSE
CONNECTION

CAUTION

Never reuse the hose clip whose claw is broken off to pre-
vent the rusting.
1. Make mating mark on a new hose clip in the same position

as the remove one.

2. Insert the radiator hose until the protrusion of the water

outlet fitting.

3. Align the mating marks on the radiator hose and hose

clamp, and then connect the radiator hose.

4. Remove the hose clip claw to tighten the radiator hose.

AC606082

Protrusion

Pipe, fitting, or etc.

BD

Mating marks

WATER HOSE AND WATER PIPE

TSB Revision

ENGINE COOLING

14-45

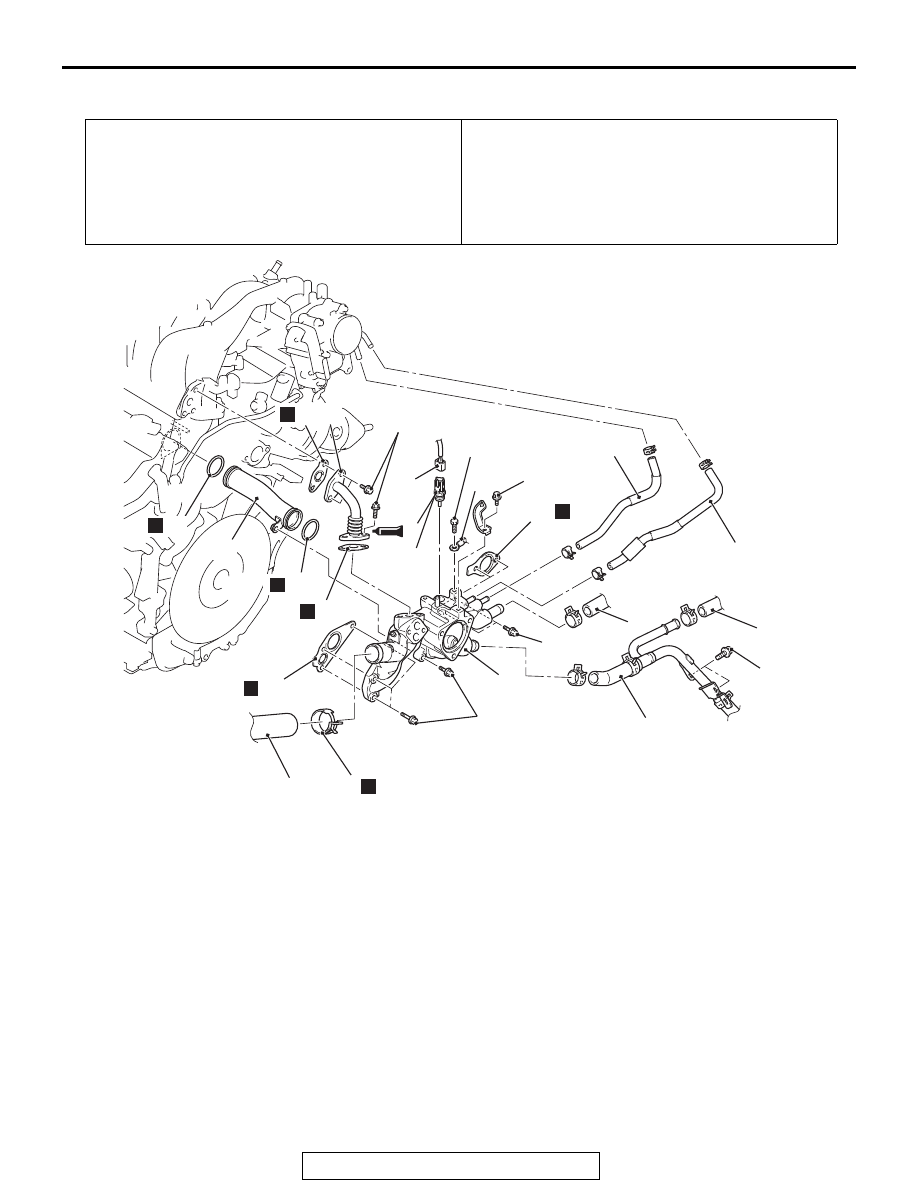

REMOVAL AND INSTALLATION <3.0L ENGINE>

M1141003304053

Required Special Tools:

• MB992042: Water Temperature Sensor Wrench

• MD998412: Guide

Pre-removal Operation
• Engine Coolant Draining (Refer to

P.14-26

).

• Air Cleaner Assembly Removal (Refer to GROUP 15, Air

Cleaner

P.15-5

).

• Battery and Battery Tray Removal (Refer to GROUP 54A,

Battery

P.54A-11

).

• Thermostat Removal (Refer to

P.14-36

).

Post-installation Operation
• Thermostat Installation (Refer to

P.14-36

).

• Battery and Battery Tray Installation (Refer to GROUP

54A, Battery

P.54A-11

).

• Air Cleaner Assembly Installation (Refer to GROUP 15,

Air Cleaner

P.15-5

).

• Engine Coolant Refilling (Refer to

P.14-26

).

AC809031AD

14

6

9

10

11

11

12

13

15

N

N

8

17

7

N

16

17

N

5

N

3

4

N

2

1

N

23 ± 3 N·m
17 ± 2 ft-lb

23 ± 3 N·m
17 ± 2 ft-lb

23 ± 3 N·m
17 ± 2 ft-lb

23 ± 6 N·m
17 ± 4 ft-lb

30 ± 9 N·m
22 ± 7 ft-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

11 ± 1 N·m
98 ± 8 in-lb

Removal steps

•

EGR valve (Refer to GROUP 17,
Emission Control

− EGR Valve

P.17-86

)

<<

A

>> >>

D

<< 1.

Hose clip

<<

A

>> >>

D

<< 2.

Radiator upper hose connection

3.

EGR valve pipe

4.

EGR valve pipe gasket

5.

EGR valve pipe gasket

6.

Engine coolant temperature sensor
connector

<<

B

>> >>

C

<< 7.

Engine coolant temperature sensor

8.

Ground cable connection

9.

Water hose

10. Water hose
11. Heater hose connection
12. A/T fluid cooler water return hose

and pipe assembly connection

•

Oil pipe clamp bolt (Refer to
GROUP 11C, Cylinder Head
Gasket

P.11C-51

)

<<

C

>> >>

B

<< 13. Thermostat housing

>>

B

<< 14. Thermostat housing gasket

>>

B

<< 15. Thermostat housing gasket

16. Water inlet pipe

>>

A

<< 17. O-ring

Removal steps (Continued)

WATER HOSE AND WATER PIPE

TSB Revision

ENGINE COOLING

14-46

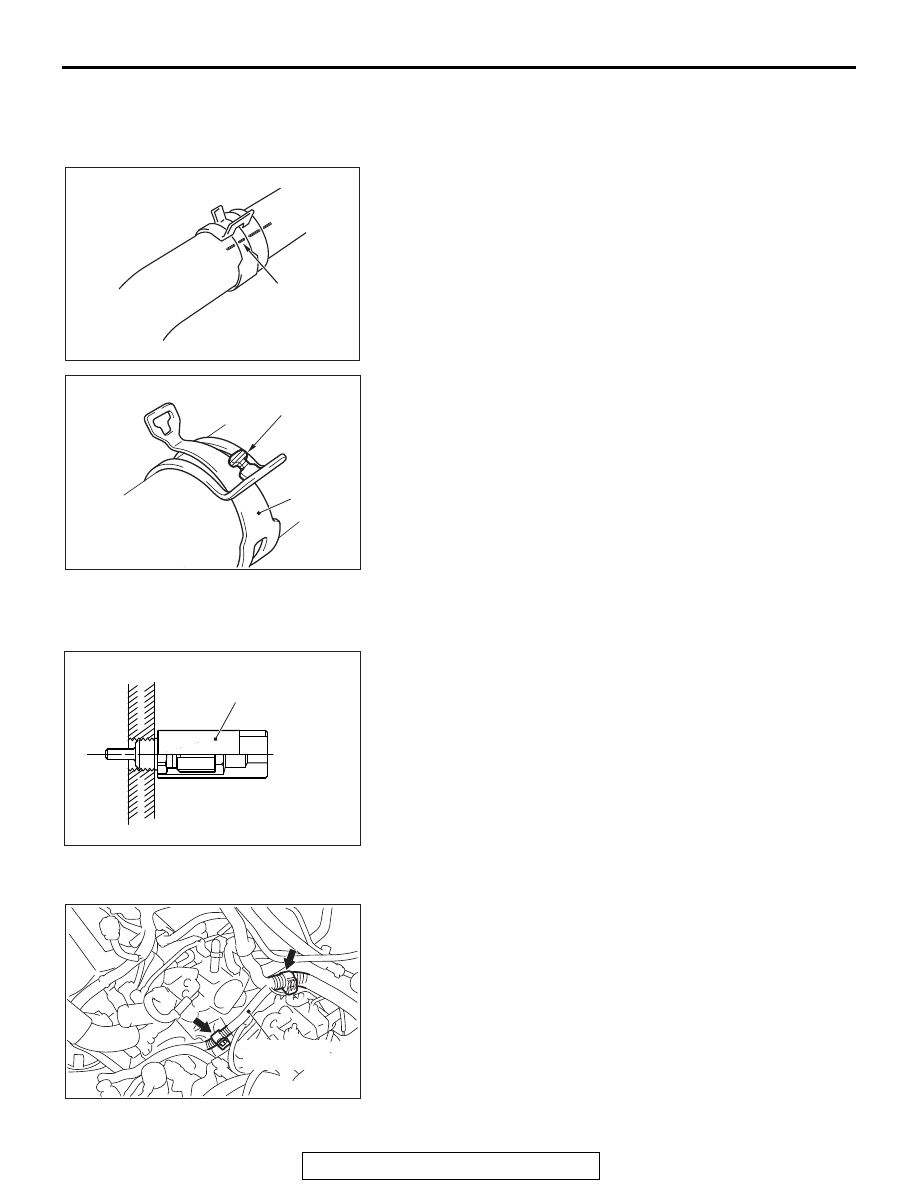

REMOVAL SERVICE POINTS

.

<<A>> HOSE CLIP/RADIATOR UPPER HOSE DIS-
CONNECTION

1. Make mating marks on the radiator upper hose and the hose

clamp. Disconnect the radiator upper hose.

2. Break off the tip of hose clip claw and spread out the hose

clip.
NOTE: If there is a hose clip claw, the hose clip cannot
spread to capacity because the claw contacts the hose clip.

3. Disconnect the radiator upper hose.

.

<<B>> ENGINE COOLANT TEMPERATURE
SENSOR REMOVAL

Use special tool MB992042 to remove the engine coolant tem-
perature sensor.

.

<<C>> THERMOSTAT HOUSING REMOVAL

Remove the two control wiring harness clamps, and remove
the thermostat housing.

AC606081

Mating marks

AH

AC302615

Hose clip

Claw (Tip)

AE

AC703122

MB992042

AB

AC703123

Control wiring
harness

AB
