THERMOSTAT

TSB Revision

ENGINE COOLING

14-35

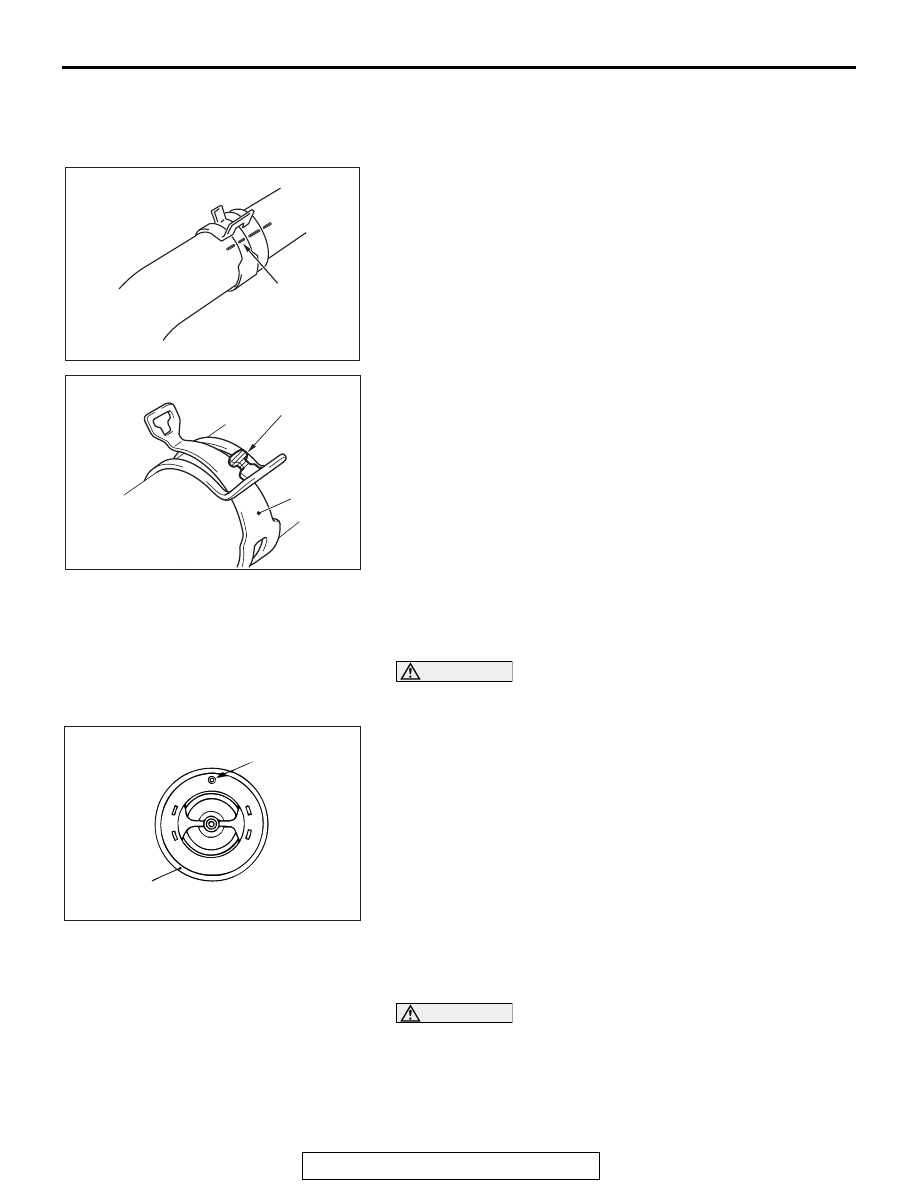

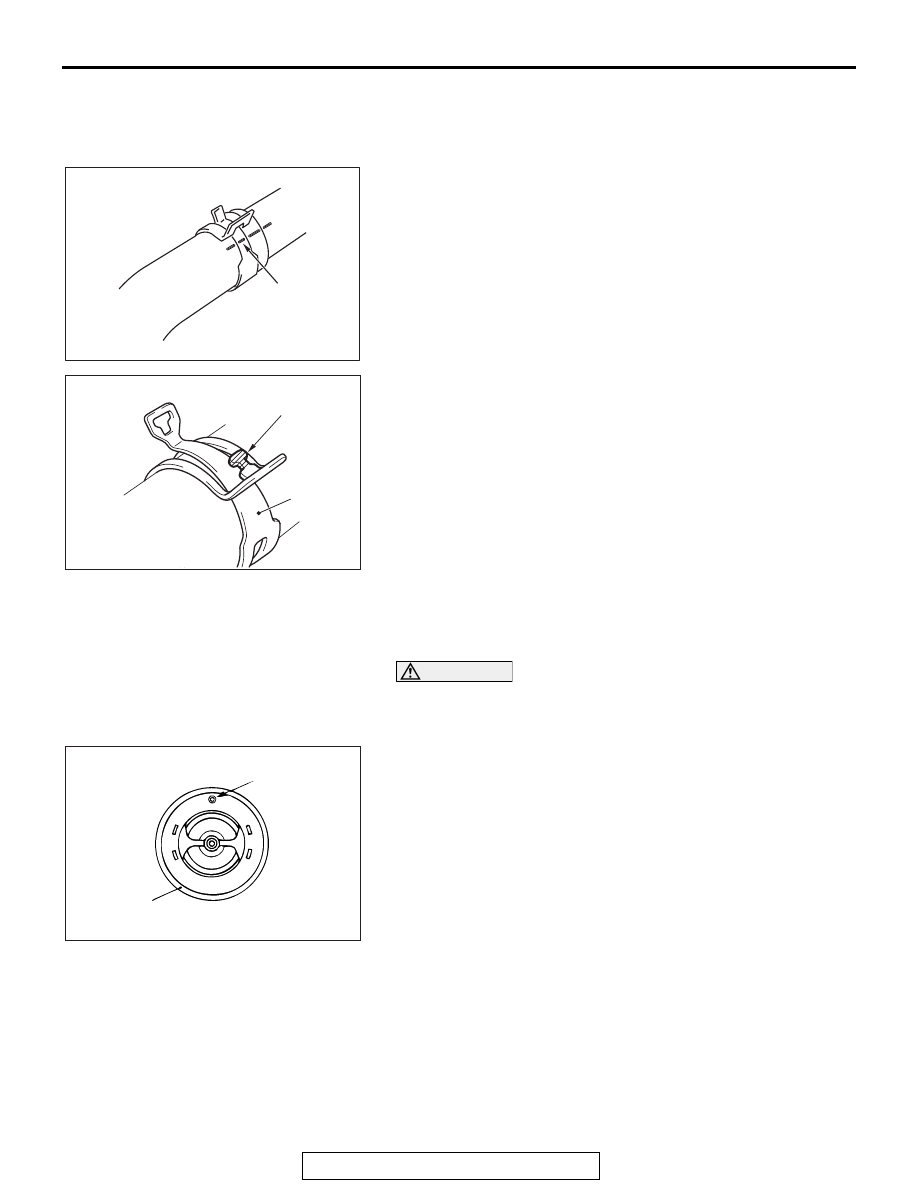

REMOVAL SERVICE POINT

.

<<A>> HOSE CLIP/RADIATOR LOWER HOSE DIS-
CONNECTION

1. Make mating marks on the radiator hose and the hose

clamp as shown to install them in the original position. Then,
remove them.

2. Break off the tip of hose clip claw and spread out the hose

clip.
NOTE: If there is a hose clip claw, the hose clip cannot
spread to capacity because the claw contacts the hose clip.

3. Disconnect the radiator lower hose.

INSTALLATION SERVICE POINTS

.

>>A<< THERMOSTAT INSTALLATION

CAUTION

Avoid adhesion of grease to the rubber ring of the thermo-
stat. If the rubber ring is damaged, replace the thermostat.
Install the thermostat with care to avoid peeling or damage to
the rubber ring. When installing the thermostat, face the jiggle
valve of the thermostat upward.

.

>>B<< HOSE CLIP/RADIATOR LOWER HOSE
CONNECTION

CAUTION

Never reuse the hose clip whose claw is broken off to pre-
vent the rusting.
1. Make mating mark on a new hose clip in the same position

as the remove one.

AC606081

Mating marks

AH

AC302615

Hose clip

Claw (Tip)

AE

AC005977AB

Rubber ring

Jiggle valve

THERMOSTAT

TSB Revision

ENGINE COOLING

14-36

2. Insert the radiator hose until the protrusion of the water inlet

fitting.

3. Align the mating marks on the radiator hose and hose

clamp, and then connect the radiator hose.

4. Remove the hose clip claw to tighten the radiator hose.

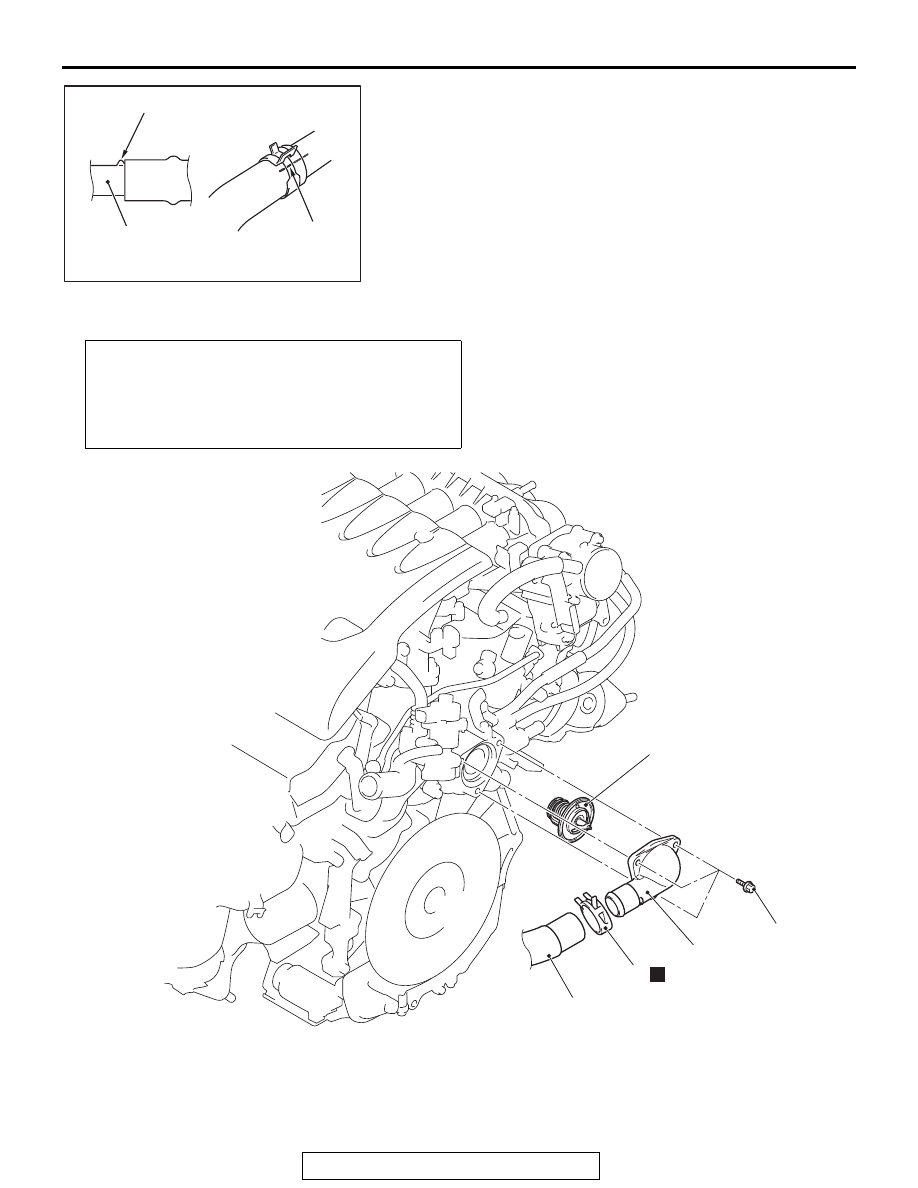

REMOVAL AND INSTALLATION <3.0L ENGINE>

M1141002403162

AC606082

Protrusion

Pipe, fitting, or etc.

BD

Mating marks

Pre-removal and Post-installation Operation
• Engine Coolant Draining and Refilling (Refer to

P.14-26

).

• Air Cleaner Removal and Installation (Refer to GROUP

15, Air Cleaner

P.15-4

).

• Battery and Battery Tray Removal and Installation (Refer

to GROUP 54A, Battery

P.54A-11

).

AC703114

2

3

4

23 ± 6 N·m
17 ± 4 ft-lb

AD

1

N

Removal steps

<<

A

>>

>>

B

<<

1.

Hose clip

<<A>>

>>B<<

2.

Radiator lower hose connection

3.

Water inlet fitting

>>A<<

4.

Thermostat

Removal steps (Continued)

THERMOSTAT

TSB Revision

ENGINE COOLING

14-37

REMOVAL SERVICE POINT

.

<<A>> HOSE CLIP/RADIATOR LOWER HOSE DIS-
CONNECTION

1. Make mating marks on the radiator hose and the hose

clamp as shown to install them in the original position. Then,
remove them.

2. Break off the tip of hose clip claw and spread out the hose

clip.
NOTE: If there is a hose clip claw, the hose clip cannot
spread to capacity because the claw contacts the hose clip.

3. Disconnect the radiator hose.

INSTALLATION SERVICE POINTS

.

>>A<< THERMOSTAT INSTALLATION

CAUTION

Make absolutely sure that no oil adheres to the rubber ring
of the thermostat. Also do not fold or scratch the rubber
ring during installation.
Install the thermostat so that the jiggle valve is facing straight
up. Be careful not to fold or scratch the rubber ring.

.

AC606081

Mating marks

AH

AC302615

Hose clip

Claw (Tip)

AE

AC703116

Jiggle valve

Rubber ring

AB

THERMOSTAT

TSB Revision

ENGINE COOLING

14-38

>>B<< HOSE CLIP/RADIATOR LOWER HOSE
INSTALLATION

CAUTION

Never reuse the hose clip whose claw is broken off to pre-
vent the rusting.
1. Make mating mark on a new hose clip in the same position

as the remove one.

2. Insert the radiator hose until the protrusion of the water inlet

fitting.

3. Align the mating marks on the radiator hose and hose

clamp, and then connect the radiator hose.

4. Remove the hose clip claw to tighten the radiator hose.

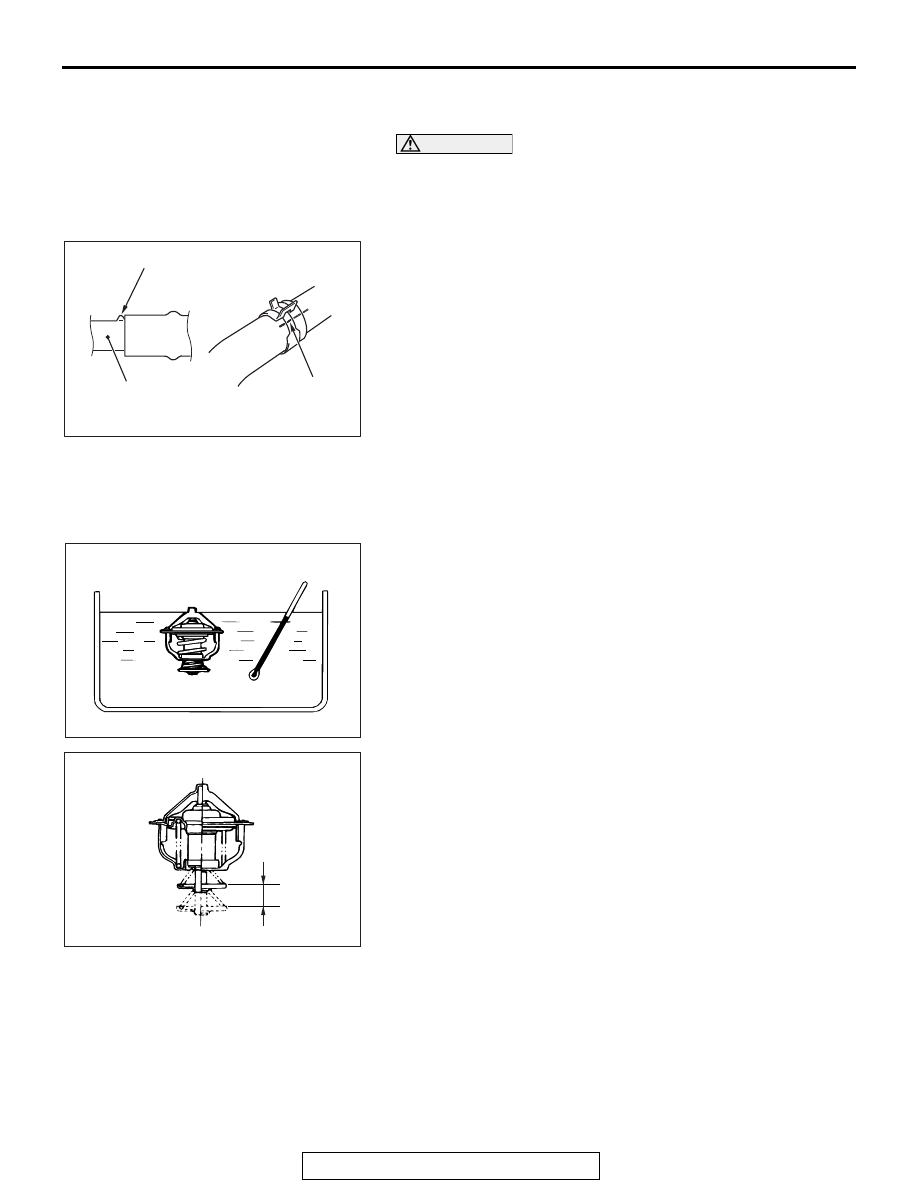

INSPECTION

M1141002501884

.

Thermostat Check

1. Immerse the thermostat in water, and heat the water while

stirring. Check the thermostat valve opening temperature.

Standard value:

Valve opening temperature:

87

± 1.5°C (189 ± 3°F) <2.4L ENGINE>

82

± 1.5°C (180 ± 3°F) <3.0L ENGINE>

2. Check that the amount of valve lift is at the standard value

when the water is at the full-opening temperature.
NOTE: Measure the valve height when the thermostat is
fully closed, and use this measurement to compare the
valve height when the thermostat is fully open.

Standard value:

Full-opening temperature: 95

°C (203°F)

Amount of valve lift:

8.5 mm (0.335 inch) or more <2.4L ENGINE>
9.0 mm (0.354 inch) or more <3.0L ENGINE>

AC606082

Protrusion

Pipe, fitting, or etc.

BD

Mating marks

AC703118AB

AC703119

Valve lift
