HANDS FREE MODULE

TSB Revision

CHASSIS ELECTRICAL

54A-629

6. When the pairing is completed, the display returns to the

pairing list screen.

NOTE: When 7 Bluetooth

®

 devices are already paired to the

hands free module, "Maximum device paired. Please delete a
paired device before pairing a new device." is displayed.

DELETE OPERATION OF BLUETOOTH

® DEVICE

.

1. Display the pairing list screen, and select the "Bluetooth

®

device" to be deleted.

2. Select "Delete."

Back

New Device

Registered Device Name 2

Registered Device Name 3

Registered Device Name 4

Registered Device Name 5

Registered Device Name 1

10:00

Pairing

AC904204

Back

New Device

Registered Device Name 2

Registered Device Name 3

Registered Device Name 4

Registered Device Name 5

Registered Device Name 1

10:00

Pairing

AC904204

Back

10:00

Pairing

Name

Device ID

Connection

Delete

Voice Tag

Hands Free

Bluetooth Audio

Registered Device Name 3

ID-00000003

AC904205

HANDS FREE MODULE

TSB Revision

CHASSIS ELECTRICAL

54A-630

3. When "Yes" is selected, the Bluetooth

® device is deleted

and the display returns to the pairing list screen.

ERASE THE PASSWORD

M1544403800299

.

The 4-digit password set by security function can be erased by
the diagnosis mode. Perform the "UNLOCK" operation of the
diagnosis mode. (Refer to

P.54A-584

 <Vehicles with radio and

CD player>,

P.54A-586

 <Vehicles with MMCS>.)

10:00

Pairing

Delete this paired device ?

Yes

No

AC904207

Back

New Device

Registered Device Name 2

Empty

Registered Device Name 4

Empty

Registered Device Name 1

10:00

Pairing

AC904208

HANDS FREE MODULE

TSB Revision

CHASSIS ELECTRICAL

54A-631

REMOVAL AND INSTALLATION

M1544405400082

<HANDS FREE MODULE>

REMOVAL AND INSTALLATION

M1546023300164

<MICROPHONE UNIT>

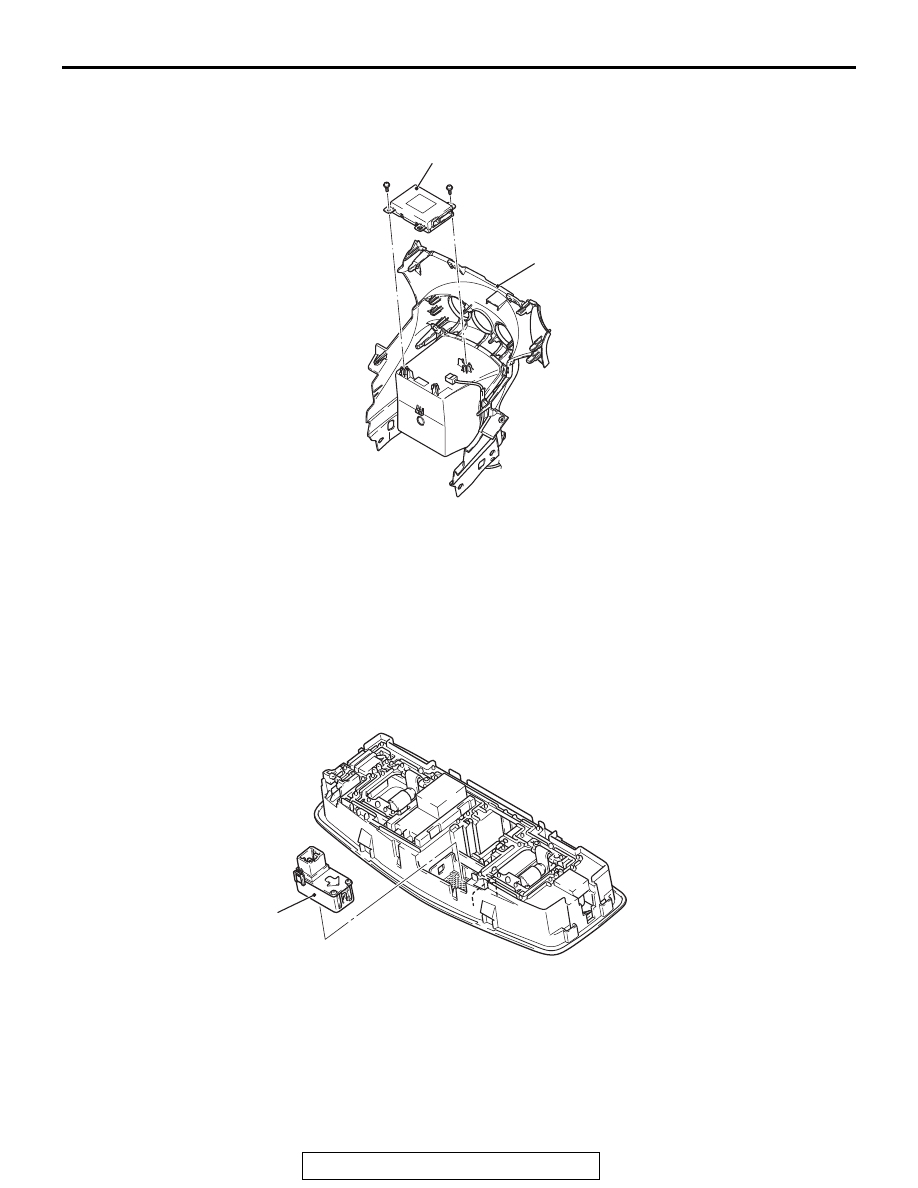

AC900436AB

1

Center lower panel

Removal steps

•

Radio and CD player or multivision
display (Refer to

P.54A-423



<Vehicles with radio and CD
player> or

P.54A-559

 <Vehicles

with MMCS>)

1.

Hands free module

AC606269

ZC6027270000

1

AD

Removal steps

•

Front dome light assembly (Refer
to GROUP 52A, Headlining

P.52A-15

.)

>>A<<

1.

Microphone unit

HANDS FREE MODULE

TSB Revision

CHASSIS ELECTRICAL

54A-632

INSTALLATION SERVICE POINT

.

>>A<< MICROPHONE UNIT INSTALLATION

Install the microphone unit so that the arrow face toward the
driver's seat.

REMOVAL AND INSTALLATION

M1546024200137

<STEERING WHEEL VOICE CONTROL SWITCH>

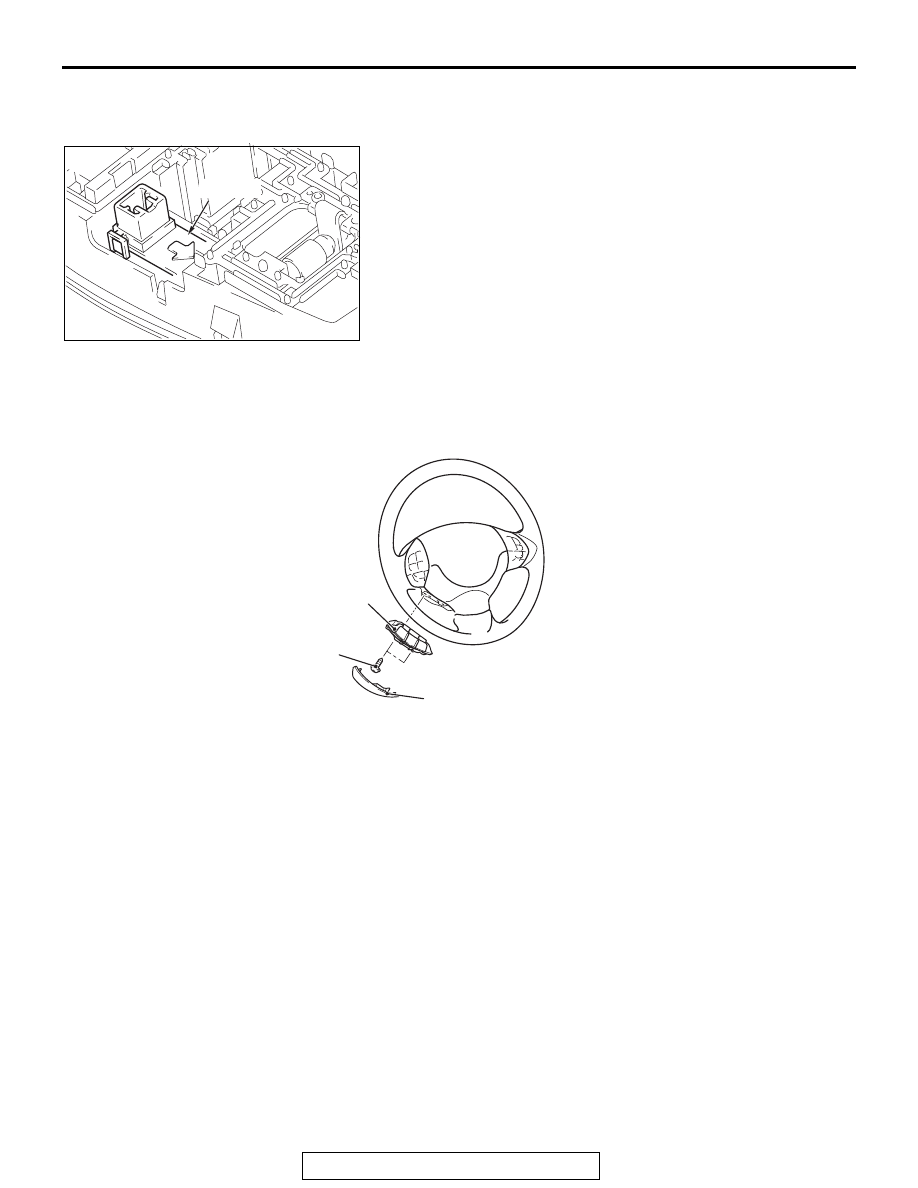

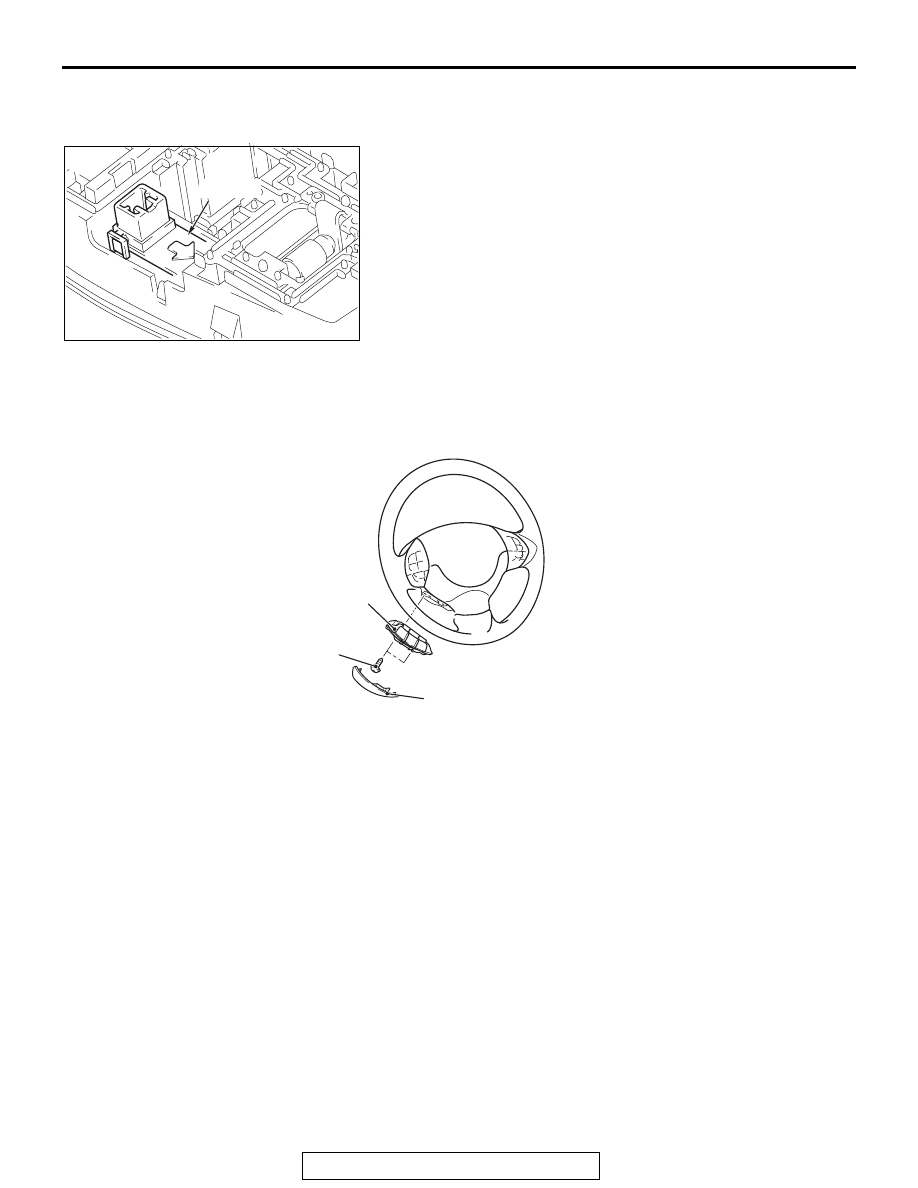

AC904158

Arrow

AB

AC802108

1

2

AD

2.5 ± 0.5 N·m
23 ± 4 in-lb

Removal steps

1.

Steering wheel voice control switch
cover

2.

Steering wheel voice control switch
