HANDS FREE MODULE

TSB Revision

CHASSIS ELECTRICAL

54A-625

ON-VEHICLE SERVICE

PAIRING A DEVICE OR DELETING A DEVICE

M1544405500012

NOTE:

.

•

Some bluetooth

®

 devices (mobile phone or

music player) may not be compatible with the
hands free module.

•

A maximum of seven bluetooth

®

 devices can be

registered.

•

 This system can not be used when a battery of
bluetooth

®

 devices was exhausted.

PAIRING A DEVICE

.

1. Shift the selector lever to P (parking) position and pull the

parking brake lever.

2. Turn the ignition switch to "ACC" or "ON" position.
3. Press the "Speech" switch.
4. Say "Setup."
5. Say "Pairing options."
6. The voice guide will say "Select one of the following: pair,

edit, delete, or list?"

7. Say "Pair."
8. The voice guide will say "Please say a 4-digit pairing code."
9. Say a 4 digit number. The 4 digit number will be registered

as a pairing code for the device.

• When the confirmation function is on, the system will con-

firm whether the number said is acceptable. Answer "Yes"
to go Step 10. Say "No" to return to pairing code selection.

NOTE:

.

•

The pairing code entered here is only used for the Blue-
tooth

®

 connection certification. It is any 4-digit number

the user would like to select.

•

Remember the pairing code as it needs to be keyed into
the device later in the pairing process.

•

Depending on the connection settings of the bluetooth

®



device, this code may have to be entered each time you
connect the bluetooth

®

 device to the hands free module.

For the default connection settings, refer to the instruc-
tions for device.

10.The voice guide will say "Start pairing procedure on device.

See device manual for instructions." Refer to the owner’s
manual for your device and enter into the device the pairing
code that was registered in Step 9.

11.When this system finds a Bluetooth

® device, the voice

guide will say "Please say the name of the device after the
beep."

12.After you hear the beep, name the device by saying a name

of your preference.
NOTE: When the confirmation function is on, after repeating
the device tag you have said, the voice guide will ask "Is this
correct?" Answer "Yes".



To change the device tag, answer "No" and then say the
device tag again.

13.The voice guide will say "Pairing complete," after which a

beep will be played and the pairing process will end.

AC606271

“Speech" switch

“Pick-up" switch

“Hang-up" switch

AB

HANDS FREE MODULE

TSB Revision

CHASSIS ELECTRICAL

54A-626

DELETING A DEVICE

1. Turn the ignition switch to "ACC" or "ON" position.
2. Press the Speech switch.
3. Say "Setup."
4. Say "Pairing options"
5. The voice guide will say "Select one of the following: pair,

edit, delete, or list".

6. Say "Delete."
7. After the voice guide says "Please say," the numbers of the

devices and device tags of corresponding devices will be
read out in order, starting with the device that has been most
recently connected. After it completes reading all pairs, the
voice guide will say "or all."



Say the number of the device that you want to delete from
the system.



If you want to delete all paired devices from the system, say
"All."

8. For confirmation purposes, the voice guide will say "Deleting

(device tag) (number). Is this correct?" or "Deleting all
devices, Is this correct?"

9. Answer "Yes" to delete the devices.



Answer "No" the system will return to Step 4.

10.The voice guide will say "Deleted", and then the system will

end the device deletion process.

• If the device deletion process fails for some reason, the

voice guide will say "Delete failed." and then the system will
cancel deleting the device.

PAIRING THE BLUETOOTH

® DEVICE

M1544405500023

As for vehicles with MMCS, "pairing" registration of
the Bluetooth

® device and deletion of paired device

from hands free module can be done by touch panel
operation on the multivision display.
NOTE:

.

•

Some Bluetooth

®

 devices (cellular phone and

music player) may not be compatible with the
hands free module.

•

A maximum of seven Bluetooth

®

 devices can be

registered.

•

This system cannot be used when a battery of
Bluetooth

®

 devices was exhausted.

DISPLAY THE PAIRING LIST SCREEN.

.

OPERATION ON THE MOBILE PHONE SCREEN

1. Display the INFOR screen, and select "Mobile Phone."

10:00

INFO

Support Info

Vehicle Position

Calendar

Trip

Environment

Maintenance

Air Conditioner

Mobile Phone

AC904196

HANDS FREE MODULE

TSB Revision

CHASSIS ELECTRICAL

54A-627

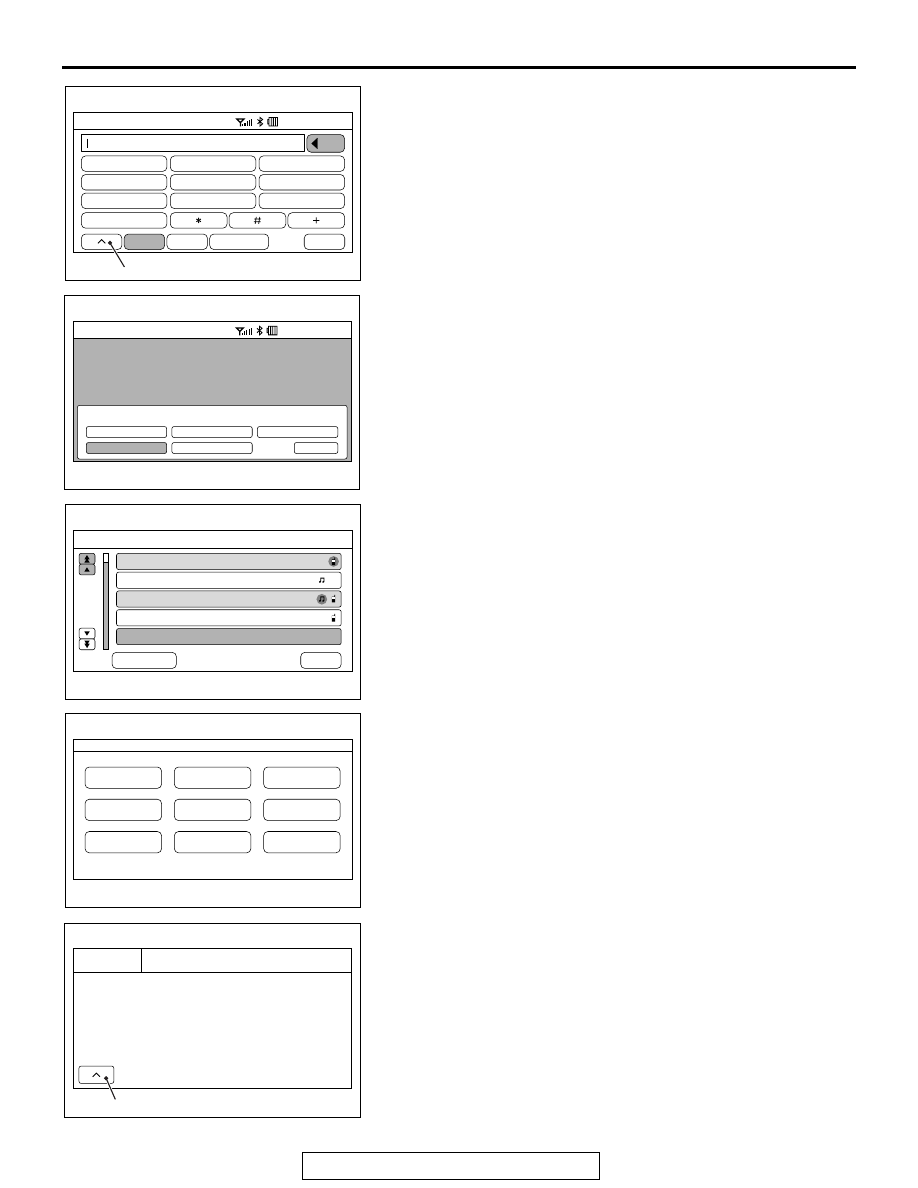

2. Select "1" in the illustration on the Mobile Phone screen.

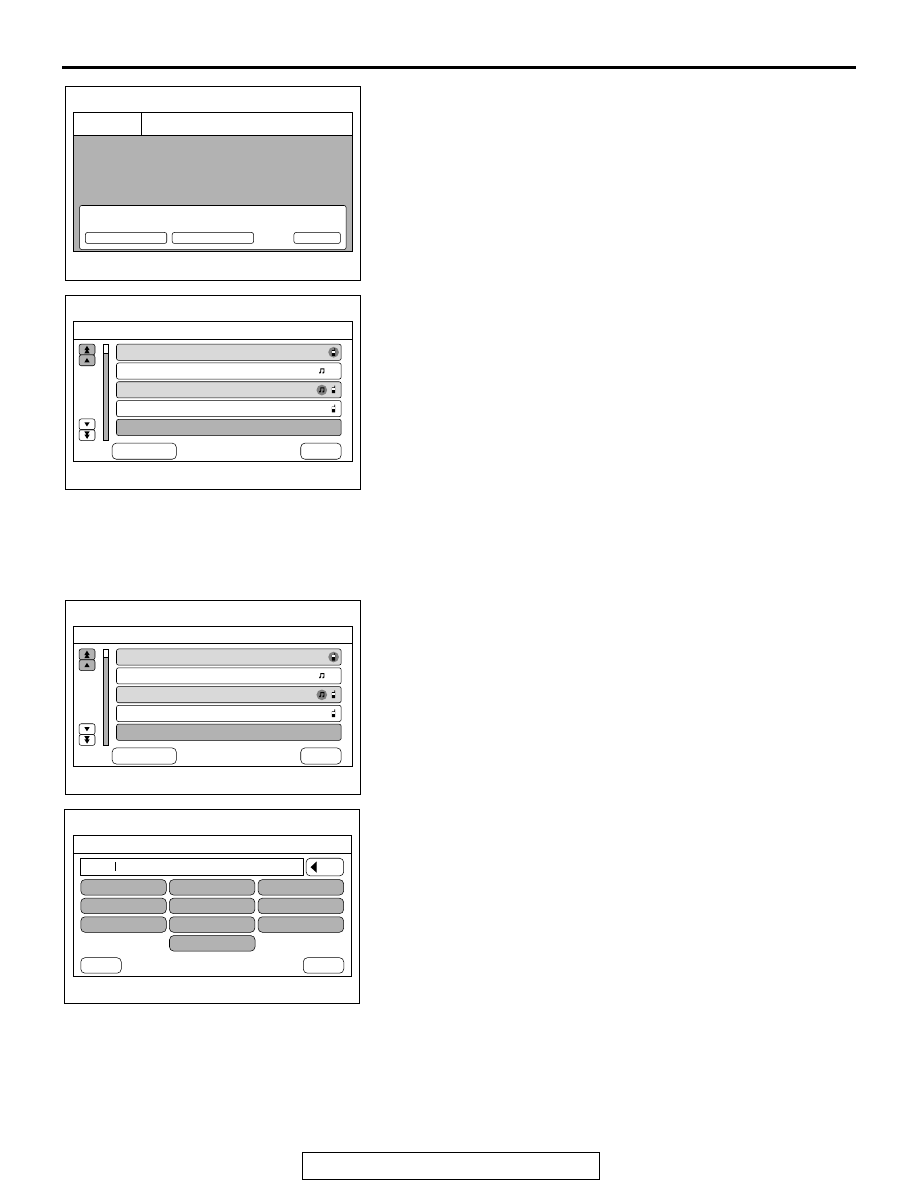

3. Select "Pairing."

4. The pairing list screen is displayed.

.

OPERATION ON THE A/V MODE SCREEN

1. Display the A/V mode screen, and select "Bluetooth Audio."

NOTE: When there are no active connections between the
Bluetooth

®

 Audio and the hands free module, "There are no

active connections." is displayed.

2. Select "1" in the illustration on the Bluetooth Audio screen.

Dial

Redial

Phonebook

Back

Clear

3

RM

10:00

Mobile  Phone

2

1

6

5

4

9

8

7

0

AC904197

AB

1

Back

Lock

Pairing

Reset All

Help

10:00

Mobile  Phone

Unlock

RM

AC904198

Back

New Device

Registered Device Name 2

Registered Device Name 3

Registered Device Name 4

Empty

Registered Device Name 1

10:00

Pairing

AC904199

FM

AM

CD

DVD

Rear Display

Music Server

SIRIUS

USB / i Pod

Bluetooth Audio

10:00

A / V Mode

AC904209

Bluetooth Audio No Connection

REC 10%

10:00

AC904200

AB

1

HANDS FREE MODULE

TSB Revision

CHASSIS ELECTRICAL

54A-628

3. Select "Pairing."

4. The pairing list screen is displayed.

PAIRING OPERATION OF BLUETOOTH

® DEVICE

.

1. Shift the selector lever to P (parking) position and pull the

parking brake lever.

2. Display the pairing list screen, and select "New Device."

NOTE: When the vehicle is being driven, or when the vehi-
cle is driven during the pairing operation, "This function is
disabled while driving." is displayed for 4 seconds, and the
display returns to the pairing list screen.

3. Enter the 4-digit code on the Pin code screen, and select

"Enter."

4. "Begin Pairing procedure on device. See device's manual

for instructions." is displayed on the screen.

5. Refer to the owner’s manual for your device and enter into

the device the pin code.

NOTE: When "Cancel" is selected or the pairing is failed, the
display returns to the pairing list screen.

10:00

Back

Help

Pairing

Bluetooth Audio No Connection

AC904201

Back

New Device

Registered Device Name 2

Registered Device Name 3

Registered Device Name 4

Empty

Registered Device Name 1

10:00

Pairing

AC904199

Back

New Device

Registered Device Name 2

Registered Device Name 3

Registered Device Name 4

Empty

Registered Device Name 1

10:00

Pairing

AC904199

Enter

Back

Clear

3

10:00

Pin Code

2

1

1 2 3 4

6

5

4

9

8

0

7

Please enter the Pin Code  (4 Digits)

AC904203
