LOWER ARM

TSB Revision

FRONT SUSPENSION

33-19

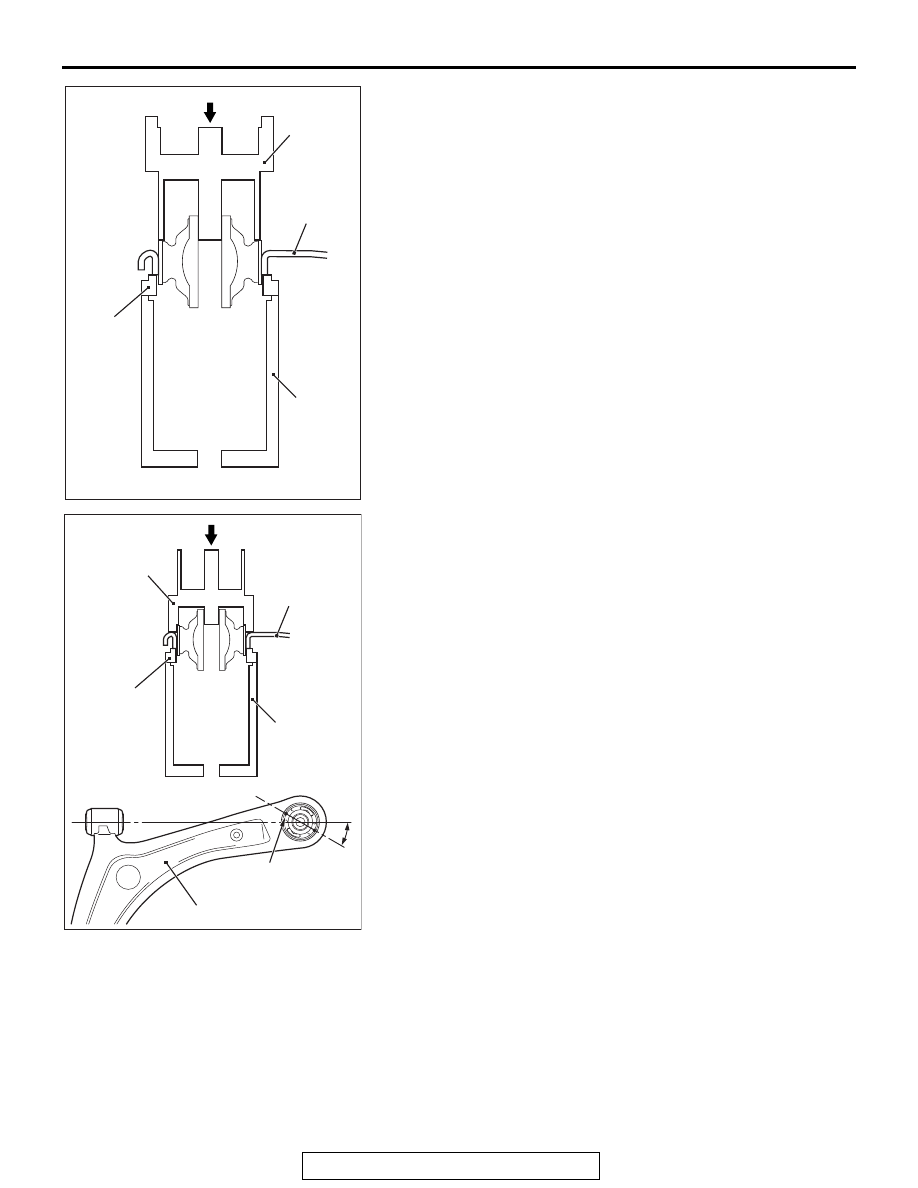

1. Use the following special tools to remove the bushing:

• MB992119 (Arm bushing remover and installer)

• MB990979 (Ring)

• MB990890 (Rear suspension bushing base)

2. Use the following special tools to press-fit the bushing.

• MB992119 (Arm bushing remover and installer)

• MB990979 (Ring)

• MB990890 (Rear suspension bushing base)

3. Press-fit the bushing so that the bushing protrusion is in the

direction shown in the figure.

4. Press-fit the bushing until the special tool contacts with the

lower arm assembly.

AC704234AC

MB992119

MB990979

MB990890

Lower arm
assembly

<Driving out>

AC704235AC

MB992119

MB990979

MB990890

Lower arm
assembly

Lower arm assembly

Projection

<Press-fitting>

30˚ ± 3˚

STABILIZER BAR

TSB Revision

FRONT SUSPENSION

33-20

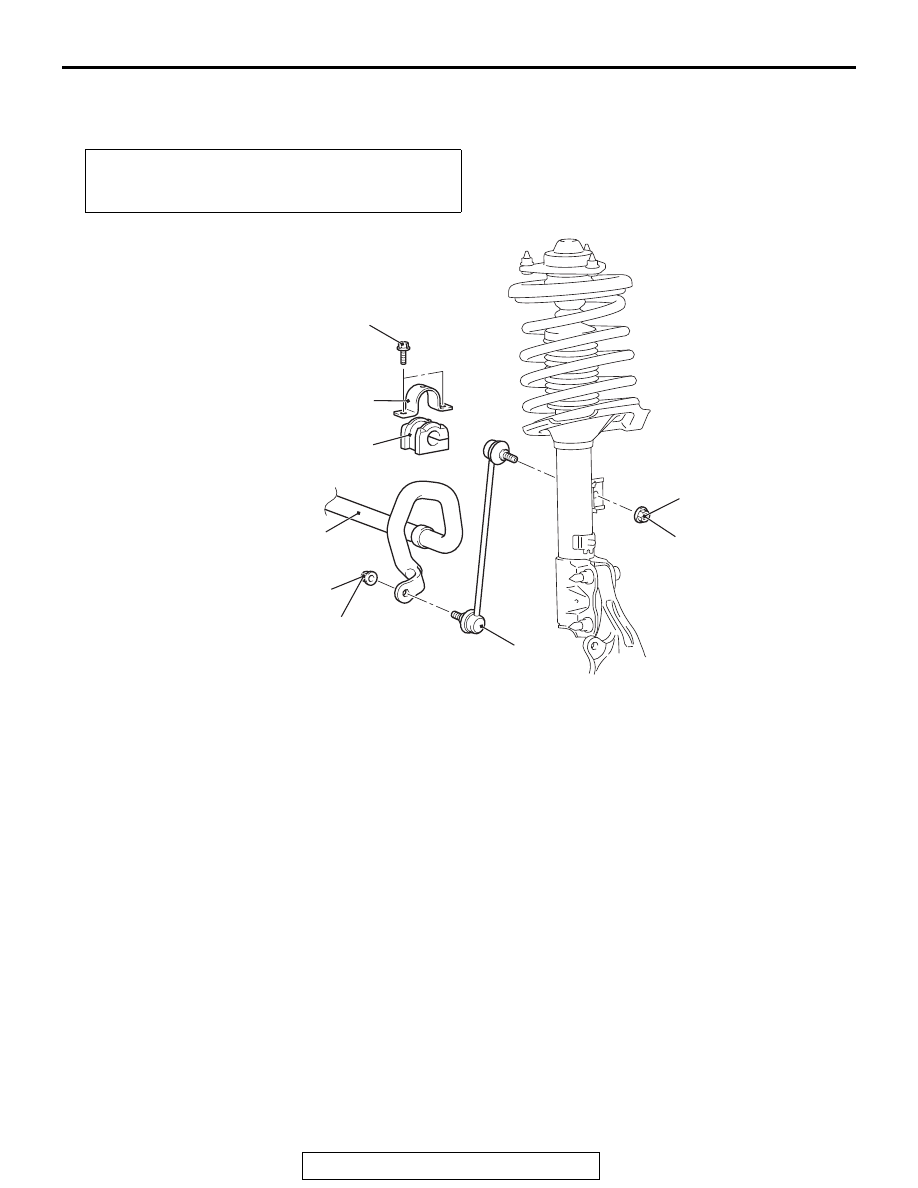

STABILIZER BAR

REMOVAL AND INSTALLATION

M1332004001063

Post-installation operation
Front wheel alignment check and adjustment (Refer to

P.33-8

.)

AC709442 AC

31 ± 4 N·m
23 ± 2 ft-lb

1

2

3

4

5

6

39 ± 6 N·m
29 ± 4 ft-lb

39 ± 6 N·m
29 ± 4 ft-lb

Stabilizer link removal steps

<<A>>

>>C<<

1.

Stabilizer link and stabilizer bar
connection nut

<<A>>

>>C<<

2.

Stabilizer link and strut
connection nut

3.

Stabilizer link
Stabilizer bushing removal
steps

<<A>>

>>C<<

1.

Stabilizer link and stabilizer bar
connection nut

4.

Stabilizer bar bracket

>>B<<

5.

Stabilizer bushing

Stabilizer bar removal steps

<<A>>

>>C<<

1.

Stabilizer link and stabilizer bar
connection nut

•

Front axle crossmember (Refer
to GROUP 32

− Crossmember

P.32-13

 <2.4L>,

P.32-17



<3.0L>)

4.

Stabilizer bar bracket

>>B<<

5.

Stabilizer bushing

>>A<<

6.

Stabilizer bar

STABILIZER BAR

TSB Revision

FRONT SUSPENSION

33-21

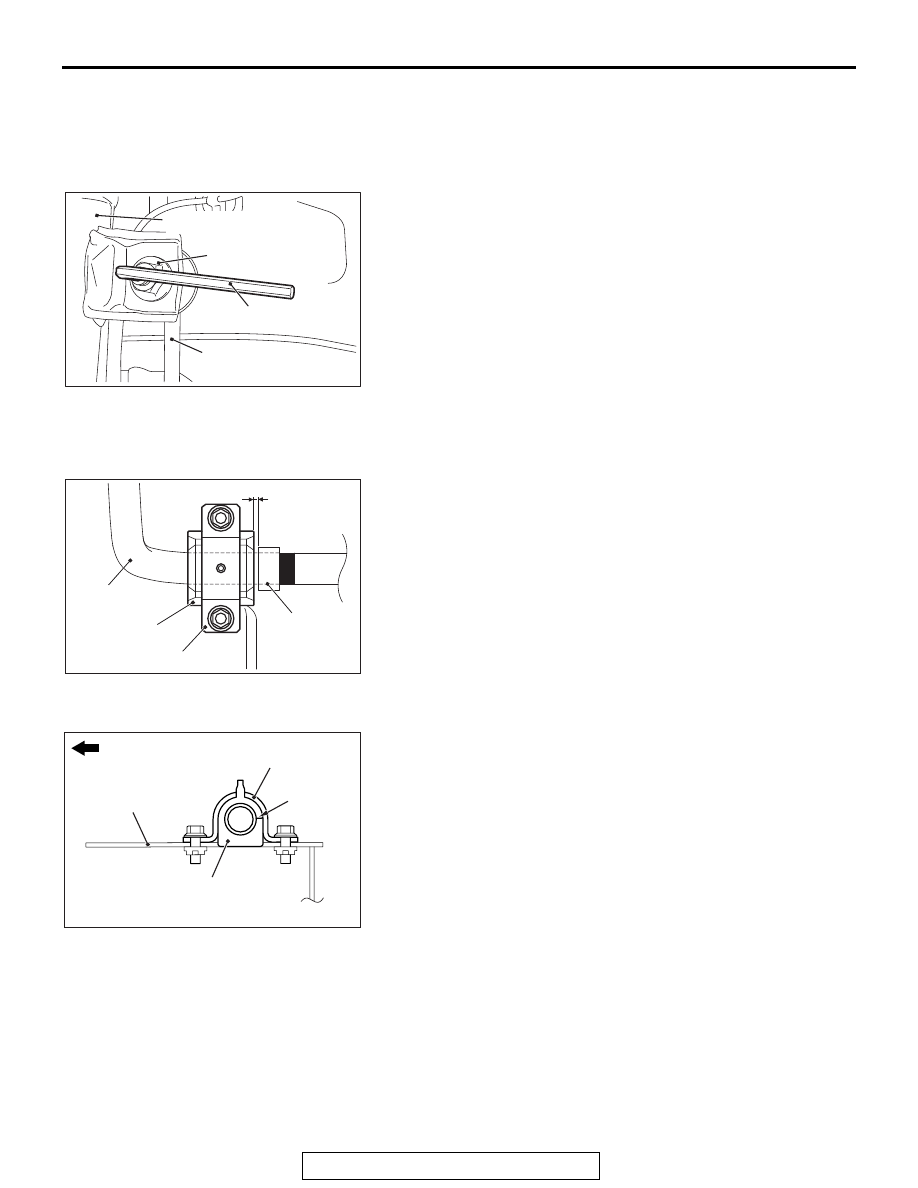

REMOVAL SERVICE POINT

.

<<A>> STABILIZER LINK AND STABILIZER BAR
CONNECTION NUT/STABILIZER LINK AND
STRUT CONNECTION NUT REMOVAL

Use a hexagon wrench to remove the stabilizer link and strut
connection nut as shown in the figure.

INSTALLATION SERVICE POINTS

.

>>A<< STABILIZER BAR INSTALLATION

Install the stabilizer bar as shown in the figure.

.

>>B<< STABILIZER BUSHING INSTALLATION

Install the stabilizer bushing as shown in the figure.

.

AC613526 AD

Stabilizer link

Strut assembly

Hexagon wrench

Stabilizer link and
strut connection nut

AC611658AD

2.5 mm (0.10 in)

Stopper ring

Stabilizer bushing

Stabilizer bar bracket

Stabilizer bar

AC609899

AB

Stabilizer bushing

Front axle
crossmember

Stabilizer bar
bracket

Slit

Front

STABILIZER BAR

TSB Revision

FRONT SUSPENSION

33-22

>>C<< STABILIZER LINK AND STRUT
CONNECTION NUT/STABILIZER LINK AND
STABILIZER BAR CONNECTION NUT
INSTALLATION

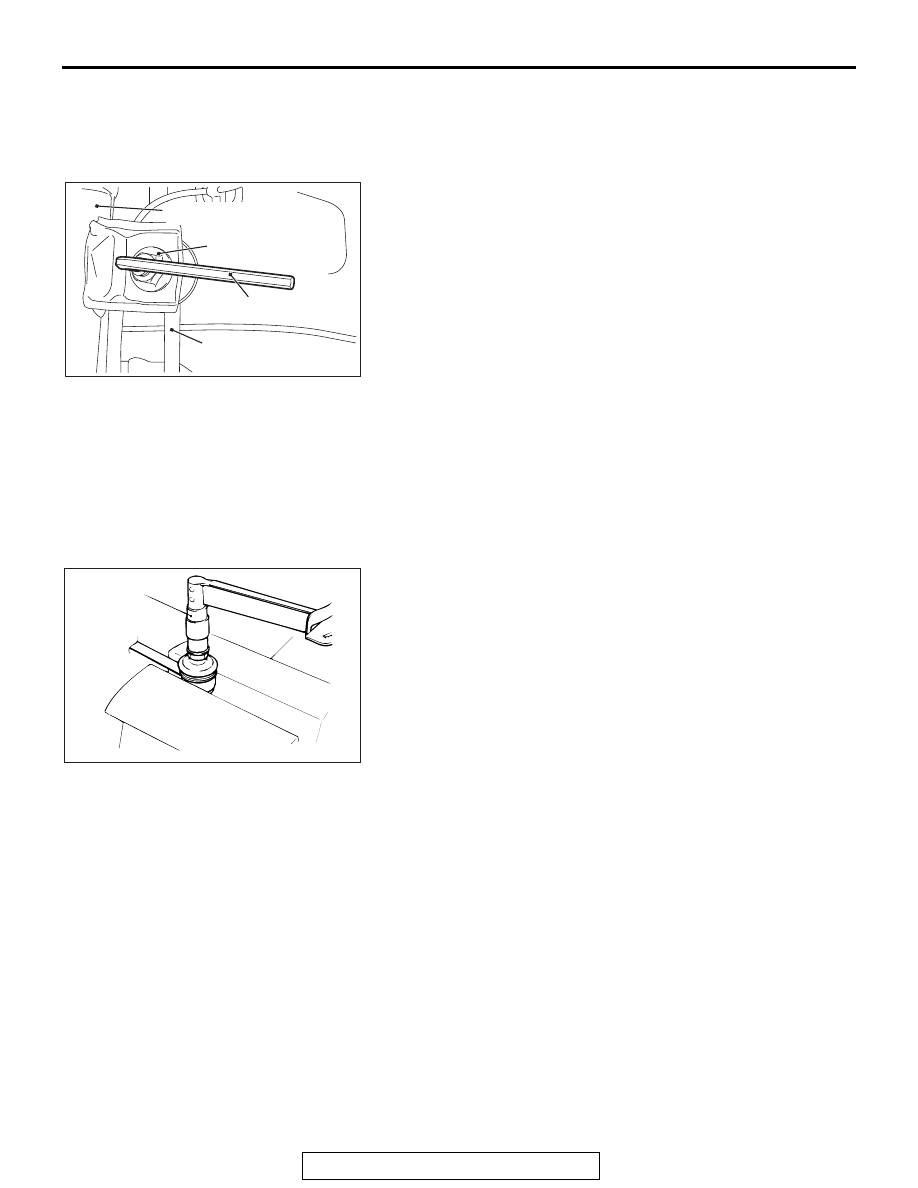

Use a hexagon wrench to install the stabilizer link and strut
connection nut as shown in the figure.

INSPECTION

M1332002000796

• Check the bushings for wear and deterioration.

• Check the stabilizer bar for deterioration or damage.

• Check all bolts for condition and straightness.

.

STABILIZER LINK BALL JOINT ROTATION
STARTING TORQUE CHECK

1. Move the stabilizer link ball joint stud back and forth for

several times, install the stud with nut, and measure the
stabilizer link ball joint rotation starting torque using the
special tool preload socket (MB990326).

Standard value: 0.5

− 2.9 N⋅m (4.4 − 26 in-lb)

2. When the measured value exceeds the standard range,

replace the stabilizer link.

3. If the measured value stays within the standard range, and

there is looseness or gritty feeling, the component is judged
as unusable and should be replaced.

.

STABILIZER LINK BALL JOINT DUST COVER
CHECK

1. Using your fingers, press the dust cover to check for a crack

or damage.

2. If the dust cover has a crack or damage, replace the

stabilizer link (Refer to

P.33-20

).

NOTE: If the dust cover has a crack or damage, the ball joint
could be damaged.

AC613526 AD

Stabilizer link

Strut assembly

Hexagon wrench

Stabilizer link and
strut connection nut

AC704221

MB990326

AB
