31-1

GROUP 31

WHEEL AND TIRE

CONTENTS

SPECIFICATIONS . . . . . . . . . . . . . . .

31-2

SERVICE SPECIFICATIONS. . . . . . .

31-3

WHEEL AND TIRE DIAGNOSIS . . . .

31-3

DIAGNOSIS  . . . . . . . . . . . . . . . . . . . . . . . .

31-3

WHEEL BALANCE ACCURACY  . . . . . . . .

31-5

ON-VEHICLE SERVICE. . . . . . . . . . .

31-8

TIRE INFLATION PRESSURE CHECK . . .

31-8

TIRE WEAR CHECK. . . . . . . . . . . . . . . . . .

31-8

WHEEL RUNOUT CHECK . . . . . . . . . . . . .

31-8

WHEEL AND TIRE . . . . . . . . . . . . . . .

31-8

INSTALLATION SERVICE POINT  . . . . . . .

31-8

SPARE TIRE CARRIER . . . . . . . . . . .

31-9

REMOVAL AND INSTALLATION  . . . . . . . .

31-9

TIRE PRESSURE MONITORING



SYSTEM (TPMS)  . . . . . . . . . . . . . . . .

31-9

REMOVAL AND INSTALLATION  . . . . . . . .

31-9

SPECIFICATIONS

TSB Revision

WHEEL AND TIRE

31-2

SPECIFICATIONS

M1311000200681

The wheels and tires of the following specifications
have been established.

SPECIFICATIONS

.

ROAD WHEEL AND TIRE

<EXCEPT FOR CANADA>

<VEHICLES FOR CANADA>

Item

CW5WXTSHL2M,
CW5WXTSHL7M,
CW6WXLSYL2M,
CW6WXLMYL2M,
CW5WXTSHZL2M,
CW6WXLSYZL2M

CW5WXTHHL2M,
CW5WXTHHL7M,
CW5WXTXHL2M,
CW5WXTXHL7M,
CW6WXLXYL2M,
CW6WXLXYL7M,
CW5WXTHHZL2M,
CW5WXTXHZL2M,
CW6WXLXYZL2M,
CW6WXLXYZL7M,
CW6WXLUYZL2M,
CW6WXLUYZL7M

TPMS warning
pressure kPa (psi)

Warning ON

174 (25) or less

174 (25) or less

Warning OFF

190 (28) or more

190 (28) or more

Wheel

Type

Steel type or Aluminum
type*

Aluminum type

Size

16

× 6 1/2JJ

18

× 7JJ

Amount of wheel offset mm
(in)

38 (1.5)

38 (1.5)

Pitch circle diameter (PCD)
mm (in)

114.3 (4.50)

114.3 (4.50)

Tire

Size

215/70R16 99H

225/55R18 97H

Item

CW5WXTSHL3M,
CW5WXTSHZL3M,
CW6WXLMYZL3M

CW6WXLUYZL3M

TPMS warning
pressure kPa (psi)

Warning ON

174 (25) or less

174 (25) or less

Warning OFF

190 (28) or more

190 (28) or more

Wheel

Type

Aluminum type

Aluminum type

Size

16

× 6 1/2JJ

18

× 7JJ

Amount of wheel offset mm
(in)

38 (1.5)

38 (1.5)

Pitch circle diameter (PCD)
mm (in)

114.3 (4.50)

114.3 (4.50)

Tire

Size

215/70R16 99H

225/55R18 97H

SERVICE SPECIFICATIONS

TSB Revision

WHEEL AND TIRE

31-3

SPARE WHEEL AND TIRE

NOTE: The * mark indicates optional item.
NOTE: PCD (Pitch Circle Diameter) indicates the pitch circle diameter of the wheel installation holes.

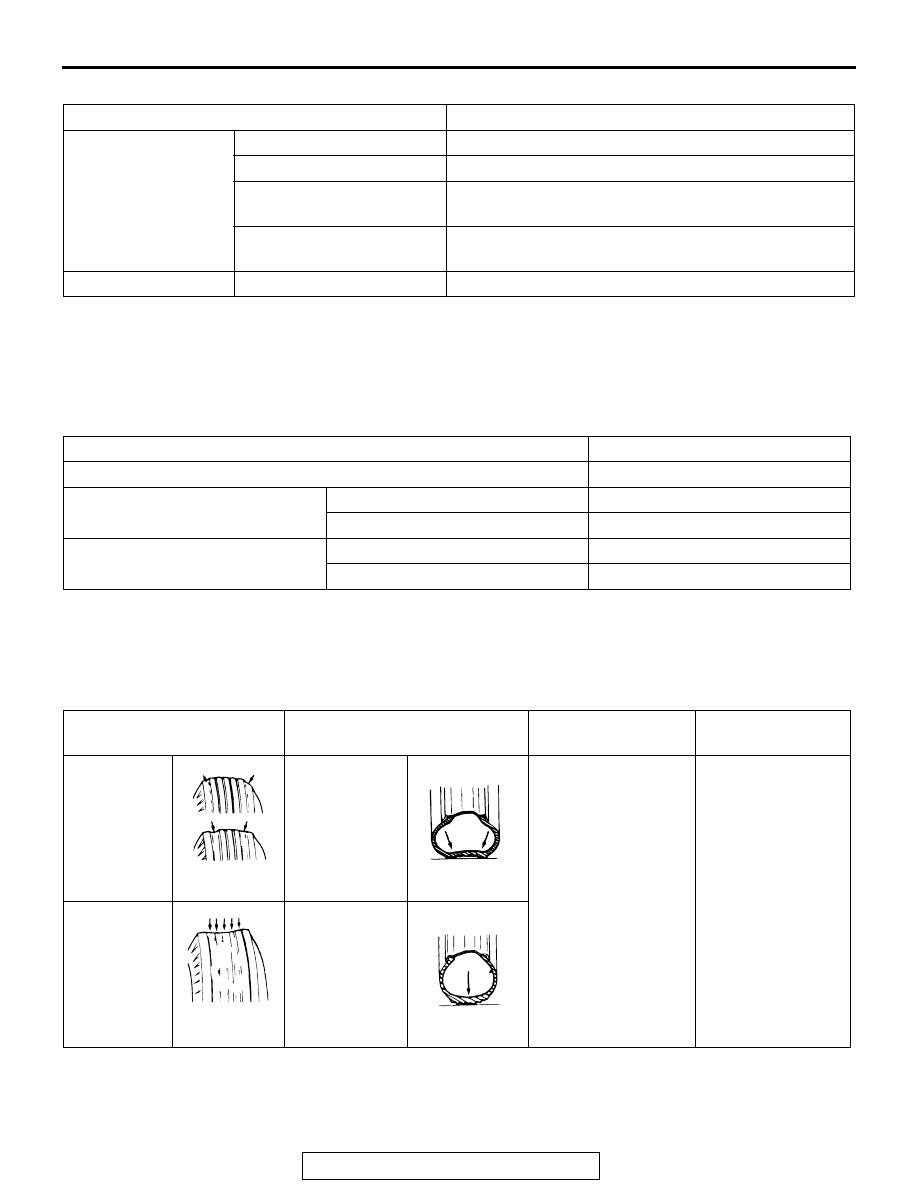

SERVICE SPECIFICATIONS

M1311000300901

WHEEL AND TIRE DIAGNOSIS

DIAGNOSIS

M1311007700029

Item

Specification

Wheel

Type

Steel type

Size

16

× 4T

Amount of wheel offset mm
(in)

40 (1.6)

Pitch circle diameter (PCD)
mm (in)

114.3 (4.50)

Tire

Size

T155/90D16 110M

Item

Limit

Tread depth of tire mm (in)

Minimum 1.6 (0.06)

Wheel runout <Aluminum wheel>

Radial runout mm (in)

1.0 (0.04) or less

Lateral runout mm (in)

1.0 (0.04) or less

Wheel runout <Steel wheel>

Radial runout mm (in)

1.2 (0.05) or less

Lateral runout mm (in)

1.2 (0.05) or less

SYMPTOM

PROBABLE CAUSE

REMEDY

REFERENCE
PAGE

Rapid wear
at shoulders

Under-inflation
or lack of
rotation

Adjust the tire
pressure.

For tire inflation
pressure, refer to
the label on the
driver's side center
pillar.

Rapid wear
at center

Over-inflation
or lack of
rotation

ACX00923AB

ACX00924 AB

ACX00925AB

ACX00926AB

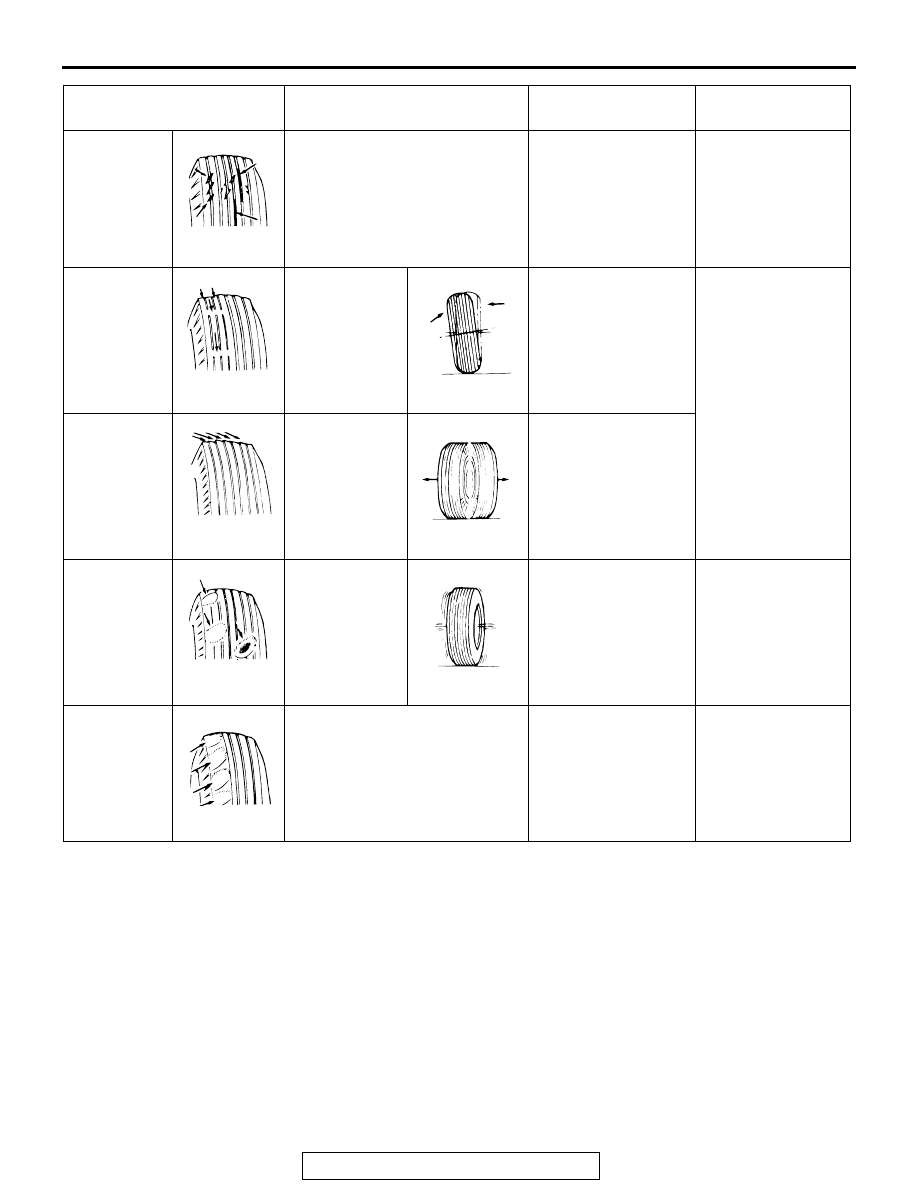

WHEEL AND TIRE DIAGNOSIS

TSB Revision

WHEEL AND TIRE

31-4

Cracked
treads

Under-inflation

Adjust the tire
pressure.

For tire inflation
pressure, refer to
the label on the
driver's side center
pillar.

Wear on one
side

Excessive
camber

Check the camber.

Refer to GROUP
33, On-vehicle
service

− Front

wheel alignment
check and
adjustment

P.33-8

.

Feathered
edge

Incorrect toe-in

Adjust the toe-in.

Bald spots

Unbalanced
wheel

Balance the wheels.

−

Scalloped
wear

Lack of rotation of tires or worn
or out-of-alignment suspension

Rotate the tires, and
check the front
suspension
alignment.

Refer to GROUP
33, On-vehicle
service

− Front

wheel alignment
check and
adjustment

P.33-8

.

SYMPTOM

PROBABLE CAUSE

REMEDY

REFERENCE
PAGE

ACX00927AB

ACX00928 AB

ACX00929 AB

ACX00930AB

ACX00931AB

ACX00932AB

ACX00933 AB

ACX00934
