DIFFERENTIAL CARRIER ASSEMBLY

TSB Revision

REAR AXLE <AWD>

27B-33

DISASSEMBLY

M1271005400106

AC703501

15

13

7

12

30

5

21

1

8

9

N

N

4

N

N

N

20 19

11

AB

3

2

N

6

10

11

12

14

13

16 1718

19

20

22

23

24

25

26

27

28

29

31

32

33

10

17

18

9

N

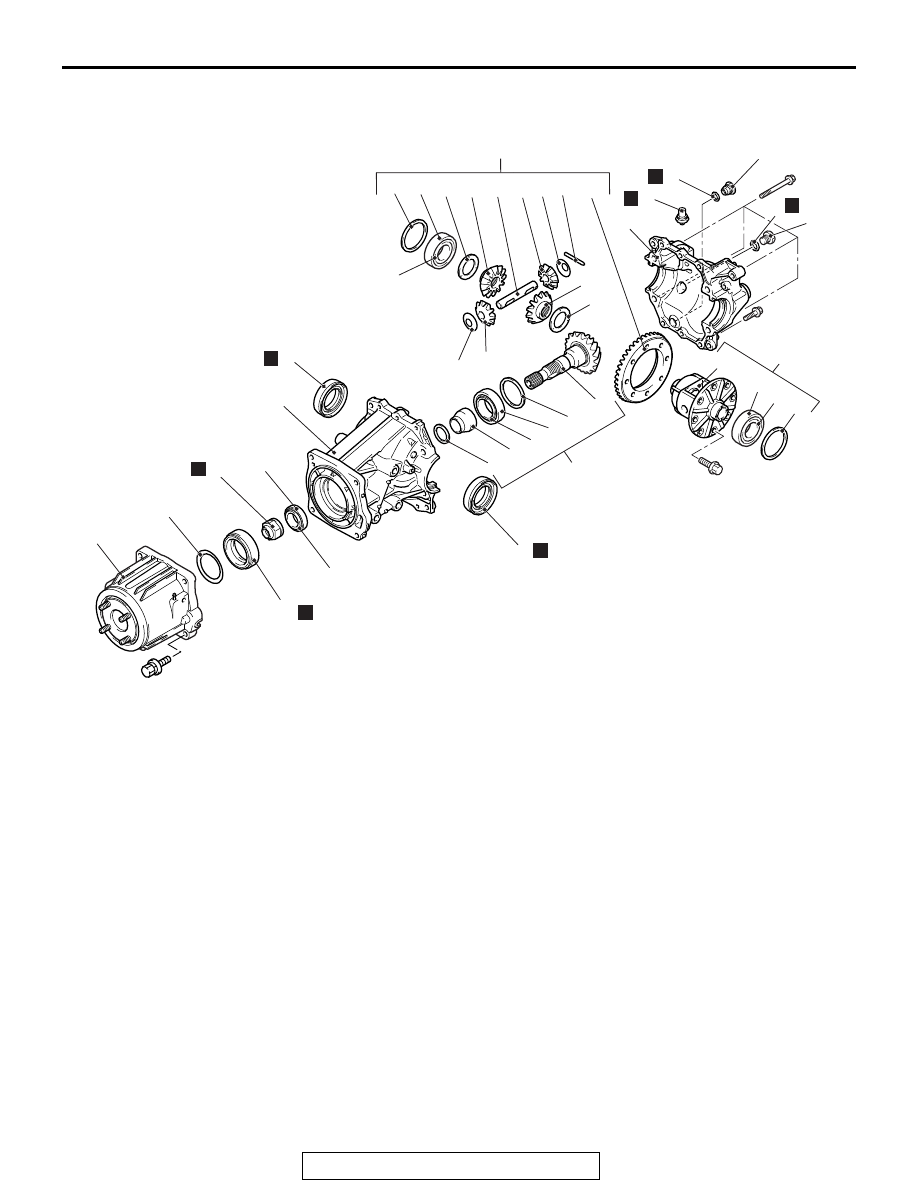

Disassembly steps

1.

Filler plug

2.

Gasket

3.

Drain plug

4.

Gasket

5.

Electronic control coupling

6.

Washer

7.

Differential cover assembly

8.

Vent plug

9.

Oil seal

<<

A

>>

10. Pre-disassembly check

<<

B

>>

•

Differential case assembly

<<

B

>>

11. Differential side bearing spacer

<<

B

>>

12. Differential side bearing outer race

<<

C

>>

13. Differential side bearing inner race

<<

D

>>

14. Drive gear

<<

E

>>

15. Lock pin
16. Pinion shaft
17. Pinion gear
18. Pinion washer
19. Side gear

20. Side gear spacer
21. Differential case

<<

F

>>

22. Differential nut
23. Drive pinion assembly
24. Drive pinion front shim (for drive

pinion rotation torque adjustment)

25. Drive pinion spacer

<<

G

>>

26. Drive pinion rear bearing inner

race

27. Drive pinion rear shim (for drive

pinion height adjustment)

28. Drive pinion
29. Oil seal
30. Drive pinion front bearing inner

race

<<

H

>>

31. Drive pinion front bearing outer

race

<<

I

>>

32. Drive pinion rear bearing outer

race

33. Differential carrier

Disassembly steps (Continued)

DIFFERENTIAL CARRIER ASSEMBLY

TSB Revision

REAR AXLE <AWD>

27B-34

Required Special Tools:

• MB990560: Rear Axle Shaft Bearing Remover

• MB990810: Side Bearing Puller

• MB990909: Working Base

• MB990939: Remover Bar

• MB991116: Working Base Adapter

• MB992111: Side Bearing Holder

• MB992112: Lock Nut Wrench

• MB992113: Drive Pinion Holder

DISASSEMBLY SERVICE POINT

.

<<A>> INSPECTION BEFORE DISASSEMBLY

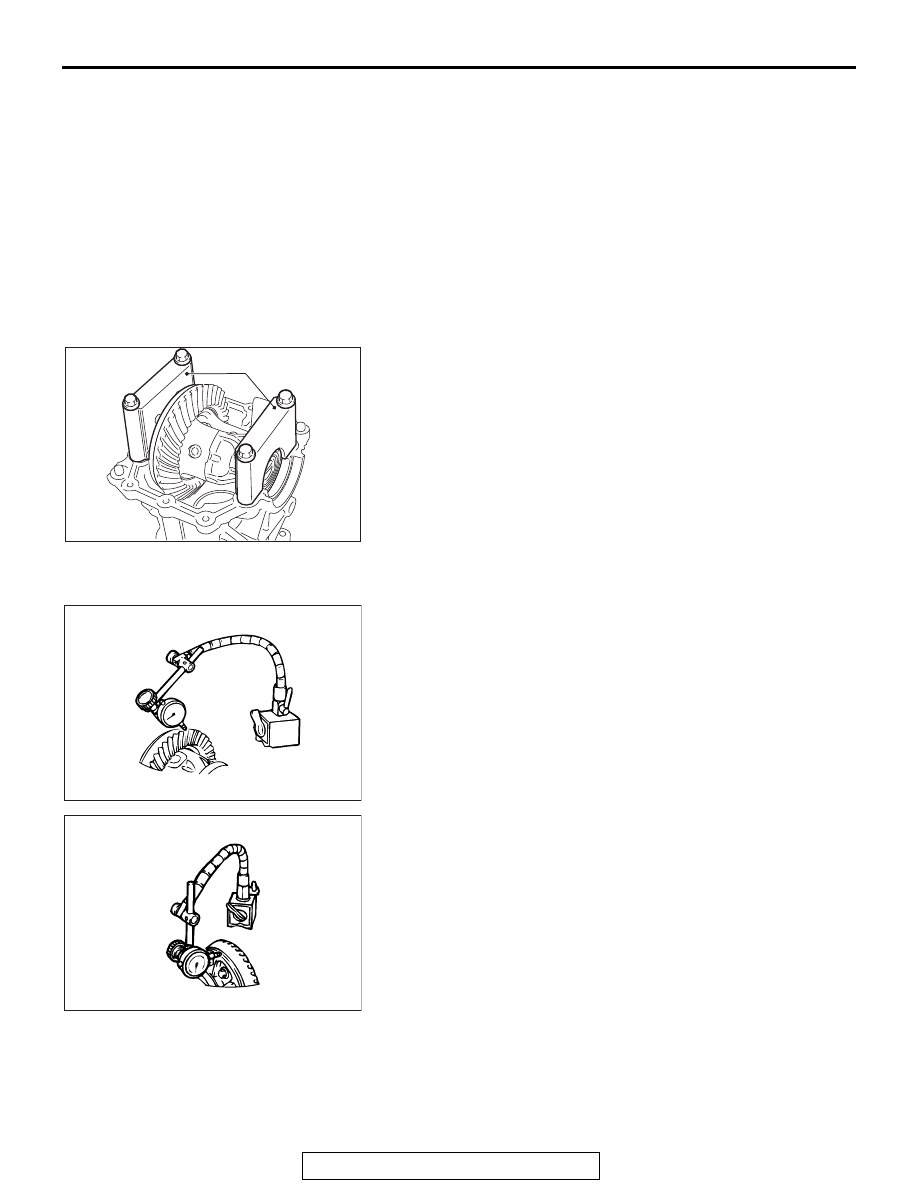

1. Remove the differential case assembly, differential side

bearing spacer and differential side bearing.

2. Hold special tools MB990909 and MB991116 in a vise, and

install the differential carrier assembly to the special tool.

3. Use special tool MB992111 to install the differential case

assembly, differential side bearing spacer and differential
side bearing to the differential carrier, then perform the
following checks.

Tightening torque: 48

± 6 N⋅m (36 ± 4 ft-lb)

.

DRIVE GEAR BACKLASH

1. Set a dial gauge against the drive gear teeth edge and fix

the drive pinion. Rotate the drive gear to measure the
backlash at four or more points.

Standard value: 0.08

− 0.15 mm (0.003 − 0.006 inch)

2. When the backlash is not within the standard value range,

adjust the final drive gear backlash. (Refer to

P.27B-39

.)

3. After adjustment, check the final drive gear teeth contact.

.

DRIVE GEAR RUNOUT ON BACKSIDE

1. Set a dial gauge against the backside of the drive gear.

Rotate the drive gear to measure the runout.

Limit: 0.05 mm (0.002 inch)

2. When the runout exceeds the limit value, check for the

foreign material between the backside of the drive gear and
the differential gear case, and looseness of the drive gear
mounting bolt.

3. When the runout measured in step 2 is normal, change the

position of the drive gear and differential case, and measure
the runout again.

4. If the adjustment is not possible, replace the differential case

or the drive gear and the drive pinion as a set.

.

AC703503

MB992111

AB

AC612539

AC612540

DIFFERENTIAL CARRIER ASSEMBLY

TSB Revision

REAR AXLE <AWD>

27B-35

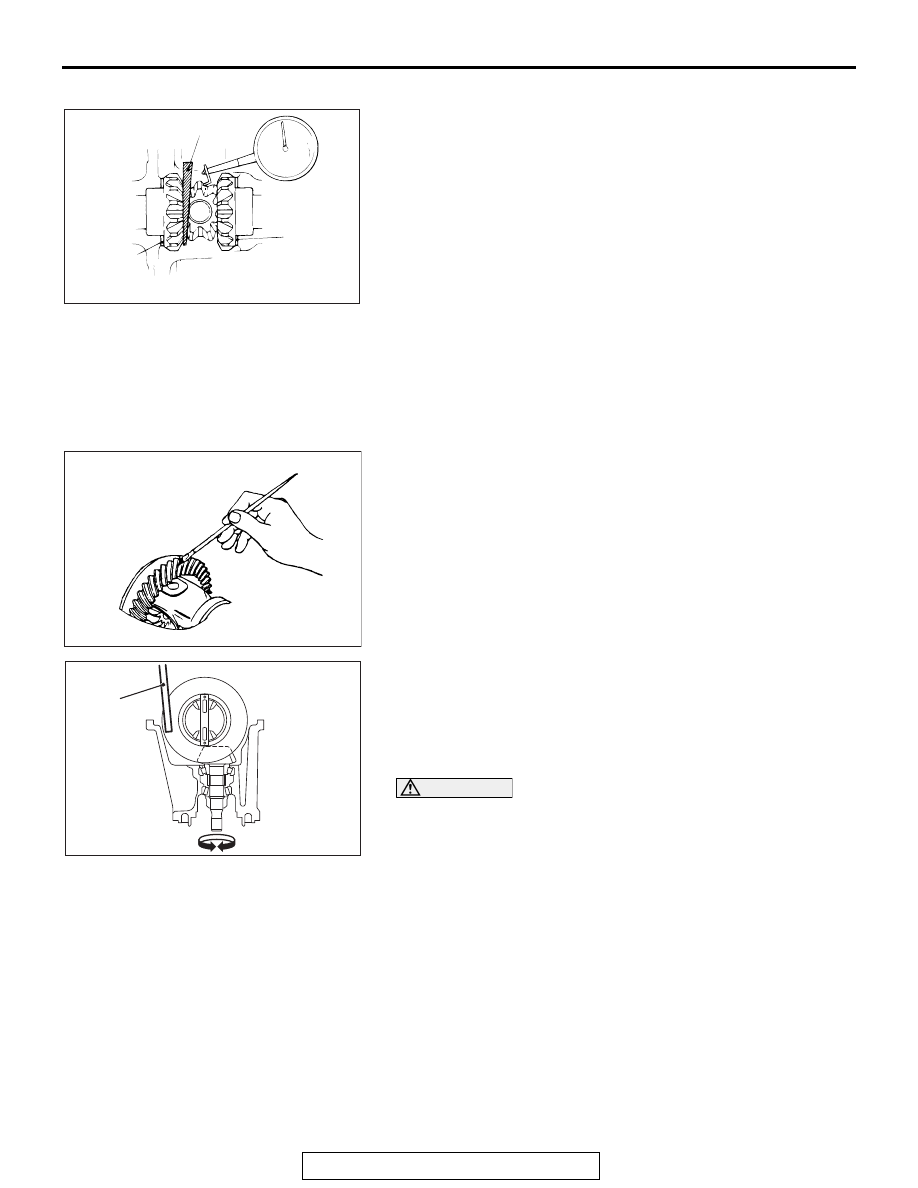

DIFFERENTIAL GEAR BACKLASH

1. Drive the wooden wedge between one of the side gears and

the pinion shaft to fix one side of the side gear. Then, set a
dial gauge (with the measuring rod extended) against the
pinion gear, and measure the backlash to check that it is
within the standard value. Repeat the same procedure to
measure the backlash at the other pinion gear.

Standard value: 0

− 0.076 mm (0 − 0.0030 inch)

Limit: 0.2 mm (0.01 inch)

2. When the backlash exceeds the limit value, adjust the

backlash of the differential gear.(Refer to

P.27B-39

.)

3. When the adjustment is not possible, replace the side gear

and the pinion gear as a set.

.

FINAL DRIVE GEAR TEETH CONTACT
ADJUSTMENT

Check the final drive gear teeth contact in the following steps:
1. Apply the bearing blue on the drive gear teeth (on both

sides) thinly and evenly.

2. Insert special tool MB990939 between the differential carrier

and the drive gear installation side of the differential case.
While applying load to the drive gear so that the rotation
torque [approximately 2.5

− 2.9 N⋅m (22.1 − 25.7 in-lb)] is

applied to the drive pinion, rotate the drive pinion by hand
(360 degrees clockwise and counterclockwise respectively).

CAUTION

Do not let the drive gear rotated over 360 degrees. It makes
the gear contact pattern unclear.
3. Check contact of the final drive gear teeth.

AC703506AB

Side gear
spacer

Side gear
spacer

Wedge

AC612541

AC709328AC

MB990939

DIFFERENTIAL CARRIER ASSEMBLY

TSB Revision

REAR AXLE <AWD>

27B-36

NOTE:

.

1. Checking the contact pattern is the method to check that

the drive pinion height and the final drive gear backlash are
or are not adjusted properly. Repeat the adjustments of the
drive pinion height and the final drive gear backlash until the
contact pattern similar to the normal pattern.

2. If the normal contact pattern cannot be obtained even after

making the adjustments, the drive gear and the drive pinion
have been worn exceeding the usage limit. Replace both
gears as a set.

.

<<B>> DIFFERENTIAL CASE
ASSEMBLY/DIFFERENTIAL SIDE BEARING
SPACER/DIFFERENTIAL SIDE BEARING OUTER
RACE REMOVAL

CAUTION

When removing the differential case assembly, remove it
slowly with care not to drop the differential side bearing
spacer and the differential side bearing outer race.
Remove the differential case assembly, differential side bearing
spacer and differential side bearing outer race.
NOTE: Identify the RH and LH side bearing spacers as a refer-
ence for the reassembly operation.

.

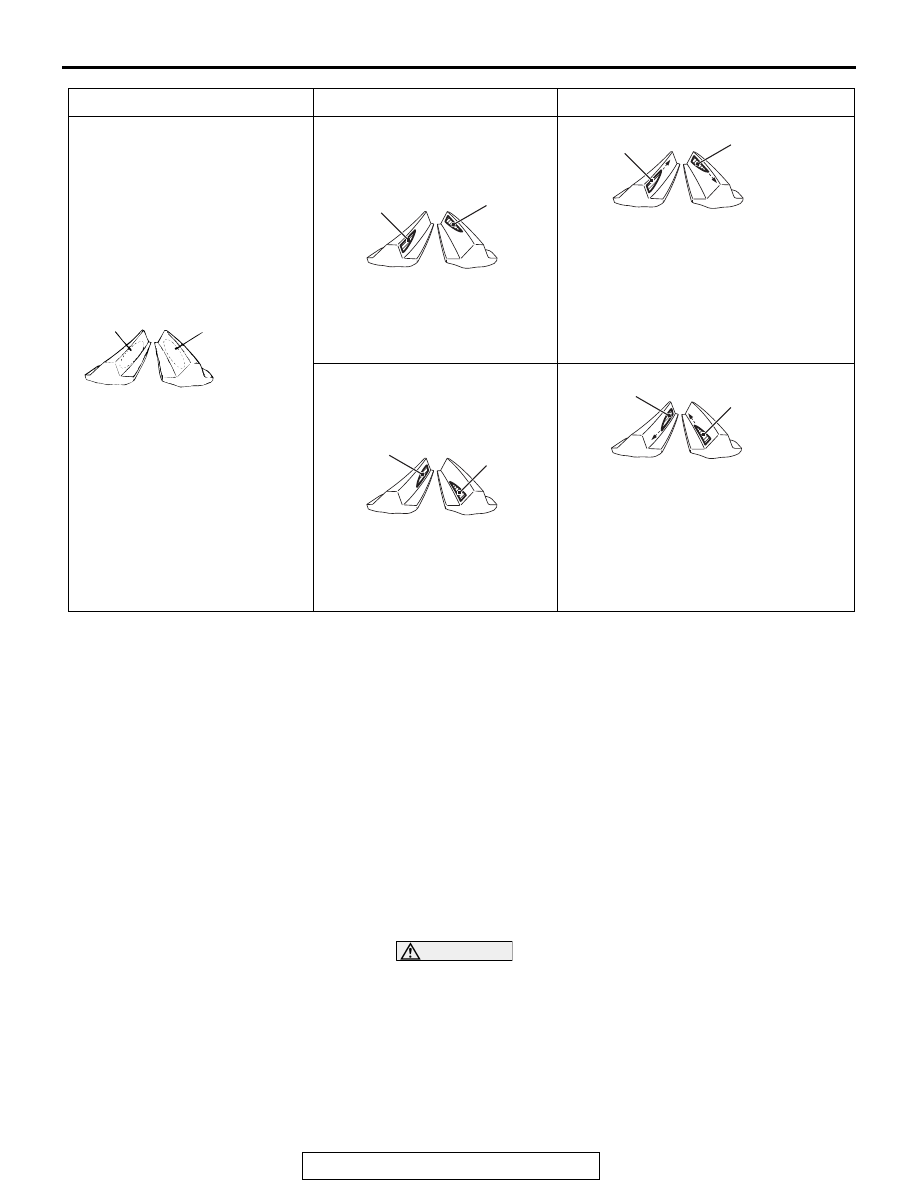

Normal contact pattern

Cause

Measures

1. Small-end side
2. Drive-side tooth face (the side
to which the force is applied
while driving forward)
3. Large-end side
4. Coast-side tooth face (the
side to which the force is applied
while driving
backward)

Contact pattern indicating that
the drive pinion height is too
high

Drive pinion is too much away
from the center of the drive gear.

Increase thickness of the drive pinion
rear shim to bring the drive pinion
closer to the center of the drive gear.
Then move the drive gear away from
the drive pinion for the final drive gear
backlash adjustment.

Contact pattern indicating that
the drive pinion height is too
low

Drive pinion is too close to the
center of the drive gear.

Reduce thickness of the drive pinion
rear shim to bring the drive pinion away
from the center of the drive gear. Then
move the drive gear closer to the drive
pinion for the final drive gear backlash
adjustment.

AC703509AB

1

3

2

4

AC703510AB

1

3

2

4

AC703511AB

1

3

2

4

AC703512AB

1

3

2

4

AC703513AB

1

3

2

4
