DRIVESHAFT ASSEMBLY
TSB Revision
FRONT AXLE
26-43

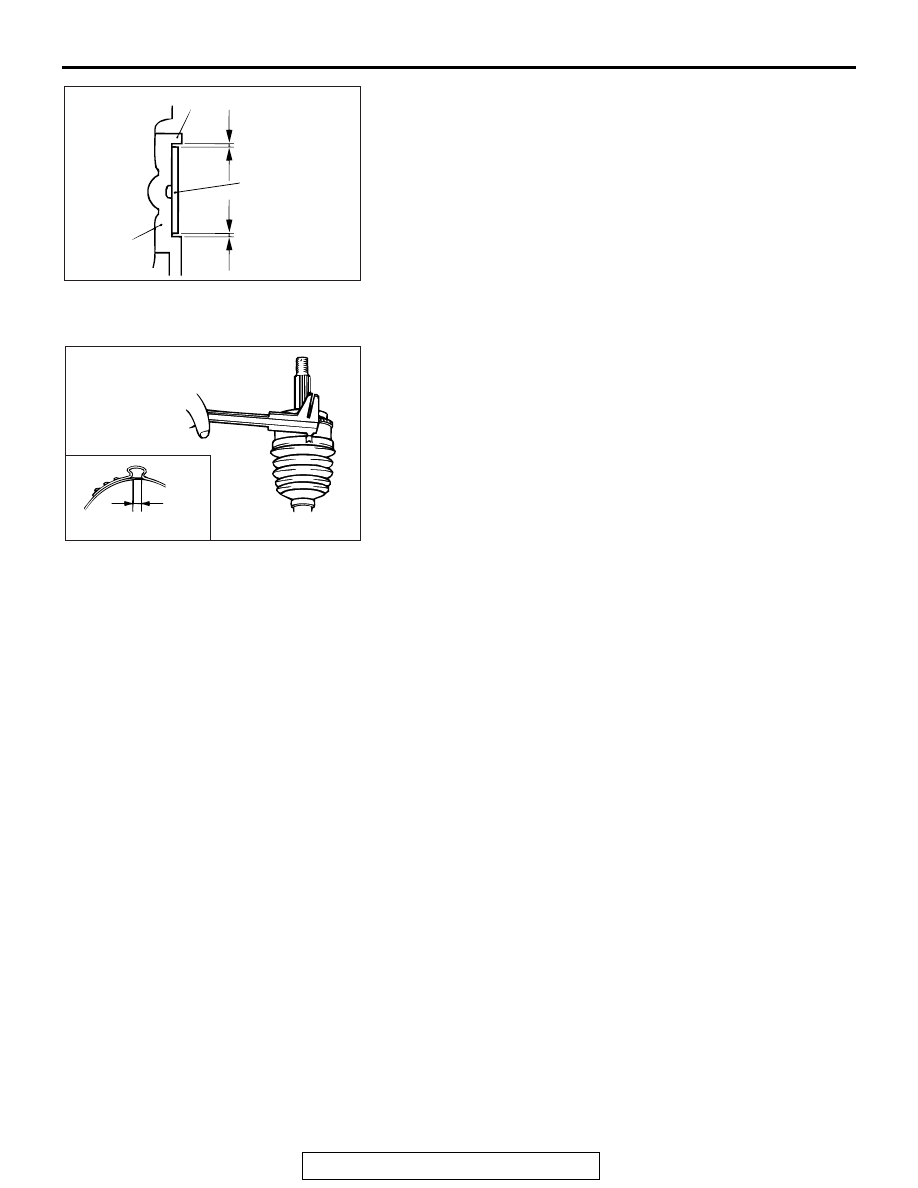

13.Position the EBJ boot band (large) so that there is even
clearance at either end (D and E).
14.Use special tool MB991561 to crimp the EBJ boot band
(large) in the same way as in step 7.
15.Check that the crimping amount (F) of the boot band is at
the standard value.
Standard value (F): 2.4
− 2.8 mm (0.10 − 0.11 inch)
If the crimping amount is larger than 2.8 mm (0.11
inch)
Readjust the value of (W) in step 12 according to
the following formula, and then repeat the opera-
tion in step 14.
W = 5.8 mm (0.23 inch)
− F
Example: If F = 2.9 mm (0.11 inch), then W = 2.9 mm
(0.11 inch)
If the crimping amount is smaller than 2.4 mm (0.10
inch)
Remove the EBJ boot band, readjust the value of
(W) in step 12 according to the following formula,
and then repeat the operations in steps 13 and 14
using a new EBJ boot band.
W = 5.8 mm (0.23 inch)
− F
Example: If F = 2.3 mm (0.09 inch), then W = 3.5 mm
(0.14 inch)
16.Check that the boot band is not sticking out past the place
where it has been installed. If the boot band is sticking out,
remove it and then repeat steps 13 to 15, using a new boot
band.
AC703347AB
Boot
Projection
Boot band
(large)
D
E
AC703348AB
F
