SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-155

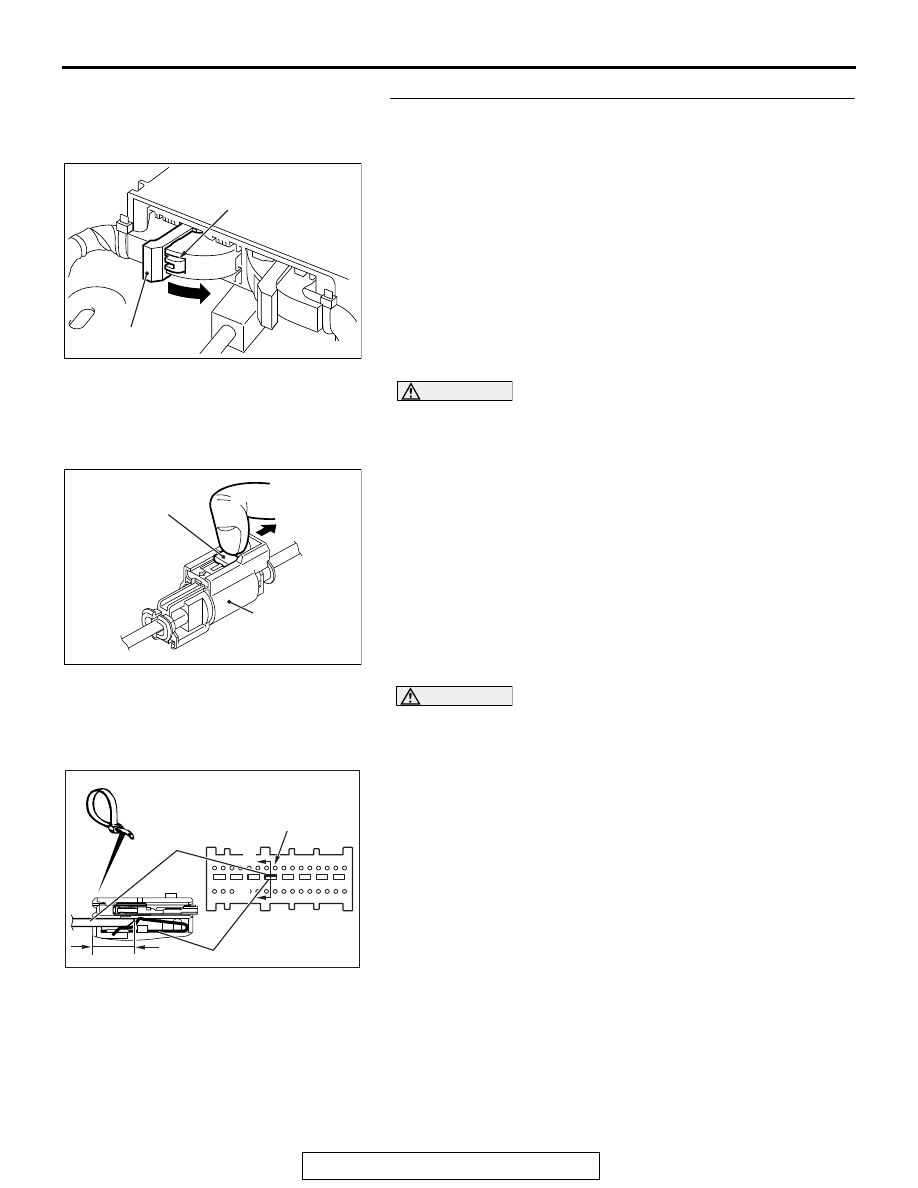

STEP 5. Resistance measurement at the C-27 SRS-ECU
connector.
(1) Disconnect the negative battery terminal.
(2) While pushing the part "A" indicated in the figure of the

harness side connector, turn the lock lever to the direction
of the arrow to release the lock lever, and disconnect the
C-27 SRS-ECU connector.

DANGER

To prevent the air bag from deploying unintentionally,
disconnect the intermediate connector D-08 to short
the squib circuit.

(3) Disconnect the D-08 intermediate connector, unlock the

connector by sliding the locking button to the direction of the
arrow as shown in the figure, and then disconnect the
connector.

CAUTION

The short spring may not be released due to the insuffi-
cient insertion. Therefore, insert the insulator for 4 mm (0.6
inch) or more.
(4) Insert a cable tie [3 mm (0.12 inch) wide, 0.5 mm (0.02 inch)

thick] between terminal 39, 40 and the short spring to
release the short spring.

AC506734

A

AB

Lock lever

AC706606

AH

Locking button

Intermediate

connector

AC507303BO

A

A

C-27 Harness side
connector (front view)

Section
A - A

Cable tie

Short spring

4 mm or more

Terminal

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-156

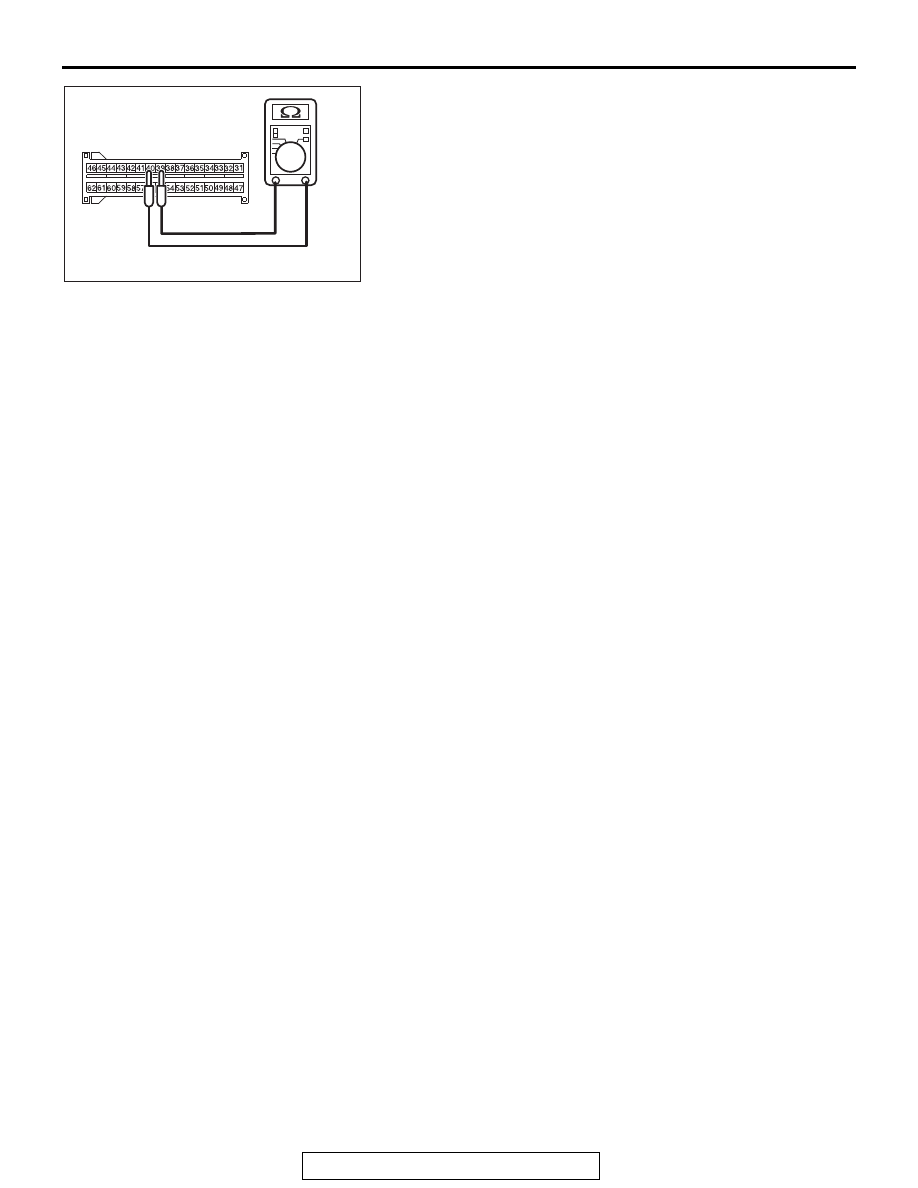

(5) Check for continuity between the C-27 wiring harness side

connector terminal No. 39 and No. 40.
It should be open circuit.

Q: Is it open circuit?

YES : Go to Step 7.
NO :  Repair the wiring harness.

AC701616

C-27 Harness side
connector (front view)

AB

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-157

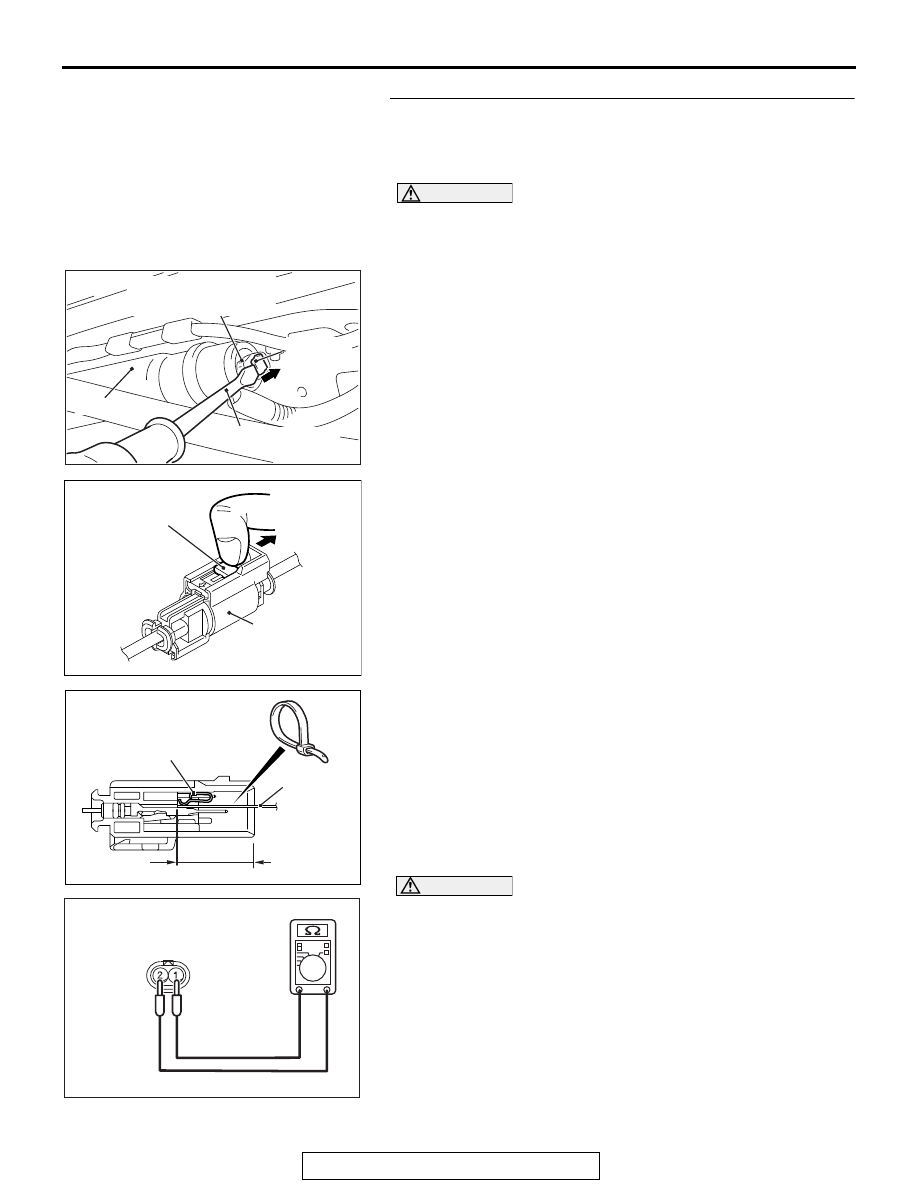

STEP 6. Short circuit check between the D-104 curtain air
bag module harness side connector and the D-08
intermediate harness.
(1) Disconnect the negative battery terminal.

DANGER

To prevent the air bag from deploying unintentionally,
disconnect the curtain air bag module connector
D-104 to short the squib circuit.

(2) Disconnect curtain air bag module (RH) D-104. Use a

flat-tipped screwdriver to unlock the locking button at the
harness side connector by withdrawing it toward you in two
stages, and then disconnect the connector.

(3) Disconnect the D-08 intermediate connector, unlock the

connector by sliding the locking button to the direction of the
arrow as shown in the figure, and then disconnect the
connector.

(4) Because the short spring is installed to the D-08

intermediate connector (curtain air bag harness side), insert
a cable tie [3 mm (0.12 inch) wide, 0.5 mm (0.02 inch) thick]
between terminals 1, 2 and the short spring to release the
short spring.

CAUTION

Do not insert a probe into the terminal from its front side
directly, as the connector contact pressure may be weak-
ened.
(5) Check for continuity between the D-08 intermediate

connector (curtain air bag harness side) terminal No. 1 and
No. 2.
It should be open circuit.

Q: Is it open circuit?

YES : Replace the curtain air bag module (RH) (Refer to

P.52B-453

). Then go to Step 7.

NO :  Repair the wiring harness.

AC701573

Locking
button



Flat-tipped screwdriver

Inflator

Curtain air bag wiring
harness side connector



AB

AC706606

AH

Locking button

Intermediate

connector

AC700119

D-08 Intermediate
connector (module side )

22 mm or more

Cable tie

Short spring

AL

AC709326

D-08 Intermediate connector
(Curtain air bag harness side)
(rear view)

AF

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-158

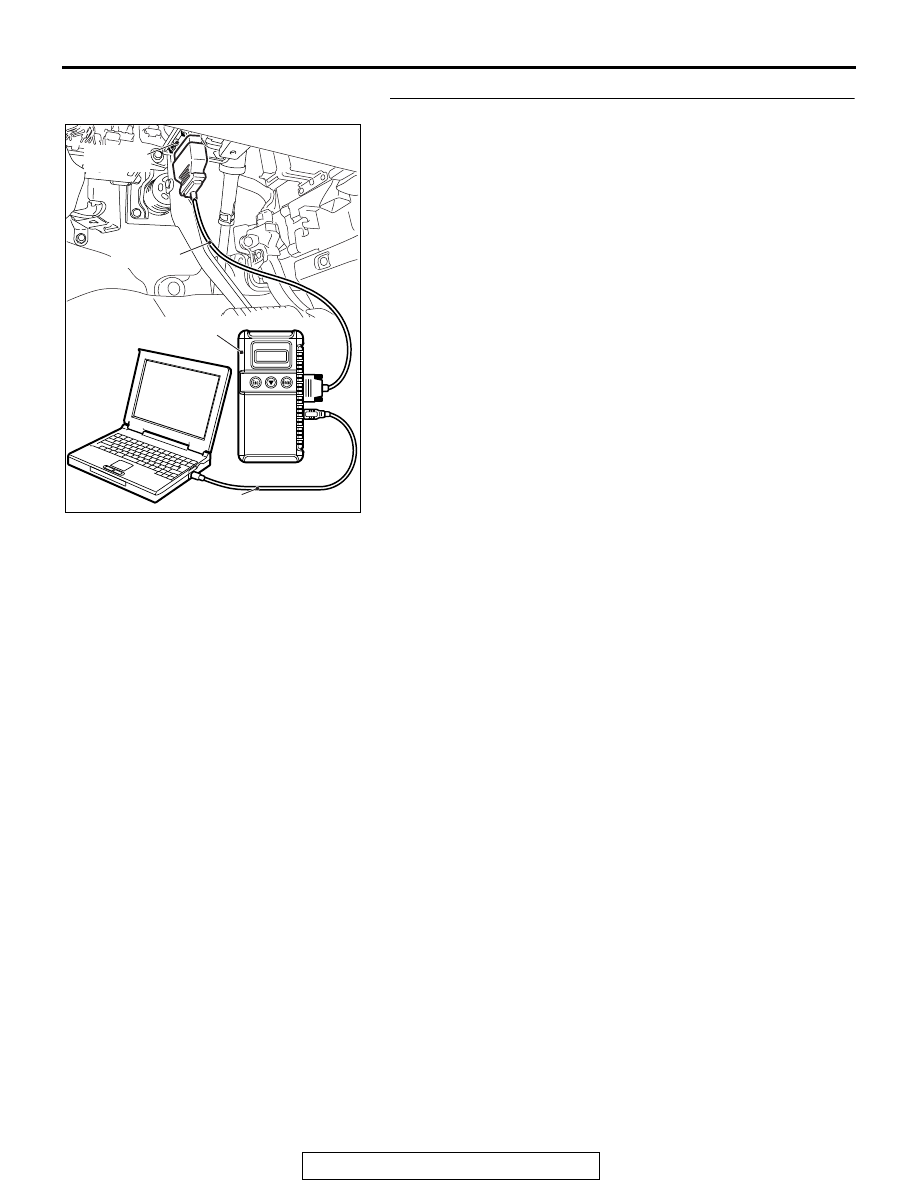

STEP 7. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC B1B23 set?

YES : Replace SRS-ECU. (Refer to

P.52B-436

.)

NO :  Intermittent Malfunction (Refer to GROUP 00, How to

Use Troubleshooting/Inspection Service Points

− How

to Cope with Intermittent Malfunction

P.00-15

).

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector
