SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-87

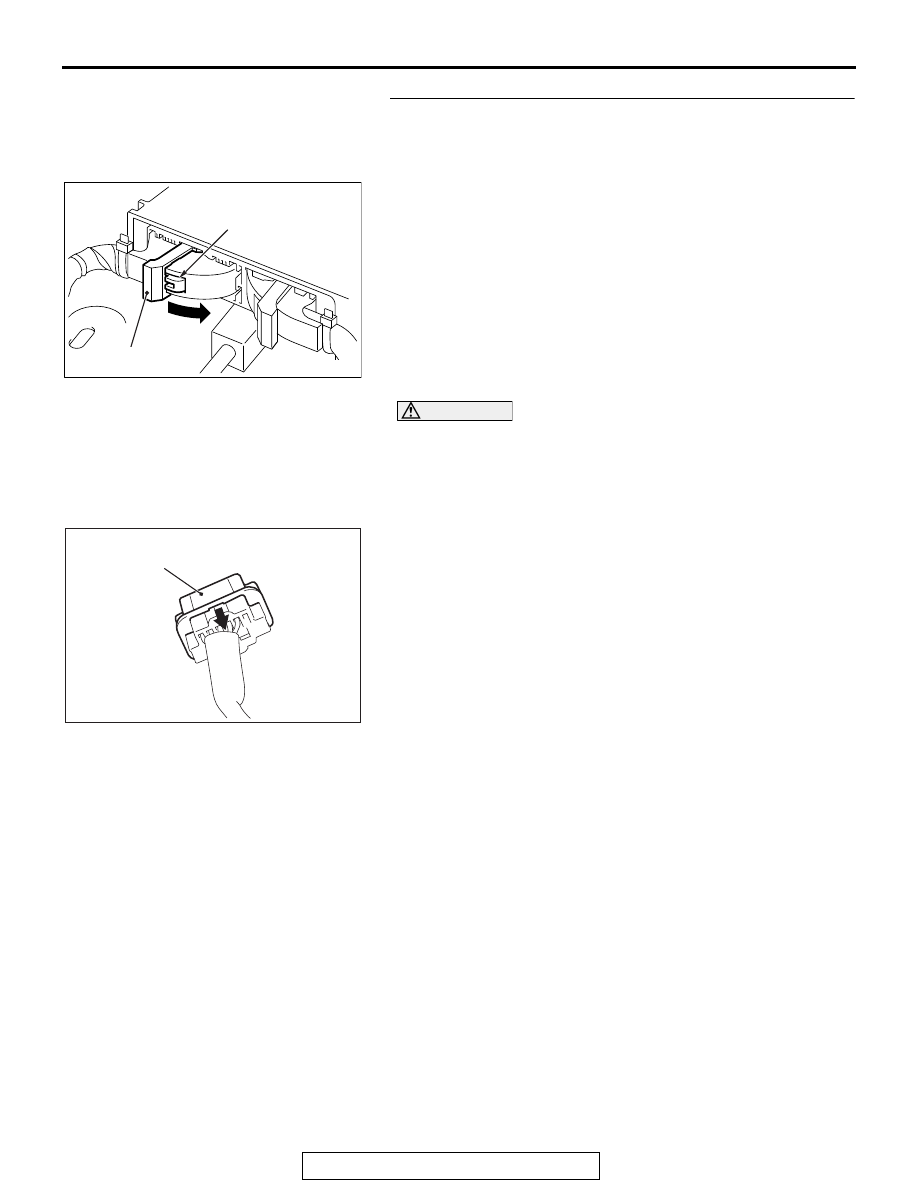

STEP 4. Check the passenger’s (front) air bag module
circuit. Measure the voltage at the SRS-ECU connector
C-28.
(1) Disconnect the negative battery terminal.
(2) While pushing the part "A" indicated in the figure of the

harness side connector, turn the lock lever to the direction
of the arrow to release the lock lever, and disconnect the
C-28 SRS-ECU connector.

DANGER

To prevent the air bag from deploying unintentionally,
disconnect the passenger’s (front) air bag module
connector C-11 to short the squib circuit.

(3) Disconnect the passenger's (front) air bag module

connector C-11.

(4) Slide the outer housing of passenger’s (front) air bag

module connector C-11 in the arrow direction shown, and
disconnect the connector.

AC506734

A

AB

Lock lever

AC701511

Outer housing of the passenger's (front) air bag
module connector



AC

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-88

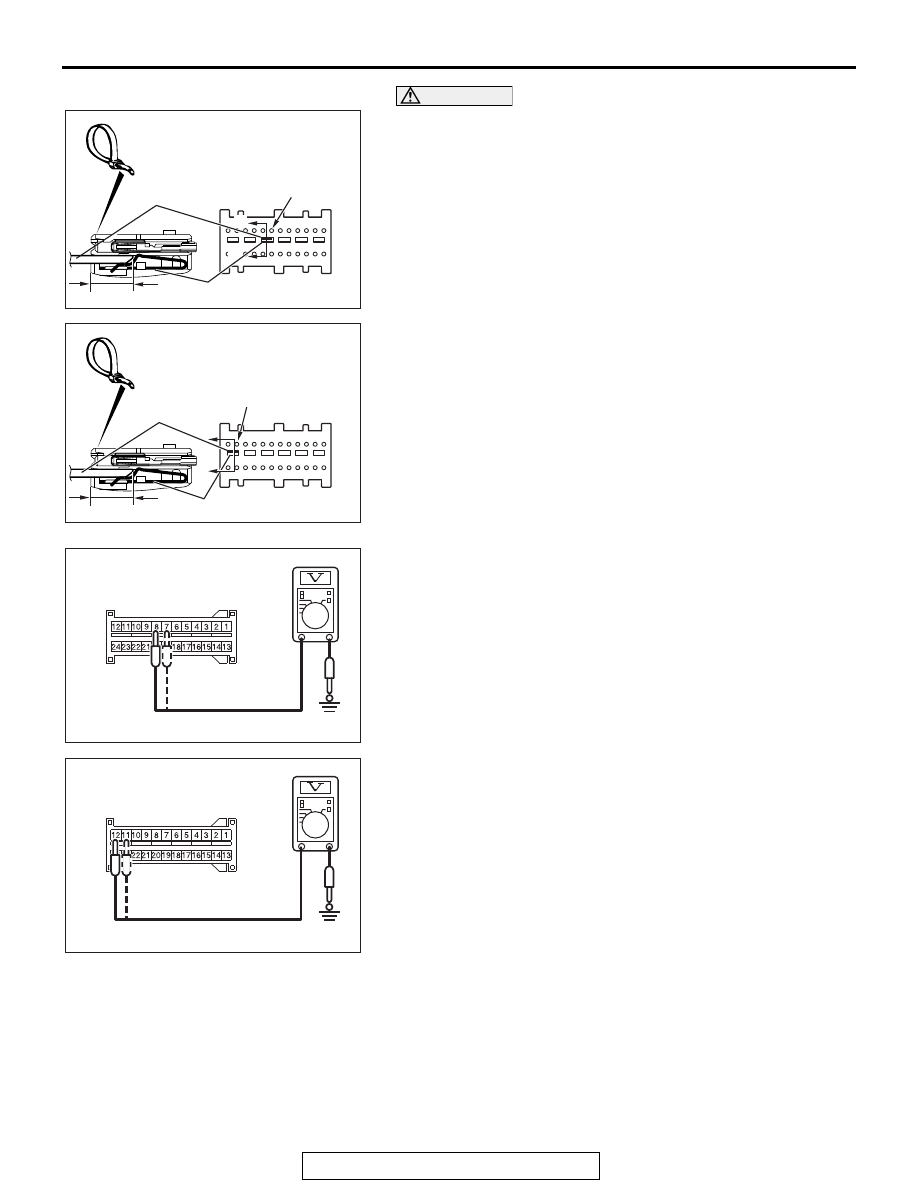

CAUTION

Insert an insulator such as a cable tie to a depth of 4 mm
(0.16 inch) or more, otherwise the short spring will not be
released.
(5) Insert a cable tie [3 mm (0.12 inch) wide, 0.5 mm (0.02 inch)

thick] between terminals 7 and 8 <1st squib> or 11 and 12
<2nd squib>, and the short spring to release the short
spring.

(6) Connect the negative battery terminal.
(7) Ignition switch: ON.

(8) Measure the voltage between C-28 harness side connector

terminals 7 and 8 <1st squib> or 11 and 12 <2nd squib>
and body ground.
Voltage should measure 1 volt or less.

Q: Is the measured voltage within the specified range?

YES : Erase the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC B1B09 <1st
squib> B1B0D <2nd squib> sets, replace the
SRS-ECU. (Refer to

P.52B-436

. Then go to Step 6.

NO :  Go to Step 5.

AC701517AD

A

A

<1st Squib>

C-28 Harness side
connector (front view)

Section
A - A

Cable tie

Short spring

4 mm or more

Terminal

AC701517AE

A

A

<2nd Squib>

Section
A - A

C-28 Harness side
connector (front view)

Cable tie

Short spring

4 mm or more

Terminal

AC608813

C-28 Harness side
connector (front view)

BV

<1st squib>

AC608813

C-28 Harness side
connector (front view)

BW

<2nd  squib>

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-89

STEP 5. Check the harness wires for short circuit to power
supply between the following connector.

• SRS-ECU connector C-28 (terminal No.7 and 8) and pas-

senger's (front) air bag module connector C-11 (terminal
No.2 and 1) <1st squib>.

• SRS-ECU connector C-28 (terminal No.11 and 12) and pas-

senger's (front) air bag module connector C-11 (terminal
No.4 and 3) <2nd squib>.

Q: Is the check result normal?

YES : Go to Step 6.
NO :  Repair the harness wires between SRS-ECU

connector C-28 and passenger's (front) air bag
module connector C-11. Then go to Step 6.

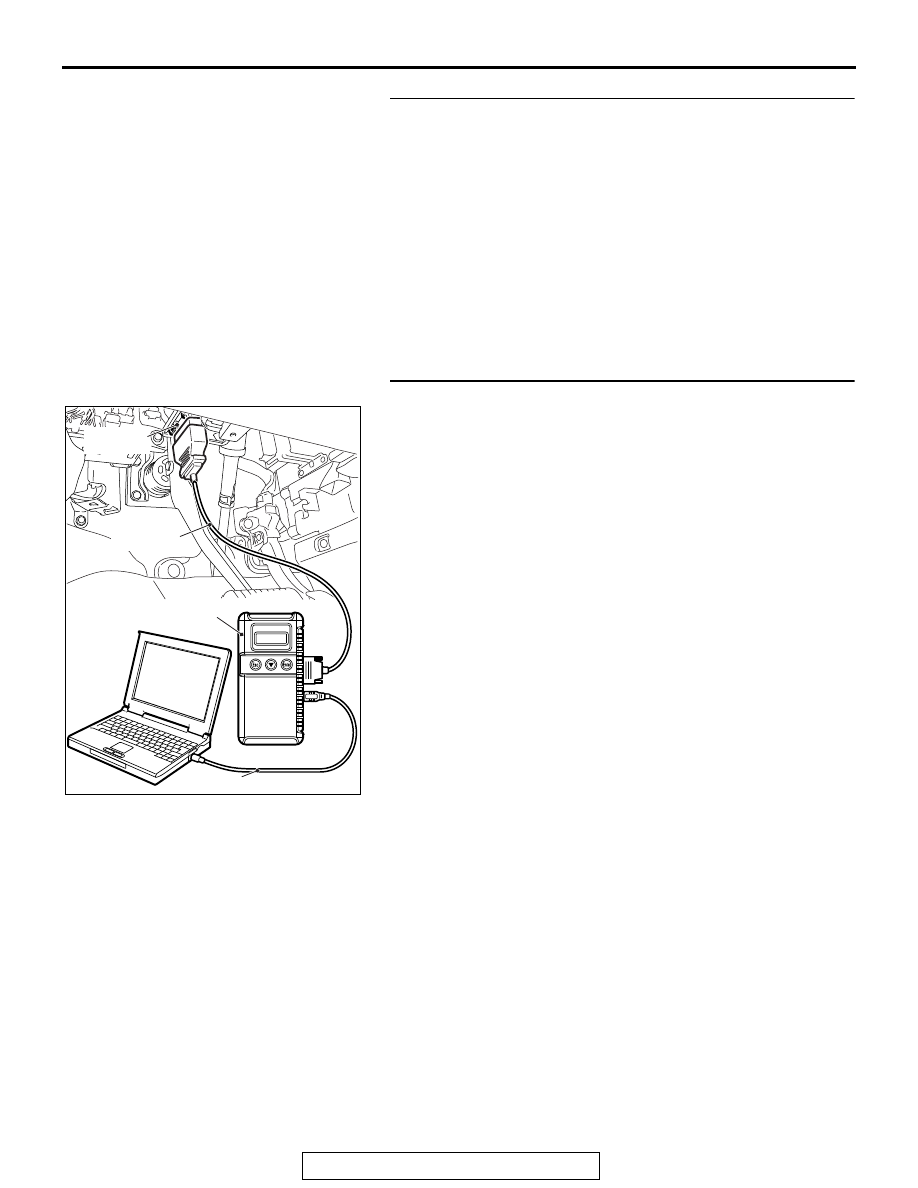

STEP 6. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC B1B09 <1st squib> B1B0D <2nd squib> set?

YES : Return to Step 1.
NO :  The procedure is complete.

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-90

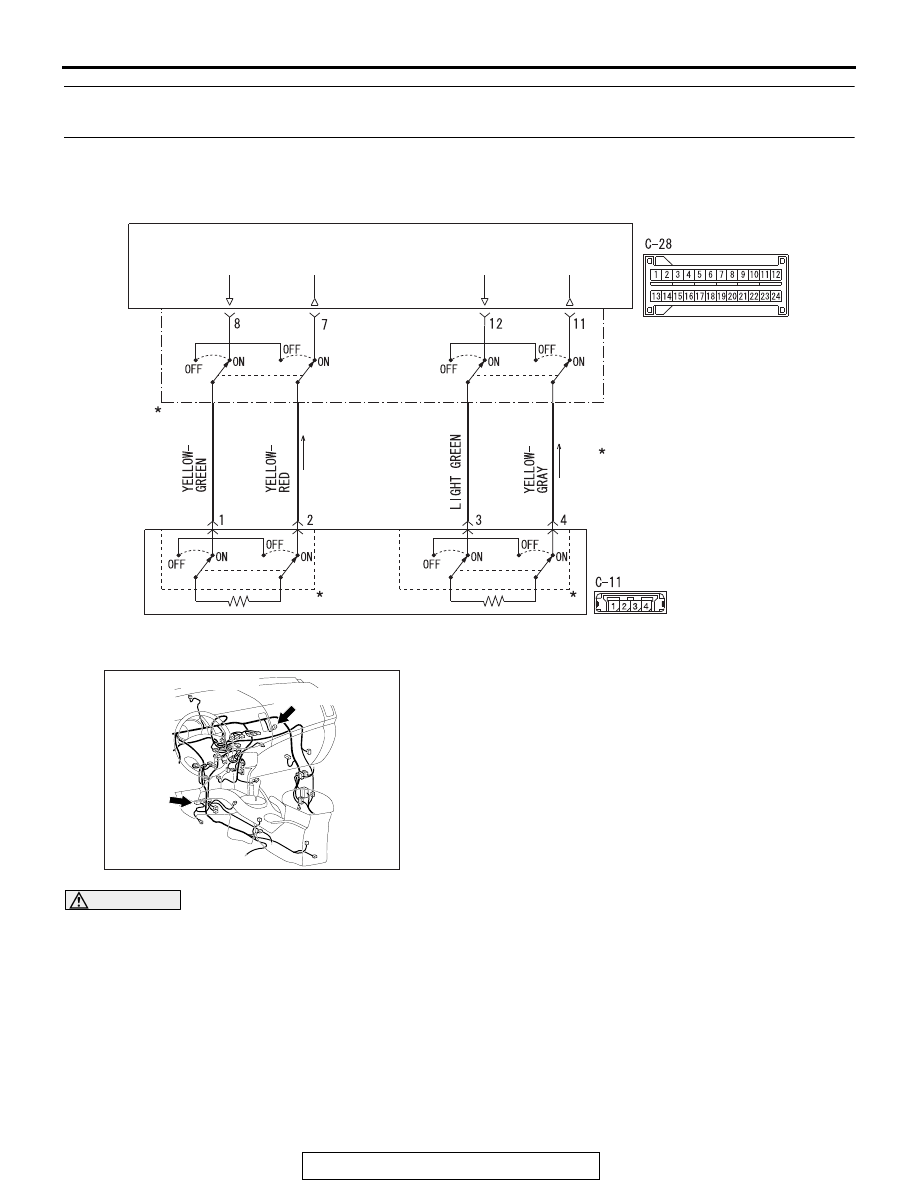

DTC B1B0A: Passenger's (Front) Air Bag Module (1st squib) System (Squib Circuit Open)



DTC B1B0E: Passenger's (Front) Air Bag Module (2nd squib) System (Squib Circuit Open)

CAUTION

• If DTC B1B0A <1st squib> or B1B0E <2nd

squib> is set in the SRS-ECU, always diag-
nose the CAN main bus line.

• When DTC B1B0A is set in the following diag-

nosis, check the 1st squib circuit. When DTC
B1B0E is set, check the 2nd squib circuit.

.

CIRCUIT OPERATION

• The SRS-ECU judges how severe a collision is

by detecting signals from the front impact sensors
and the front air bag analog G-sensor. If the
impact is over a predetermined level, the
SRS-ECU sends an ignition signal. At this time, if
the front air bag safing G-sensor is on, the SRS
air bag will inflate.

• The ignition signal is input to the air bag module

to inflate the air bag.

.

AC709835

PASSENGER'S (FRONT)
AIR BAG MODULE
(SQUIB)

CONNECTOR LOCK SWITCH

CONNECTOR COUPLED: ON

CONNECTOR UNCOUPLED: OFF

NOTE

:





Passenger's (Front) Air Bag Module (Squib) Circuit

SRS-ECU

AB

AC901076AE

Connectors: C-11, C-28

C-11 (Y)

C-28 (Y)
