OUTSIDE MIRROR

TSB Revision

EXTERIOR

51-123

REMOVAL SERVICE POINTS

.

<<A>> MIRROR REMOVAL

CAUTION

The tab of the mirror is prone to breakage when working in
cold temperatures. Always use a hair drier or the like to
warm up the mirror tab and its periphery to 20

°C (68°F) or

higher prior to works. When the mirror is heated too
quickly from its cold state, it may be broken.

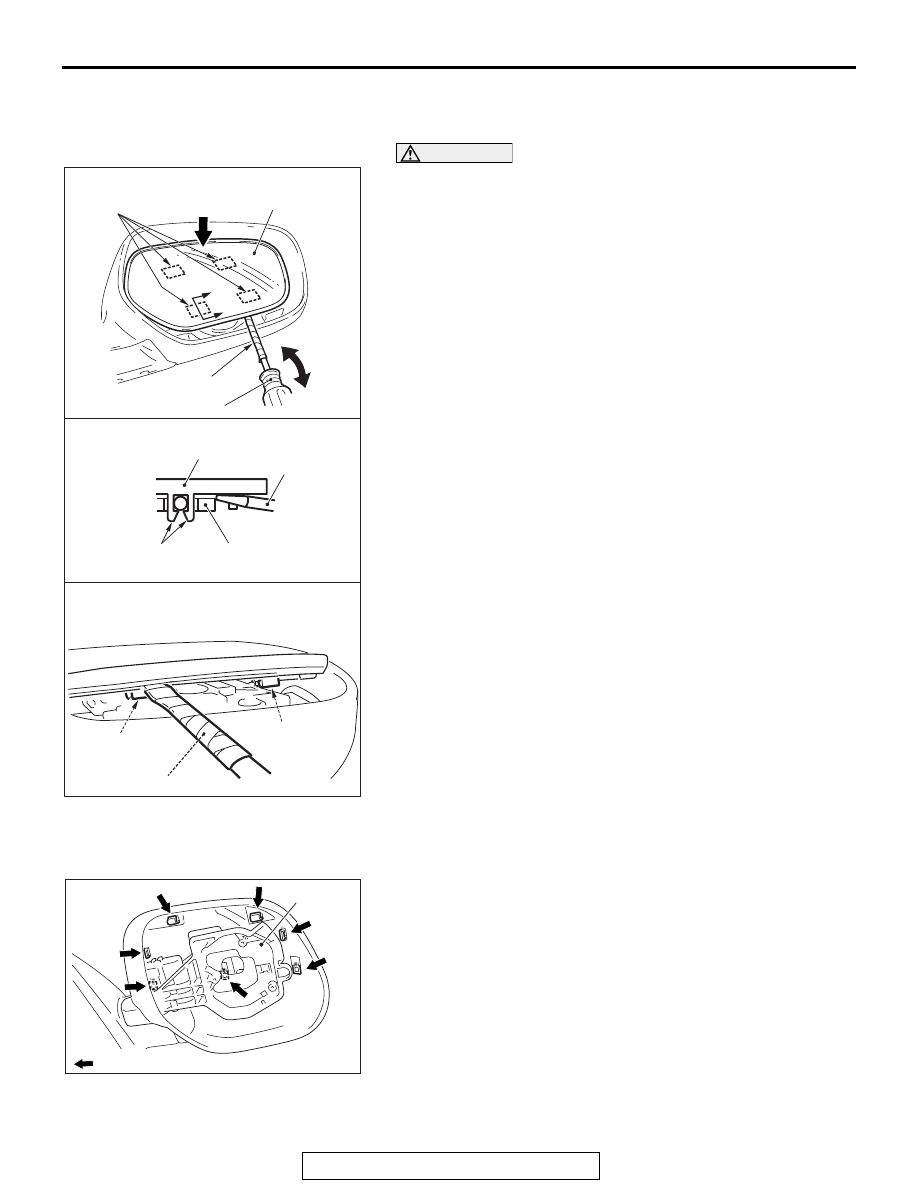

1. Slant the mirror upward with your hands. Then insert a

flat-tipped screwdriver wrapped with protective tape
between the pivot plate and mirror. Now pry off the mirror
claws and release the lower side of the mirror as shown in
the illustration.

2. Release the upper side of the mirror claws while pulling out

the mirror.

3. Disconnect the connectors of the heated mirror.

.

<<B>> DOOR MIRROR OUTER COVER REMOVAL
<TYPE 1>

1. Remove the mirror (Refer to the step A of the REMOVAL

SERVICE POINTS).

2. Remove the door mirror outer cover claws as shown in the

figure and remove the outer cover from the door mirror
housing.

NOTE: If claw(s) are difficult to disengage, remove the actuator
mounting screws to release the actuator and disengage the
claws.

.

AC900156

AC302282

A

A

AB

Section A – A

Claw positions

Claw

Claw

Claw

Pivot plate

Mirror

Mirror

Flat-tipped screwdriver

Flat-tipped
screwdriver

Flat-tipped screwdriver

Protective tape

AC506999AE

: Claw positions

Type 1

Actuator

OUTSIDE MIRROR

TSB Revision

EXTERIOR

51-124

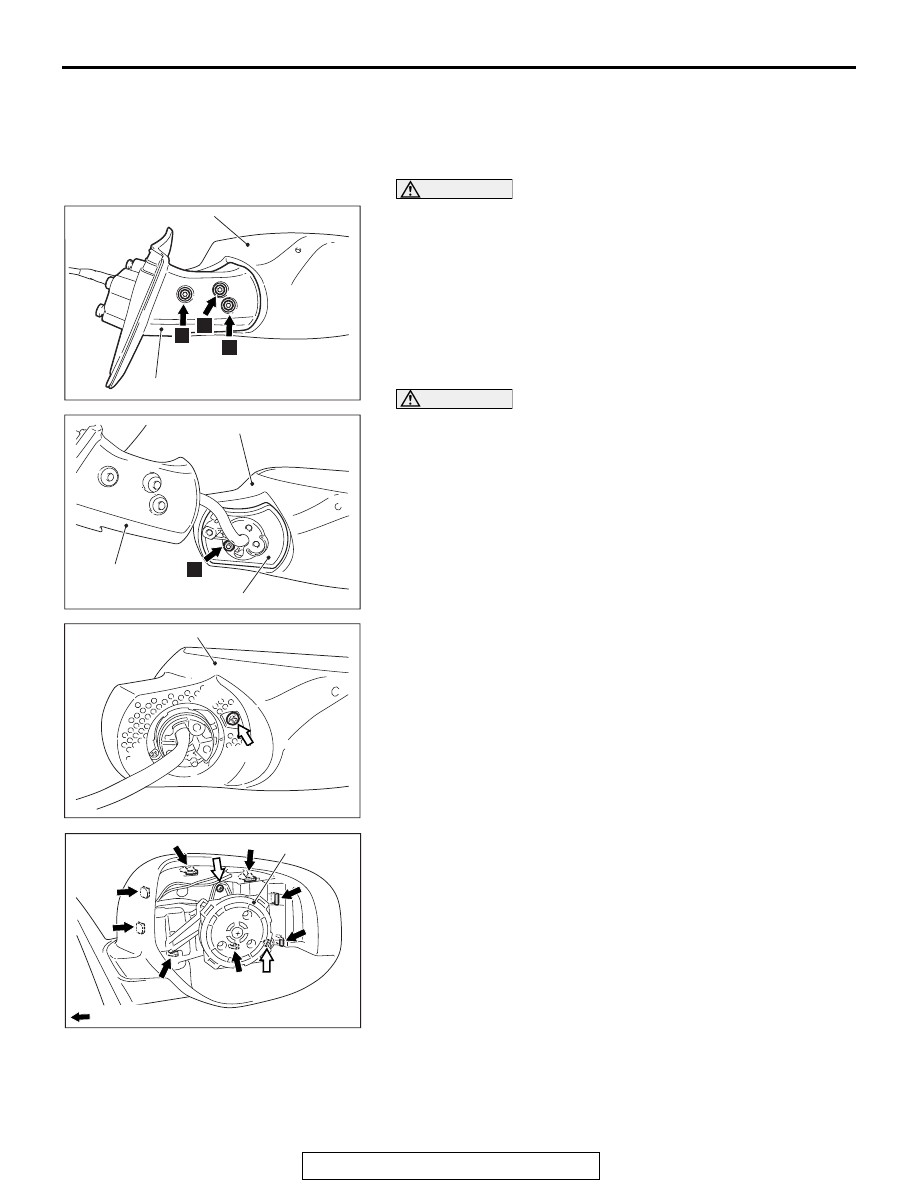

<<C>> DOOR MIRROR OUTER COVER REMOVAL
<TYPE 2>

1. Remove the mirror (Refer to the step A of the REMOVAL

SERVICE POINTS).

CAUTION

When installing, always use new Torx screws.
2. Remove the 3 Torx screws connecting the mirror base and

mirror housing.

3. Pull out the mirror housing from the mirror base; taking care

not to damage the door mirror harness and connector.

CAUTION

When installing, always use new Torx screw.
4. Remove the Torx screw connecting the plate and mirror

housing.

5. Remove the screw connecting the mirror housing and

actuator lower part.

6. Remove the 2 screws connecting the actuator and mirror

housing.

7. Slide the actuator and disengage the door mirror outer cover

claws as shown in the figure. Remove the outer cover from
the door mirror housing.

AC900162

N

N

N

Mirror housing

Mirror base

AB

AC900163

N

Mirror housing

Plate

AB

Mirror base

AC900173

Mirror housing

AB

Screw

AC900161AB

: Claw positions

Screw

Screw

Actuator

OUTSIDE MIRROR

TSB Revision

EXTERIOR

51-125

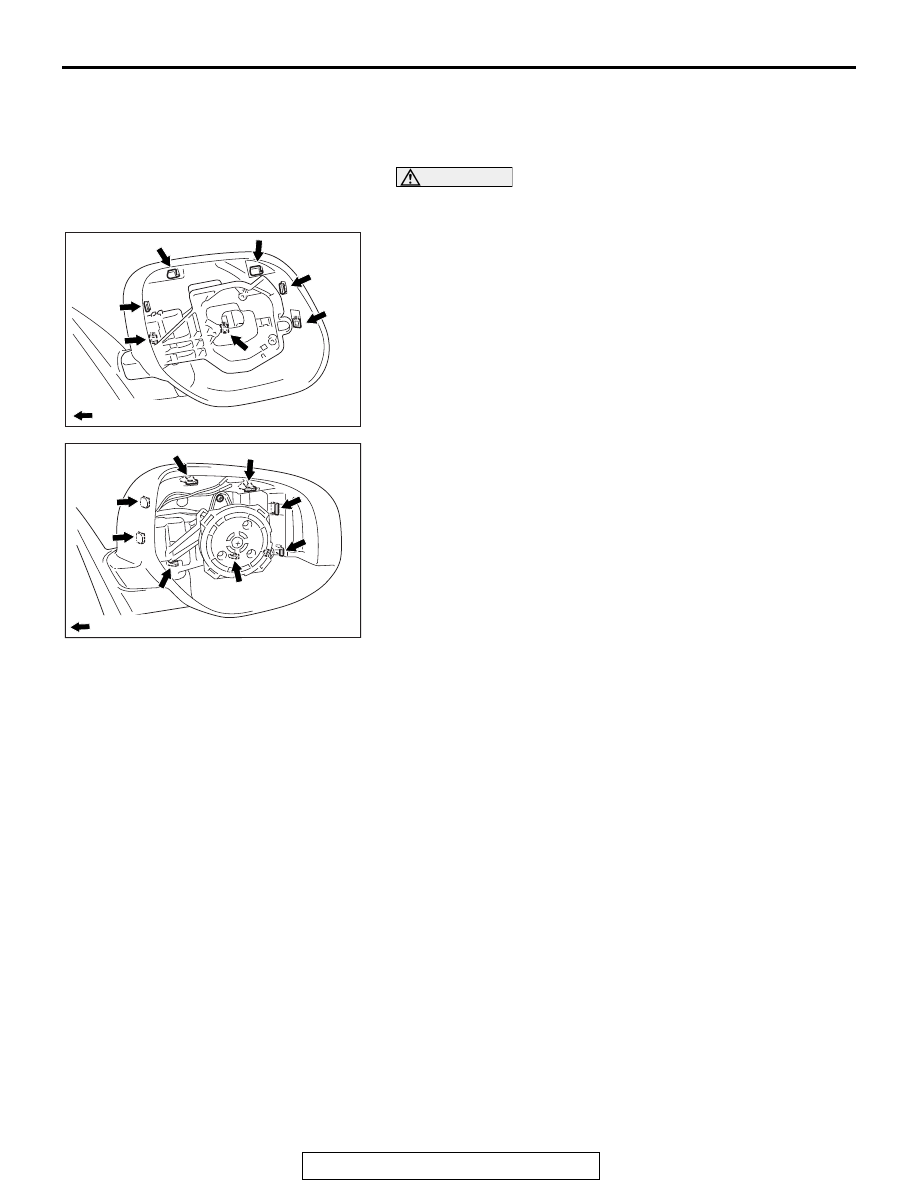

INSTALLATION SERVICE POINT

.

>>A<< DOOR MIRROR OUTER COVER INSTAL-
LATION

CAUTION

Tap the claw positions to confirm that they are engaged
and the door mirror outer cover is installed securely.
Install the door mirror outer cover by engaging the claws as
shown in the figure.

AC506999

Type 1

AG

: Claw positions

AC900161AC

: Claw positions

Type 2

OUTSIDE MIRROR

TSB Revision

EXTERIOR

51-126

INSPECTION

M1511019103447

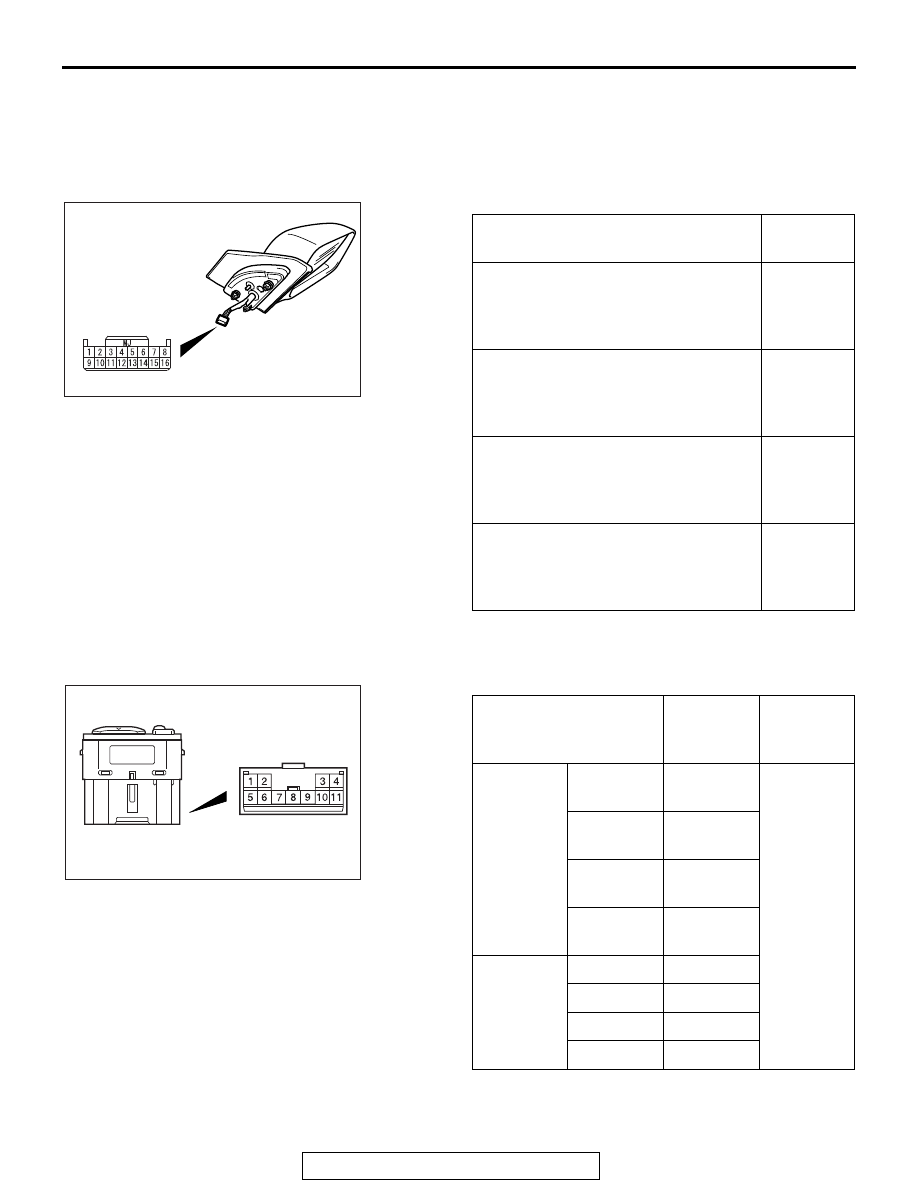

DOOR MIRROR ASSEMBLY OPERATION CHECK

Remove the door trim, and then connect the battery to the door
mirror assembly connector to check that the door mirror oper-
ates.

REMOTE CONTROLLED MIRROR SWITCH
CONTINUITY CHECK

Battery connection

Operation
direction

• Connect terminal 13 to the negative

battery terminal.

• Connect terminal 4 to the positive

battery terminal.

Up

• Connect terminal 13 to the positive

battery terminal.

• Connect terminal 4 to the negative

battery terminal.

Down

• Connect terminal 13 to the negative

battery terminal.

• Connect terminal 12 to the positive

battery terminal.

Right

• Connect terminal 13 to the positive

battery terminal.

• Connect terminal 12 to the negative

battery terminal.

Left

AC900494AB

Switch position

Tester
connectio
n

Specified
condition

Left side

Up

1

− 6, 9 −

11

Continuity
(Less than
2

Ω)

Down

1

− 11, 6 −

9

Right

1

− 6, 9 −

10

Left

1

− 10, 6 −

9

Right side

Up

1

− 6, 3 − 9

Down

1

− 3, 6 − 9

Right

1

− 6, 2 − 9

Left

1

− 2, 6 − 9

AC005970

AC507009
