WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-83

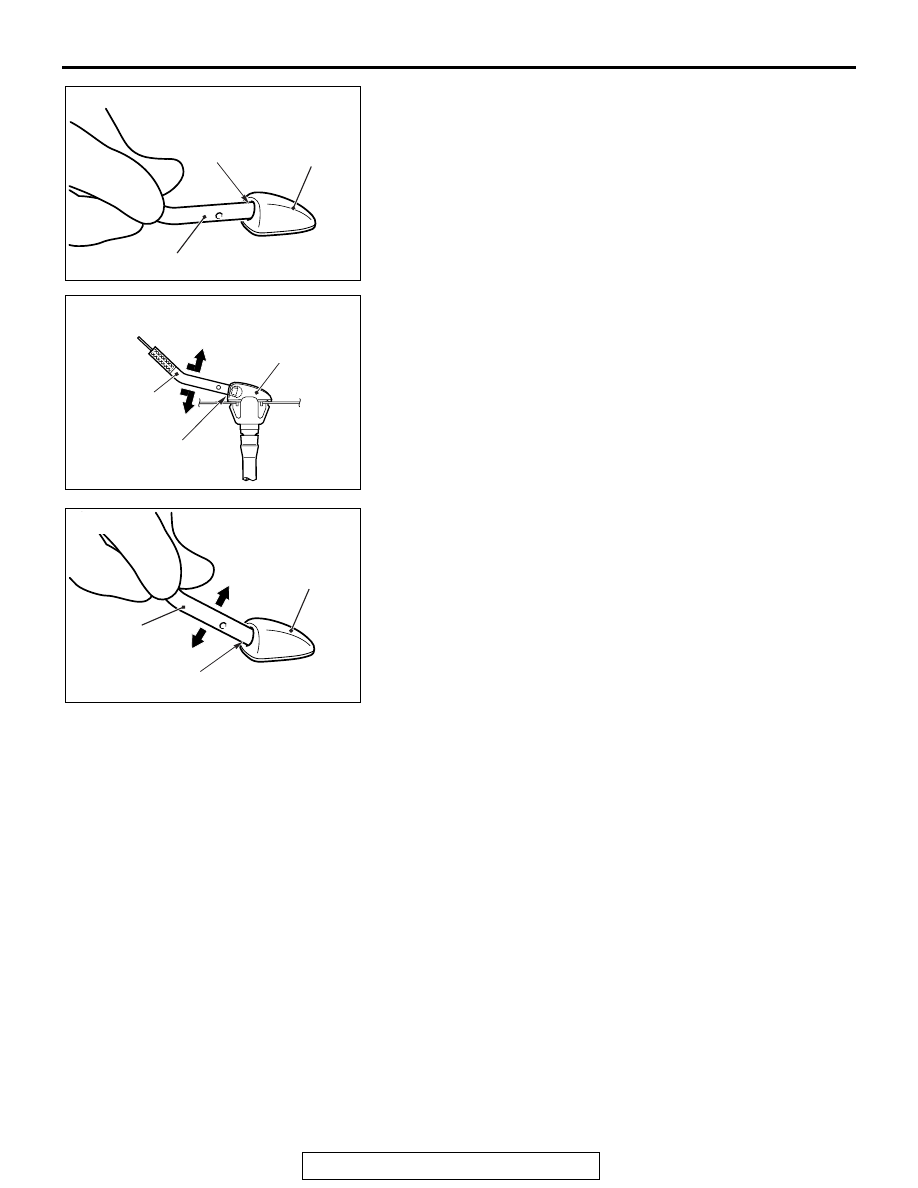

3. Move the special tool Adjustment tool, washer nozzle

(MB992326) up and down to adjust the angle of the washer
nozzle as shown in figure (B).

NOTE: If the washer nozzle cannot be moved smoothly, adjust
the angle while pressing the special tool Adjustment tool,
washer nozzle (MB992326) against the washer nozzle.

AC900638

MB992326

(A)

Mist type
washer nozzle
adjusting side

Mist type
washer
nozzle

AC900642

MB992326

Mist type washer nozzle
adjusting side

Mist type
washer nozzle

(B)

AC900639

MB992326

Mist type
washer nozzle
adjusting side

Mist type
washer
nozzle

(B)

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-84

WINDSHIELD WASHER SWITCH CHECK

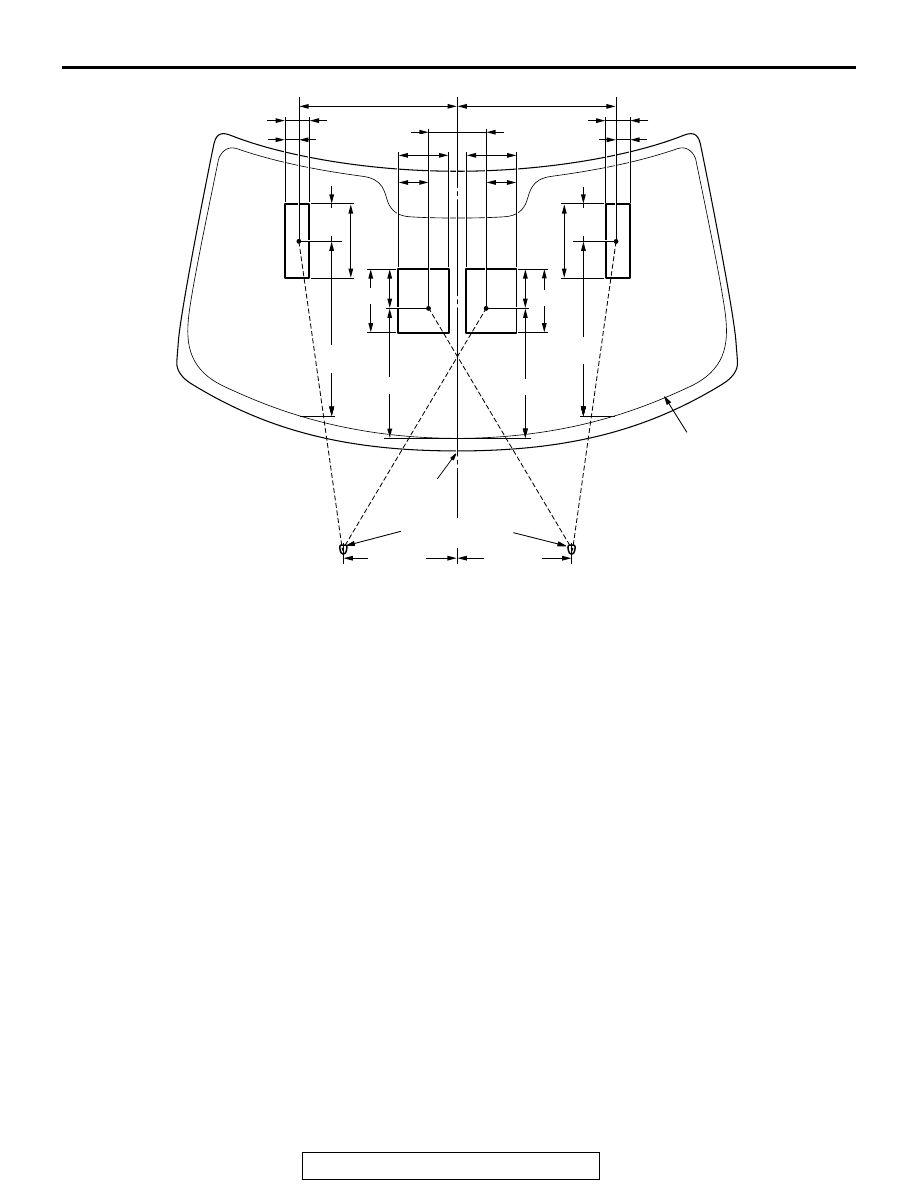

Check the windshield washer switch from the ETACS diagnos-
tic trouble codes for proper operation.(Refer to GROUP 54A,
ETACS

P.54A-732

)

ACA01156

414(16.3)

220

(8.7)

Windshield washer
nozzle

<Left>

<Right>

Unit: mm(in)

Ceramic line terminal

112

(4.4)

115

(4.5)

537

(21.1)

400(15.7)

64(2.5)

191(7.5)

414(16.3)

(3.1)

75(3.0)

36(1.4)

131(5.2)

Vehicle
center line

64(2.5)

36(1.4)

75(3.0)

131(5.2)

112

(4.4)

220

(8.7)

115

(4.5)

191(7.5)

537

(21.1)

400(15.7)

(3.1)

300(11.8)

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-85

LIGHTING CONTROL SENSOR

REMOVAL AND INSTALLATION

M1511028300020

Refer to GROUP 54A

−Lighting control sensor

(

P.54A-217

ADAPTATION

M1511028600010

CAUTION

• Before performing the adaptation, check if the lighting

control sensor (rain sensor)-related diagnostic trouble
code is set. (if set, refer to GROUP 54A, Headlight Diag-
nostic Trouble Code Chart

P.54A-127

• Turn the wiper switch to the OFF position.

1. Clean the windshield in fine weather.
2. Wipe the surface of the windshield thoroughly, and check

that the surface is dry.

3. Turn the ignition switch to the ON position.
4. Turn the ignition switch to the LOCK (OFF) position.

CAUTION

Before connecting or disconnecting scan tool MB991958,
always turn the ignition switch to the LOCK (OFF) position.
5. Connect the scan tool MB991958 to the data link connector.
6. Turn the ignition switch to the ON position.
7. Wipe the windshield surface of the lighting control sensor

section thoroughly, and check that the surface is dry.

8. Select "LIN" on the "System Select" screen, and press the

"OK" button.

9. Select "Rain light sensor" on the "System Select" screen,

and press the "OK" button.

10.Select "Special Function" on the "Rain light sensor" screen.
11.Select "Rain Sensor Adaptation" on the "Special Function"

screen.

12.Press the "OK" button, and execute the "Rain Sensor

Adaptation."

13.Press the "OK" button after the execution screen is

displayed.

14.Press the "OK" button after "Completed" is displayed.

REAR WIPER AND WASHER

TSB Revision

EXTERIOR

51-86

REAR WIPER AND WASHER

GENERAL INFORMATION

M1511000101584

REAR WIPER AND WASHER

REAR WIPER OPERATION

• If the rear wiper and washer switch is turned to

the "INT" position with the ignition switch at
"ACC" or "ON" position, the ETACS-ECU causes
the rear wiper to operate continuously 2 times,
then intermittently at 8-second intervals.

• If the selector lever (or gearshift lever) is moved

to the "R" position when the rear wiper and
washer switch is turned to the "INT" position and
the ignition switch at "ACC" or "ON" position, the
transmission range switch (or backup light
switch) "R" turns ON. 1 second later, the
ETACS-ECU causes the rear wiper to operate
continuously 2 times to ensure good rearward
visibility. The ETACS-ECU then causes the rear
wiper to operate intermittently again at 8-second
intervals.

REAR WASHER OPERATION

• If the rear wiper and washer switch is turned to

the ON (washer) position with the ignition switch
at "ACC" or "ON" position, the rear washer ON
signal is sent to the ETACS-ECU, causing the
rear wiper signal to turn on after 0.9 second. After
the rear washer switch signal turns off, the rear
wiper signal turns off in 3 seconds.

• If the rear wiper and washer switch is turned to

the ON (washer) position while the rear wiper is
at intermittent mode, the rear washer works for
that period when the washer switch remains on.
Then the rear wiper returns to the intermittent
mode.

DESCRIPTION OF CONSTRUCTION AND OPERATION

Rear wiper control [Initial condition: 8 seconds (without successive operations)]

1. When the rear wiper switch on the column switch

is turned ON while the ignition switch is in ACC or
ON position, ETACS turns the rear wiper relay
ON for 3 seconds (for approximately 2 cycles)
and operates the intermittent action in 8 seconds
interval.

When the selector lever is moved to R (reverse)
position during the rear wiper operation, the
transmission range switch R (reverse) turns ON,
and one second after that, ETACS turns the rear
wiper relay ON for 3 seconds (for approximately 2
cycles), and operates the intermittent action in 8
seconds interval again.

2. By the special operation of the rear wiper switch

on the column switch (2 consecutive operations),
the rear wiper can operate continuously regard-
less on the set intermittent time.

AC702456 AB

OFF

T2: 7.4 seconds

Rear wiper relay

Rear wiper switch

Park/Neutral position
switch "R" position

T1: 3.0 seconds

t: 1.0 second

T3: 8.0 seconds
T4: 0.6 second
