WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-79

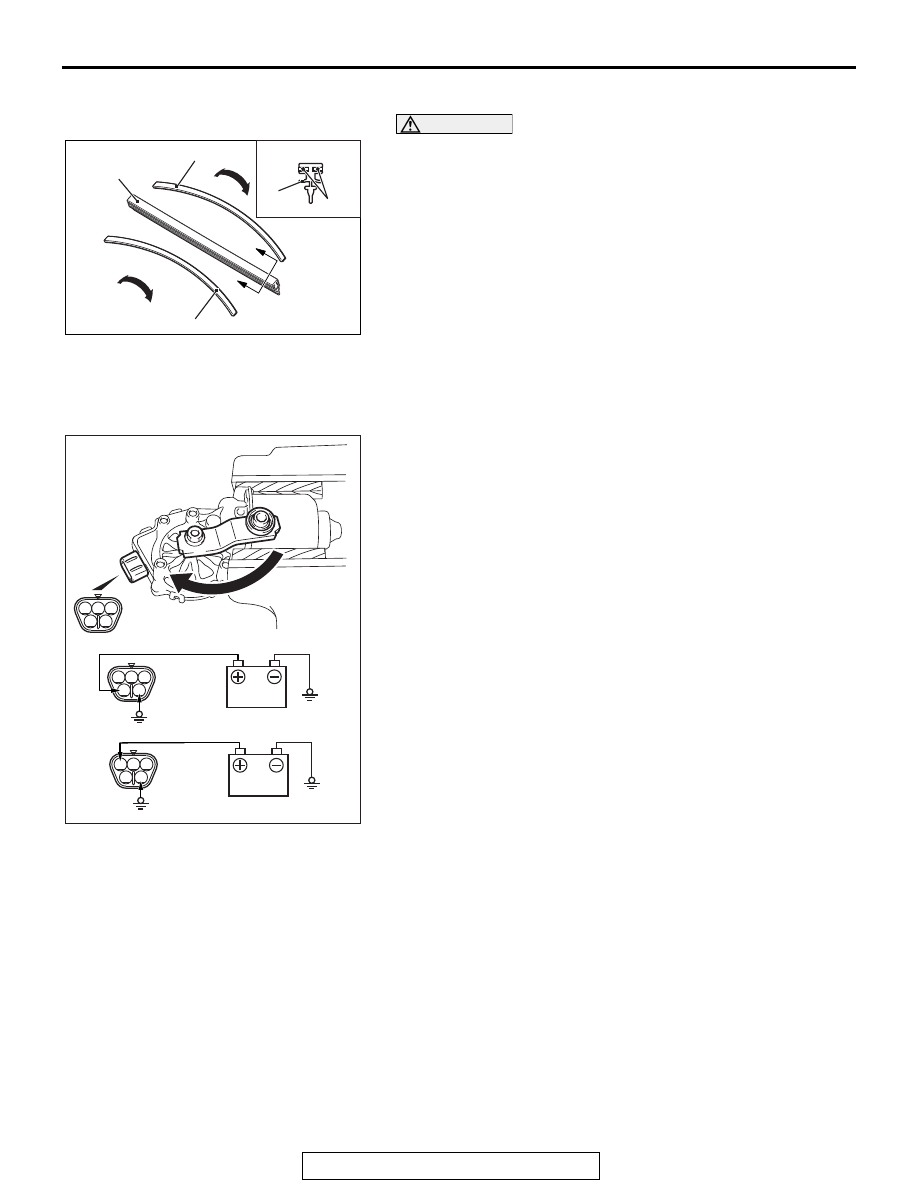

>>C<< WIPER BLADE INSTALLATION

CAUTION

Use a curved backing like that shown for the backing of a
wiper blade to ensure sustained wiper wiping perfor-
mance.

INSPECTION

M1511019101991

 WINDSHIELD WIPER MOTOR CHECK

Remove the windshield wiper motor and inspect it at the har-
ness connector.

.

WINDSHIELD WIPER MOTOR AT LOW OR HIGH
SPEED OPERATION

Connect the battery to the windshield wiper motor to inspect
the operation of motor rotation at low or high speed.

AC101090

AE

A

A

Wiper blade

Backing

Backing

Section A – A

Wiper
blade

Backing

4

5

3

1

2

4

5

3

1

2

4

5

3

1

2

AC511727AB

Operation check

Low speed

High speed

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-80

.

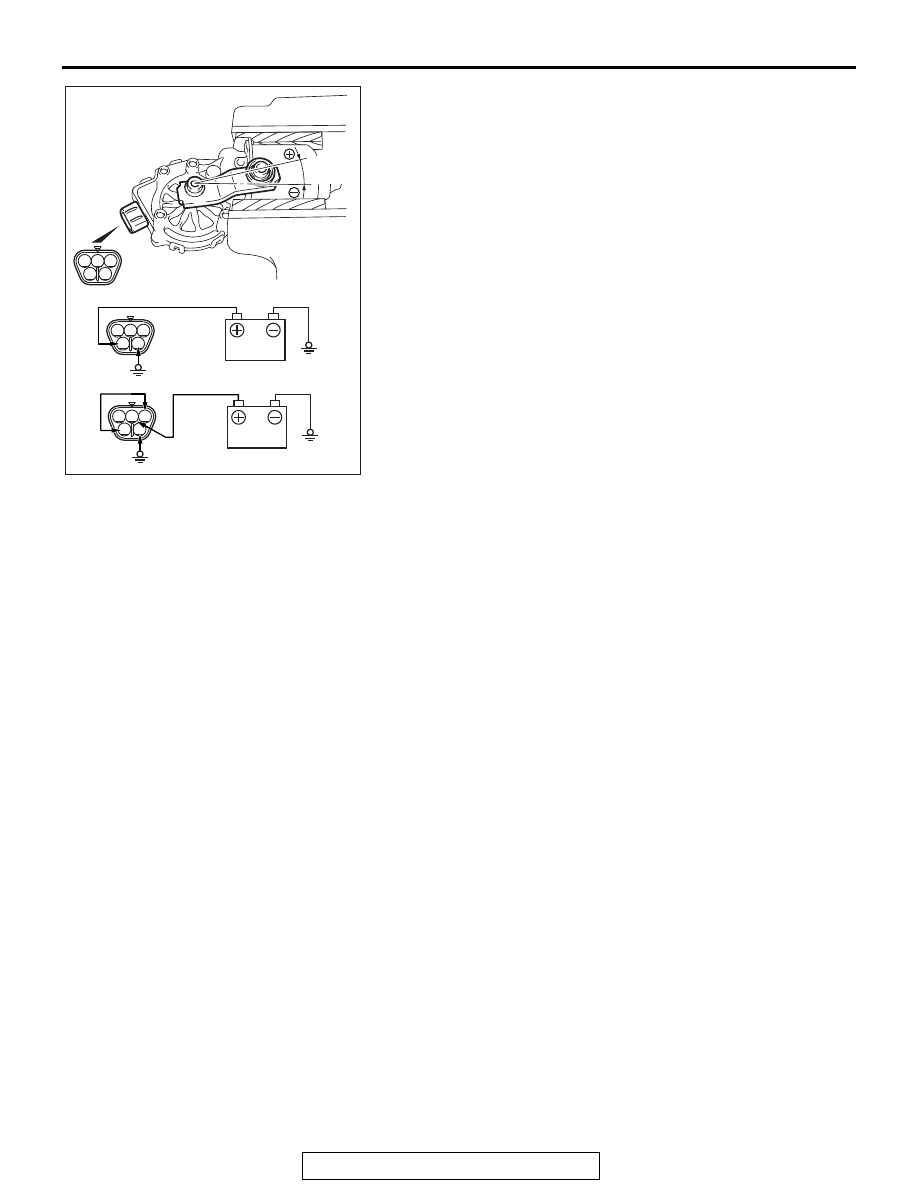

WINDSHIELD WIPER MOTOR AT STOP POSITION
OPERATION

1. Connect the battery to the windshield wiper motor as shown

in the illustration (A).

2. Run the windshield wiper motor at low speed, then

disconnect the battery in the middle of the motor rotation
and check to see that the motor stops.

3. Connect the battery to the windshield wiper motor as shown

in the illustration (B).

4. Connect the terminals of the windshield wiper motor

connector as shown in the illustration (B).

5. Check to see that the windshield wiper motor runs at low

speed and then stops at the automatic stop position.

WINDSHIELD WIPER SWITCH CHECK

Check the windshield wiper switch (mist, intermittent, low
speed and high speed) from the ETACS diagnosis codes for
proper operations.(Refer to GROUP 54A, Diagnostic trouble
code chart

P.54A-732

.)

4

5

3

1

2

4

5

3

1

2

AC511728

4

5

3

1

2

AB

+5º
-10º

13º

(B) Automatic stop

(A) Low speed

Stop position check

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-81

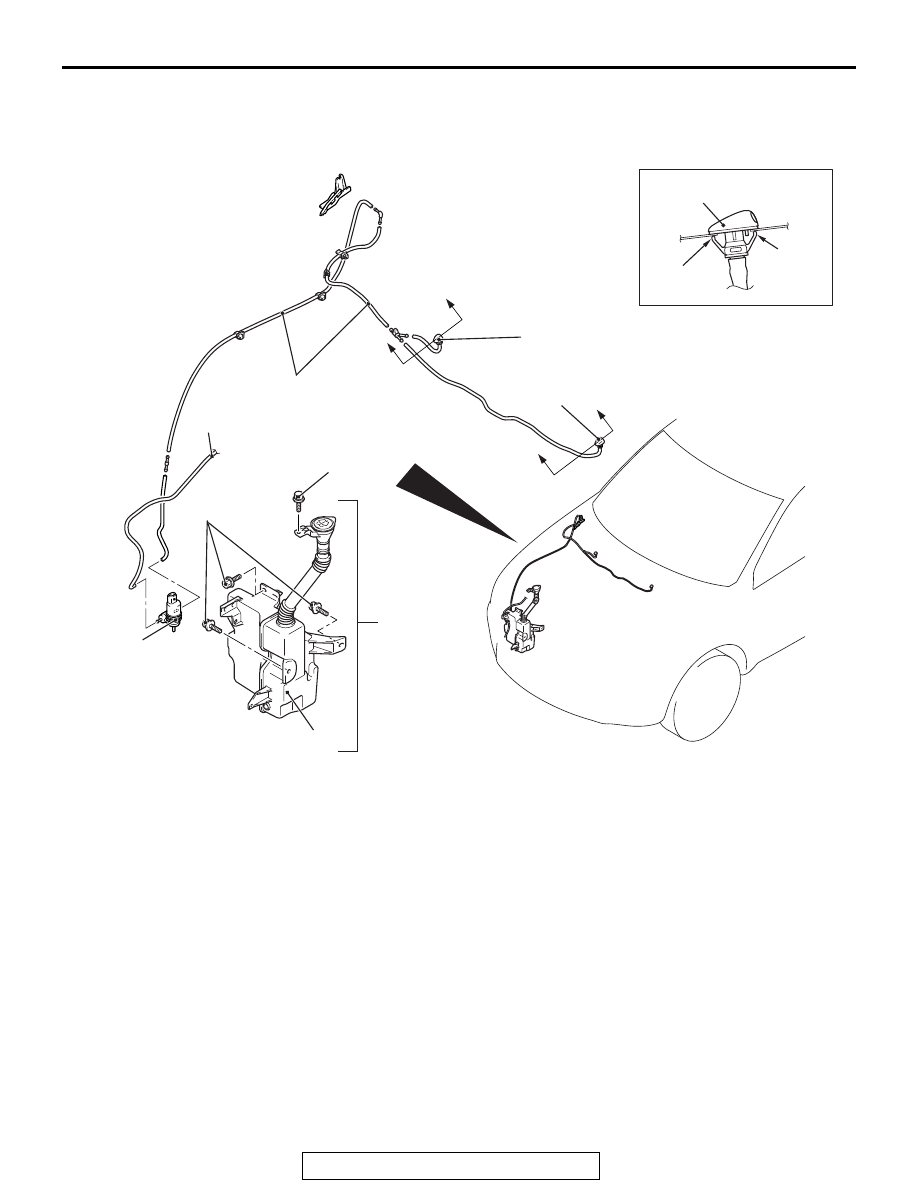

WINDSHIELD WASHER

REMOVAL AND INSTALLATION

M1511008201400

AC809563

1,2

1

3

4

5

6

A

A

A

A

AD

Section A – A

Claw

Claw

Rear washer hose

4.0 ± 2.0 N·m
36 ± 17 in-lb

10.5 ± 2.5 N·m
93 ± 22 in-lb

2

Windshield washer nozzle removal
steps
• Connection of windshield washer

hose

1. Windshield washer nozzle assembly

<LH>

2. Windshield washer nozzle assembly

<RH>

Washer hose removal steps
• Splash shield (RH) mounting clips
• Connection of washer nozzle/washer

motor

3. Windshield washer hose

Washer tank removal steps
• Engine room under cover front (Refer

to

P.51-22

)

• Splash shield (RH) mounting clips
• Connection of front/rear washer hose

4. Windshield washer tank assembly
5. Windshield washer motor
6. Windshield washer tank
Washer motor removal steps
• Engine room under cover front (Refer

to

P.51-22

)

• Connection of front/rear washer hose

5. Windshield washer motor

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-82

INSPECTION

M1511019103458

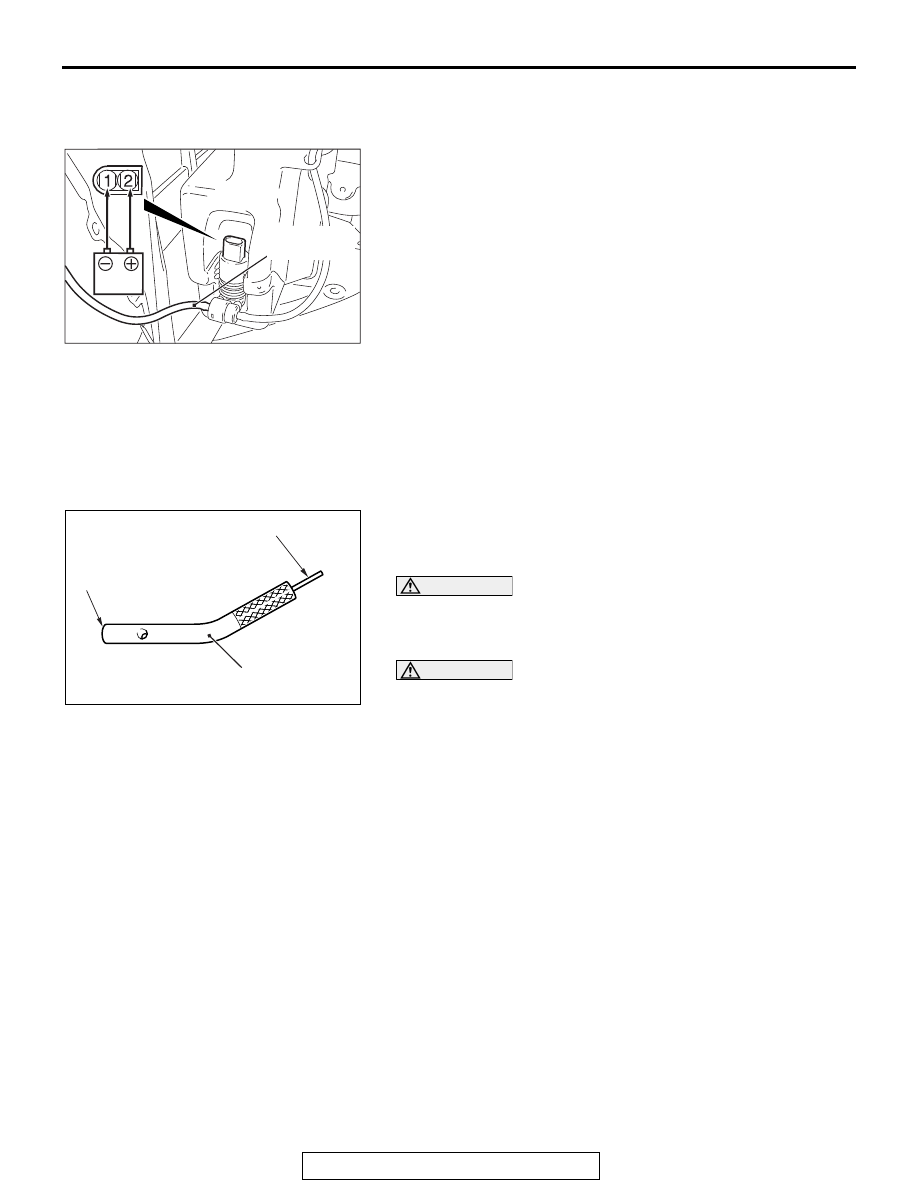

FRONT WASHER MOTOR INSPECTION

.

1. The front washer motor must be checked with the washer

tank installed and the washer fluid filled.

2. Connect the battery to the washer motor connector as

shown. Check that the washer motor delivers washer
strongly to the front washer hose side.

WINDSHIELD WASHER FLUID EJECTION CHECK

NOTE: The splashing point cannot be adjusted by the nozzle. If
the splashing point of the washer fluid is different from the fig-
ure below, replace the nozzle.
NOTE: Use special tool Adjustment tool, washer nozzle
(MB992326) to adjust the splashing points of the nozzle.

.

ADJUSTMENT OF THE MIST TYPE WASHER
NOZZLE INJECTION POSITION

CAUTION

Do not use tools other than the special tool (MB992326) to
adjust the injection angle because the washer nozzle may
get damaged.

CAUTION

Adjust the splashing position within the specified adjust-
ment range, otherwise the windshield cannot be washed
properly.
1. Use special tool Adjustment tool, washer nozzle

(MB992326) to adjust the splashing points of the nozzle.

2. Insert the mist type washer nozzle adjusting side of the

special tool Adjustment tool, washer nozzle (MB992326)
into the injection part of the mist type washer nozzle as
shown in figure (A).

AC506692AB

Front washer
hose

AC900637

AD

MB992326

Mist type
washer nozzle adjusting side

Jet type washer nozzle
adjusting side
