WINDSHIELD WIPER AND WASHER
TSB Revision
EXTERIOR
51-47

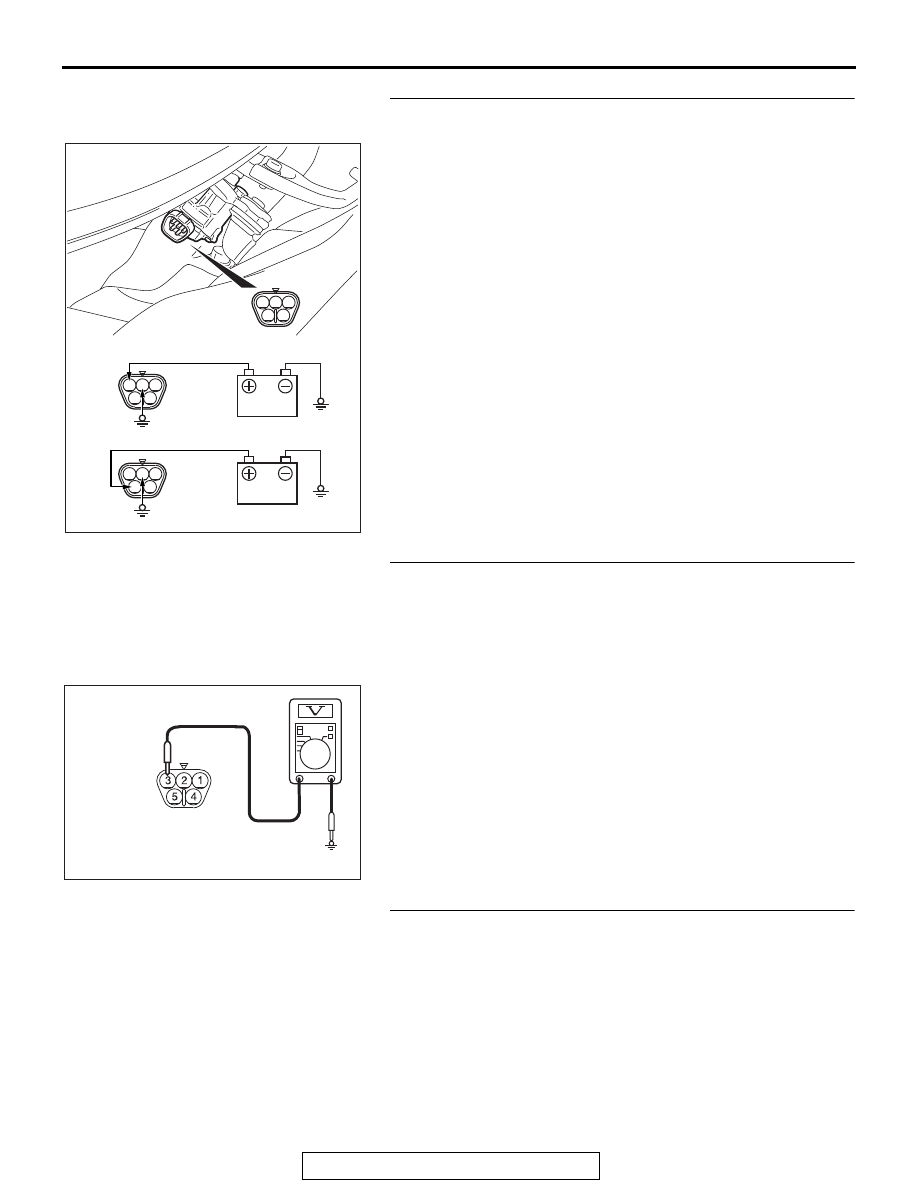

STEP 5. Check the windshield wiper motor.
(1) Disconnect windshield wiper motor connector A-08.
(2) Connect a battery to the windshield wiper motor as shown.
Then check if the windshield wiper motor operates normally
at high and low speeds.
Q: Does the windshield wiper motor operate normally?
YES : Go to Step 6.
NO : Replace the windshield wiper motor. Verify that the
windshield wiper operates normally when the
windshield wiper switch is moved to each position.

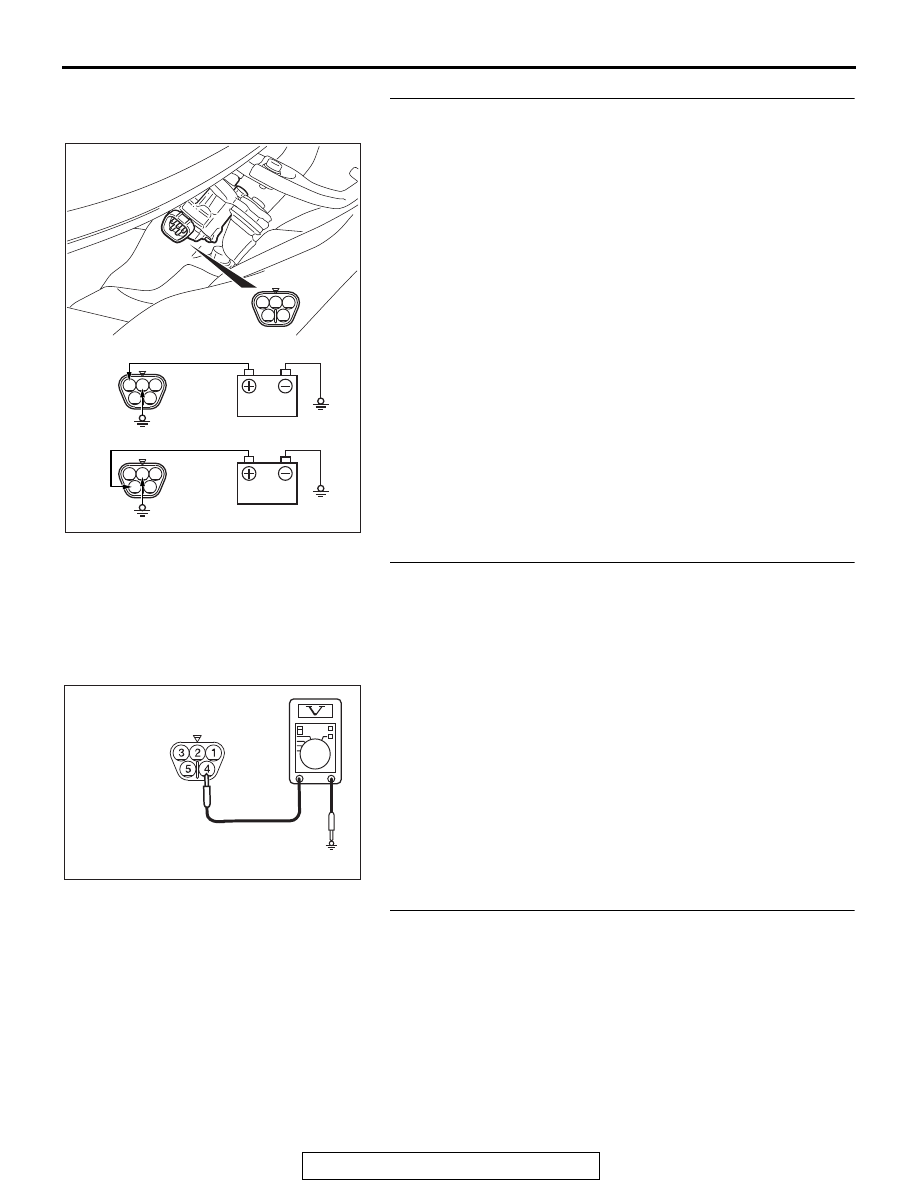

STEP 6. Measure the voltage at windshield wiper motor
connector A-08
(1) Disconnect the connector, and measure the voltage at the
wiring harness side.
(2) Ignition switch: ACC
(3) windshield wiper switch: LO
(4) Measure the voltage between A-08 windshield wiper motor
connector terminal No. 3 and body ground.
OK: Battery positive voltage
Q: Is the measured voltage approximately 12 volts (battery
positive voltage)?
YES : Intermittent malfunction (Refer to GROUP 00
− How
to Use Troubleshooting/Inspection Service Points -
How to Cope with Intermittent Malfunction
NO : Go to Step 7.
STEP 7. Check ETACS-ECU connector C-304 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-304 in good condition?
YES : Go to Step 8.
NO : Repair or replace the damaged component(s). Refer
to GROUP 00E, Harness Connector Inspection
. Verify that the windshield wiper operates
normally when the windshield wiper switch is moved
to each position.
4
5
3
1
2
4
5
3
1
2
4
5
3
1
2
AC608787AB
Operation check
Low speed
High speed
AC608254 EO
Harness side: A-08
