WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-43

STEP 3. Check the fusible link (34) circuit to the windshield
wiper motor. Measure the voltage at windshield wiper
motor connector A-08.

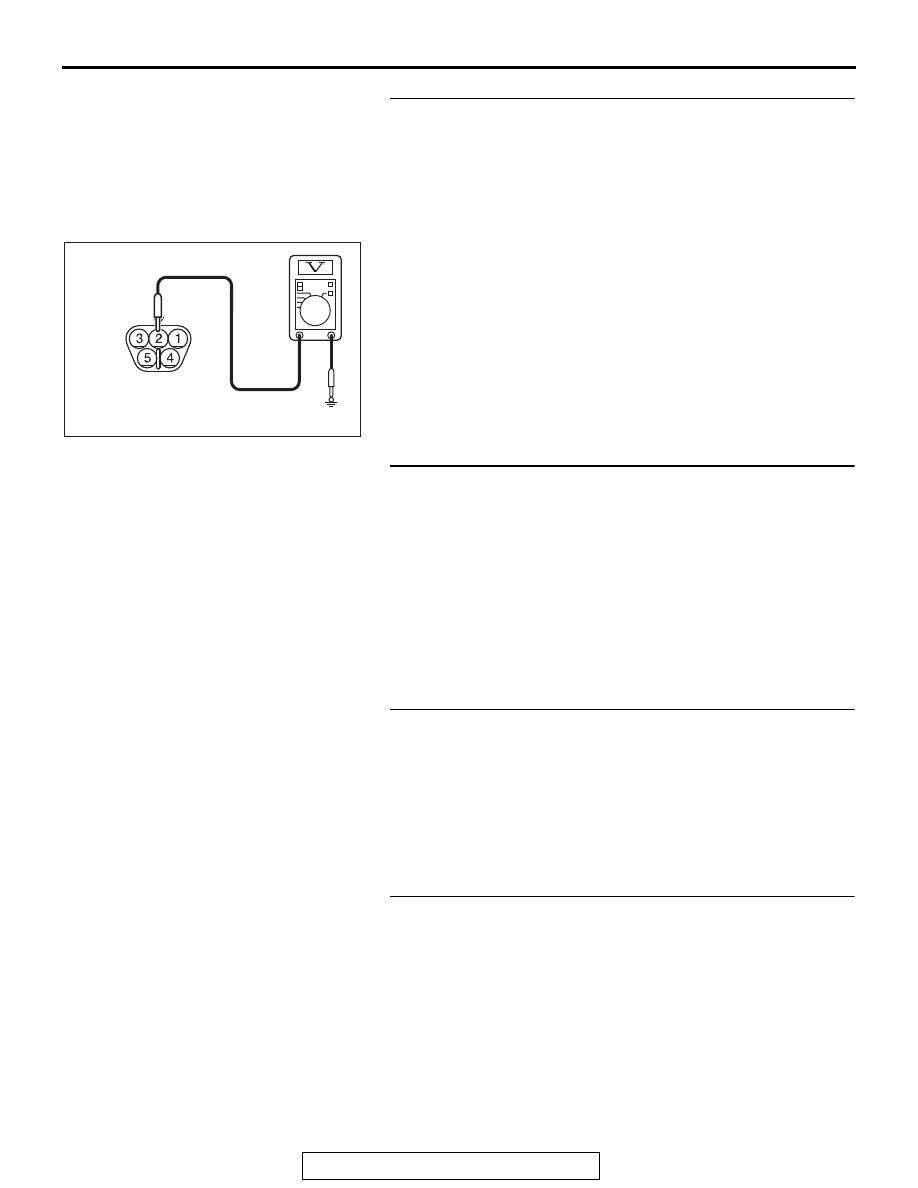

(1) Disconnect windshield wiper motor connector A-08 and

measure the voltage available at the wiring harness side of
the connector.

(2) Turn the ignition switch to the "ACC" position.
(3) Measure the voltage between terminal 2 and ground.

• The voltage should measure approximately 12 volts

(battery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 5.
NO :  Go to Step 4.

STEP 4. Check the wiring harness between windshield
wiper motor connector A-08 (terminal 2) and the fusible
link (34).

• Check the power supply line for open circuits.

Q: Is the wiring harness between windshield wiper motor

connector A-08 (terminal 2) and the fusible link (34) in
good condition?
YES : Intermittent malfunction. Refer to GROUP 00, How to

Cope with Intermittent Malfunction

P.00-15

.

NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Cables and Wire Check

P.00E-12

.

STEP 5. Check ETACS-ECU connector C-304 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-304 in good condition?

YES : Go to Step 6.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 6. Check the wiring harness between ETACS-ECU
connector C-304 (terminals 8, 12) and windshield wiper
motor connector A-08 (terminals 3, 2).

• Check the output lines for open or short circuits.

Q: Is the wiring harness between ETACS-ECU connector

C-304 (terminals 8, 12) and windshield wiper motor
connector A-08 (terminals 3, 2) in good condition?
YES : Go to Step 7.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Cables and Wire Check

P.00E-12

.

AC702474 AC

Harness side: A-08

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-44

STEP 7. Retest the system.
Check that the windshield wipers stops at the specified park
position.
Q: Is the check result normal?

YES : Intermittent malfunction. Refer to GROUP 00, How to

Cope with Intermittent Malfunction

P.00-15

.

NO :  Replace the ETACS-ECU.

INSPECTION PROCEDURE 4: Windshield Wipers do not work normally.

.

A-08

AC709925

1

4

GREEN

BLUE

ETACS-ECU

WINDSHIELD
WIPER
MOTOR

WINDSHIELD

CIRCUIT
BREAKER

WIPER
SPEED
SWITCHING
RELAY

INPUT SIGNAL (COLUMN-ECU)

· WINDSHIELD WIPER HI SPEED SWITCH
· WINDSHIELD WIPER INTERMIT SWITCH
· WINDSHIELD WIPER LO SPEED SWITCH
· WINDSHIELD WIPER MIST SWITCH

AB

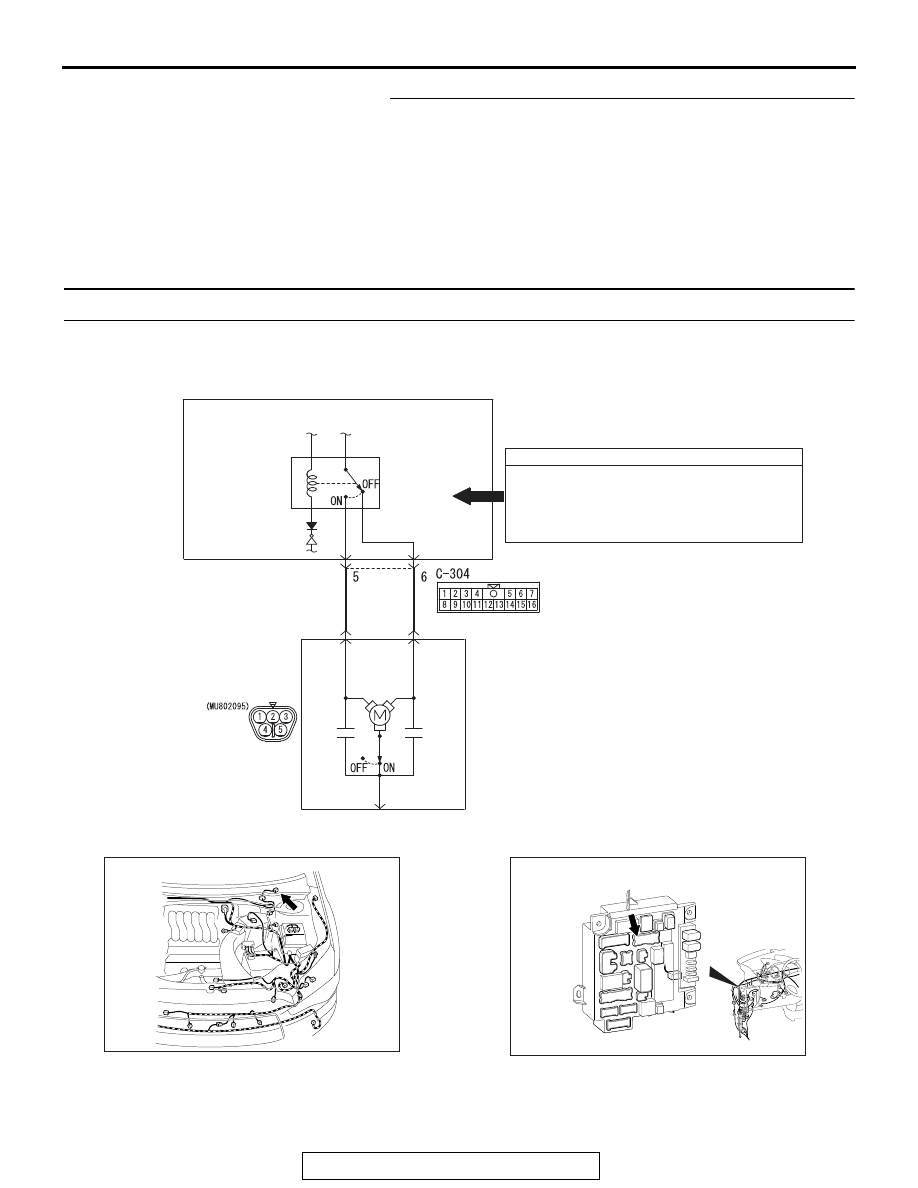

Windshield Wiper Motor Drive Circuit

AC901214

Connector: A-08

AB

ACA02655 AK

Connector: C-304

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-45

TECHNICAL DESCRIPTION (COMMENT)

If either of the windshield wiper switch positions is
defective, the windshield wiper motor, column switch
(windshield wiper and washer switch) or the
ETACS-ECU may be defective.

.

TROUBLESHOOTING HINTS

• Trouble in input signal system

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• The wiper motor may be defective

• The column switch may be defective

• The ETACS-ECU may be defective

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB992006: Extra Fine Probe

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

STEP 1. Use the scan tool MB991958 to check if an
ETACS-related diagnostic trouble code is set.

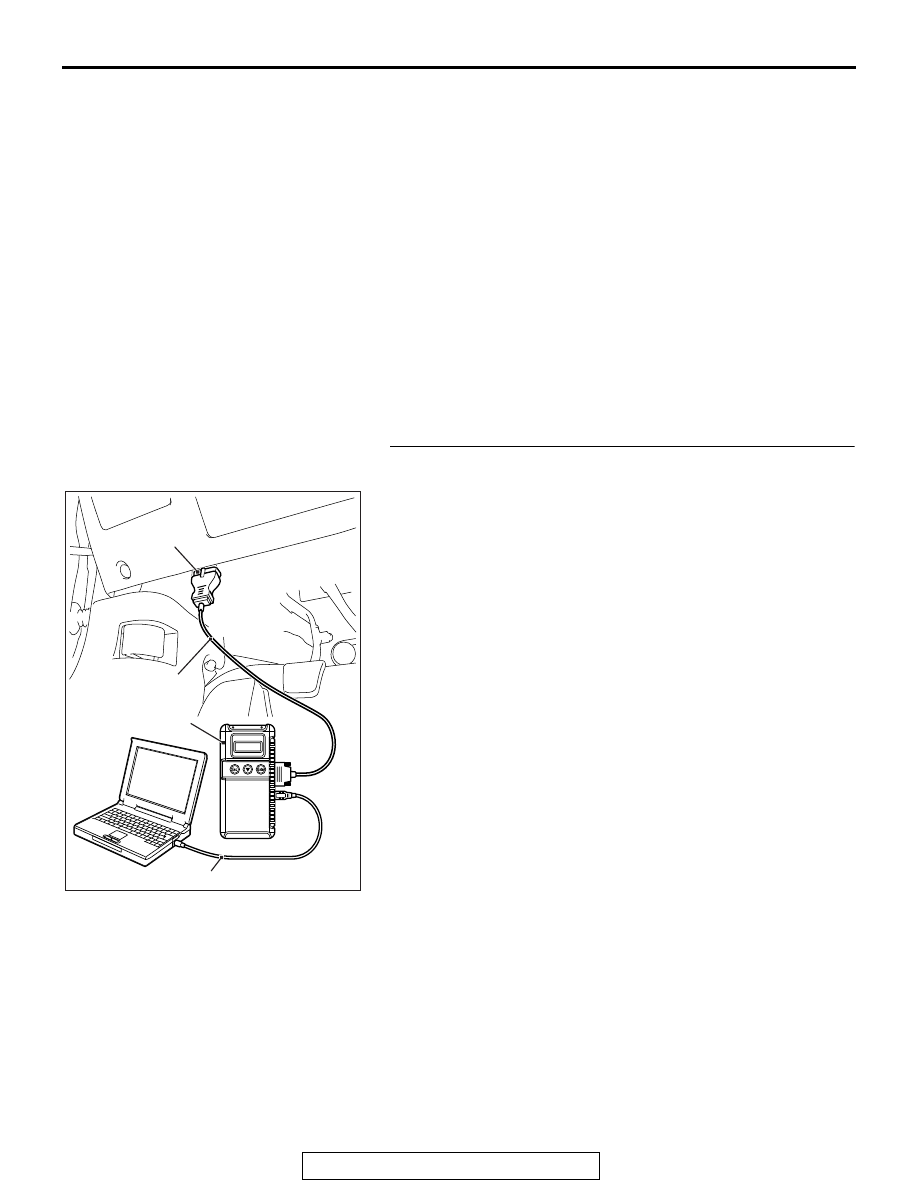

Connect the scan tool. Refer to "How to connect the scan tool
(M.U.T.-III)

P.54B-4

."

Q: Is the diagnostic trouble code set?

YES : Diagnose the ETACS-ECU. Refer to Diagnostic

trouble code chart

P.54A-732

."

NO :  Go to Step 2.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-46

STEP 2. Using scan tool MB991958, check data list.
Check the input signal related to the windshield wiper opera-
tion.

• Ignition switch: ACC

• Operate the windshield wiper switch at each switch posi-

tion.

OK: Normal condition is displayed.

Q: Is the check result normal?

YES : Go to Step 3.
NO :  Troubleshoot the ETACS-ECU. Refer to ETACS,

Diagnosis - Inspection Procedure 12 "ETACS-ECU
does not receive any signal from the column switch
signal."

P.54A-785

.

STEP 3. Check that the windshield wipers work.
Check that the windshield wipers work at high speed and the
mist mode.
Q: Is the check result normal?

YES : Go to Step 4.
NO :  Go to Step 10.

STEP 4. Check windshield wiper motor connector A-08 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is windshield wiper motor connector A-08 in good

condition?
YES : Go to Step 5.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the windshield wiper operates

normally when the windshield wiper switch is moved
to each position.

Item No.

Item name

Windshield
wiper
switch
position

Normal
condition

Item 235

Front wiper
ACT

LO

ON

HI

INT

ON and
OFF

MIST

ON

Item 236

Front wiper
Lo/Hi

LO

OFF

HI

ON

INT

OFF

MIST

ON
