WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-31

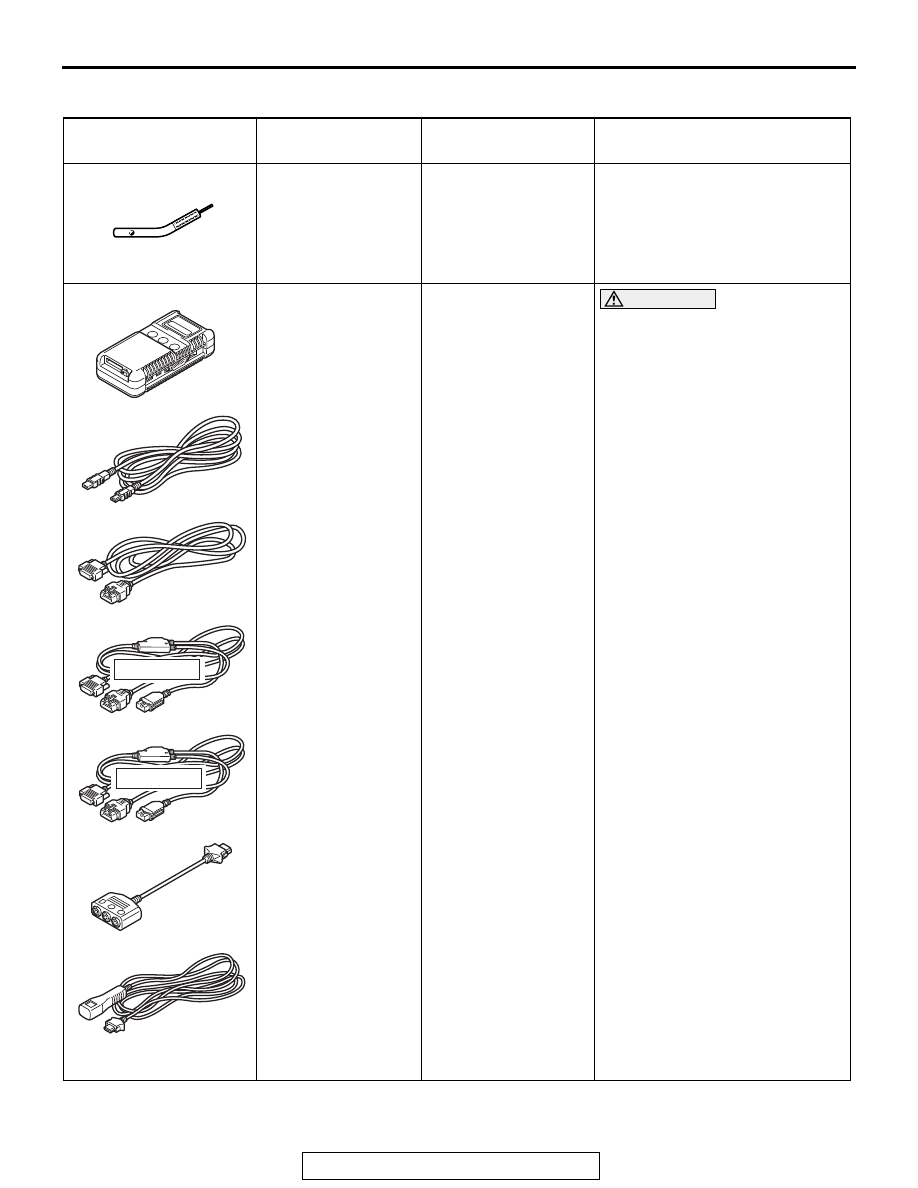

SPECIAL TOOLS

M1511000602708

Tool

Tool number and
name

Supersession

Application

MB992326
Washer nozzle
adjustment tool

General service tool

Injection angle adjustment of the
washer nozzle

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

M.U.T.-III sub
assembly

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e. M.U.T.-III main

harness C (for
Daimler Chrysler
models only)

f. M.U.T.-III

measurement
adapter

g. M.U.T.-III trigger

harness

MB991824-KIT
NOTE: G: MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

CAUTION

M.U.T.-III main harness A
(MB991910) should be used.
M.U.T.-III main harness B and C
should not be used for this
vehicle.
Windshield wiper intermittent time
check

MB992326

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

Do not use

a

b

c

d

e

f

g

Do not use

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-32

WINDSHIELD WIPER AND WASHER DIAGNOSIS

TROUBLESHOOTING STRATEGY

M1511014600589

1. Gather the information from the customer.
2. Verify that the condition described by the

customer exists.

3. Find the malfunction by the following Symptom

Chart.

4. Verify the malfunction is eliminated.

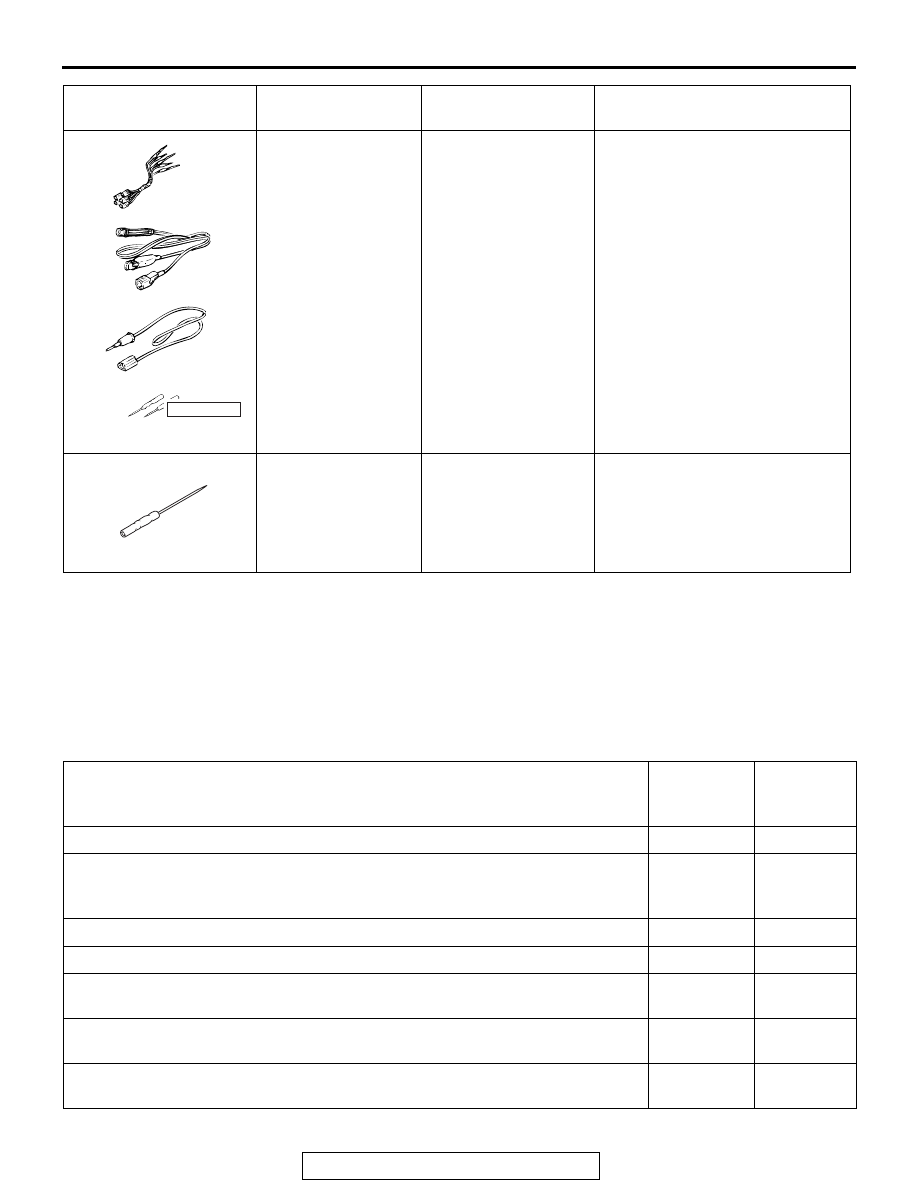

TROUBLE SYMPTOM CHART

M1511015001594

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Test harness
b. LED harness
c. LED harness

adaptor

d. Probe

General service tools Continuity check and voltage

measurement at harness wire or
connector for loose, corroded or
damaged terminals, or terminals
pushed back in the connector.

a. Connector pin contact

pressure inspection

b. Power circuit inspection
c. Power circuit inspection
d. Commercial tester connection

MB992006
Extra fine probe

−

Making voltage and resistance
measurement during
troubleshooting

Tool

Tool number and
name

Supersession

Application

MB991223

a

d

c

b

DO NOT USE

BF

MB992006

AB

TROUBLE SYMPTOM

Inspection
procedure
No.

Reference
page

The windshield wipers do not work at all.

1

P.51-34

The windshield wipers do not work when the wiper switch is at the "INT",
"Washer" or "Mist" position. However, the wipers work at low speed when the
switch is at the "Lo" or "Hi" position.

2

P.51-39

Windshield wipers do not stop at the specified park position.

3

P.51-41

Windshield wipers do not work normally.

4

P.51-44

The windshield intermittent wiper interval cannot be adjusted by operating the
windshield intermittent wiper volume control switch.

5

P.51-50

The windshield intermittent wiper interval is not changed according to the
vehicle speed.

6

P.51-52

The rain sensitive AUTO wiper function does not work at all <Vehicles with
lighting control sensor>.

7

P.51-55

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-33

NOTE: Even when the ETACS-ECU has failed, the
windshield wipers can work at low speed as fail-safe
mode.

The rain sensitive AUTO wiper function works even though there is no rainfall
<Vehicles with lighting control sensor>.

8

P.51-60

Sometimes the rain sensitive AUTO wiper function works even though there is
no rainfall <Vehicles with lighting control sensor>.

9

P.51-63

The windshield washer does not work normally.

10

P.51-66

The intelligent washing function does not work normally.

11

P.51-70

Delayed finishing wipe function does not work normally

12

P.51-71

TROUBLE SYMPTOM

Inspection
procedure
No.

Reference
page

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-34

SYMPTOM PROCEDURES

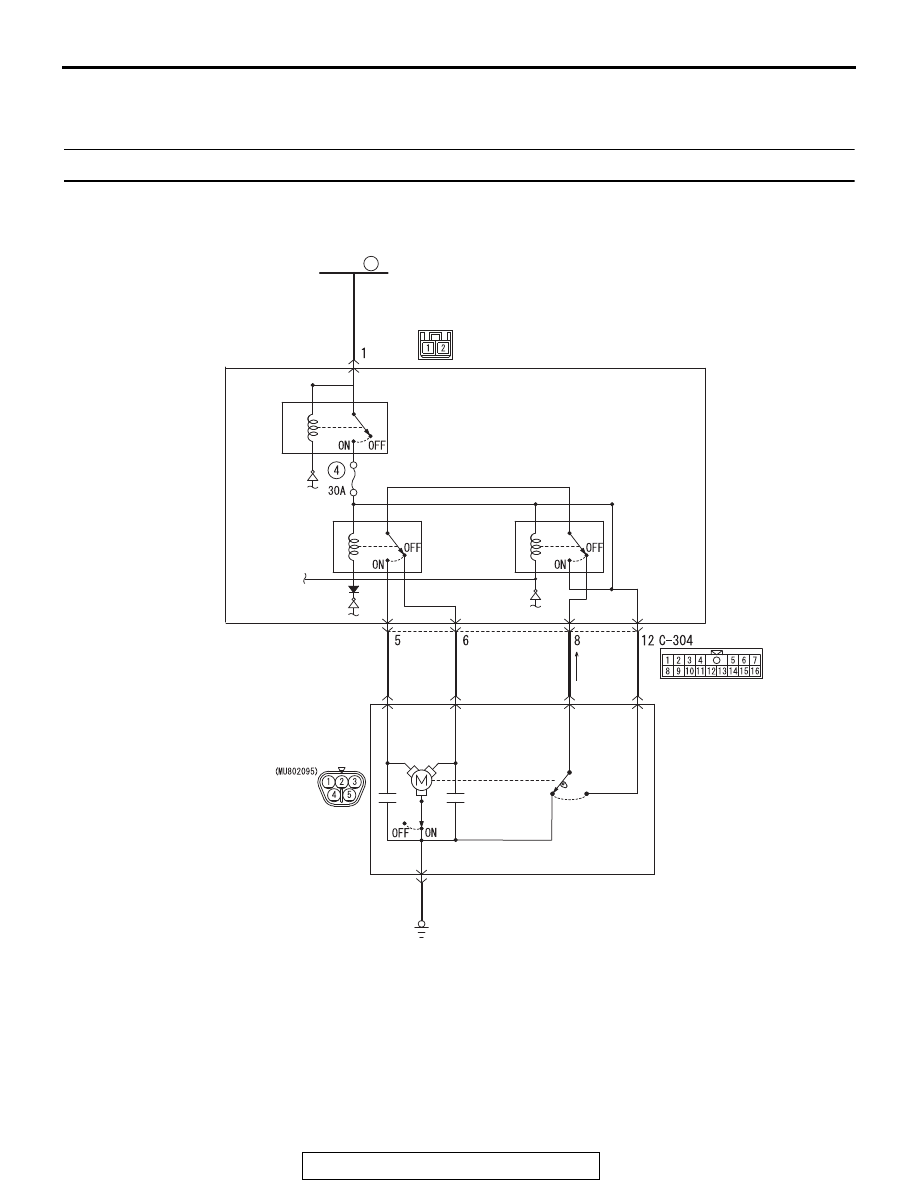

INSPECTION PROCEDURE 1: The windshield wipers do not work at all.

ACC
RELAY 3

CIRCUIT
BREAKER

ACA02800

ETACS-ECU

C-309

A-08

WHITE

BLUE

GREEN

YELLO

W

WHITE

BLA

CK

1

4

3

2

5

FUSIBLE
LINK

34

WINDSHIELD
WIPER
MOTOR

WINDSHIELD
WIPER
AUTOMATIC
STOP RELAY

WINDSHIELD
WIPER
SPEED
SWITCHING
RELAY

AB

Windshield Wiper Power Supply Circuit
