ROOF RAIL

TSB Revision

EXTERIOR

51-23

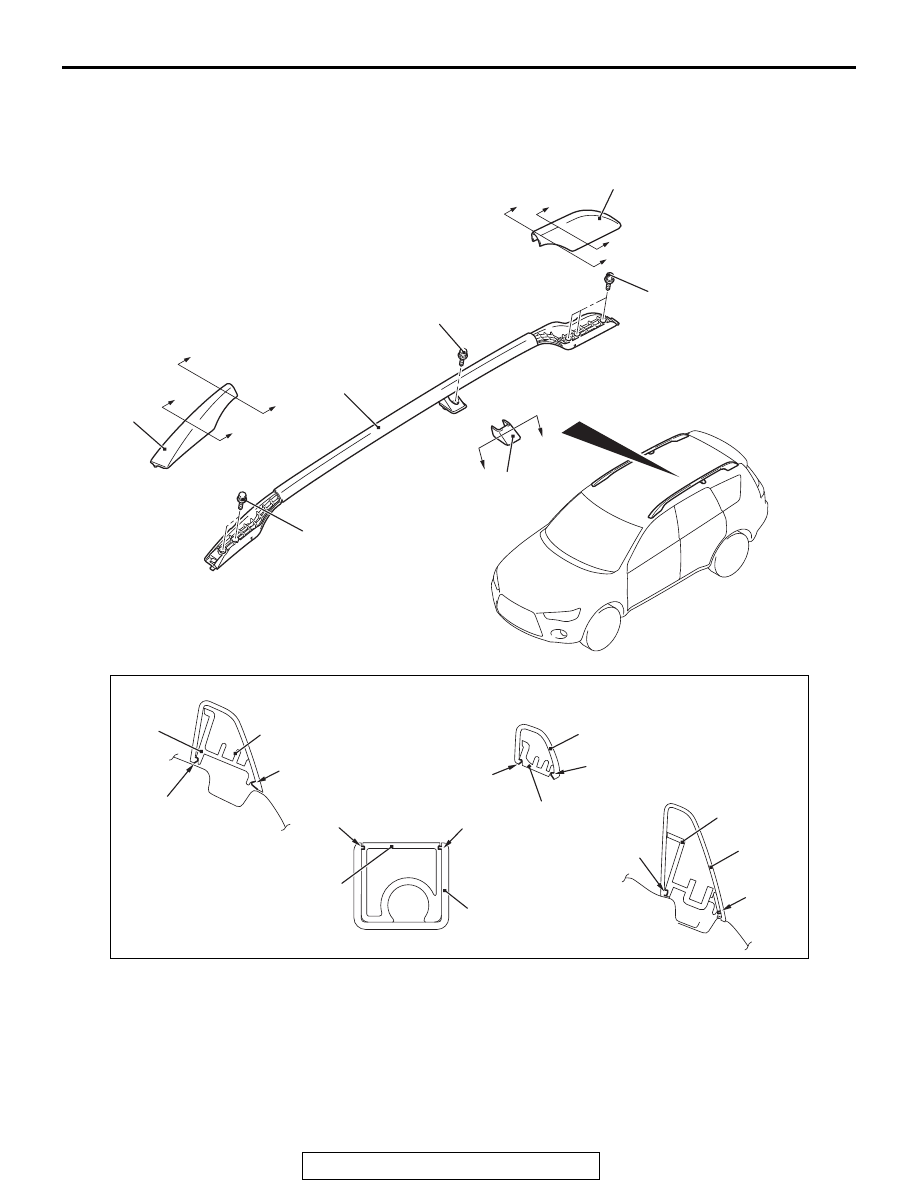

ROOF RAIL

REMOVAL AND INSTALLATION

M1511016600604

AC808576

1

4

2

3

AC

A

B

B

A

C

C

D

B

D

B

4

1

1,3

3

4

4

2

4

Section A – A

Section D – D

Section C – C

Section B – B

8.5 ± 3.5 N·m
75 ± 31 in-lb

8.5 ± 3.5 N·m
75 ± 31 in-lb

8.5 ± 3.5 N·m
75 ± 31 in-lb

Claw

Claw

Claw

Claw

Claw

Claw

Claw

Claw

Removal steps

•

Roof drip molding front (Refer to

P.51-10

)

1.

Front roof rail cover

2.

Center roof rail cover

3.

Rear roof rail cover

4.

Roof rail

Removal steps (Continued)

LIFTGATE SPOILER

TSB Revision

EXTERIOR

51-24

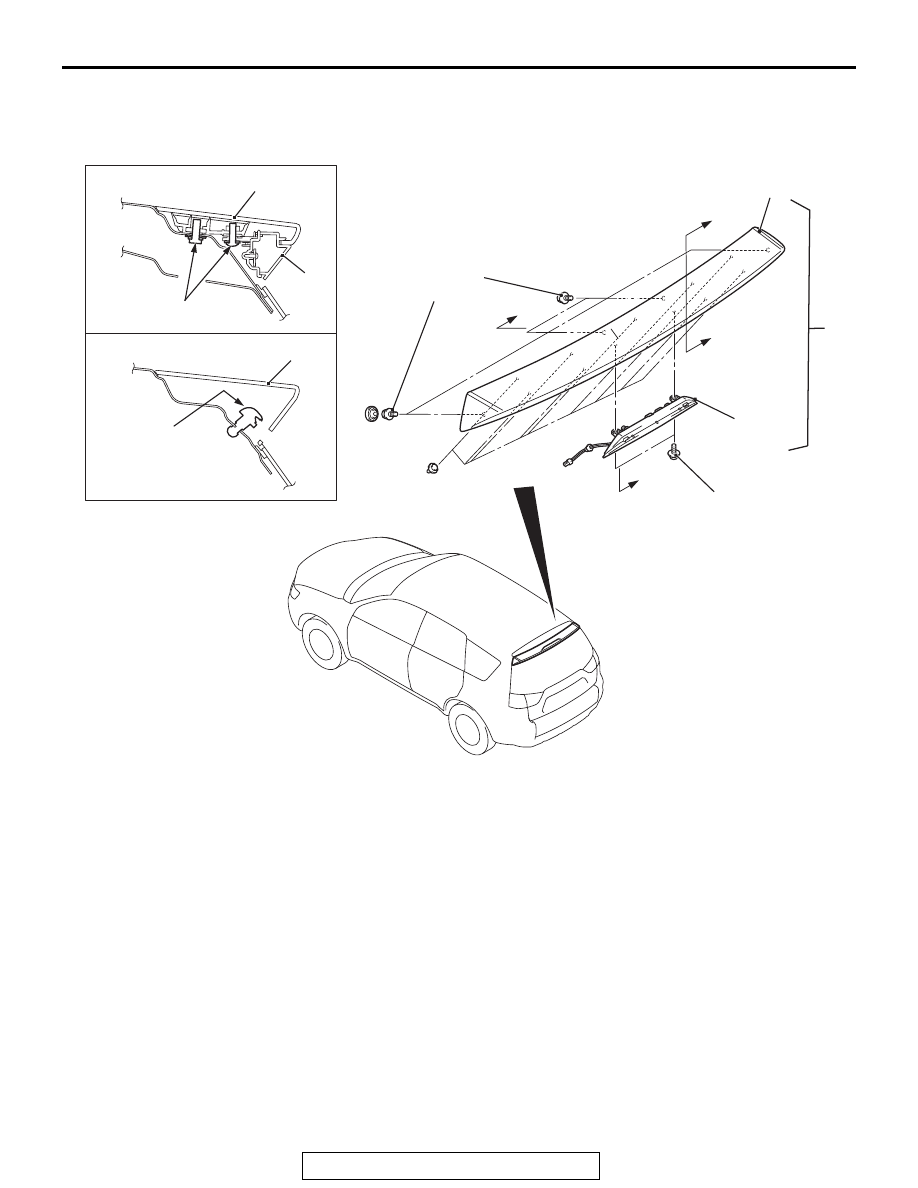

LIFTGATE SPOILER

REMOVAL AND INSTALLATION

M1511019900529

AC808577

B

A

A

B

1

3

2

2

2

3

AC

Section A – A

Section B – B

Bolt

2.5 ± 0.5 N·m
23 ± 4 in-lb

4.0 ± 2.0 N·m
35 ± 18 in-lb

Rear washer
nozzle

Removal steps

•

Liftgate upper trim (Refer to
GROUP 52A, Liftgate trim

P.52A-14

)

•

High-mount stop light connector
connection

1.

Liftgate spoiler assembly

2.

Liftgate spoiler

3.

High-mount stop light assembly

Removal steps (Continued)

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-25

WINDSHIELD WIPER AND WASHER

GENERAL INFORMATION

M1511000101993

WINDSHIELD WIPER AND WASHER OPERATION

.

Intermittent control (Vehicle speed-dependent
variable type) <Initial condition: with function>

1. ETACS calculates the windshield intermittent wiper interval

T1 from the position of the windshield intermittent wiper
switch on the column switch and the vehicle speed signal
(sent from the combination meter to ETACS via CAN com-
munication).
NOTE: Using the customization function, the vehicle
speed-dependent intermittent function can be invalidated
(Refer to

P.51-75

).

2. When ETACS receives the ON signal of the windshield

intermittent wiper switch, it turns the windshield wiper relay
ON. When the wiper reaches the stop position, the wind-
shield wiper auto-stop signal turns OFF, and the windshield
wiper relay turns OFF.
When the intermittent time T1 calculated by step 1 has
elapsed after the windshield wiper relay ON, the windshield
wiper relay turns ON again, and the above-mentioned oper-
ation is repeated.

.

Mist wiper control

When the windshield wiper mist switch on the column switch is
turned ON while the ignition switch is in ACC or ON position,
the column switch turns the windshield wiper relay ON. At the
same time, the wiper speed switching relay turns ON (HI).
When the windshield mist wiper switch is ON, the windshield
wiper operates at high speed.

.

AC101502 AC

FAST

SLOW

0

100

30

0

30

Variable intermittent wiper
control switch position

Intermittent
time T1
(seconds)

Intermittent
time T1
(seconds)

Change in intermittent time by variable
intermittent wiper control switch
(when vehicle is stationary)

Change in intermittent time according
to vehicle speed

When at FAST position

When at SLOW position

Vehicle speed  (km/h)

AC101493AJ

ON

OFF

ON

OFF

Windshield
wiper auto-
stop signal

Windshield
wiper relay

T1

T1

T1

AC207004AI

ON

OFF

ON

OFF

ON

OFF

ON (HIGH)

Windshield mist
wiper switch

Windshield wiper
auto-stop signal

Windshield wiper
relay

Windshield wiper
speed switching
relay

OFF (LOW)

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-26

Low speed wiper and high speed wiper control

When the windshield low speed wiper switch on the
column switch is turned ON while the ignition switch
is in ACC or ON position, the column switch turns the
windshield wiper relay ON. Also, the wiper speed
switching relay turns OFF (LO), and the windshield
wiper operates at low speed.

When the windshield high speed wiper switch is
turned ON, the windshield wiper relay turns ON.
Also, the wiper speed switching relay turns ON (HI),
and the windshield wiper operates at high speed.

.

Windshield wiper linked with washer function <Initial condition: with function>

AC506610AH

ON

OFF

ON

OFF

ON

OFF

(HI) ON

Windshield low-speed
wiper switch

Windshield high-speed
wiper switch

Windshield wiper auto-stop
signal

ON

OFF

Windshield wiper
relay

Windshield wiper speed
switching relay

(LO) OFF

Low speed operations

High speed operations

AC802704 AG

t

ON

OFF

ON

OFF

ON

OFF

ON

OFF

T

T

Windshield wiper
auto stop signal

Windshield washer relay

Windshield washer switch

Windshield wiper relay

Windshield wiper
switch in off position

Windshield wiper switch in
intermittent operation position

t: Less than 0.35 seconds
T: Windshield wiper operation time
