MOLDINGS

TSB Revision

EXTERIOR

51-11

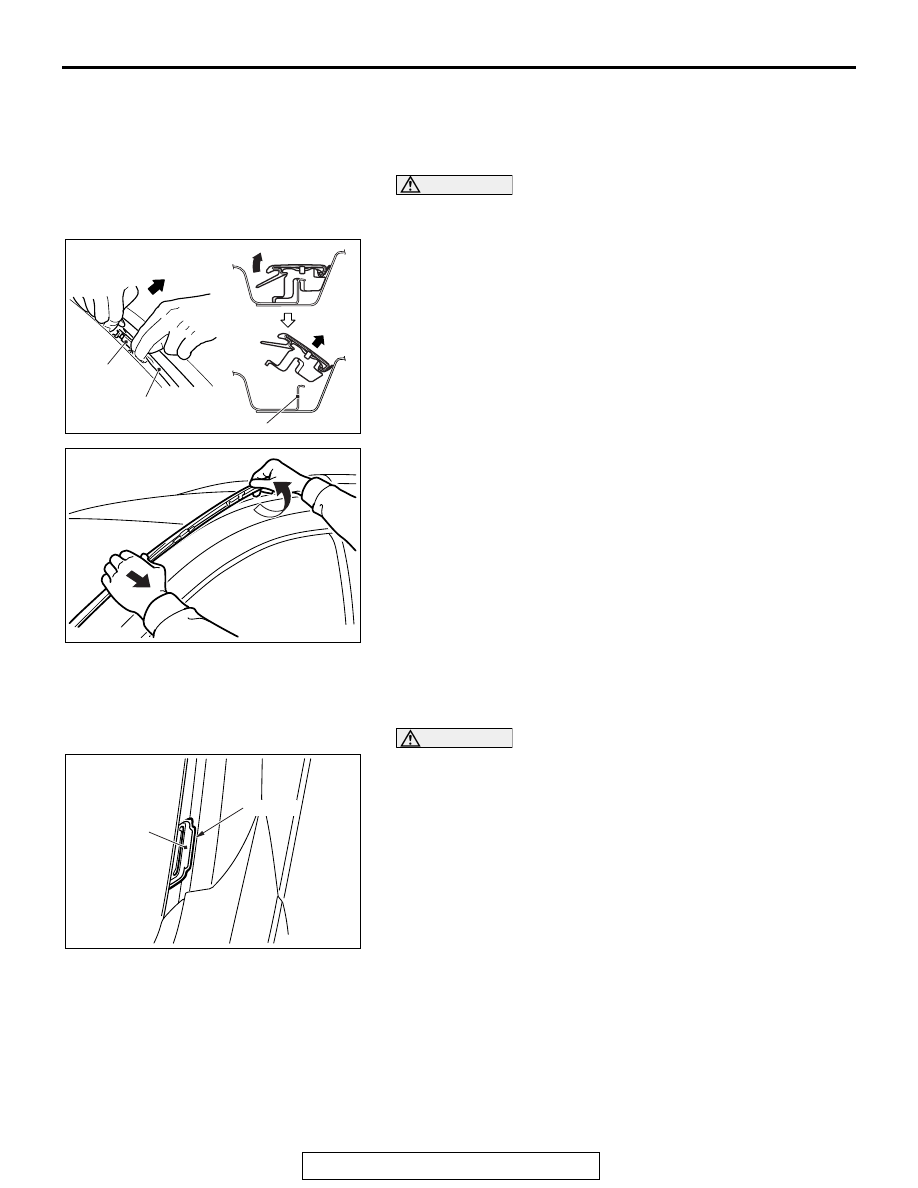

REMOVAL SERVICE POINTS

.

<<A>> ROOF DRIP MOLDING A/ CLIPS A, B, C
AND D REMOVAL

CAUTION

Remove the roof drip molding A from front to rear or oppo-
site direction in order.
1. Pull up the inner side of roof drip molding A rear end to

remove the clip A beneath it attached on the roof channel
<vehicles with roof rail>.

2. Twist the roof drip molding A rear end as shown in the

illustration. At the same time, pull the molding to vehicle
exterior from rear to front so that the clips B, C and D can be
remove from the front pillar. Then, remove the molding from
the body.

.

<<B>>CLIPS E POSITION MARKING TO FRONT
PILLAR

CAUTION

When replacing the clips E, mark installation position of
the clips to the front pillar before removing them.

.

AC711297AC

1

2

Roof drip molding A

Roof channel

Clip A

Vehicle
exterior

AC711301AD

AC711340AC

Clip E

Marking

MOLDINGS

TSB Revision

EXTERIOR

51-12

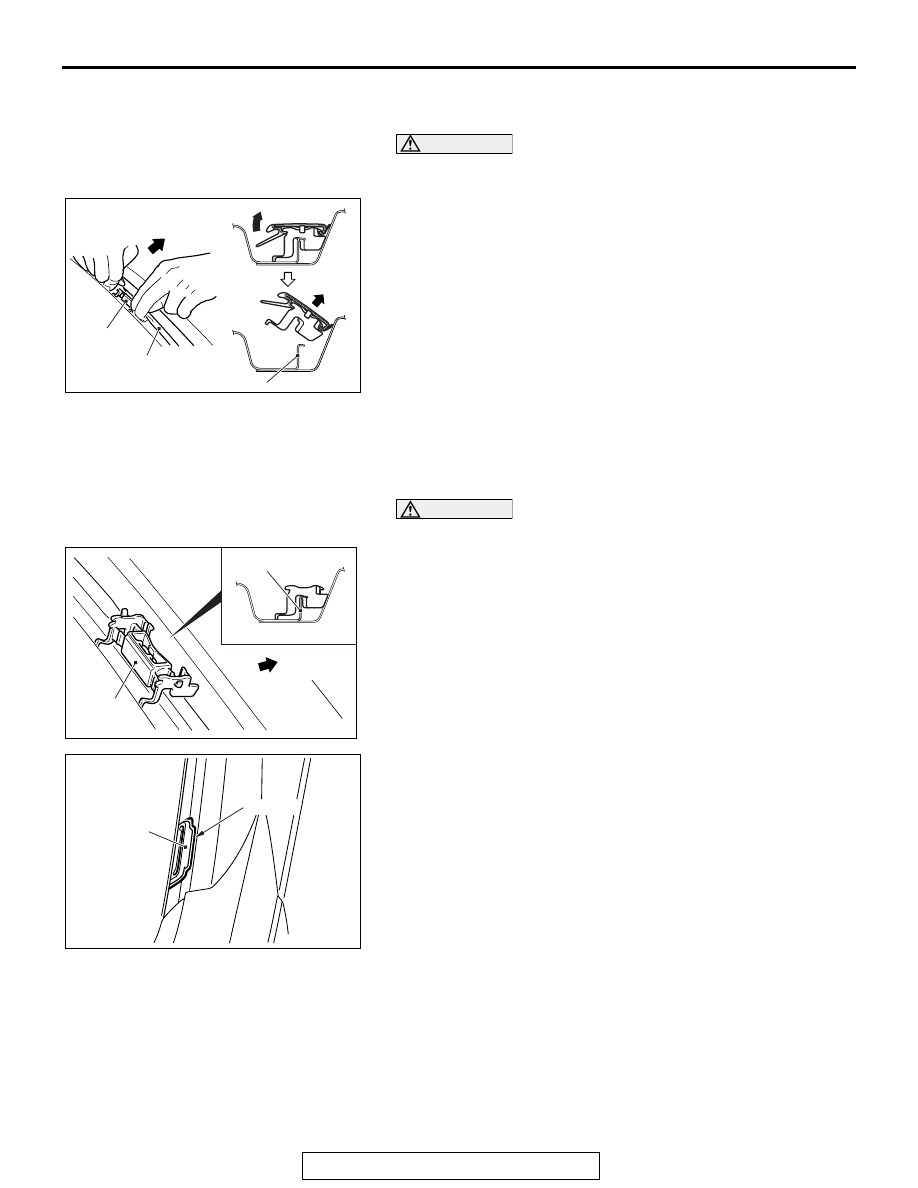

<<C>> ROOF DRIP MOLDING B/ CLIPS A
REMOVAL

CAUTION

Remove the roof drip molding B from front to rear or oppo-
site direction in order.
1. Pull up the roof drip molding B inner side to remove the clips

A beneath it attached on the roof channel.

2. Rotate the roof drip molding B together with clips A toward

vehicle exterior and remove them from roof channel.

INSTALLATION SERVICE POINTS

.

>>A<< CLIPS A AND E/ ROOF DRIP MOLDING A
INSTALLATION

CAUTION

Install the roof drip molding A from rear to front in order.
1. Remove the clip A from the roof drip molding A rear end and

attach it to the roof channel <vehicles with roof rail>.

2. When replacing the clips E, install new clips according to the

markings drawn at the removal time.

AC711297AD

1

2

Roof drip molding B

Roof channel

Clip A

Vehicle
exterior

AC711298AC

Clip A

Roof channel

Vehicle
exterior

AC711340AC

Clip E

Marking

MOLDINGS

TSB Revision

EXTERIOR

51-13

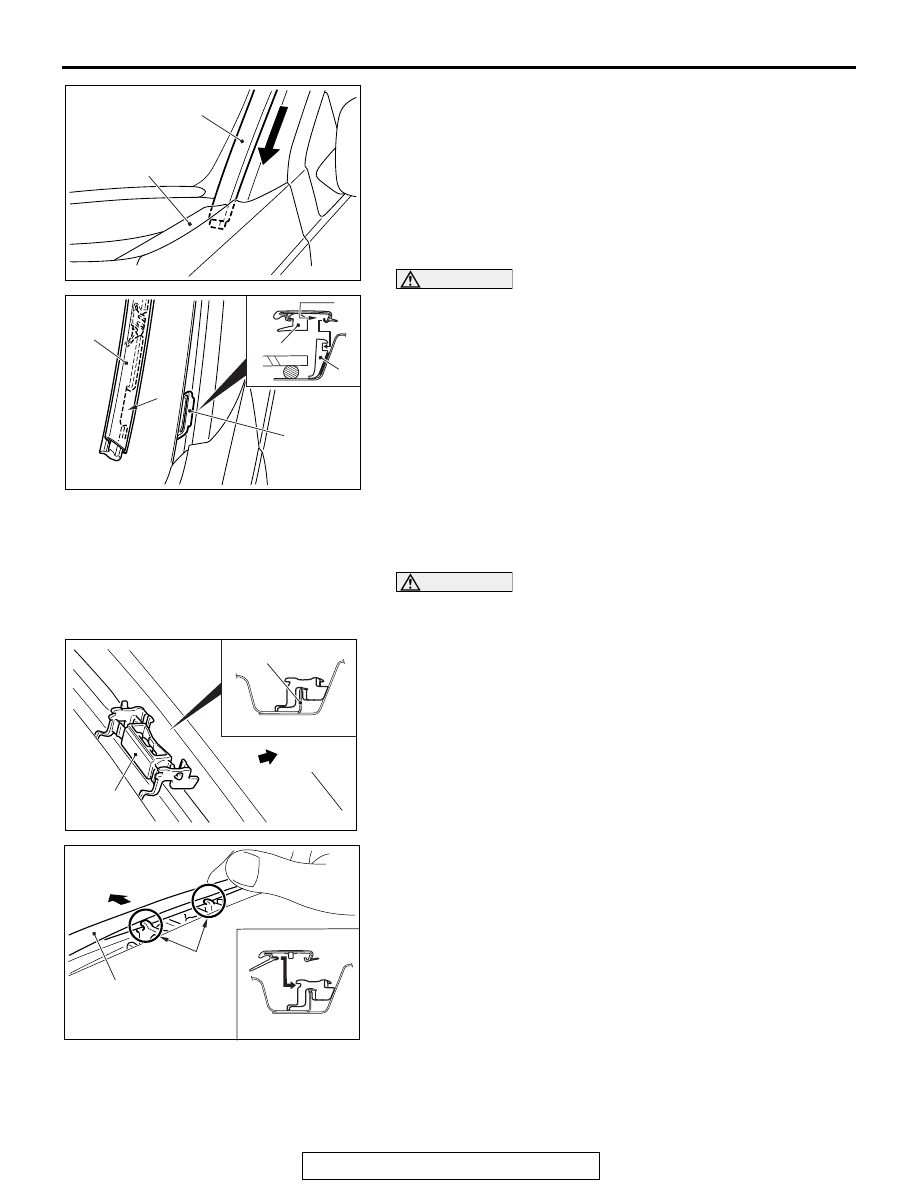

3. Install the roof drip molding A so that its front end is inserted

under the front deck garnish.

CAUTION

Make certain that the roof drip molding A rear end is not
overlapped with roof rail <vehicles with roof rail>.
4. Set the roof drip molding A (1) to the front pillar so that

cut-out (2) of the molding A (1) is engaged with clip E (3).

5. Push down the roof drip molding A securely so that it is

installed to the clip A <vehicles with roof rail> and clips E.

.

>>B<< CLIPS A/ ROOF DRIP MOLDING B
INSTALLATION

CAUTION

Install the roof drip molding B from front to rear or oppo-
site direction in order.
1. Remove the clips A from the roof drip molding B and attach

them to the roof channel.

2. Engage the projected portion of the roof drip molding B to

the 2 recessed portions of each clip A.

3. Push down the roof drip molding B securely so that it is

installed to the clips A on the roof channel.

AC711335AC

Front deck
garnish

Roof drip
molding A

AC711336AC

(1)

(1)

(3)

(3)

(2)

(2)

AC711298AC

Clip A

Roof channel

Vehicle
exterior

AC711300AC

Clip A

Roof drip
molding B

Vehicle
exterior

GARNISHES

TSB Revision

EXTERIOR

51-14

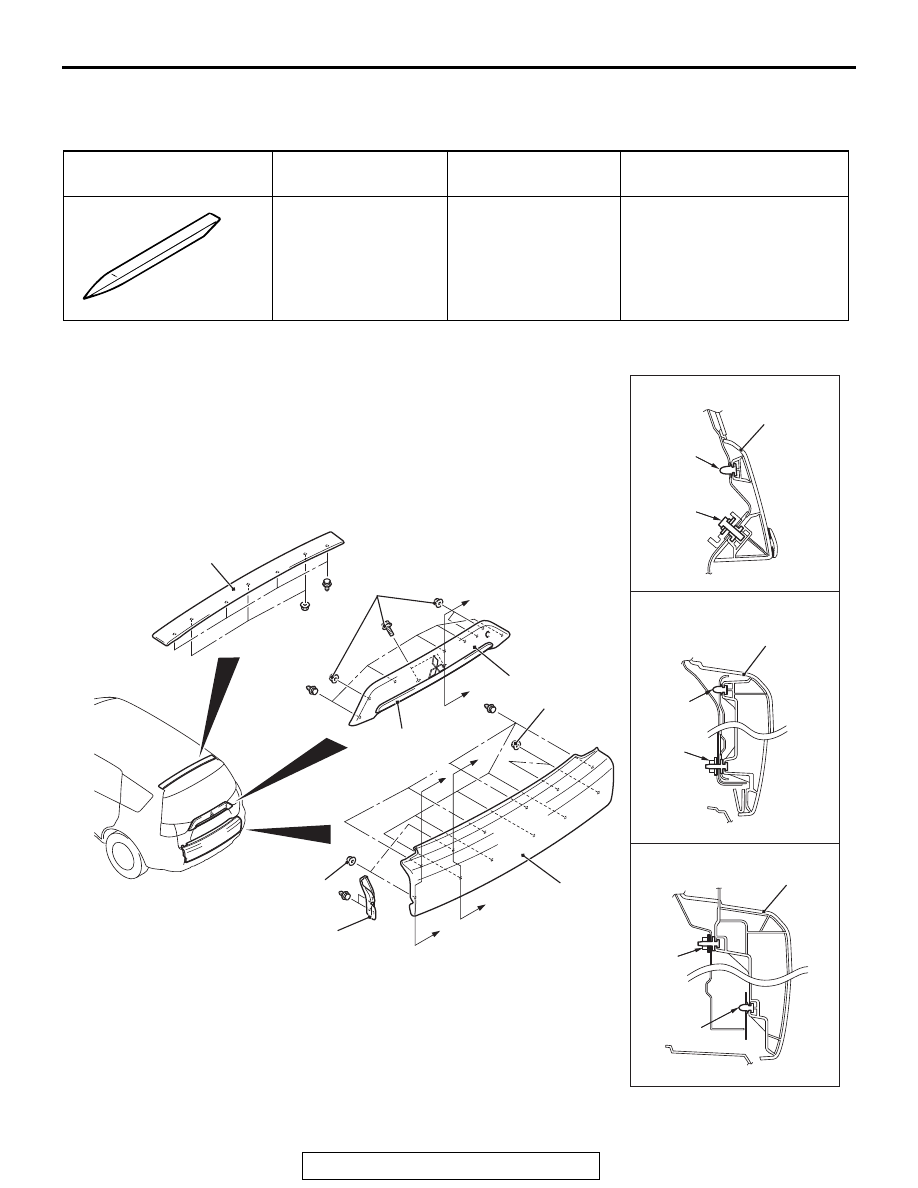

GARNISHES

SPECIAL TOOL

M1511000602195

REMOVAL AND INSTALLATION

M1511004100817

Tool

Tool number and
name

Supersession

Application

MB990784
Ornament remover

General service tool

Removal of garnishes

MB990784

AC900210

Section A – A

Section B – B

Section C – C

Clip

Bolt

4

2

AB

Clip

Nut

Liftgate molding
<Some models>

Clip

Nut

2

4

3

1

B

A

A

C

C

4

B

4.0 ± 2.0 N·m
35 ± 17 in-lb

4.0 ± 2.0 N·m
35 ± 17 in-lb

4.0 ± 2.0 N·m
35 ± 17 in-lb
