DATA LIST REFERENCE TABLE

TSB Revision

ELECTRONIC CONTROL AWD

27C-91

09

CAN system
(ETACS)

Ignition switch:
ON

When ETACS-ECU data is correctly
received

OK

When ETACS-ECU data reception error
occurs

No reception

10

FWD SW

Ignition switch:
ON

Drive mode selector: 2WD (FWD)

ON

Drive mode selector: 4WD (AWD)

OFF

Drive mode selector: LOCK

OFF

11

LOCK SW

Ignition switch:
ON

Drive mode selector: LOCK

ON

Drive mode selector: 2WD (FWD)

OFF

Drive mode selector: 4WD (AWD)

OFF

15

AWD mode

Ignition switch:
ON

Drive mode selector: 2WD (FWD)

FWD

Drive mode selector: 4WD (AWD)

AWD

Drive mode selector: LOCK

AWD LOCK

16

FL wheel speed
sensor

Perform a test run of the vehicle.
Check that there is difference between the right wheel
speed and the left wheel speed when the vehicle turns.

The speedometer
display and the
scan tool display
almost agree with
each other.

17

FR wheel speed
sensor

18

RL wheel speed
sensor

19

RR wheel speed
sensor

21

Engine speed

Perform a test run of the vehicle.

The tachometer
display and the
scan tool display
almost agree with
each other.

23

Ignition position

ON

ON

START

START

26

Throttle position Ignition switch:

ON

Release the accelerator pedal.

Approximately 0%

Gradually depress the accelerator
pedal.

0

− 100%

Fully depress the accelerator pedal.

Approximately
100% (within
100%)

28

Limited torque
<Vehicles with
ASC>

Perform a test
run of the
vehicle.

Usually

−

When ASC works and AWD-ECU limits
the torque in cooperation control with
ASC
NOTE: Electronic control AWD will limit
occasionally the rear wheel
transmission torque in cooperation
control with ASC. When this limit is
applied, the limited torque will be
shown.

0

− 730 N⋅m

(0

− 538 ft-lb)

Item No.

Check item

Check condition

Normal condition

ACTUATOR TEST TABLE

TSB Revision

ELECTRONIC CONTROL AWD

27C-92

SYSTEM SHUT-DOWN

Scan tool display data does not agree with the actual
data when AWD-ECU deactivates the AWD control
function by the fail-safe function.

ACTUATOR TEST TABLE

M1274001100061

Scan tool can be used to forcibly activate the elec-
tronic control coupling and indicators (AWD indicator
and LOCK indicator) in the combination meter
according to the following items.
NOTE:

.

•

If AWD-ECU is deactivated by the fail-safe func-
tion, no actuator test can be performed.

•

As for the item No. 01, the chassis dynamometer
is used to check the AWD torque. A simple AWD
status check method, however, can be applied by
checking whether a tight corner braking phenom-
enon appears during driving.

CAUTION

When the item No. 01 is checked, the speed dif-
ference between front and rear wheels must be 5
km/h (3 mph) or lower. If the speed difference
exceeds 5 km/h (3mph), AWD-ECU changes from
the actuator test mode to the normal control
mode.

.

Actuator test specifications

Item No.

Check item

Driven component

Operating
duration

01

AWD coupling control torque

Drive the electronic control coupling with the
control torque of 0 N

⋅m to 730 N⋅m (0 to 538

ft-lb).

Maximum
10 seconds

02

AWD mode

AWD LOCK

Maximum 1
minute

AWD

Maximum 1
minute

FWD

Maximum 1
minute

CHECK AT ECU TERMINALS

TSB Revision

ELECTRONIC CONTROL AWD

27C-93

CHECK AT ECU TERMINALS

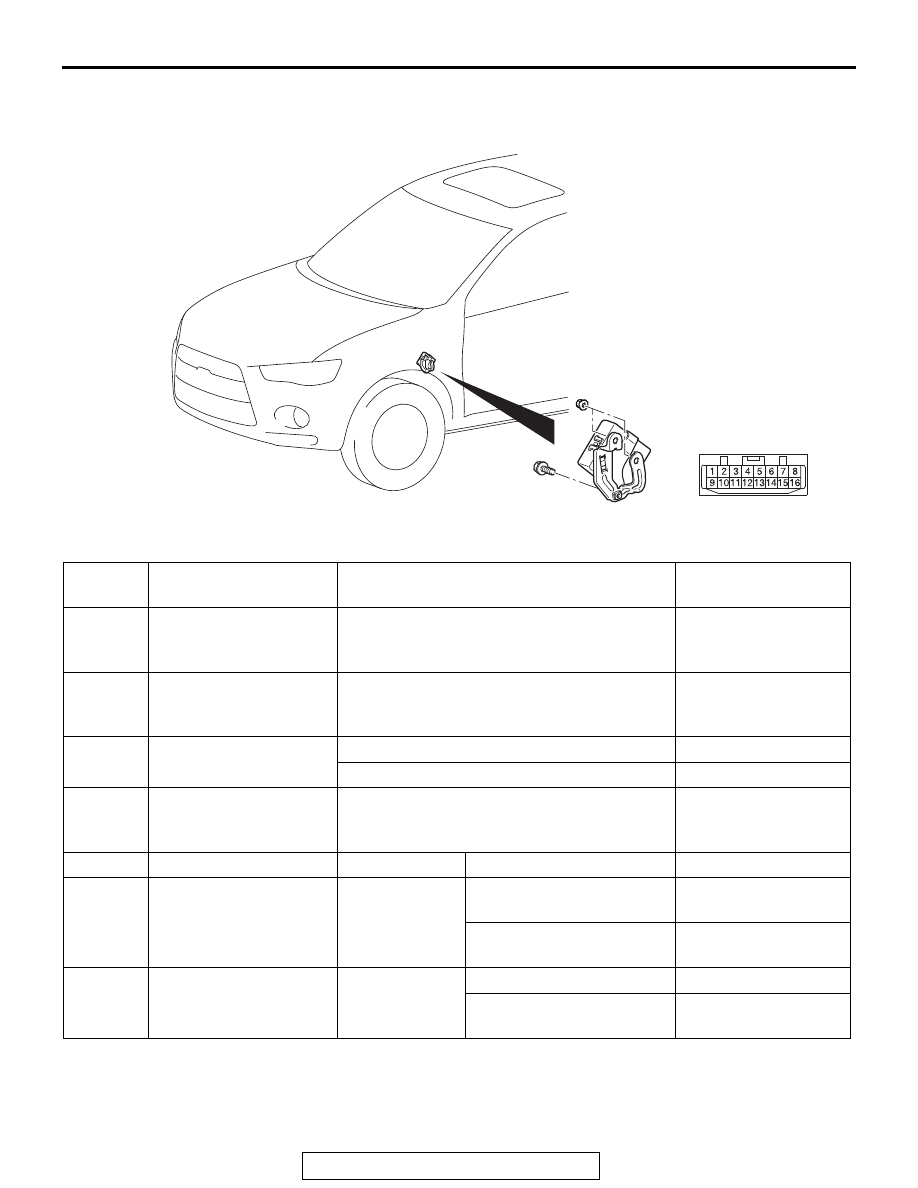

M1274009000035

AC809405

C-128

AD

Terminal
No.

Check item

Check condition

Normal condition

1

Current command value
of electronic control
coupling solenoid

• Drive mode selector: 4WD (AWD)

• Perform a test run of the vehicle.

0 to 3 A

3

Electronic control
coupling solenoid power
supply

Always

System voltage

4

Ignition power supply
voltage

Ignition switch: ON

System voltage

Ignition switch: OFF

1 V or less

9

Electronic control
coupling solenoid
current monitor value

• Drive mode selector: 4WD (AWD)

• Perform a test run of the vehicle.

0 to 3 A

10

Ground

Always

1 V or less

14

Drive mode selector
FWD signal

Ignition switch:
ON

Drive mode selector: 2WD
(FWD)

1 V or less

Drive mode selector: 4WD
(AWD) or LOCK

System voltage

16

Drive mode selector
LOCK signal

Ignition switch:
ON

Drive mode selector: LOCK 1 V or less
Drive mode selector: 2WD
(FWD) or 4WD (AWD)

System voltage

ON-VEHICLE SERVICE

TSB Revision

ELECTRONIC CONTROL AWD

27C-94

ON-VEHICLE SERVICE

CHECK OF ELECTRONIC CONTROL COUPLING

M1274005700140

SIMPLE OPERATION CHECK OF ELECTRONIC
CONTROL COUPLING

1. Raise the vehicle.
2. Mark the front and rear tires for easy identification of tire

rotation.

3. Adjust the parking brake lever to the normal conditions.

(Refer to GROUP 36

− On-vehicle Service, Parking Brake

Lever Stroke Check and Adjustment

P.36-9

.)

4. Pull the parking brake lever by two notches.

NOTE: Activating the parking brake slightly prevents the
drive force transferring to the rear wheels by a friction in the
electronic control coupling. If the following FWD mode is
checked without the parking brake activation, the drive force
is transferred to the rear wheels by a friction in the electronic
control coupling.

5. Start the engine, and move the shift lever into the D position.
6. Depress the accelerator pedal gradually, and maintain the

vehicle speed at approximately 10 km/h (6.0 mph).

7. Switch the drive mode selector to the FWD mode, and check

that the rear wheels are under FWD control (At this time, the
AWD/LOCK indicators in the combination meter do not
illuminate).

8. Stop the engine.
9. Start the engine again, and move the shift lever into the D

position.

10.Depress the accelerator pedal gradually, and maintain the

vehicle speed at approximately 10 km/h (6.0 mph).

CAUTION

The following checks in the AWD mode must be completed
within one minute in total to protect the AWD drive system
components and parking brake.
11.Switch the drive mode selector to the AWD mode, and

check that the rear wheels are rotating. (At this time, the
AWD indicator in the combination meter illuminates.)

After the above checks are completed, if the rear wheel rotation
satisfies the above conditions, it is judged that the electronic
control coupling operates correctly. If the rear wheel rotation
does not satisfy the above conditions, replace the electronic
control coupling. (Refer to

P.27C-97

.)

AC809406AC

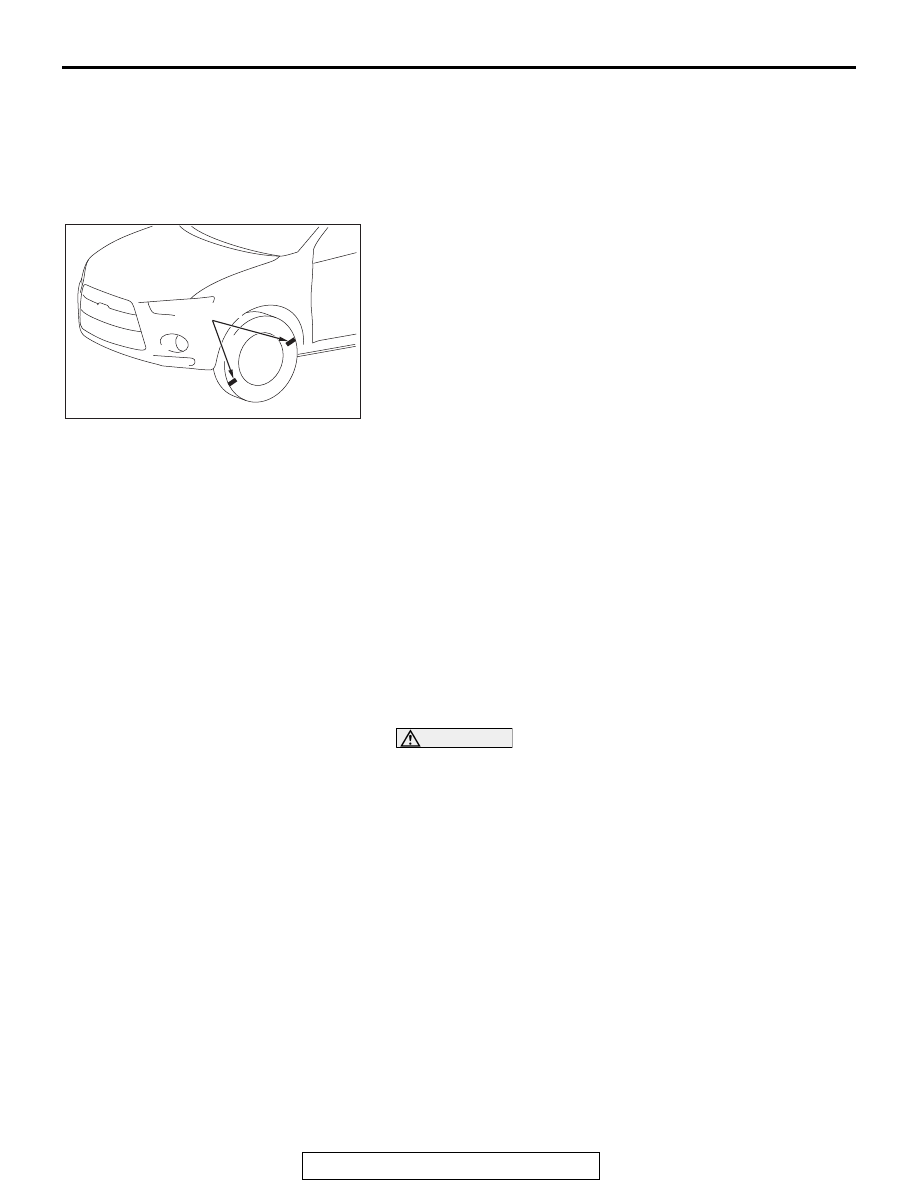

Marking
