Mitsubishi Outlander GS45X. Manual - part 134

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-533

STEP 4. Check the wiring harness between combination
meter connector C-03 (terminal 20) and multivision display
connector C-10 (terminal 13).

• Check the communication lines for open circuit and short

circuit.

NOTE: Also check intermediate connector C-17 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-17 is damaged, repair or
replace the connector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Is the wiring harness between combination meter

connector C-03 (terminal 20) and multivision display
connector C-10 (terminal 13) in good condition?
YES : Go to Step 5.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

STEP 5. Substitute a known good multivision display, and
check the trouble symptom.
Check that no menus are active during driving.
Q: Is the check result normal?

YES : Replace the multivision display.
NO :  Replace the combination meter.

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-534

Inspection Procedure 5: The screen is not normal in the navigation mode. (The displayed position of
the vehicle mark deviates.)

CAUTION

Before replacing the multivision display, ensure that the power supply circuit, the ground circuit, and
the communication circuit are normal. (Check that the voltage is 10 V or more.)

.

COMMENTS ON TROUBLE SYMPTOM

There is a failure in the wiring harness between the
combination meter and the multivision display, the
GPS antenna, the respective connector(s), the com-
bination meter or the multivision display.

.

PROBABLE CAUSES

• Malfunctions of GPS antenna

• Malfunctions of combination meter

• Malfunctions of multivision display

• Damaged harness wires and connectors

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB992006: Extra Fine Probe

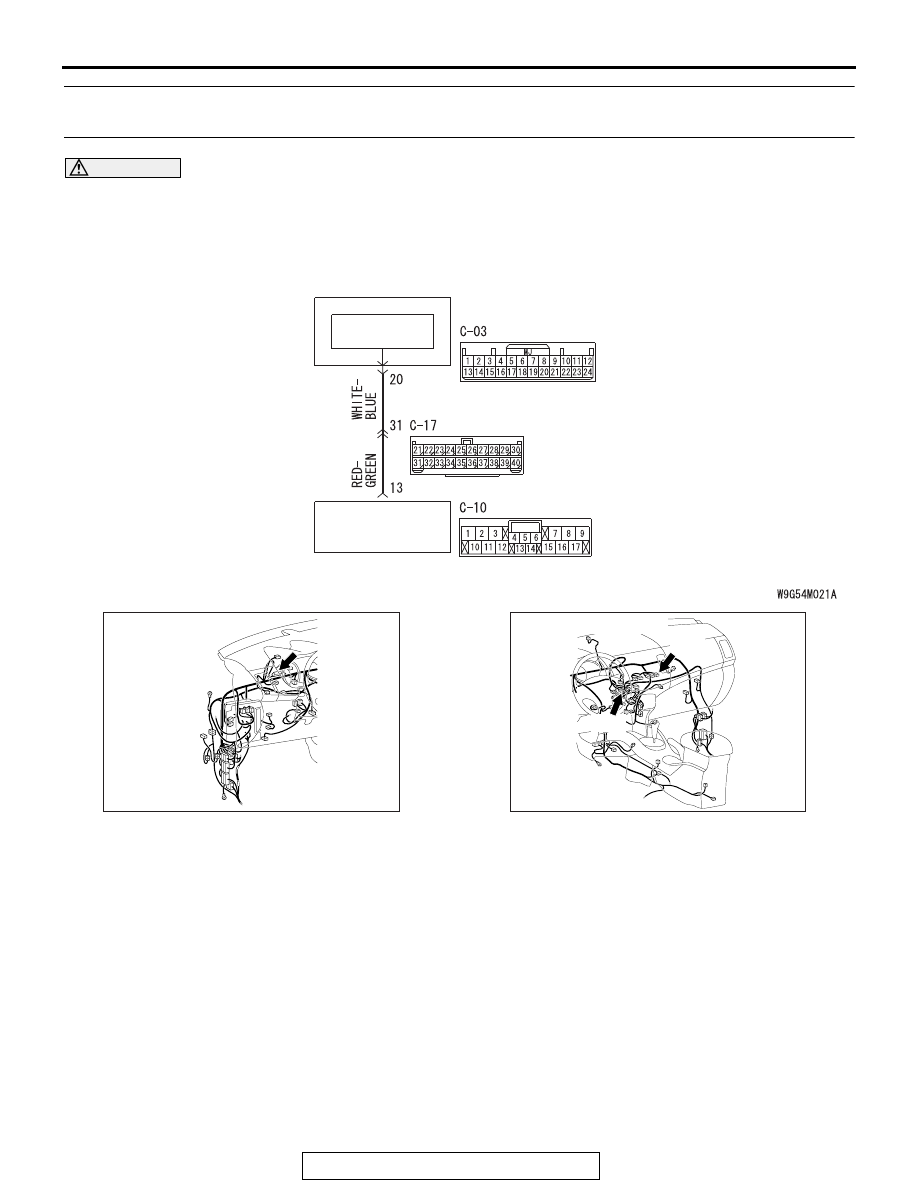

Multivision Display Communication Circuit

COMBINATION
METER

INTERFACE
CIRCUIT

MULTIVISION
DISPLAY

ACA02653AC

Connector: C-03

AC703148AN

Connectors: C-10, C-17

C-17

C-10

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-535

STEP 1. Confirmation in MMCS service mode
Check the items below in the MMCS service mode. (Refer to

P.54A-443

.)

•  Perform "Network/Connect Line Check" in the MMCS ser-

vice mode to check that the communication and wire con-
nection with the GPS are in good condition.

•  Perform "Vehicle Signal Check", and then check the status

of the vehicle speed signal.

•  Perform "Sensor Check", and then check the status of the

vehicle speed sensor and the gyro sensor.

Q: Is the check result normal?

YES (OK for all) : Go to Step 6.
NO <GPS is not OK> : Go to Step 2.
NO <The vehicle speed sensor is not OK, or vehicle
speed pulse does not increase after starting from a
standstill> : Go to Step 3.
NO <Gyro sensor is not OK> : Go to Step 6.

STEP 2. GPS reception check
(1) Start the multivision display.
(2) Press the [INFO] button.
(3) Select [Vehicle Position].
(4) Check if the GPS signals are received.
Q: Is the check result normal?

YES : Go to Step 6.
NO :  Perform Inspection procedure 7 "GPS signal cannot

be received."(Refer to

P.54A-538

.) Then, go to Step

6.

STEP 3. Check the speedometer.
Check whether the speedometer works normally.
Q: Does the speedometer work normally?

YES : Go to Step 4.
NO :  Diagnose the combination meter (Refer to

Combination meter

− Diagnosis

P.54A-69

).

STEP 4. Check combination meter connector C-03 and
multivision display connector C-10 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.
Q: Is combination meter connector C-03 or multivision

display connector C-10 in good condition?
YES : Go to Step 5.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-536

STEP 5. Check the wiring harness between combination
meter connector C-03 (terminal 20) and multivision display
connector C-10 (terminal 13).

• Check the communication lines for open circuit and short

circuit.

NOTE: Also check intermediate connector C-17 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-17 is damaged, repair or
replace the connector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Is the wiring harness between combination meter

connector C-03 (terminal 20) and multivision display
connector C-10 (terminal 13) in good condition?
YES : Go to Step 6.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

STEP 6. Substitute a known good multivision display, and
check the trouble symptom.
Check whether the navigation screen is normal.
Q: Is the navigation screen normal?

YES : Replace the multivision display.
NO :  Replace the combination meter.
