DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-133

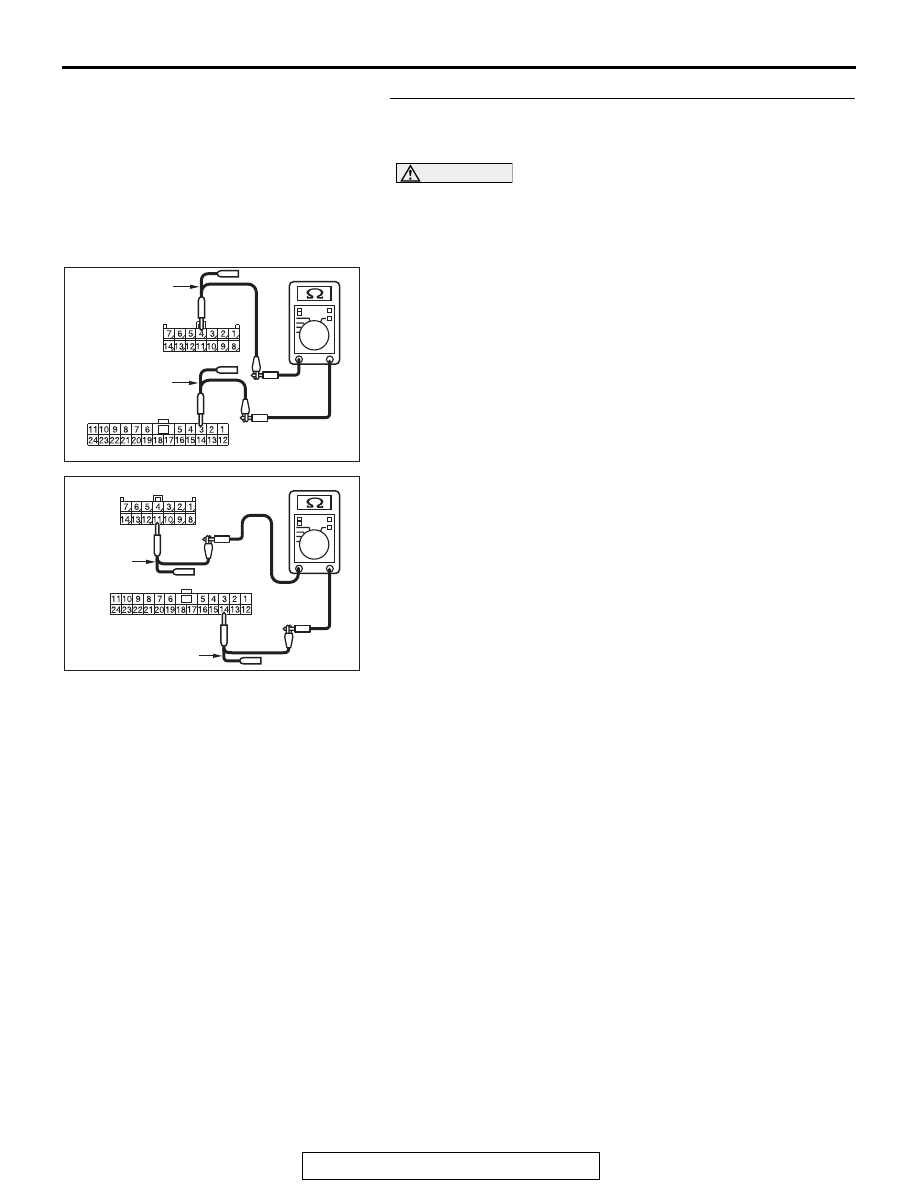

STEP 2. Check the wiring harness between joint connector
(CAN1) C-103 and satellite radio tuner connector C-111 for
open circuit.

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-7

.

(1) Disconnect joint connector (CAN1) C-103 and satellite radio

tuner connector C-111, and check the wiring harness.

(2) Check the wiring harness between joint connector (CAN1)

C-103 (terminal No.3) and satellite radio tuner connector
C-111 (terminal No.4)

OK: Continuity exists (2 ohms or less)

(3) Check the wiring harness between joint connector (CAN1)

C-103 (terminal No.14) and satellite radio tuner connector
C-111 (terminal No.11)

OK: Continuity exists (2 ohms or less)

Q: Is the wiring harness between joint connector (CAN1)

C-103 and satellite radio tuner connector C-111 in good
condition?
YES :
Check the power supply circuit of the satellite radio

tuner. Refer to GROUP 54A, Satellite Radio Tuner

−

Diagnosis

P.54A-675

.

NO :  Repair the wiring harness between joint connector

(CAN1) C-103 and satellite radio tuner connector
C-111.

AC709707 NS

Harness side: C-103

Harness side: C-111

Test
harness

Test
harness

AC709707 NT

Harness side: C-103

Harness side: C-111

Test
harness

Test harness

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-134

DIAGNOSTIC ITEM 24: Short to power supply or ground in both CAN_H and CAN_L lines of the
CAN-B bus lines.

CAUTION

When servicing a CAN bus line, ground yourself
by touching a metal object such as an unpainted
water pipe. If you fail to do so, a component con-
nected to the CAN bus line may be damaged.

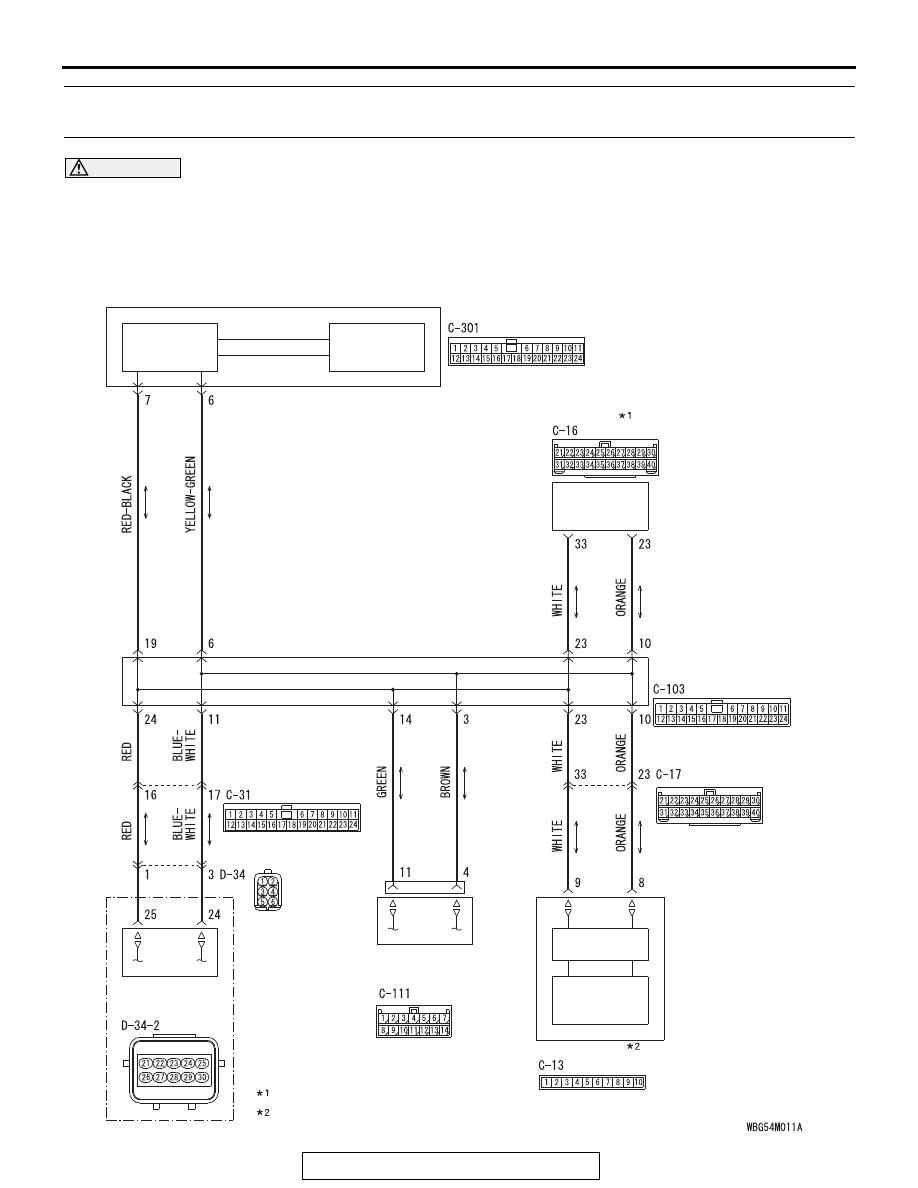

CAN Communication Circuit

ETACS-ECU

INTERFACE
CIRCUIT

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

FRONT SEAT
ASSEMBLY (LH)

OCCUPANT
CLASSIFICATION-
ECU

SATELLITE
RADIO
TUNER

RADIO AND CD
PLAYER OR CD
CHANGER

CAN
TRANSCEIVER
CIRCUIT

CAN BOX UNIT

JOINT CONNECTOR
(CAN1)

NOTE

:VEHICLES WITH RADIO AND
 CD PLAYER OR CD CHANGER
:VEHICLES WITH MMCS

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-135

.

FUNCTION

If a short to power supply or ground is present in both
CAN_H and CAN_L lines, this diagnosis result will be
set.

.

TROUBLE JUDGMENT CONDITIONS

If a communication flag is set for the ETACS-ECU,
no communication is present through the CAN-B
line, and diagnostic trouble code U0019 is set, the
ETACS-ECU determines that there is a failure.

.

TROUBLESHOOTING HINTS

• Malfunction of the connector (ETACS-ECU con-

nector improperly connected)

• Malfunction of the wiring harness (CAN_H and

CAN_L lines are short to power supply or ground
on the CAN-B line.)

• Malfunction of ECUs

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB992006: Extra Fine Probe

AC901075 BA

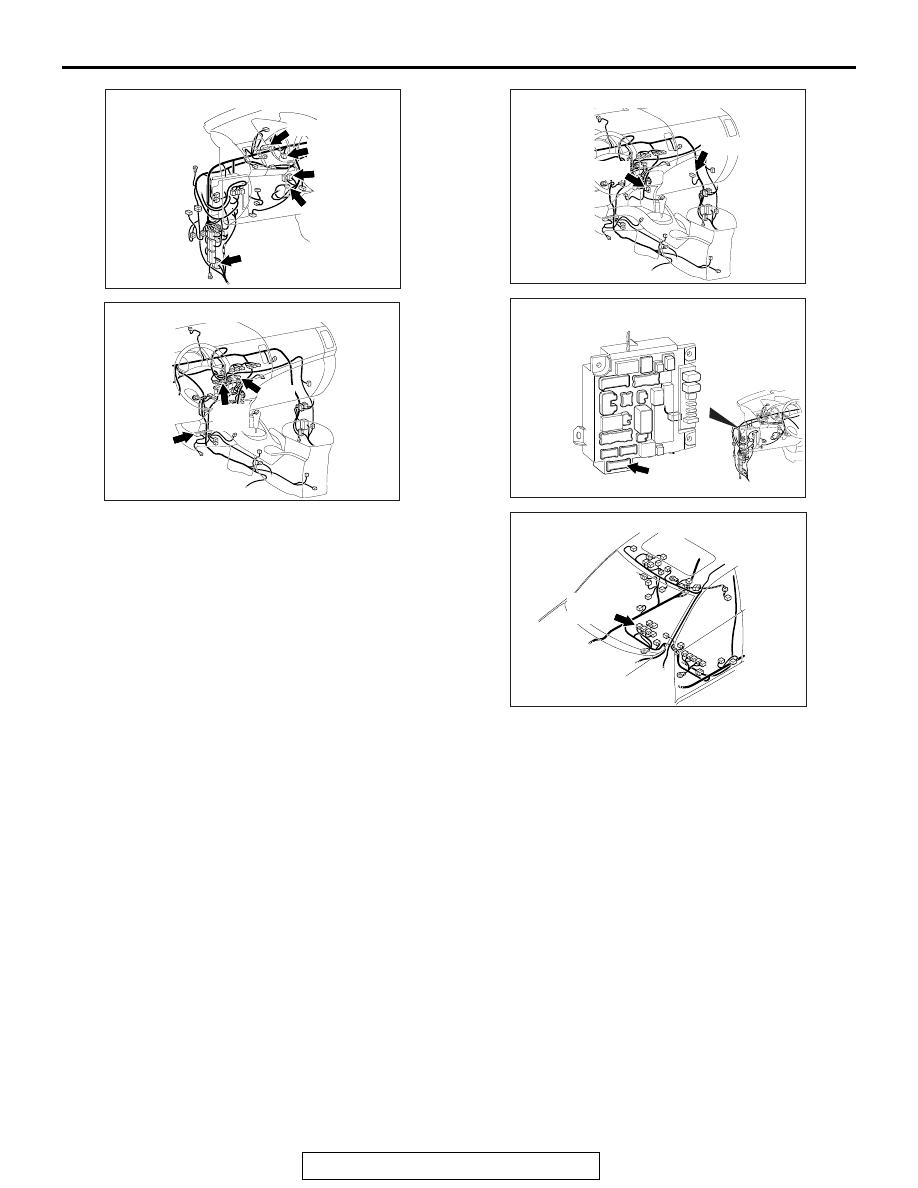

Connectors: C-03, C-29, C-31, C-102, C-103

C-03

C-29

C-31

C-102

C-103

AC901076 AJ

Connectors: C-13, C-16, C-17, C-28

C-13

C-16,
C-17

C-28 (Y)

ACA02654

AL

Connectors: C-109, C-111

C-111

C-109 (B)

ACA02655BB

Connector: C-301

AC901079AX

Connectors: D-34, D-34-2

D-34,
D-34-2

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-136

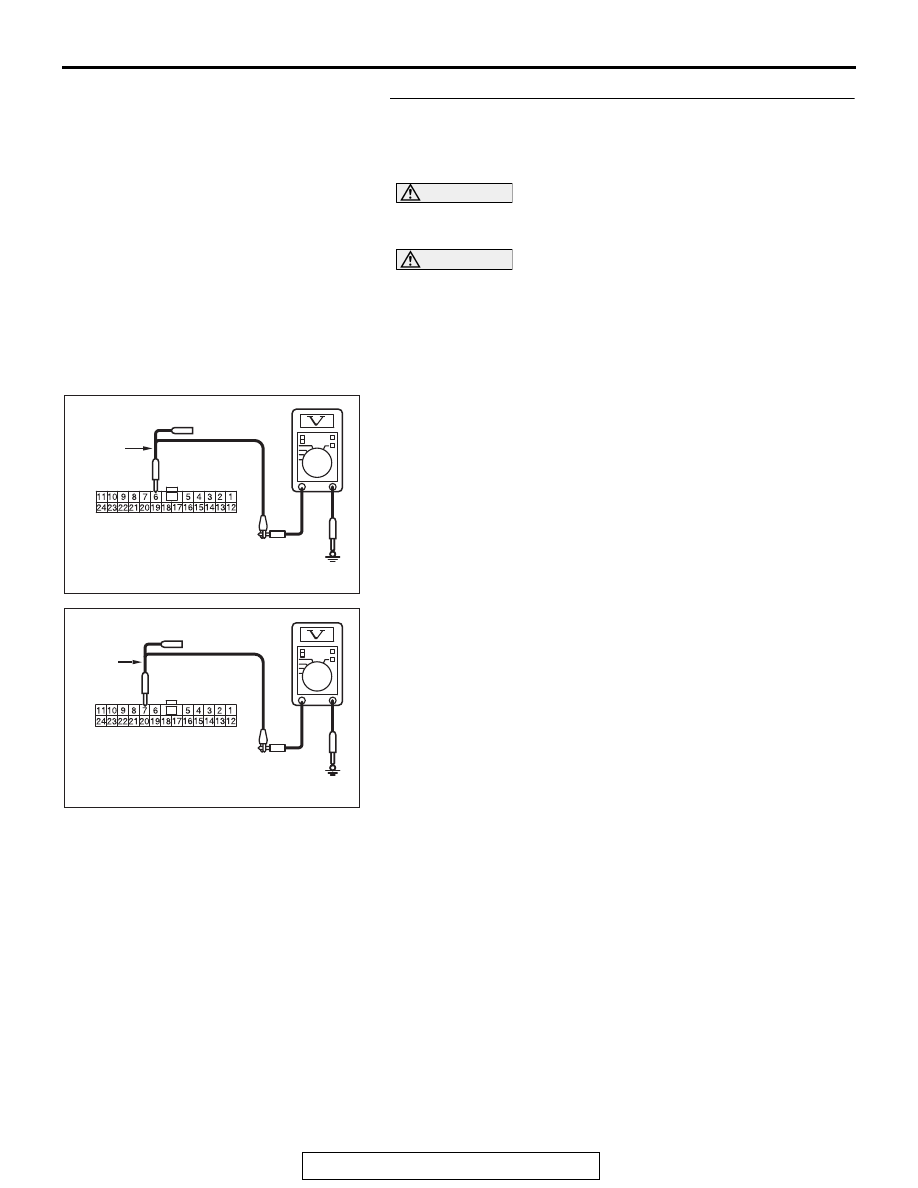

STEP 1. Check the wiring harness between ETACS-ECU
connector C-301 and body ground for a short to power
supply. Measure the voltage at ETACS-ECU connector
C-301.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-7

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-7

.

(1) Disconnect ETACS-ECU connector C-301, and measure

the voltage at the wiring harness side of ETACS-ECU
connector.

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between ETACS-ECU connector

terminal 6 and body ground.

OK: 4.7 volts or less

(4) Measure the voltage between ETACS-ECU connector

terminal 7 and body ground.

OK: 4.7 volts or less

Q: Do all the voltages measure 4.7 volts or less?

YES : Go to Step 2.
NO :  Go to Step 12.

AC702831BO

Harness side: C-301

Test
harness

AC702831 BP

Harness side: C-301

Test
harness
