SPECIAL TOOLS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-5

SPECIAL TOOLS

M1548304200400

Tool

Tool number and
name

Supersession

Application

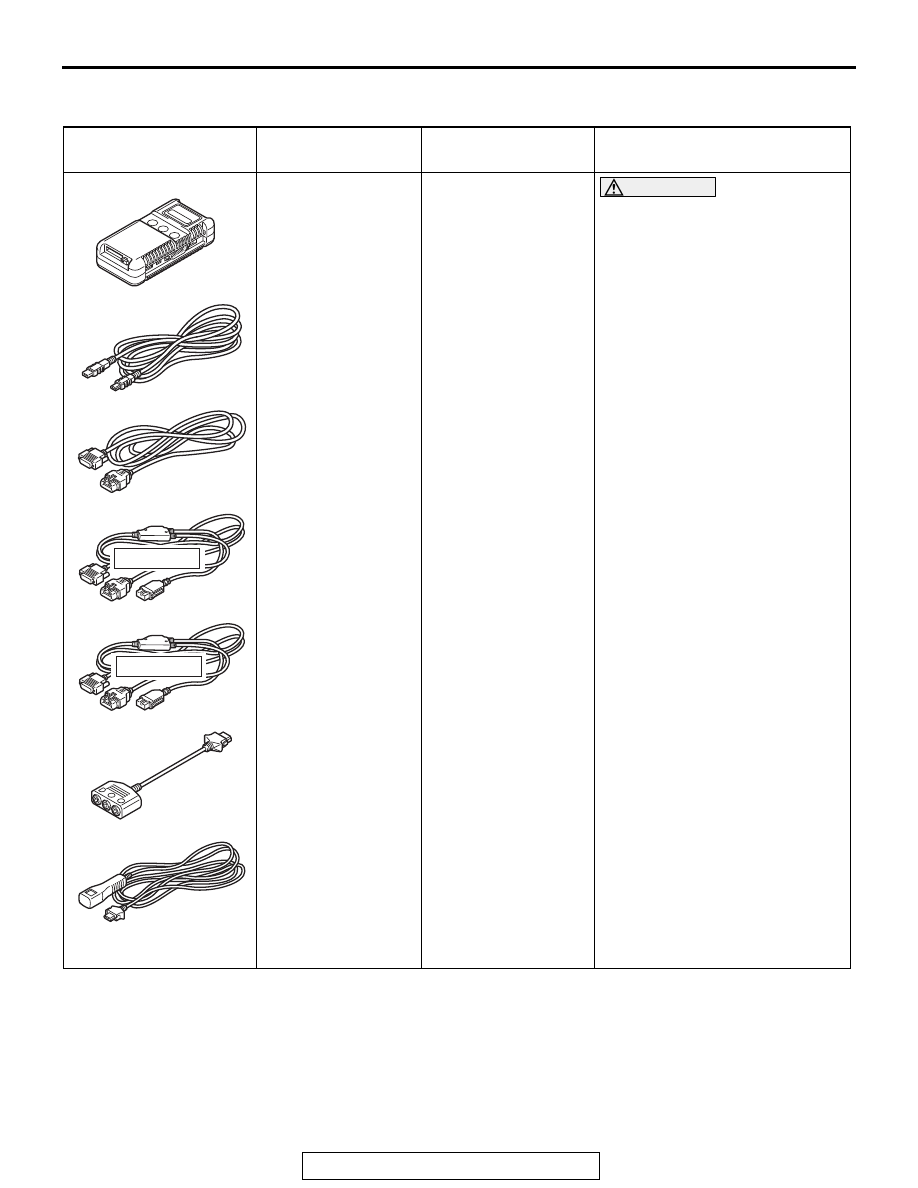

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

M.U.T.-III sub
assembly

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e. M.U.T.-III main

harness C (for
Chrysler models
only)

f. M.U.T.-III

measurement
adapter

g. M.U.T.-III trigger

harness

MB991824-KIT
NOTE: G: MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

CAUTION

M.U.T.-III main harness A
(MB991910) should be used.
M.U.T.-III main harness B and C
should not be used for this
vehicle.
CAN bus diagnostics

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

Do not use

a

b

c

d

e

f

g

Do not use

SPECIAL TOOLS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-6

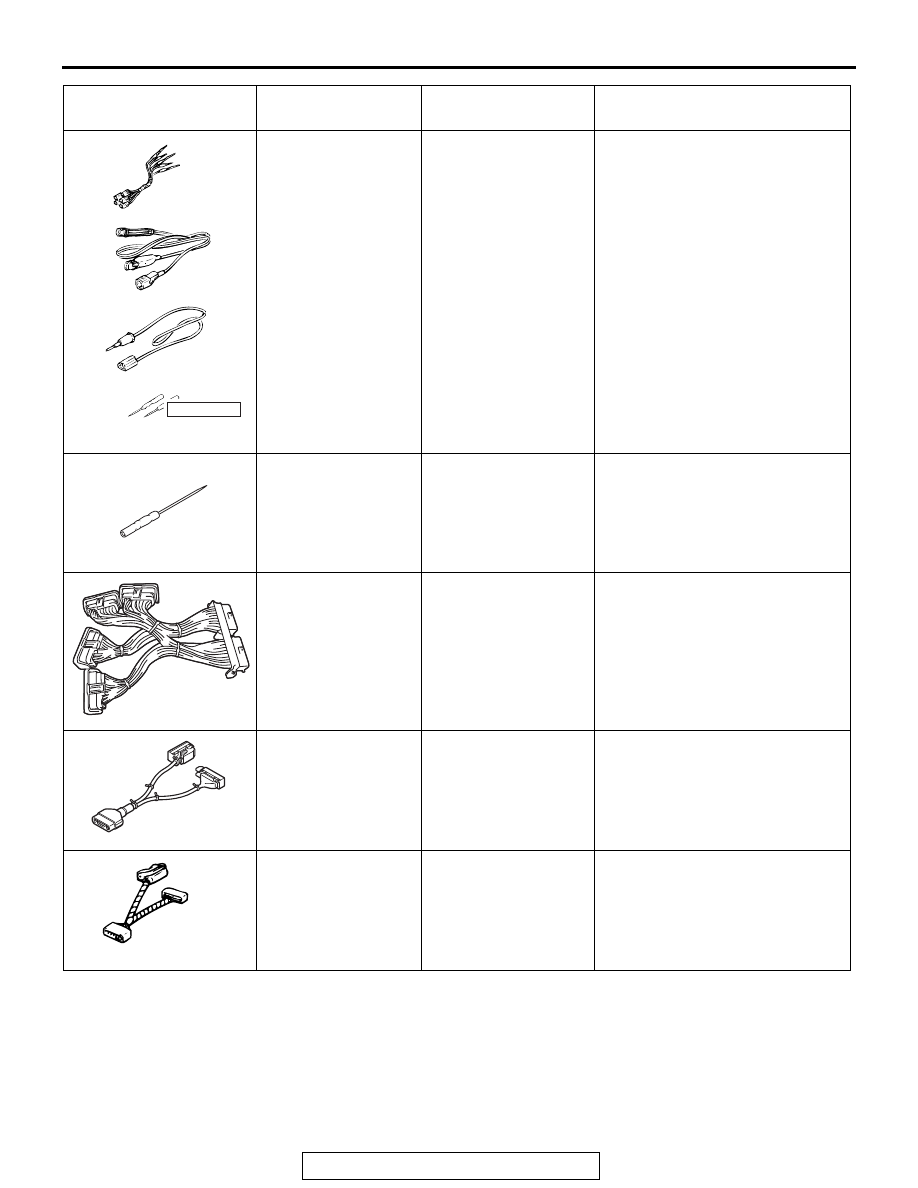

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Test harness
b. LED harness
c. LED harness

adaptor

d. Probe

General service tools Continuity check and voltage

measurement at harness wire or
connector for loose, corroded or
damaged terminals, or terminals
pushed back in the connector.

a. Connector pin contact

pressure inspection

b. Power circuit inspection
c. Power circuit inspection
d. Commercial tester connection

MB992006
Extra fine probe

−

Continuity check and voltage
measurement at harness wire or
connector for loose, corroded or
damaged terminals, or terminals
pushed back in the connector.

MB992110
Power plant ECU
check harness

−

Measure the voltage and
resistance at the ECM

MB991974
ABS check harness

−

Measure the voltage and
resistance at the ABS-ECU

MB991997
ASC check harness

−

Measure the voltage and
resistance at the ASC-ECU

Tool

Tool number and
name

Supersession

Application

MB991223

a

d

c

b

DO NOT USE

BA

MB992006

MB992110

B991974

MB991997

TEST EQUIPMENT

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-7

TEST EQUIPMENT

M1548304300258

SERVICE PRECAUTIONS

M1548302100269

Test equipment

Name

Application

Digital multimeter

Checking CAN bus circuit (for resistance and voltage
measurements)

AC000019

Warnings in diagnosis section

Details regarding warnings

CAUTION

When servicing a CAN bus line, ground yourself
by touching a metal object such as an unpainted
water pipe. If you fail to do, a component
connected to the CAN bus line may be broken.

−

CAUTION

A digital multimeter should be used.

When measuring resistance value or voltage in
CAN bus lines, use a digital multimeter. If not
using a digital multimeter, the equipments, which
are connected through the CAN communication
lines, may be damaged.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal.

Disconnect the negative battery terminal when
measuring the resistance value in the CAN bus
line. If you fail to do so, the equipments, which
are connected through the CAN communication
lines, may be damaged.

PRECAUTIONS ON HOW TO REPAIR THE CAN BUS LINES

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-8

PRECAUTIONS ON HOW TO REPAIR THE CAN BUS LINES

M1548301900370

.

PRECAUTIONS ON HOW TO REPAIR THE CAN
BUS LINES

• If the CAN bus line(s) are repaired, renew all the twisted

wires between the end connectors. If the wiring harness is
partially repaired, or only CAN_L or CAN_H line is repaired,
noise suppression is deteriorated, causing a communica-
tion error.

CAUTION

The test wiring harness should be used.

Always use the test harness when measuring the
voltage or resistance value at the female
connector. If you fail to do so, connectors may be
damaged.

CAUTION

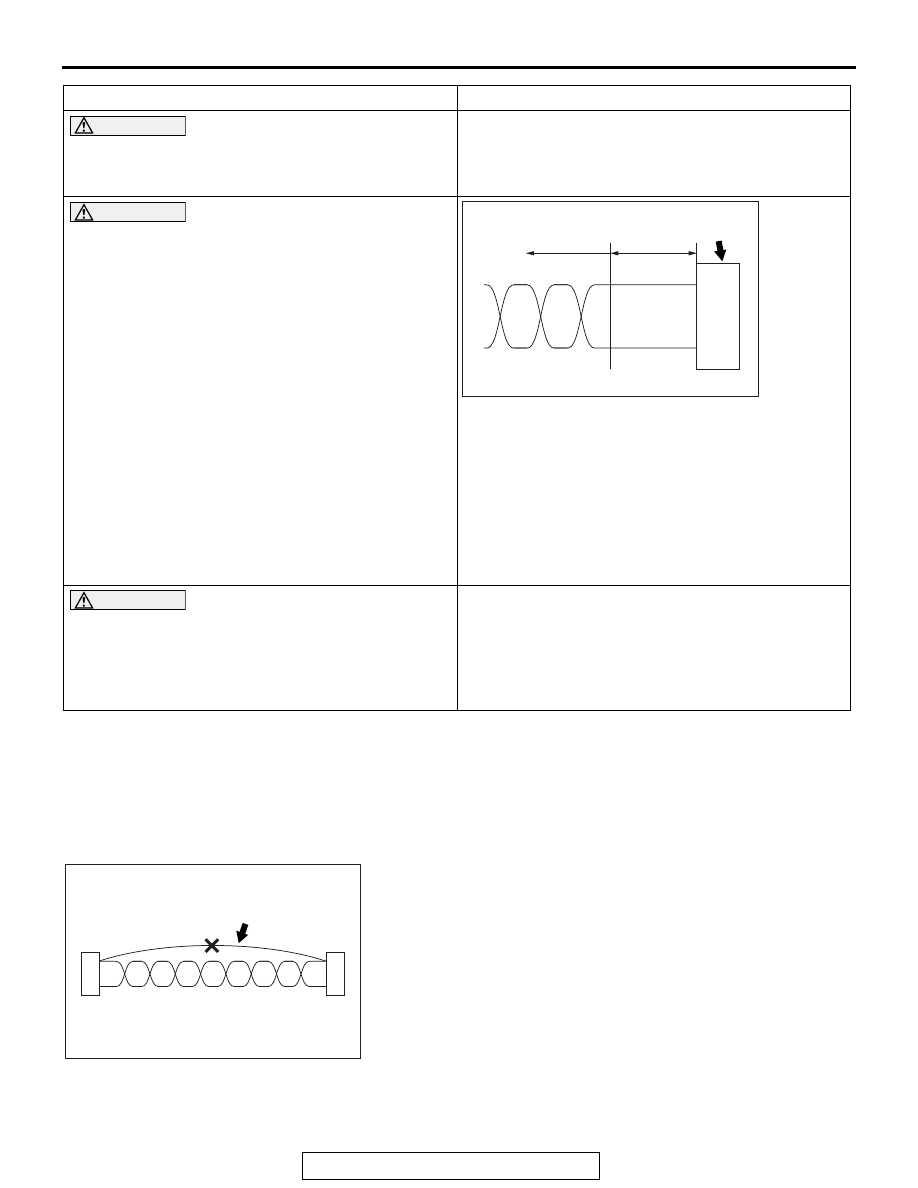

The strand end of the twist wire should be within
10 cm from the connector.

If you repair the wire due to a defective
connector or its terminal or harness wire, you
should cut the wire so that the strand end of the
twist wire should be within 10 cm (4 inches) from
the connector as shown. If it exceeds 10 cm (4
inches), twist the wiring harness just like the
original twisted wire. If the strand end exceeds
10 cm (4 inches), a communication error may be
caused.

CAUTION

Strictly observe the specified wiring harness
repair procedure.

When you repair a CAN bus line, observe the
precautions on how to repair the CAN bus line
strictly. Refer to

P.54C-8

. If a new wire is added

or a splice point is modified for the CAN_L or
CAN_H line, an error in the CAN communication
may be caused.

Warnings in diagnosis section

Details regarding warnings

AC203824

Connector

Twisted wire

AI

Within 10 cm
 (4.0 inches)

AC204696

Added wire

No good

AD
