TROUBLESHOOTING

TSB Revision

LOCAL INTERCONNECT NETWORK (LIN)

54B-45

STEP 5. Measure the resistance at the LIN bus lines.
Check the LIN bus lines for short to ground.
(1) Disconnect all the ECU connectors which are connected to

the LIN bus lines.

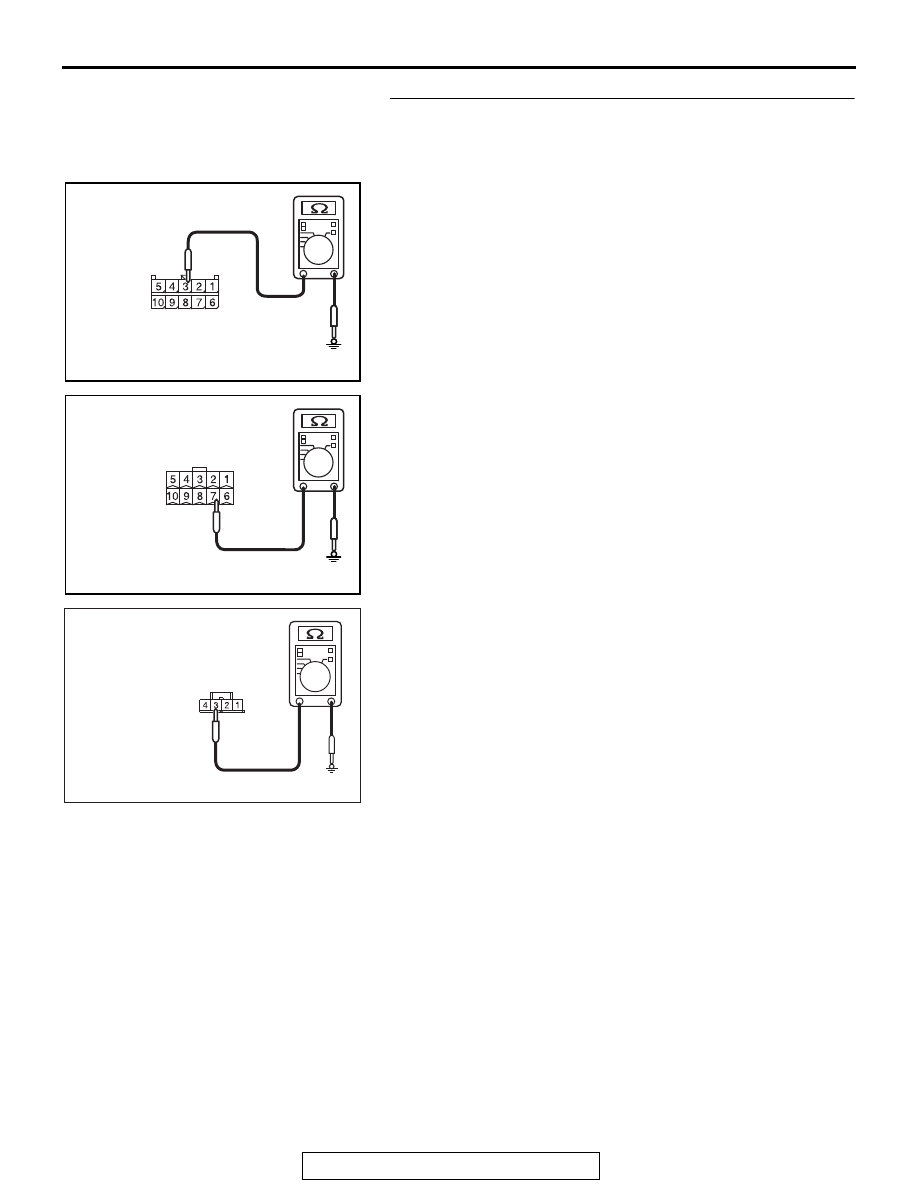

(2) Measure the resistance value between column switch

connector C-212 (terminal 3) and ground.

• No continuity (1 kΩ or more)

(3) Measure the resistance value between sunroof motor

assembly connector D-04 (terminal 7) and ground.
<Vehicles with sunroof>

• No continuity (1 kΩ or more)

(4) Measure the resistance value between lighting control

sensor connector D-39 (terminal 3) and ground. <Vehicles
with auto light function>

• No continuity (1 kΩ or more)

Q: Is the check result normal?

YES : Go to Step 6.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

AC702818 BI

Connector C-212
(Harness side)

AC702818 BJ

Connector D-04
(Harness side)

AC608255 DJ

Connector D-39
(Harness side)

TROUBLESHOOTING

TSB Revision

LOCAL INTERCONNECT NETWORK (LIN)

54B-46

STEP 6. Check the column switch.
Disconnect column switch connector C-212, and recheck
whether DTC U1515 is set.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

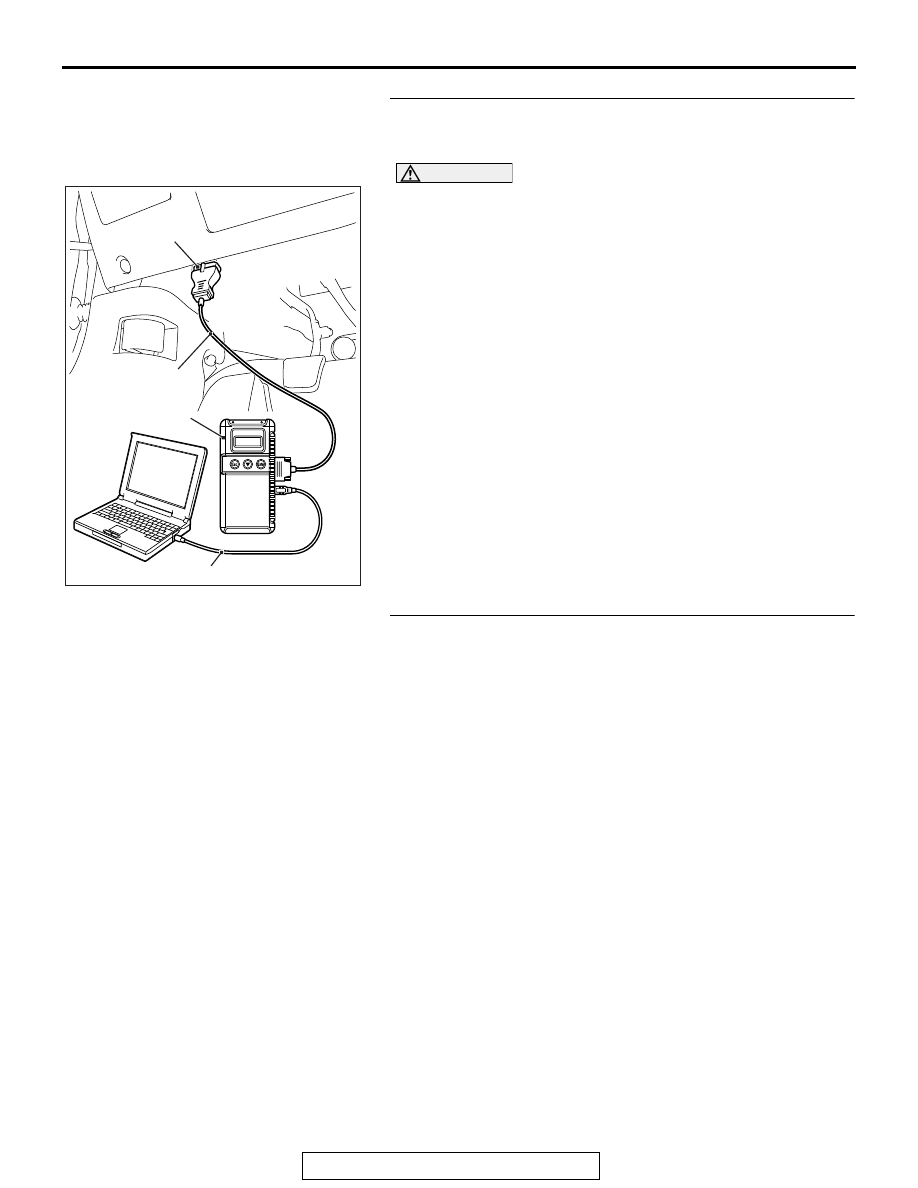

(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54B-4

."

(2) Connect all the relevant ECUs, and disconnect column

switch connector C-212 only.

(3) Erase the DTC.
(4) Turn the ignition switch from "LOCK" (OFF) to "ON" position

.

(5) Check whether DTC U1515 is set.

NOTE: If DTC U1515 is not set, DTC U1109 is set because
the column switch is disconnected. This is normal.

(6) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC U1515 set?

YES : Reconnect the column switch connector, and go to

Step 7.

NO :  Replace the lighting switch.

STEP 7. Check the power window main switch.
Disconnect power window main switch connector E-19, and
recheck whether DTC U1515 is set.
(1) Connect all the relevant ECUs, and disconnect power

window main switch connector E-19 only.

(2) Erase the DTC.
(3) Turn the ignition switch from "LOCK" (OFF) to "ON" position

.

(4) Check whether DTC U1515 is set.

NOTE: If DTC U1515 is not set, DTC U0215 is set because
the power window main switch is disconnected. This is nor-
mal.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC U1515 set?

YES : Reconnect the power window main switch connector,

and go to Step 8.

NO :  Replace the power window main switch.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

TROUBLESHOOTING

TSB Revision

LOCAL INTERCONNECT NETWORK (LIN)

54B-47

STEP 8. Check the sunroof motor assembly.
Disconnect sunroof motor assembly connector D-04, and
recheck whether DTC U1515 is set.
(1) Connect all the relevant ECUs, and disconnect sunroof

motor assembly connector D-04 only.

(2) Erase the DTC.
(3) Turn the ignition switch from "LOCK" (OFF) to "ON" position

.

(4) Check whether DTC U1515 is set.

NOTE: If DTC U1515 is not set, DTC U0169 is set because
the sunroof motor assembly is disconnected. This is nor-
mal.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC U1515 set?

YES : Reconnect the sunroof motor assembly connector,

and go to Step 9.

NO :  Replace the sunroof motor assembly.

STEP 9. Check the lighting control sensor.
Disconnect lighting control sensor connector D-39, and
recheck whether DTC U1515 is set.
(1) Connect all the relevant ECUs, and disconnect lighting

control sensor connector D-39 only.

(2) Erase the DTC.
(3) Turn the ignition switch from "LOCK" (OFF) to "ON" position

.

(4) Check whether DTC U1515 is set.

NOTE: If DTC U1515 is not set, DTC U0231 is set because
the power lighting control sensor is disconnected. This is
normal.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC U1515 set?

YES : Reconnect the lighting control sensor connector, and

go to Step 10.

NO :  Replace the lighting control sensor.

TROUBLESHOOTING

TSB Revision

LOCAL INTERCONNECT NETWORK (LIN)

54B-48

STEP 10. Check the theft-alarm sensor.
Disconnect theft-alarm sensor connector D-136, and recheck
whether DTC U1515 is set.
(1) Connect all the relevant ECUs, and disconnect theft-alarm

sensor connector D-136 only.

(2) Erase the DTC.
(3) Turn the ignition switch from "LOCK" (OFF) to "ON" position

.

(4) Check whether DTC U1515 is set.

NOTE: If DTC U1515 is not set, DTC U1007 is set because
the theft-alarm sensor is disconnected. This is normal.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC U1515 set?

YES : Reconnect the theft-alarm sensor connector, and go

to Step 11.

NO :  Replace the theft-alarm sensor.

STEP 11. Check the theft-alarm siren.
Disconnect theft-alarm siren connector A-62, and recheck
whether DTC U1515 is set.
(1) Connect all the relevant ECUs, and disconnect theft-alarm

siren connector A-62 only.

(2) Erase the DTC.
(3) Turn the ignition switch from "LOCK" (OFF) to "ON" position

.

(4) Check whether DTC U1515 is set.

NOTE: If DTC U1515 is not set, DTC U1006 is set because
the theft-alarm siren is disconnected. This is normal.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC U1515 set?

YES : Reconnect the theft-alarm siren connector, and go to

Step 12.

NO :  Replace the theft-alarm siren.

STEP 12. Recheck for diagnostic trouble code.
Check again if the DTC is set to the ETACS-ECU.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) to "ON" position

.

(3) Check whether DTC U1515 is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the ETACS-ECU.
NO :  The trouble can be an intermittent malfunction (Refer

to GROUP 00, How to Cope with Intermittent
Malfunction

P.00-15

).
