54B-1

GROUP 54B

LOCAL

INTERCONNECT

NETWORK (LIN)

CONTENTS

GENERAL INFORMATION . . . . . . . .

54B-2

SPECIAL TOOLS. . . . . . . . . . . . . . . .

54B-3

TROUBLESHOOTING  . . . . . . . . . . . .

54B-4

DIAGNOSIS FUNCTION . . . . . . . . . . . . . . .

54B-4

DIAGNOSTIC TROUBLE CODE CHART . .

54B-6

DIAGNOSTIC TROUBLE CODE



PROCEDURES . . . . . . . . . . . . . . . . . . . . . .

54B-6

GENERAL INFORMATION

TSB Revision

LOCAL INTERCONNECT NETWORK (LIN)

54B-2

GENERAL INFORMATION

M1545110000424

LIN refers to "Local Interconnect Network," which is a
serial multiplex communication protocol

*

 adminis-

trated by LIN consortium. A communication circuit
employing the LIN protocol connects each ECU, and
switch and sensor data can be shared among ECUs,
which enables more reduction in wiring.

NOTE:

*

: The regulations that have been decided in

detail, from software matters such as the necessary
transmission rate for communication, the system,
data format, and communication timing control
method to hardware matters such as the harness
type and length and the resistance values.

STRUCTURE

Master and slave ECUs are connected to the LIN
bus lines. The master ECU is the ETACS

*1

-ECU,

and the slave ECUs are the column switch (col-
umn-ECU), the sunroof motor assembly (sun-
roof-ECU)

*2

, the lighting control sensor

*3

, the power

window main switch, the theft-alarm siren (via LIN
cutoff control unit

*4

)

*5

 and the theft-alarm siren

*5

.

The master ECU requests these slave ECUs to com-
municate each other via communication lines.
NOTE:

.

•

*1

: ETACS (Electronic Time and Alarm Control

System)

•

*2

: Vehicles with sunroof

•

*3

: Vehicles with lighting control sensor

•

*4

: The LIN cutoff control unit is a relay circuit to

turn ON/OFF the LIN communication of
theft-alarm siren. An ECU is not incorporated in
the LIN cutoff control unit.

•

*5

: Vehicles with theft-alarm sensor

AC901279AB

ETACS-ECU

Master ECU

Column switch
(column-ECU)

Sunroof motor
assembly
(Sunroof-ECU)*

1

Lighting control
sensor*

2

Slave ECU

Slave ECU

Slave ECU

Slave ECU

LIN bus line

Power window
main switch

Note:
*

1

: Vehicles with sunroof

*

2

: Vehicles with auto light function

Theft-alarm siren

LIN cutoff control unit

Slave ECU

Theft-alarm sensor

Slave ECU

<Vehicles with security alarm sensor>

SPECIAL TOOLS

TSB Revision

LOCAL INTERCONNECT NETWORK (LIN)

54B-3

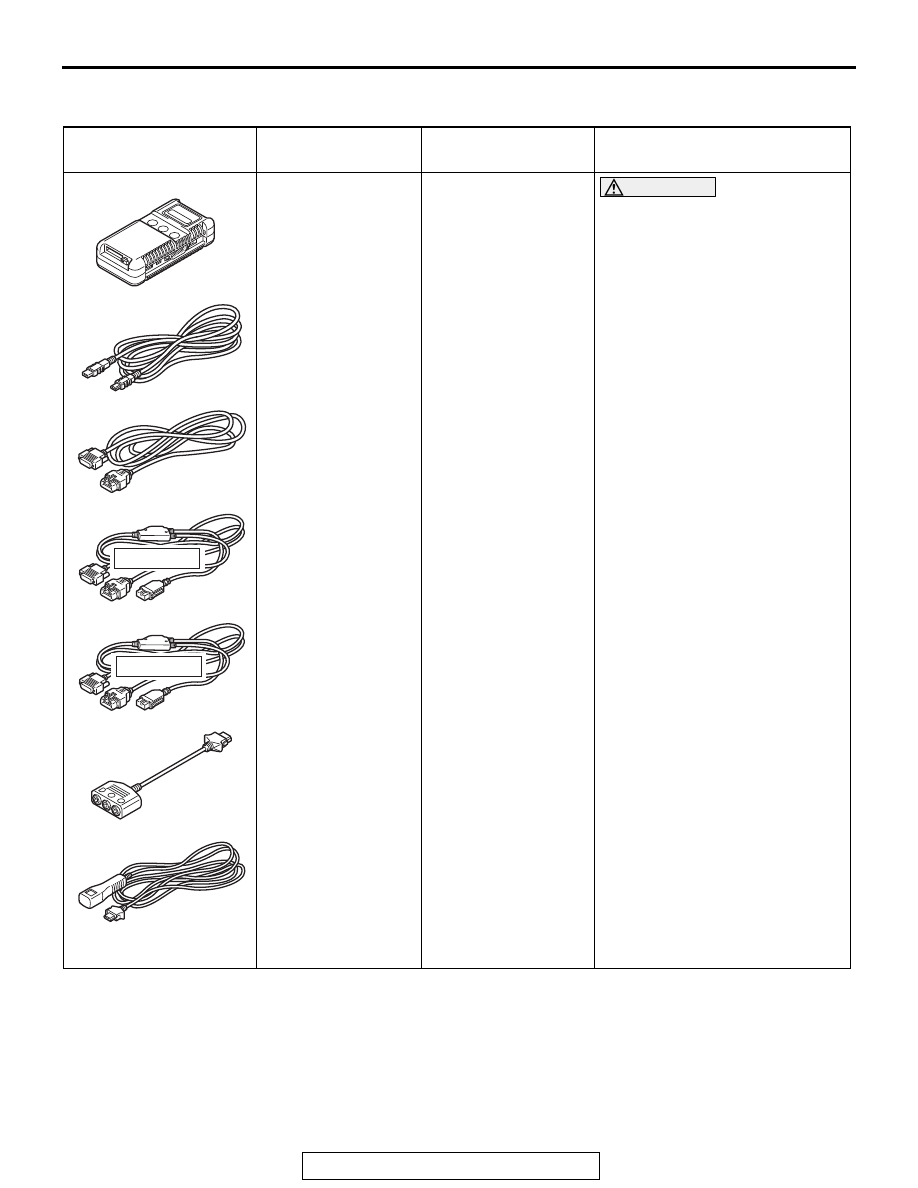

SPECIAL TOOLS

M1545100100185

Tool

Tool number and
name

Supersession

Application

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

M.U.T.-III sub
assembly

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e. M.U.T.-III main

harness C (for
Chrysler models
only)

f. M.U.T.-III

measurement
adapter

g. M.U.T.-III trigger

harness

MB991824-KIT
NOTE: G: MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

CAUTION

M.U.T.-III main harness A
(MB991910) should be used.
M.U.T.-III main harness B and C
should not be used for this
vehicle.
LIN communication line check
(diagnostic trouble codes)

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

Do not use

a

b

c

d

e

f

g

Do not use

TROUBLESHOOTING

TSB Revision

LOCAL INTERCONNECT NETWORK (LIN)

54B-4

TROUBLESHOOTING

DIAGNOSIS FUNCTION

M1545104200098

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

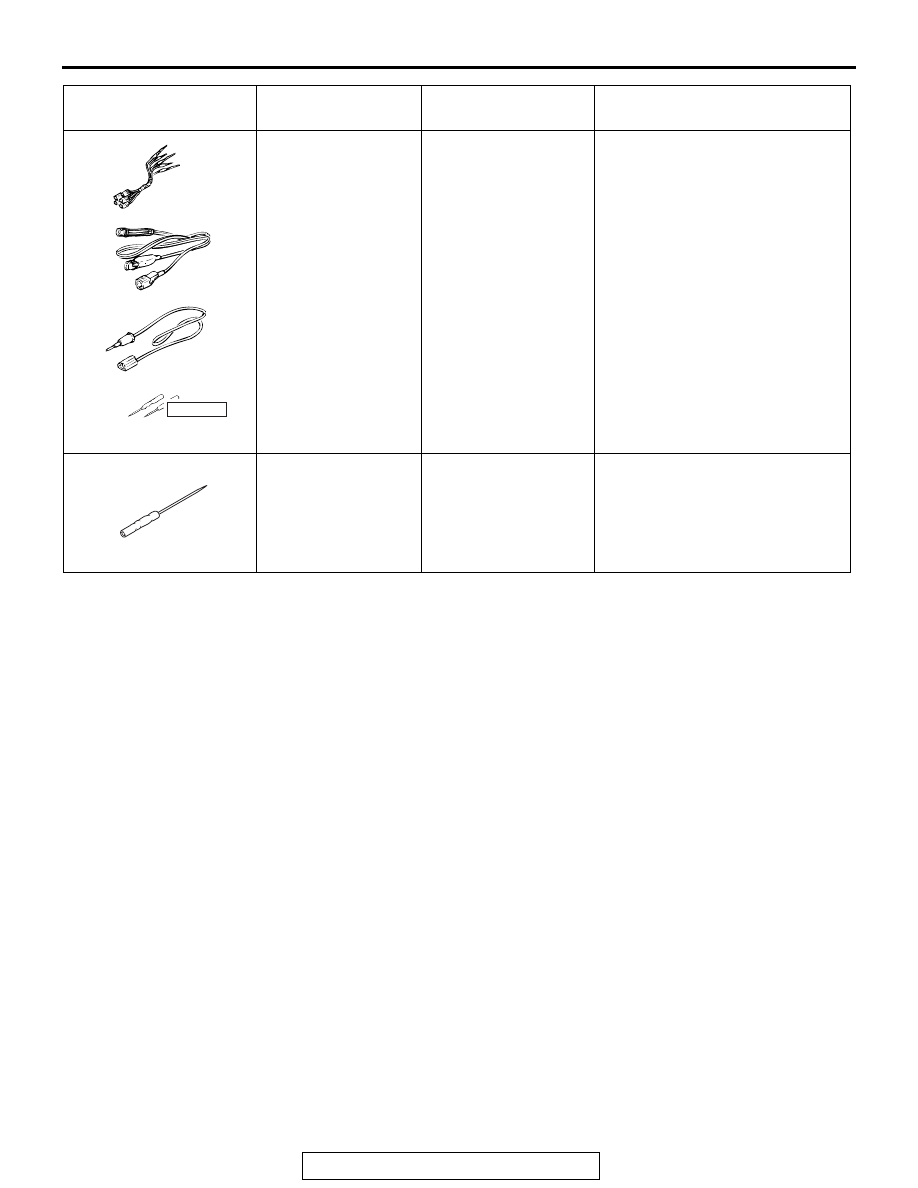

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Test harness
b. LED harness
c. LED harness

adaptor

d. Probe

General service tools Continuity check and voltage

measurement at harness wire or
connector for loose, corroded or
damaged terminals, or terminals
pushed back in the connector.

a. Connector pin contact

pressure inspection

b. Power circuit inspection
c. Power circuit inspection
d. Commercial tester connection

MB992006
Extra fine probe

−

Continuity check and voltage
measurement at harness wire or
connector for loose, corroded or
damaged terminals, or terminals
pushed back in the connector.

Tool

Tool number and
name

Supersession

Application

MB991223

a

d

c

b

Do not use

BD

MB992006
