BALANCER CHAIN

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-63

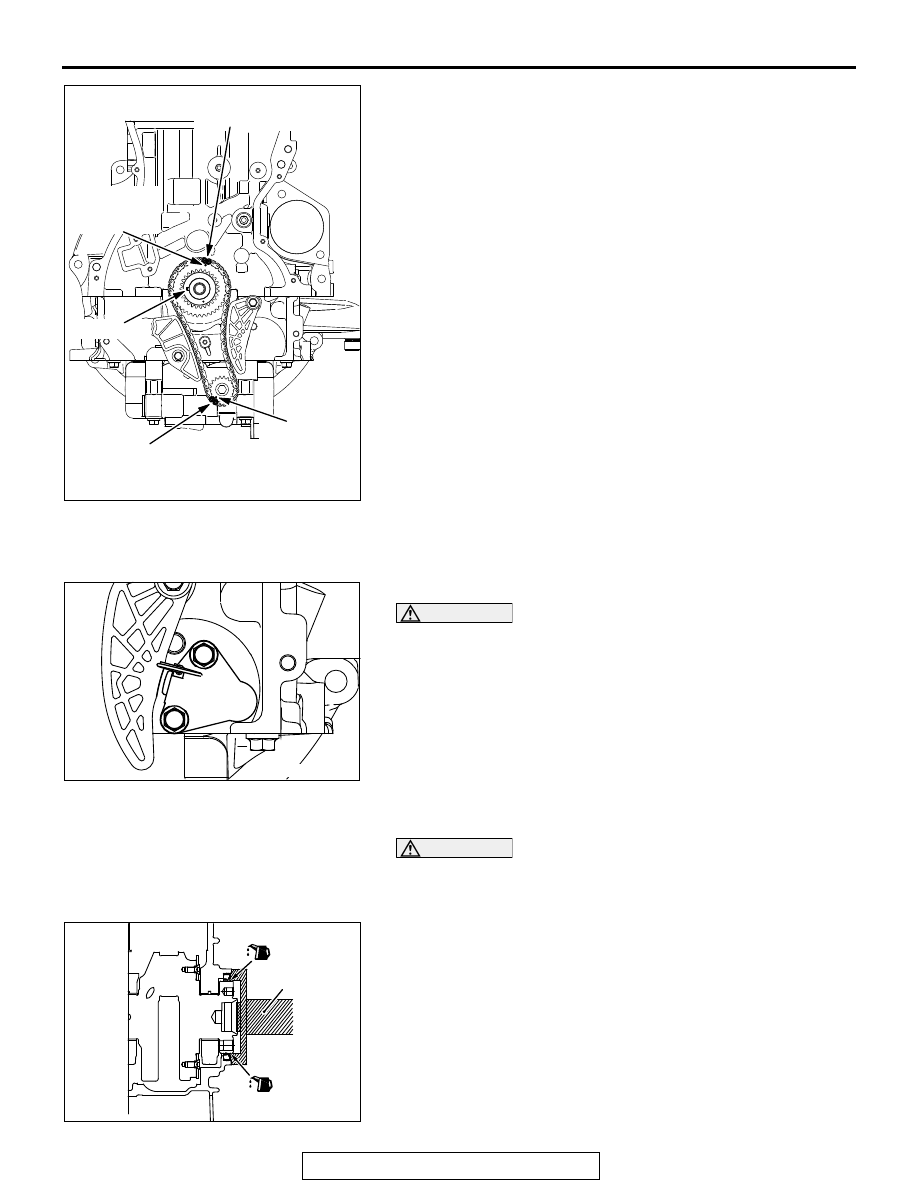

11.Make sure that the respective timing mark is aligned with

each other as illustrated.

12.Install the balancer chain tensioner lever and balancer chain

guide.

.

>>C<< BALANCER SHAFT CHAIN TENSIONER
INSTALLATION

1. Attach the chain tensioner to the ladder frame.

CAUTION

Install the chain tensioner precisely in place after installing
the tensioner lever and chain guide to prevent the plunger
of the chain tensioner from jumping out.
2. Remove the hard wire (piano wire, etc.) of

φ1.5 or hexagonal

bar wrench (1.5 mm [0.06 inch]) from the tensioner. This
enables the plunger of the chain tensioner to push the
balancer shaft tensioner lever to keep the balancer shaft
chain tight.

.

>>D<< REAR OIL SEAL INSTALLATION

CAUTION

Do not apply oil to the circumference of the oil seal and oil
seal pressing hole on the cylinder block side to prevent
teeth from pulling out.
After applying a small amount of engine oil to the oil seal lip,
use special tool MD998718 to press fit the oil seal.

AK502923

Timing mark
link plate

Timning mark
link plate

Crank shaft
sprocket
timing mark

Key groove

Balancer shaft
sprocket
timing mark

AD

AK502940

AK502871AD

MD998718

BALANCER CHAIN

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-64

.

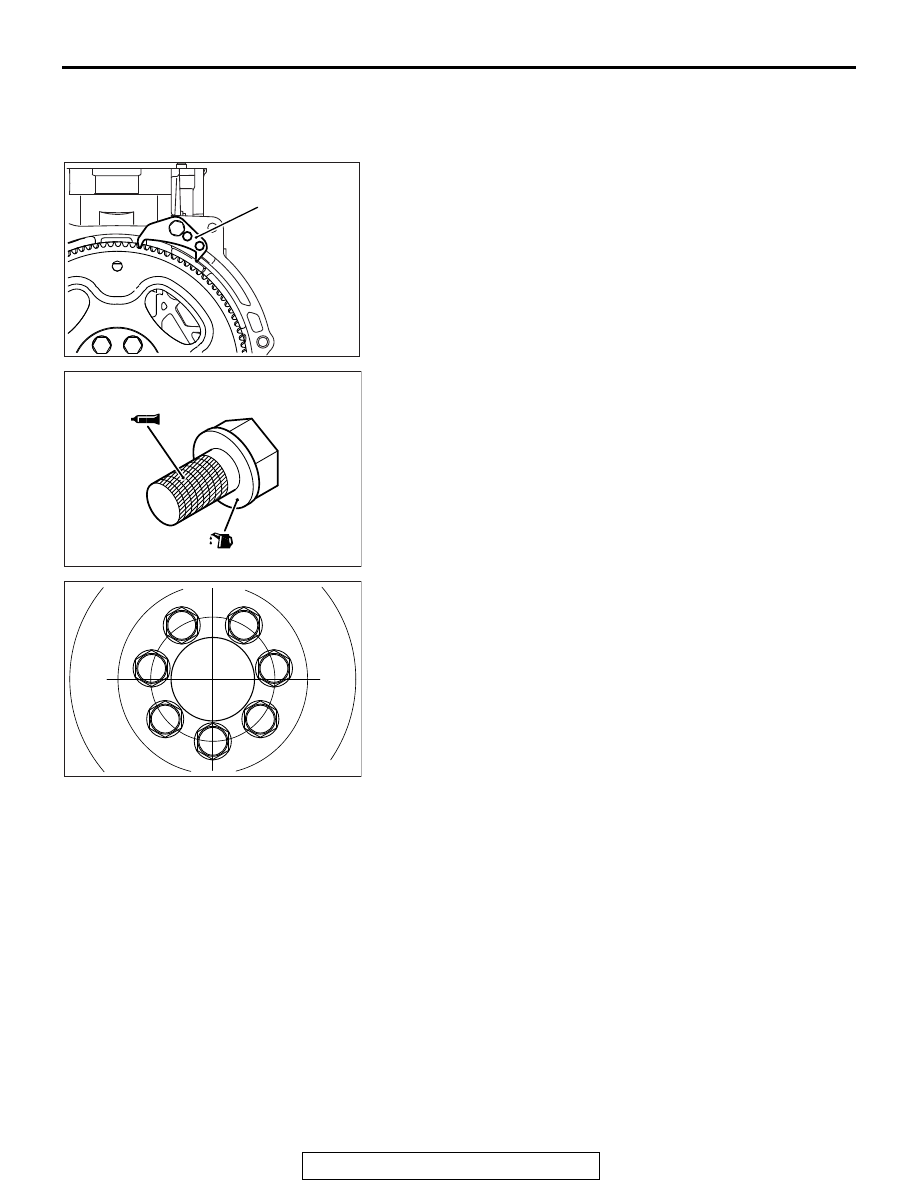

>>E<< DRIVE PLATE BOLT INSTALLATION

1. Clean off sealant and oil of thread of crankshaft and drive

plate bolt.

2. Use special tool MB991883 to secure the drive plate.

3. Apply engine oil to thread of crankshaft and bolt seat area of

drive plate.

4. Apply the sealant to the thread of drive plate bolt.

Specified sealant:

Three bond 1324 or equivalent

5. Tighten drive plate bolts to temporary torque of 40 N

⋅m (32

ft-lb) in the order shown to illustration.

6. Tighten drive plate bolts to specified tightening torque of 130

N

⋅m(95 ft-lb) in the order shown in the illustration.

AK503335

AD

MB991883

AK600847AE

AK603576

1

2

3

4

5

6

7

AB

PISTON AND CONNECTING ROD

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-65

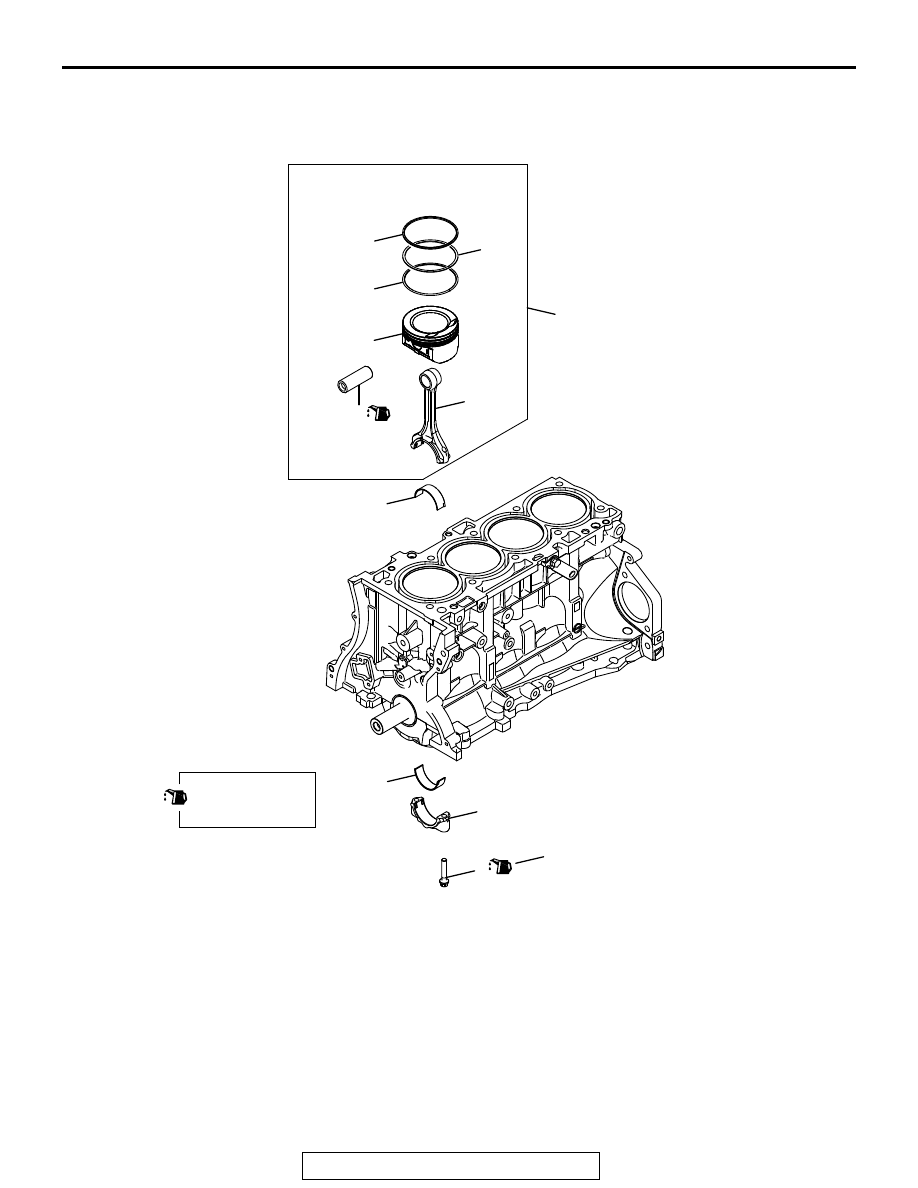

PISTON AND CONNECTING ROD

REMOVAL AND INSTALLATION

M1113008403293

AK502937

1

2

3

4

5

6

7

8

9

10

11

5.0 N·m

→ 20 N·m → +90˚

44 in-lb      14 ft-lb

AE

Apply engine oil to
all moving parts
before installation.

Removal steps

>>G<<

1. Connecting rod cap bolt

<<A>> >>F<<

2. Connecting rod cap

>>E<<

3. Connecting rod bearing

>>E<<

4. Connecting rod bearing

>>D<<

5. Piston connecting rod assembly

>>C<<

6. Piston ring Number 1

>>C<<

7. Piston ring Number 2

>>B<<

8. Oil ring

<<B>> >>A<<

9. Piston pin
10. Piston
11. Connecting rod

Removal steps (Continued)

PISTON AND CONNECTING ROD

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-66

Required Special Tool:

• MD998780: Piston pin setting tool

• MB991659: Guide D

• MD998718: Rear oil seal installer

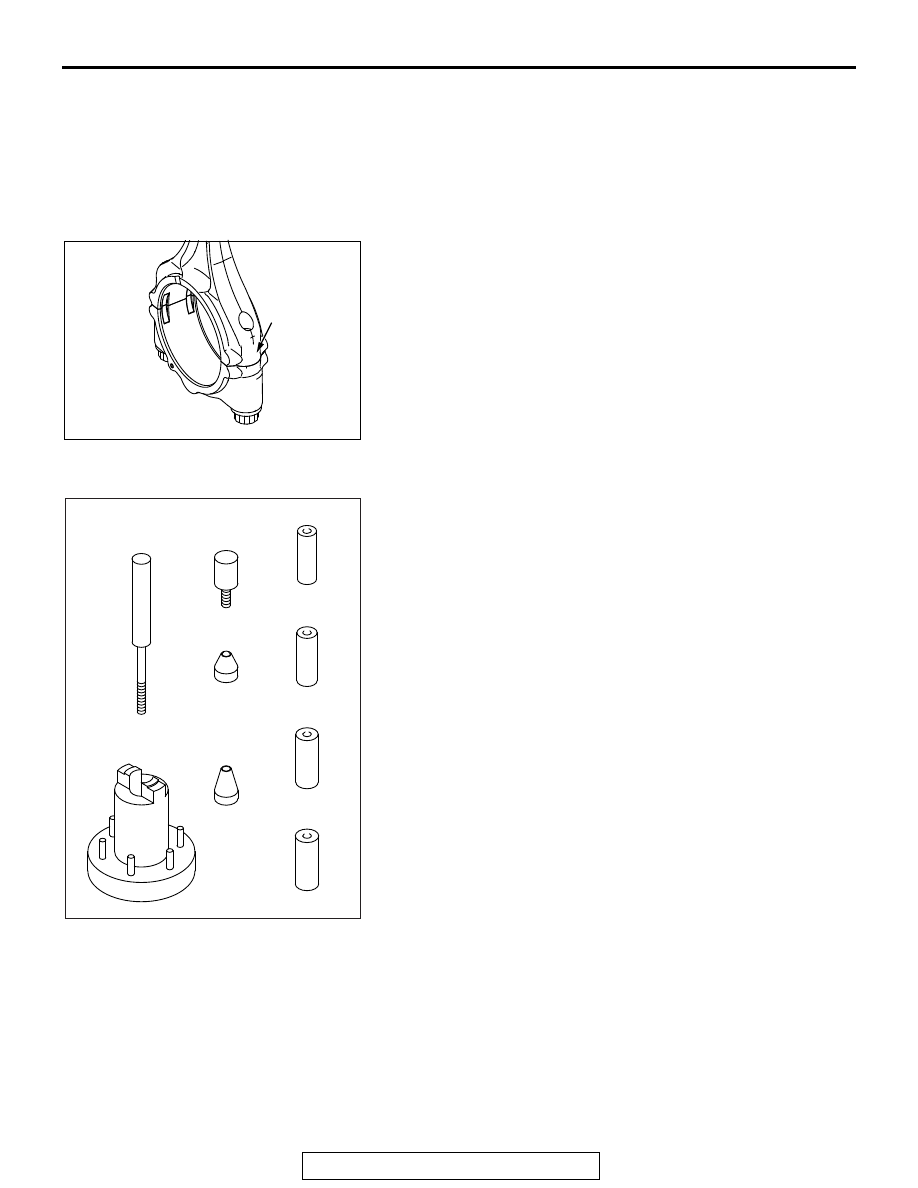

REMOVAL SERVICE POINTS

.

<<A>> CONNECTING ROD REMOVAL

Enter cylinder Number for reassembly on the side of the con-
necting rod big end.

.

<<B>> PISTON PIN REMOVAL

Special tool MD998780 consists of parts shown in the illustra-
tion. Use also special tool MB991659 to remove the piston pin.

AK502531AE

2

Cylinder No.

AK305415AE

Push rod

Base

Guide B

Guide C

Guide D

(MB991659)

Guide A: 17.9 mm

             (0.70 in)

Guide A: 18.9 mm

             (0.74 in)

Guide A: 20.9 mm

             (0.82 in)

Guide A: 21.9 mm

             (0.86 in)
