CAMSHAFT

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-43

CAMSHAFT

REMOVAL AND INSTALLATION

M1113026900756

AK502934

1

10 ± 2 N·m
89 ± 17 in-lb

17 ± 3 N·m

 30 ± 2 N·m

14 ± 2 ft-lb     22 ± 1 ft-lb

12 ± 1 N·m
107 ± 8 in-lb

2

3

4

5

6

10

11

12

13

AG

Apply engine oil to
all moving parts
before installation.

7

8

7

9

6

7

8

7

10 ± 2 N·m
89 ± 17 in-lb

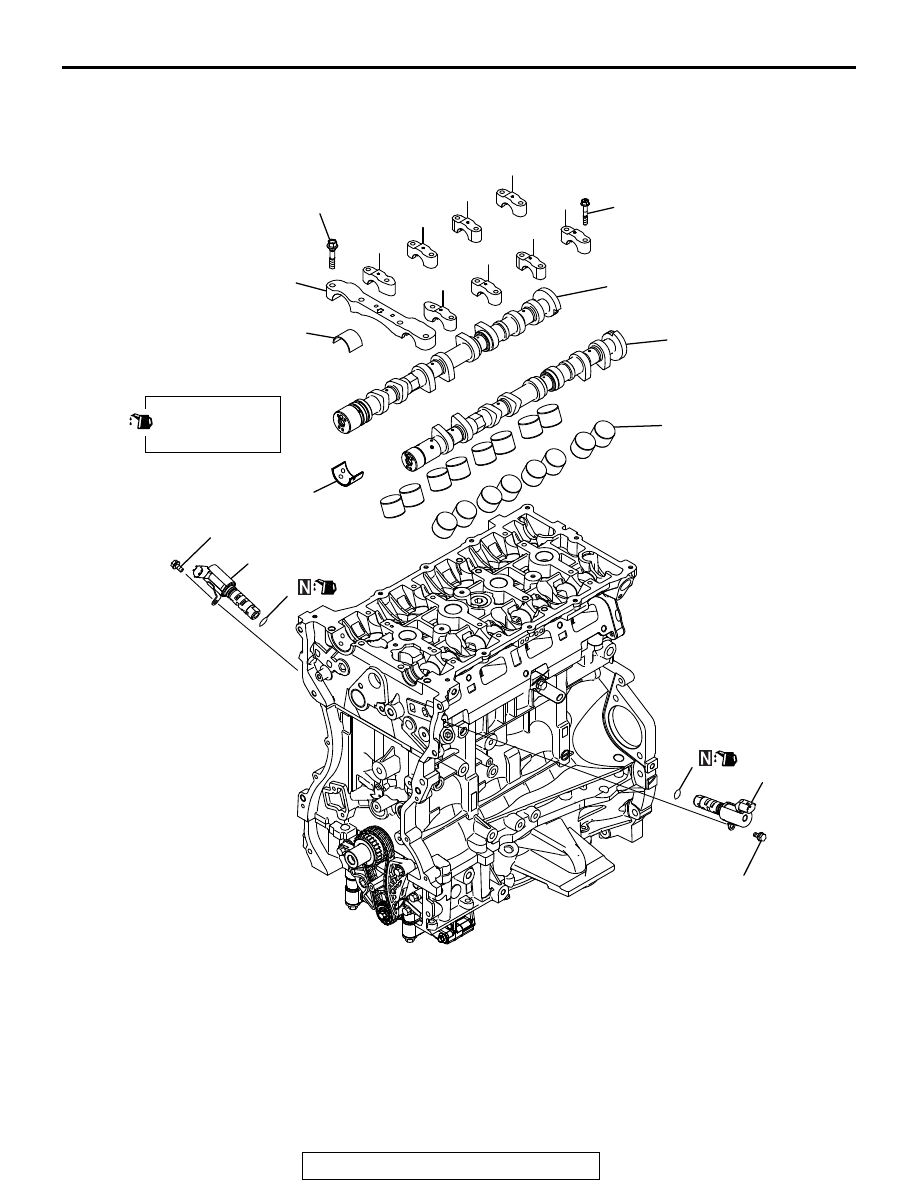

Removal steps

>>C<<

1. Engine oil control valve (OCV)

exhaust

>>C<<

2. O-ring

>>C<<

3. Engine oil control valve (OCV)

intake

>>C<<

4. O-ring

<<A>> >>B<<

5. Front camshaft bearing cap

<<A>> >>B<<

6. Oil feeding camshaft bearing cap

<<A>> >>B<<

7. Camshaft bearing cap

<<A>> >>B<<

8. Thrust camshaft bearing cap

>>B<<

9. Bearing

>>B<<

10.Camshaft intake

>>B<<

11. Camshaft exhaust
12.Bearing

<<B>> >>A<<

13.Valve tappet

Removal steps (Continued)

CAMSHAFT

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-44

REMOVAL SERVICE POINTS

.

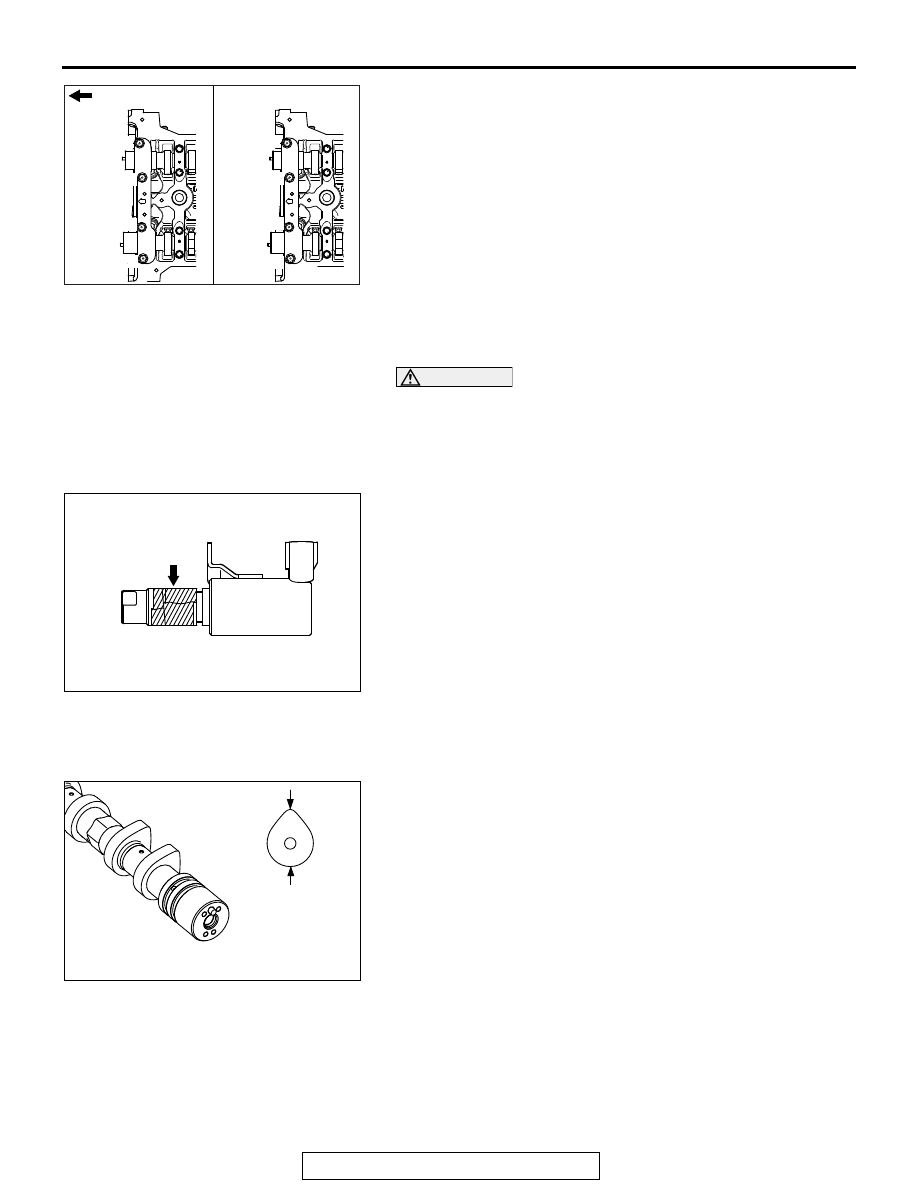

<<A>> FRONT CAMSHAFT BEARING CAP / CAM-
SHAFT BEARING CAP REMOVAL

CAUTION

Loosing the installation bolts for the camshaft bearing cap
at the same time causes the valve spring force, which
makes the installation bolts jump out, resulting in the dam-
aged threads. Always loose them four or five times.
First remove a mounting bolt of the front camshaft bearing cap
and then a mounting bolt of each camshaft bearing cap in the
order shown in the illustration.

.

<<B>> VALVE TAPPET REMOVAL

Pick out valve tappets with fingers and store removed valve
tappets with tags describing the installed position attached for
reassembly.

INSTALLATION SERVICE POINTS

.

>>A<< VALVE TAPPET INSTALLATION

Install valve tappets at the same position based on tags
describing the installed position for reassembly.

.

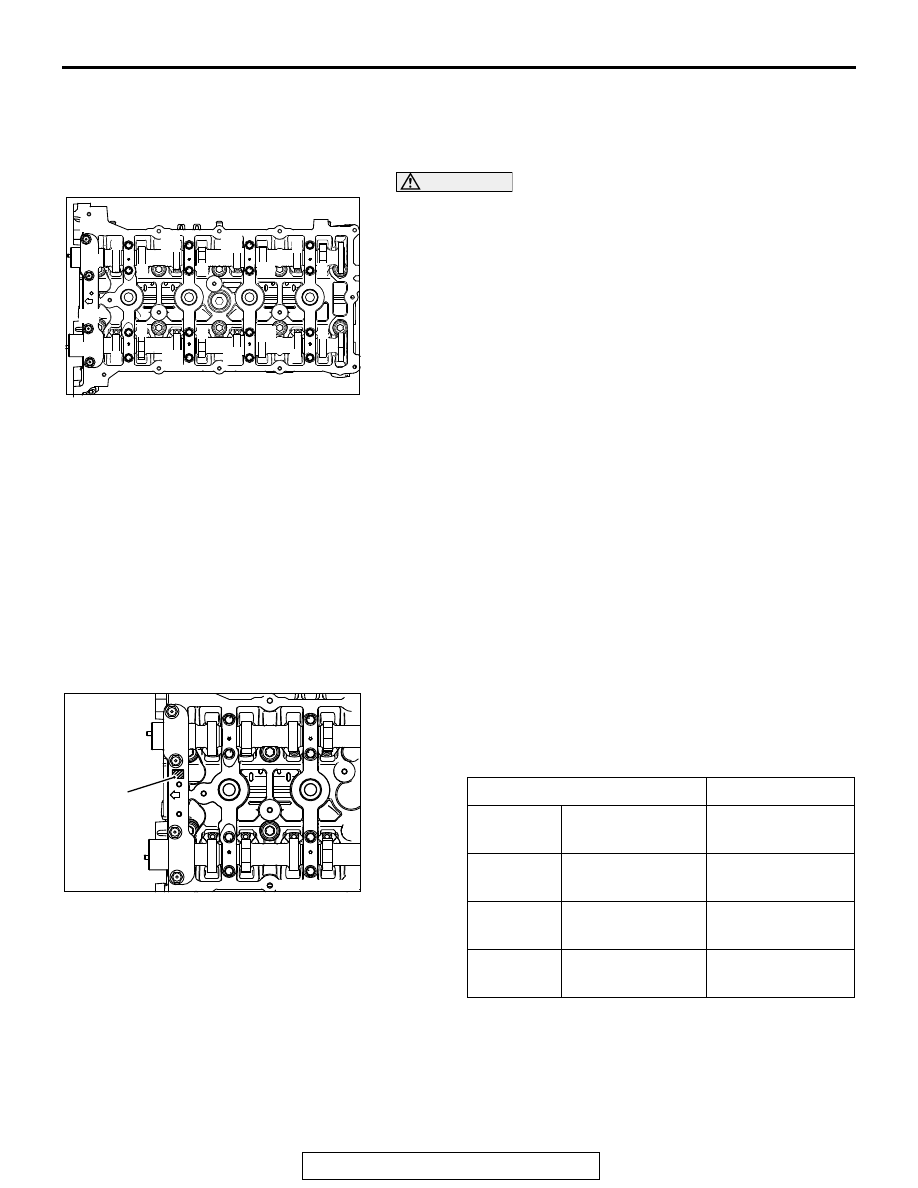

>>B<< CAMSHAFT / BEARING / CAMSHAFT
BEARING CAP INSTALLATION

1. When replacing a camshaft bearing, select a bearing with

the size corresponding to the identification mark in the table
below.

2. Install camshaft bearings on the cylinder head.

AK502389AC

5

6

7

8

10

2

1

5

6

7

8

12

3

4

9

9

10

11

11

12

Camshaft

Camshaft bearing

Identificati
on mark

Journal diameter
mm (in)

Identification
mark

1

40.000

− 40.008

(1.5748

− 1.5751)

1

2

40.008

− 40.016

(1.5751

− 1.5754)

2

3

40.016

− 40.024

(1.5754

− 1.5757)

3

AK502969AC

Identification
mark

CAMSHAFT

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-45

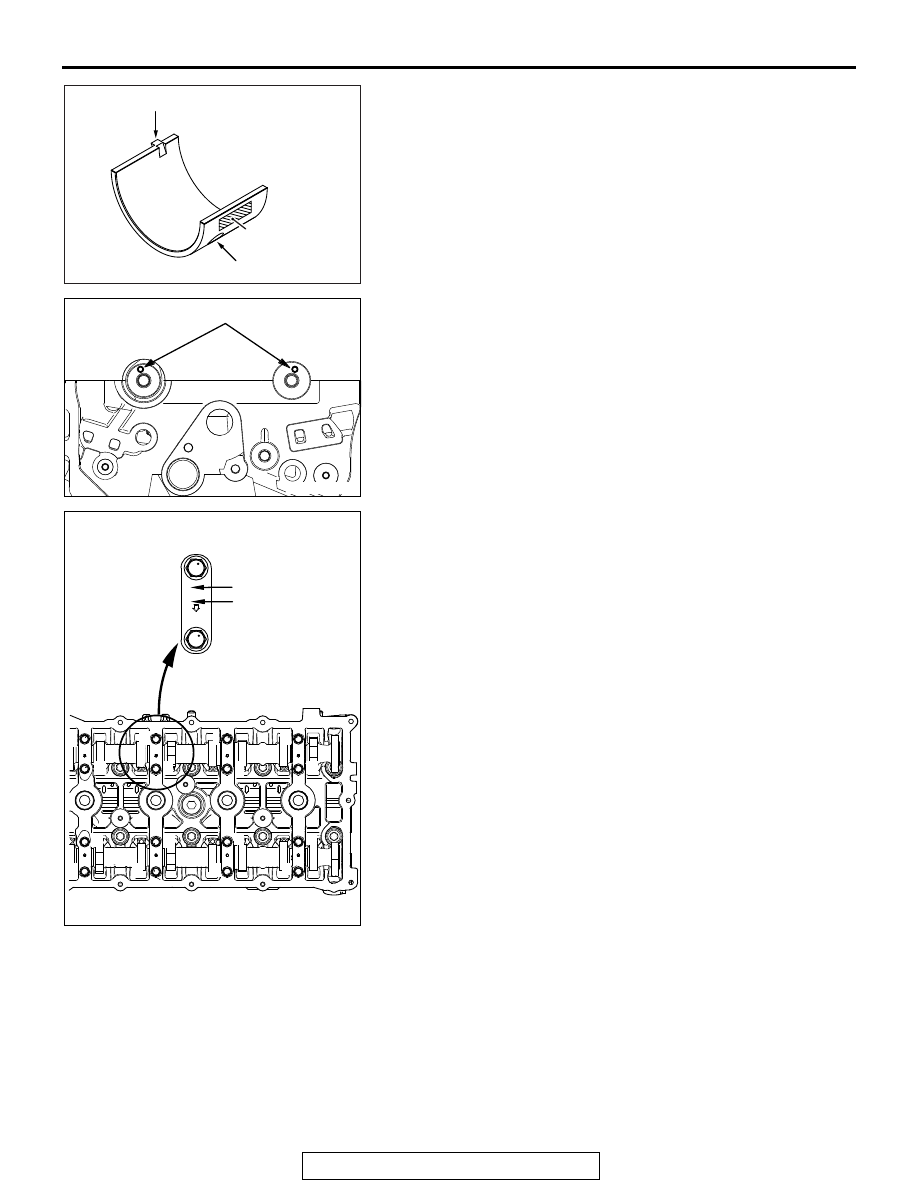

3. The identification mark of the camshaft bearing is painted at

the illustrated position.

4. Set the dowel pins of the camshaft at the illustrated

positions.

5. Camshaft bearing caps Number 1 to Number 4 are of the

same shape. Install them upon checking the identification
mark so as not to misidentify cap Number and to confuse
the intake side with the exhaust side.

Identification mark (stamped on front and Number 1 to

Number 4 bearing caps)

I: Intake side
E: Exhaust side

6. Tighten each camshaft bearing cap mounting bolt to the

specified tightening torque of 12

± 1 N⋅m (107 ± 1 in-lb) in

the order of number shown in the figure in two or three
steps.

AK702204

Notch

Identification mark

Oil hole

AD

AK502390

Dowel pin

AC

AK503813

2

E

Cap No.

1

2

6

5

2

1

6

5

AC

8

7

4

3

8

7

4

3

Identification mark

CAMSHAFT

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-46

7. Tighten each front camshaft bearing cap mounting bolt to

the temporarily torque of 17

± 3 N⋅m (14 ± 2 ft-lb) in the order

of number shown (1).

8. Tighten each front camshaft bearing cap mounting bolt to

the specified tightening torque of 30

± 2 N⋅m (22 ± 1 ft-lb) in

the order of number shown (2).

.

>>C<< O-RING / ENGINE OIL CONTROL VALVE
INSTALLATION

CAUTION

• The O-ring must not be reused.
• Wind non-adhesive tape (seal tape, etc.) around the

notch of the oil passage of the oil feeder control valve
before installing the O-ring to prevent damage. Damage
to the O-ring causes oil leakage.

1. Apply a small amount of engine oil to the O-ring of the oil

feeder control valve.

2. Install the oil feeder control valve on the cylinder head.
3. Tighten the oil feeder control valve to the specified

tightening torque of 10

± 2 N⋅m (89 ± 17 in-lb).

INSPECTION

M1113027000358

.

CAMSHAFT

Measure camshaft height (camshaft major axis). If the height
exceeds the limit, replace the camshaft.

Standard value:

Intake: 44.1 mm (1.736 inch)
Exhaust: 45.0 mm (1.772 inch)

Limit:

Intake: 43.6 mm (1.717 inch)
Exhaust: 44.5 mm (1.752 inch)

.

AK503814

4

3

2

1

1

3

4

2

(1)

(2)

AC

Timing chain side

AK303651AE

Tape

AK503020AC
