ROCKER COVER AND CAMSHAFT

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-37

Required Special Tools:

• MD998443: Lash Adjuster Holder

• MD998713: Camshaft Oil Seal Installer

• MD998777: Camshaft Oil Seal Installer Adapter

• MB990767: End Yoke Holder

• MD998719: Pins

REMOVAL SERVICE POINT

.

<<A>> ROCKER ARMS AND SHAFT, EXHAUST
REMOVAL

CAUTION

If the lash adjuster is re-used, clean the lash adjuster.
(Refer to lash adjuster inspection

P.11D-41

.)

Set special tool MD998443 to prevent the lash adjuster coming
from free and falling to the floor.

.

<<B>> ROCKER ARM SHAFT ASSEMBLY
REMOVAL

CAUTION

Never overhaul the rocker arm shaft assembly.

.

<<C>> CAMSHAFT POSITION SENSING
CYLINDER REMOVAL

Install the camshaft sprocket and the camshaft sprocket bolt to
the camshaft. Using the special tools MB990767 and
MD998719, prevent the camshaft position sensing cylinder
from rotating and remove it.

23. Camshaft position sensor
24. O-ring
25. Camshaft position sensor support
26. Camshaft position sensor support

gasket

<<C>> >>B<<

27. Camshaft position sensing cylinder

>>A<<

28. Camshaft, right

>>A<<

29. Camshaft, left

Removal steps (Continued)

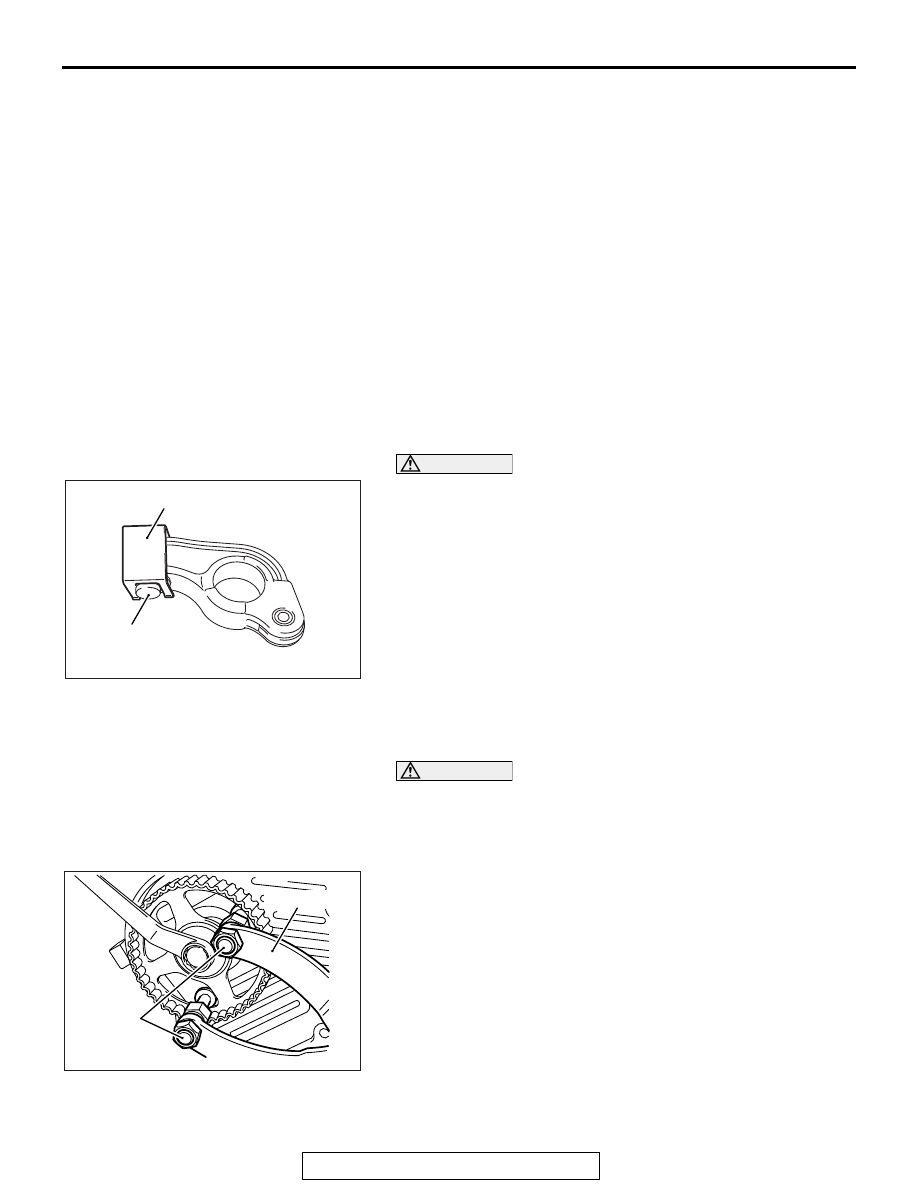

AK600897

MD998443

Lash adjuster

AC

AK600895

MB990767

MD998719

AC

ROCKER COVER AND CAMSHAFT

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-38

INSTALLATION SERVICE POINTS

.

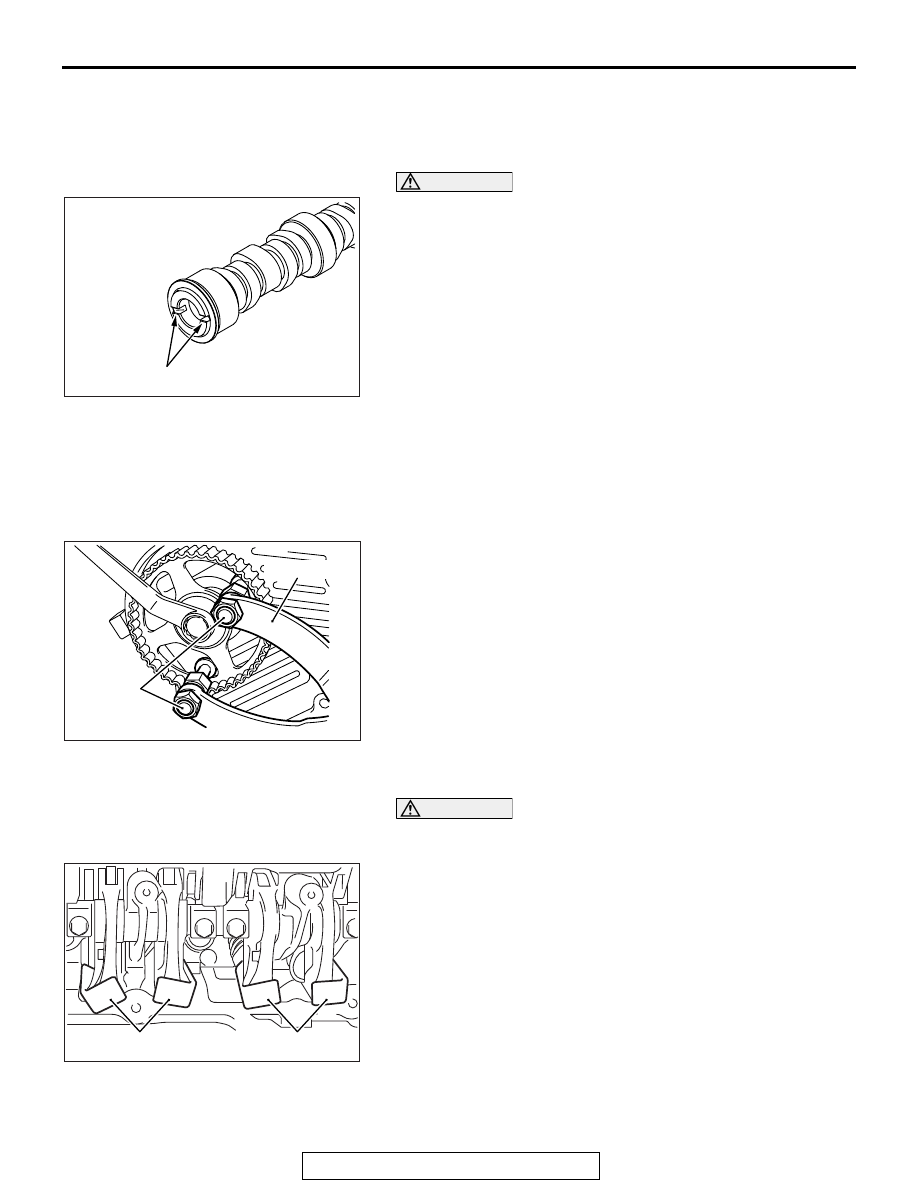

>>A<< CAMSHAFT, RIGHT / CAMSHAFT, LEFT
INSTALLATION

CAUTION

Use care to prevent confusion of the right and left bank
camshafts.
1. Apply engine oil to the camshaft journals and cams and then

install the camshafts.
NOTE: The left bank camshaft is identified by a slit 4 mm
(0.16 inch) wide at the rear end of the camshaft.

2. Install the cylinder head, placing the dowel pin of the

camshaft upward.

.

>>B<< CAMSHAFT POSITION SENSING
CYLINDER INSTALLATION

1. Mate the groove on the camshaft rear end face properly with

the protrusion of the camshaft position sensing cylinder so
that the camshaft position sensing cylinder can be installed.

2. Install the camshaft sprocket and the camshaft sprocket bolt

to the camshaft. Using the special tools MB990767 and
MD998719, prevent the camshaft position sensing cylinder
from rotating and tighten it to the specified torque.

.

>>C<< LASH ADJUSTER INSTALLATION

CAUTION

If the lash adjuster is re-used, clean the lash adjuster.
(Refer to lash adjuster inspection

P.11D-41

.)

Fit the lash adjuster onto the rocker arm without allowing diesel
fuel to spill out. Fit special tool MD998443 to prevent the lash
adjuster coming from free and falling to the floor.

.

AK600826

Slit (left bank only)

AC

AK600895

MB990767

MD998719

AC

AK600898

MD998443

MD998443

AC

ROCKER COVER AND CAMSHAFT

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-39

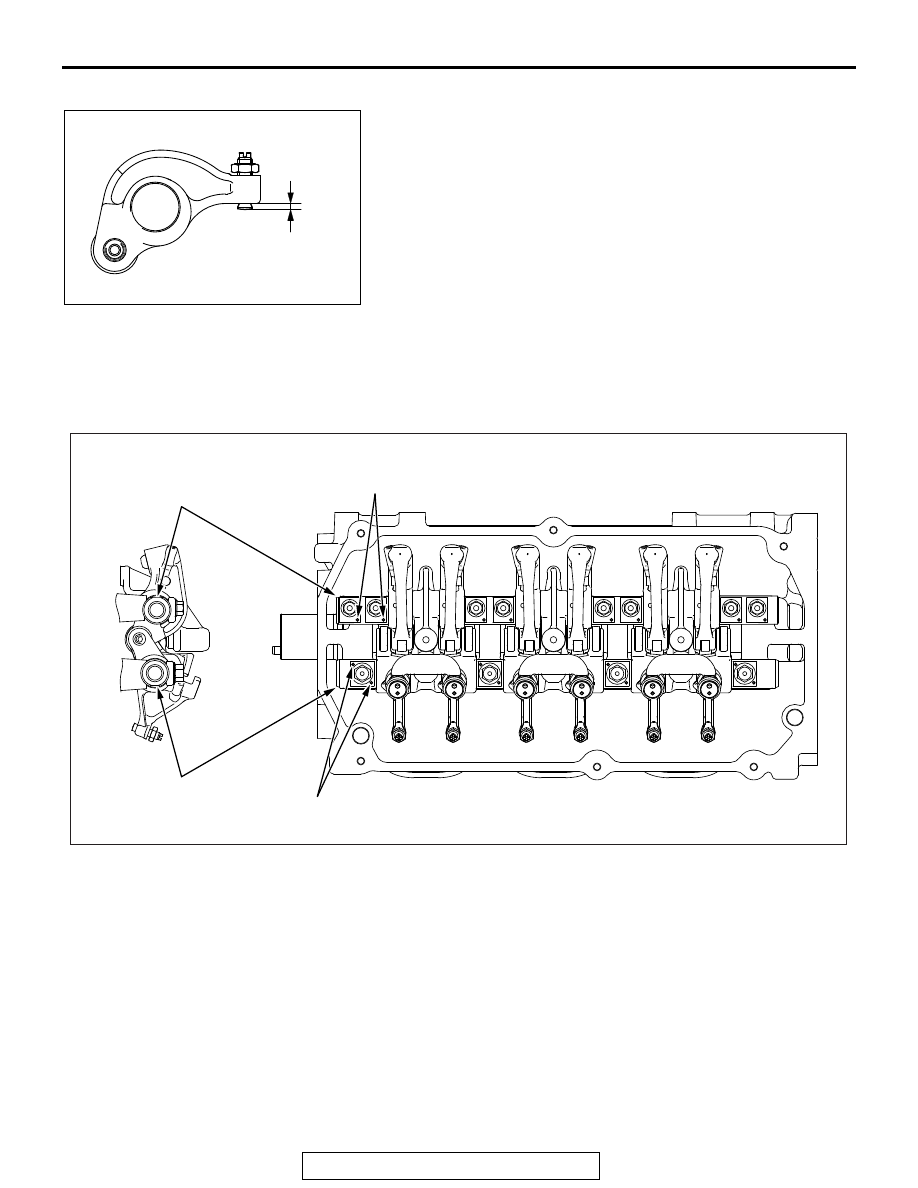

>>D<< ADJUSTING SCREW INSTALLATION

Install provisionally the screw to rocker arm, insert it so that end
of the screw is flush with the edge of the rocker arm or projects
slightly 3 mm (0.1 inch).

.

>>E<< ROCKER ARMS AND SHAFT / ROCKER
SHAFT CAP INSTALLATION

1. In accordance with the tags for the reinstallation, install the

rocker arm and so on to the rocker arm shaft.

2. Temporarily install the intake rocker arms and shaft.

NOTE: Place the notch on the end face in the direction
shown in the illustration.

3. Temporarily install the exhaust rocker arms shaft.

NOTE: Place the notch on the end face in the direction
shown in the illustration.
NOTE: Install the rocker arm shaft with oil hole to the lower
(cylinder head) side.

4. Install the rocker shaft cap.

NOTE: Pay attention to the installation direction of the
rocker shaft cap at the exhaust side.

AK301421

3 mm
(0.1 inch)

AH

AK700650

Exhaust side

Intake side

Notch

Notch

Identification mark

Identification mark

AB

ROCKER COVER AND CAMSHAFT

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-40

5. Confirm the each rocker arm and rocker arm shaft assembly

are in position and then tighten to the specified torque.

Tightening torque:

Exhaust side (M6): 13

± 1 N⋅m (115 ± 8 in-lb)

Intake side (M8): 31

± 3 N⋅m (23 ± 2 ft-lb)

.

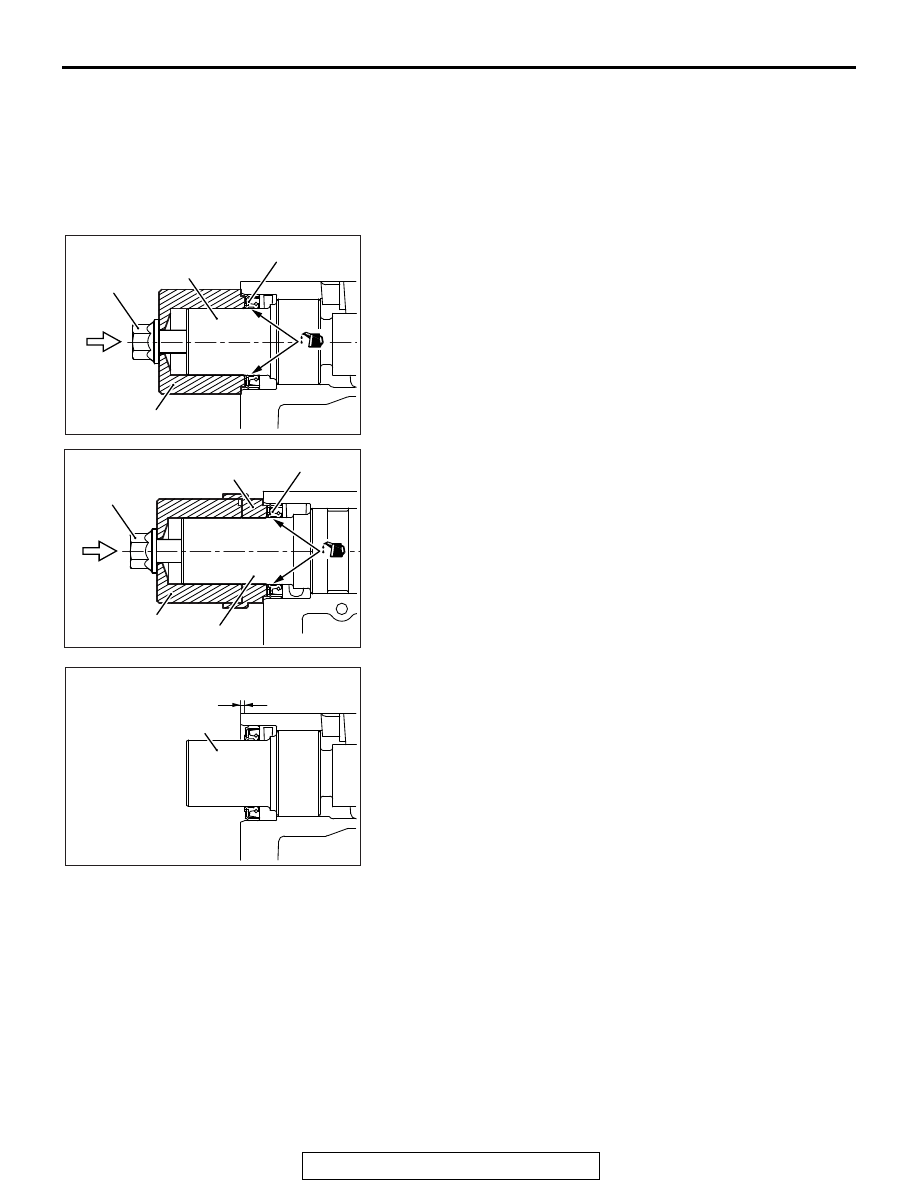

>>F<< CAMSHAFT OIL SEAL INSTALLATION

1. Use special tools MD998713 and MD998777 to install the

camshaft oil seal.

2. Screw the camshaft sprocket bolt until the special tool

touches the end face of the cylinder head.

3. Oil seal shall be pressed fit to position.

.

AK600911

<Right bank side>

AC

MD998713

Oil seal

Camshaft

Camshaft
sprocket bolt

AK600910

MD998713

MD998777

AC

Camshaft

Oil seal

<Left bank side>

Camshaft
sprocket bolt

AK702529AB

2.0 ± 0.3 mm
(0.08 ± 0.012)

Camshaft
