HOW TO USE TROUBLESHOOTING/ INSPECTION SERVICE POINTS

TSB Revision

GENERAL

00-7

HOW TO USE TROUBLESHOOTING/

INSPECTION SERVICE POINTS

TROUBLESHOOTING CONTENTS

M1001013300642

DANGER

The SRS-ECU adopts the rollover specifica-
tion that the curtain airbag and seat belt
pre-tensioner operate at the occurrence of
rollover. Therefore, do not tilt the vehicle to
the right and left with the IG ON or tilt the
SRS-ECU to the right and left with the IG ON
and the harness installed.

CAUTION

During diagnosis, a diagnostic trouble code
associated with other system may be set when
the ignition switch is turned "ON" with connec-
tor(s) disconnected. On completion, confirm all
systems for diagnostic trouble code(s). If diag-
nostic trouble code(s) are set, erase them all.

WARNING

Since the radiator fan rotates during CAN
bus line diagnostics, make sure that no one
is servicing the engine compartment before
diagnosing the CAN bus line. Since the CAN
communication stops when diagnosing the
CAN bus line, the ETACS-ECU detects the
time-out of the engine control module, and
activates the radiator fan to prevent over-
heating as fail-safe.

Troubleshooting of electronic control systems for
which scan tool MB991958 can be used follows the
basic outline described below. Even in systems for
which scan tool MB991958 cannot be used, some of
these systems still follow this outline.

HOW TO USE TROUBLESHOOTING/ INSPECTION SERVICE POINTS

TSB Revision

GENERAL

00-8

1. STANDARD FLOW OF DIAGNOSTIC TROUBLESHOOTING

Troubleshooting sections are based on the diagnos-
tic flow as below. If the diagnostic flow is different
from that given below, or if additional explanation is
required, the details of such differences or additions
will also be listed.

Diagnostic method

• *

1

: For how to diagnose CAN bus lines, refer to

GROUP 54C

P.54C-10

.

• *

2

: For the CAN bus diagnosis chart, refer to

GROUP 54C

P.54C-17

.

• *

3

: When scan tool MB991958 detects a diagnos-

tic trouble code, its display informs users whether
a mechanical problem currently exists or whether
it existed before. The message for the former
state identifies it as an "Active" and the message
for the latter identifies it as a "Stored".

• *

4

: For how to treat past trouble, refer to

P.00-17

.

• *

5

: For how to cope with intermittent malfunc-

tions, refer to

P.00-15

.

• *

6

: For coding data, refer to

P.00-44

.

2. SYSTEM OPERATION AND SYMPTOM
VERIFICATION TESTS

If verification of the symptom(s) is difficult, proce-
dures for checking operation and verifying symptoms
are shown.

3. DIAGNOSTIC FUNCTION

The following trouble code diagnosis are shown.

• How to read diagnostic trouble codes

• How to erase diagnostic trouble codes

• Input inspection service points

AC704160

Gathering information
from the customer

Reoccurs

Does not reoccur

Read the diagnosis code.

After taking note of the
malfunction code, erase the
diagnosis cod memory.

Recheck trouble symptom.

How to treat past
trouble.*

4

INTERMITTENT MALFUNCTIONS

*

OK

NG

5

Coding data check*

6

Check trouble symptom

CAN bus diagnosis chart *

2

CAN bus diagnosis.*

1

Read the diagnosis code.

No diagnosis
code.

No diagnosis
code or
communication
with scan tool
MB991958 not
possible.

How to treat past
trouble*

4

Read the diagnosis code.

Refer to the INSPECTION CHART
FOR TROUBLE SYMPTOMS
(Refer to applicable group).

diagnosis code
displayed.
(Current trouble)*

3

diagnosis  code
displayed.
(Current trouble)*

3

diagnosis code
displayed.
(Current trouble)*

3

diagnosis code
displayed.
(Current trouble)*

3

No diagnosis
code.

diagnosis  code
displayed.

Refer to the INSPECTION CHART
FOR DIAGNOSIS CODES
(Refer to applicable group).

HOW TO USE TROUBLESHOOTING/ INSPECTION SERVICE POINTS

TSB Revision

GENERAL

00-9

4. DIAGNOSTIC TROUBLE CODE CHART

If the scan tool displays a diagnostic trouble code,
find the applicable inspection procedure according to
this chart.

5. SYMPTOM CHART

If there are symptoms, even though the scan tools
show that no DTCs are set, inspection procedures
for each symptom will be found by using this chart.

6. DIAGNOSTIC TROUBLE CODE
PROCEDURES

Indicates the inspection procedures corresponding to
each diagnostic trouble code. (Refer to

P.00-10

).

7. SYMPTOM PROCEDURES

Indicates the inspection procedures corresponding to
each symptom listed in the Symptom Chart. (Refer to

P.00-10

).

8. SERVICE DATA REFERENCE TABLE

Inspection items and normal judgment values have
been provided in this chart as reference information.

9. CHECK AT ECU TERMINALS

Terminal numbers for the ECU connectors, inspec-
tion items, and standard values have been provided
in this chart as reference information.

.

TERMINAL VOLTAGE CHECKS

1. Connect a needle-nosed wire probe to a voltmeter

probe.

CAUTION

Short-circuiting the positive (+) probe between a
connector terminal and ground could damage
the vehicle wiring, the sensor, the ECU, or all
three. Use care to prevent this!
2. Insert the needle-nosed wire probe into each of

the ECU connector terminals from the wire side,
and measure the voltage while referring to the
check chart.

NOTE: Measure voltage with the ECU connectors
connected.
You may find it convenient to pull out the ECU to
make it easier to reach the connector terminals.
Checks don't have to be carried out in the order
given in the chart.

3. If voltage readings differ from normal condition

values, check related sensors, actuators, and
wiring. Replace or repair as needed.

4. After repair or replacement, recheck with the

voltmeter to confirm that the repair has corrected
the problem.

.

TERMINAL RESISTANCE AND
CONTINUITY CHECKS

1. Turn the ignition switch to the  "LOCK" (OFF)

position.

2. Disconnect the ECU connector.

CAUTION

If resistance and continuity checks are per-
formed on the wrong terminals, damage to the
vehicle wiring, sensors, ECU, and/or ohmmeter
may occur. Use care to prevent this!
3. Measure the resistance and check for continuity

between the terminals of the ECU harness-side
connector while referring to the check chart.
NOTE: Checks don't have to be carried out in the
order given in the chart.

4. If the ohmmeter shows any deviation from the

Normal Condition value, check the corresponding
sensor, actuator and related electrical wiring, then
repair or replace.

5. After repair or replacement, recheck with the

ohmmeter to confirm that the repair has corrected
the problem.

10. INSPECTION PROCEDURES USING
AN OSCILLOSCOPE

When there are inspection procedures using an
oscilloscope, these are listed.

HOW TO USE TROUBLESHOOTING/ INSPECTION SERVICE POINTS

TSB Revision

GENERAL

00-10

HOW TO USE THE INSPECTION PROCEDURES

M1001013500550

The causes of many of the problems occurring in electric circuitry are generally the connectors, components,
the ECU, and the harnesses between connectors, in that order. These inspection procedures follow this
order. They first try to discover a problem with a connector or a defective component.

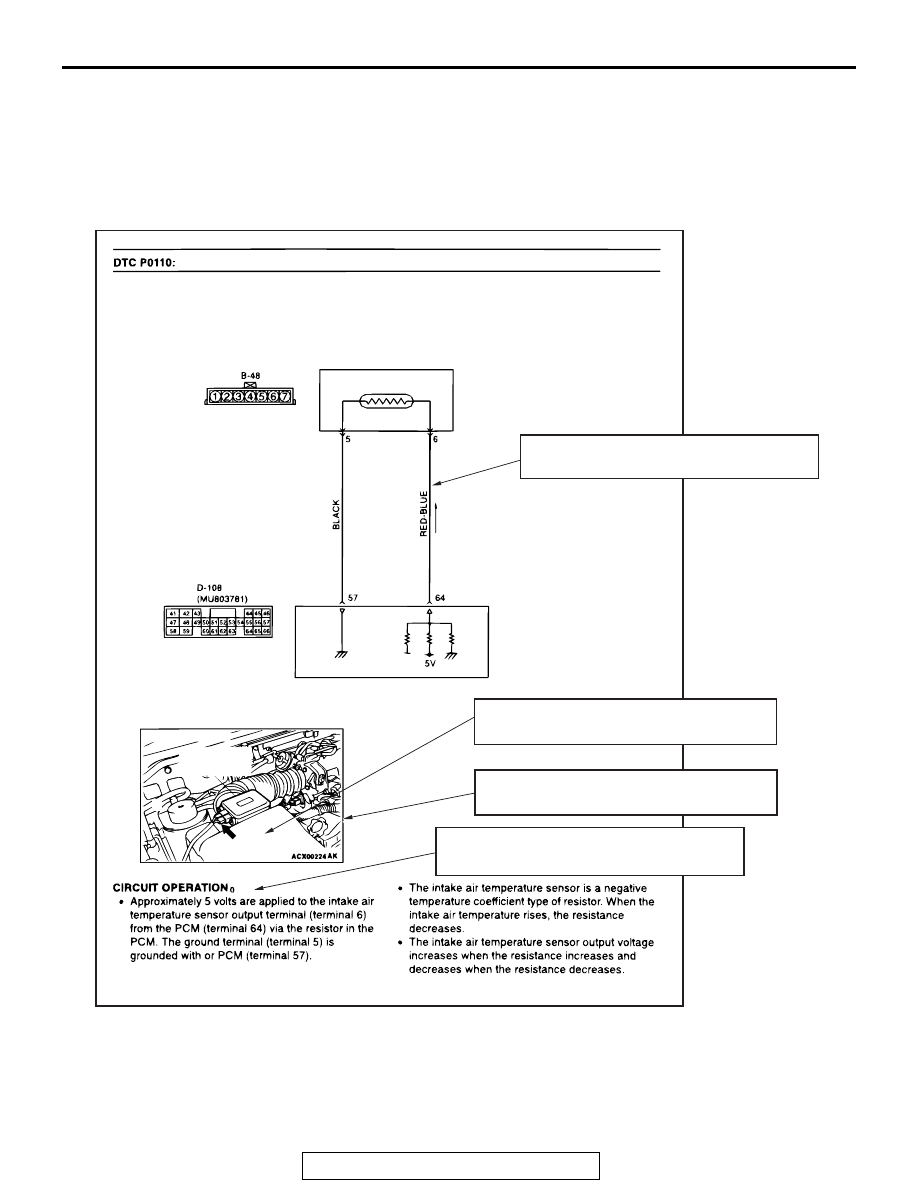

AC610770

Intake air temperature circuit malfunction

Intake air temperature sensor
(Incorporated in volume air
 flow sensor)

Powertrain
control
module (PCM)

Connector: B-48

Intake air

temperature

sensor

AB

(1) Relevant circuit(s) of the component which
      the DTC indicates are described.

(3) Shows the location of the connector(s) from
      the circuit(s) above.

(4) Explains about the operation principle of the
      component or its relevant parts in that circuit.

B-48(B)

(2) For connector color, refer to GROUP 80A,
      How to read configuration diagrams.

Intake Air Temperature Circuit Malfunction
