TRANSMITTER

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-115

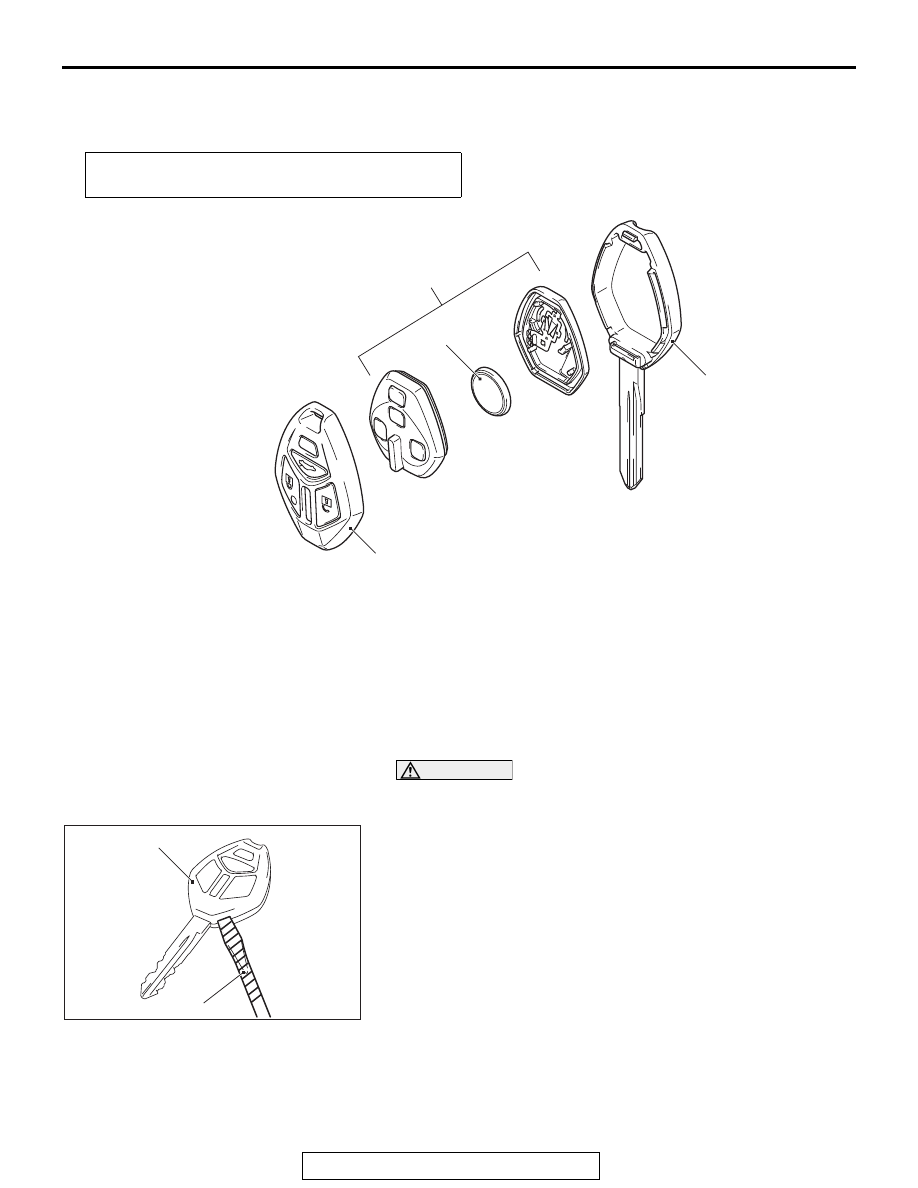

TRANSMITTER

DISASSEMBLY AND ASSEMBLY

M1427506100036

DISASSEMBLY SERVICE POINTS

.

<<A>> UPPER COVER REMOVAL

CAUTION

To prevent damage to the transmitter, wrap a flat-tipped
screwdriver with protective tape before prying.
Insert a flat-tipped screwdriver in the area shown, and remove
the upper cover by prying it with the screwdriver.

.

Post-installation operation
• Transmitter operation check

AC405679AC

1

2

3

4

Disassembly steps

<<

A

>>

1.

Upper cover

2.

Transmitter assembly

<<

B

>>

>>

A

<<

3.

Battery

4.

Master key

Disassembly steps (Continued)

AC405681AC

Transmitter

Flat-tipped screwdriver

TRANSMITTER

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-116

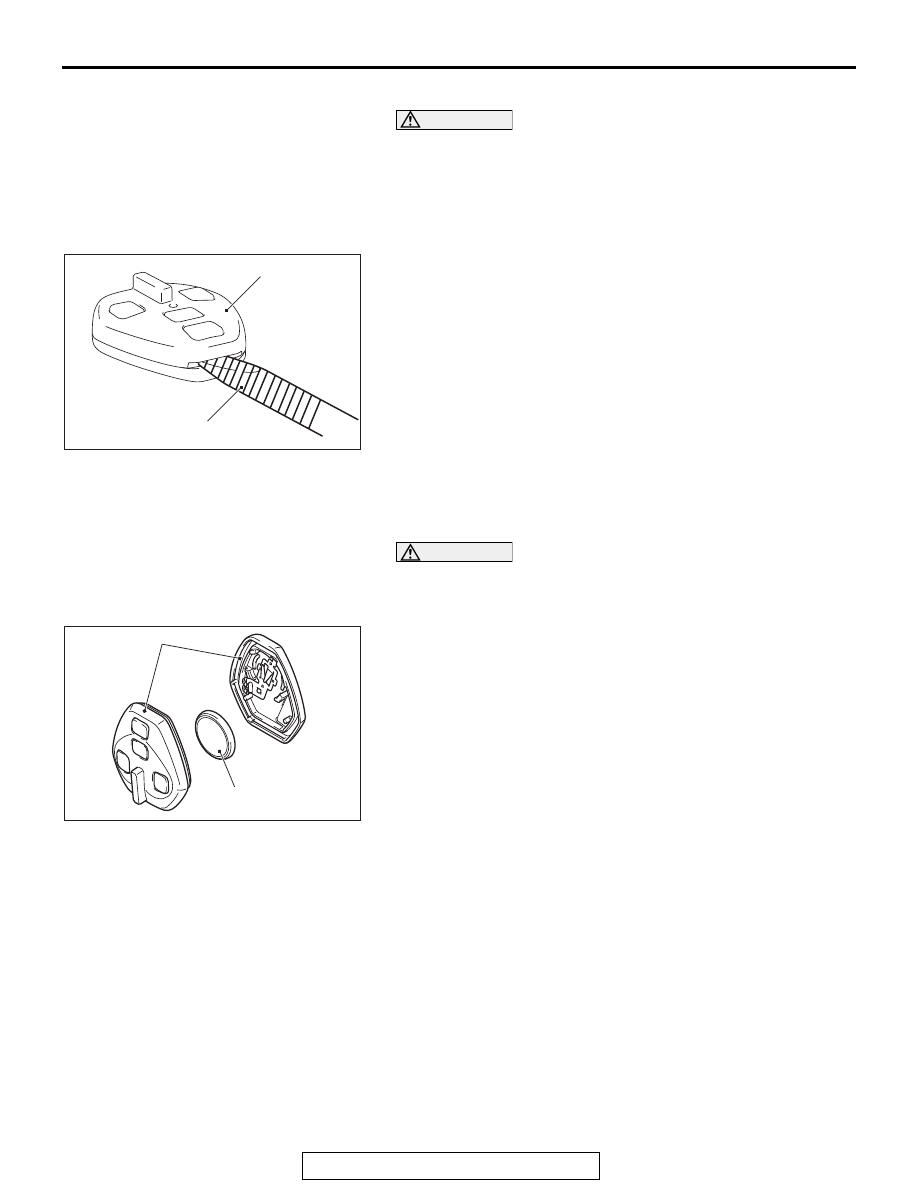

<<B>> BATTERY REMOVAL

CAUTION

• Do not allow water or dust to enter the inside of the

transmitter assembly when it is open. Also, do not
touch the precision electronic device.

• To prevent damage to the transmitter assembly, wrap a

flat-tipped screwdriver with protective tape before pry-
ing.

Insert a flat-tipped screwdriver in the area shown, and remove
the battery by prying it with the screwdriver.

ASSEMBLY SERVICE POINT

.

>>A<< BATTERY INSTALLATION

CAUTION

Do not allow water or dust to enter the inside of the trans-
mitter assembly when it is open. Also, do not touch the
precision electronic device.
Install a new battery to the transmitter assembly with its (+) side
facing towards the master key side.

Battery required for replacement: Coin type battery
CR1620

AC405682AC

Transmitter assembly

Flat-tipped screwdriver

AC405680

+

Master key

side

Upper

cover

side

Battery

Transmitter assembly

–

AC

TPMS TRANSMITTER

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-117

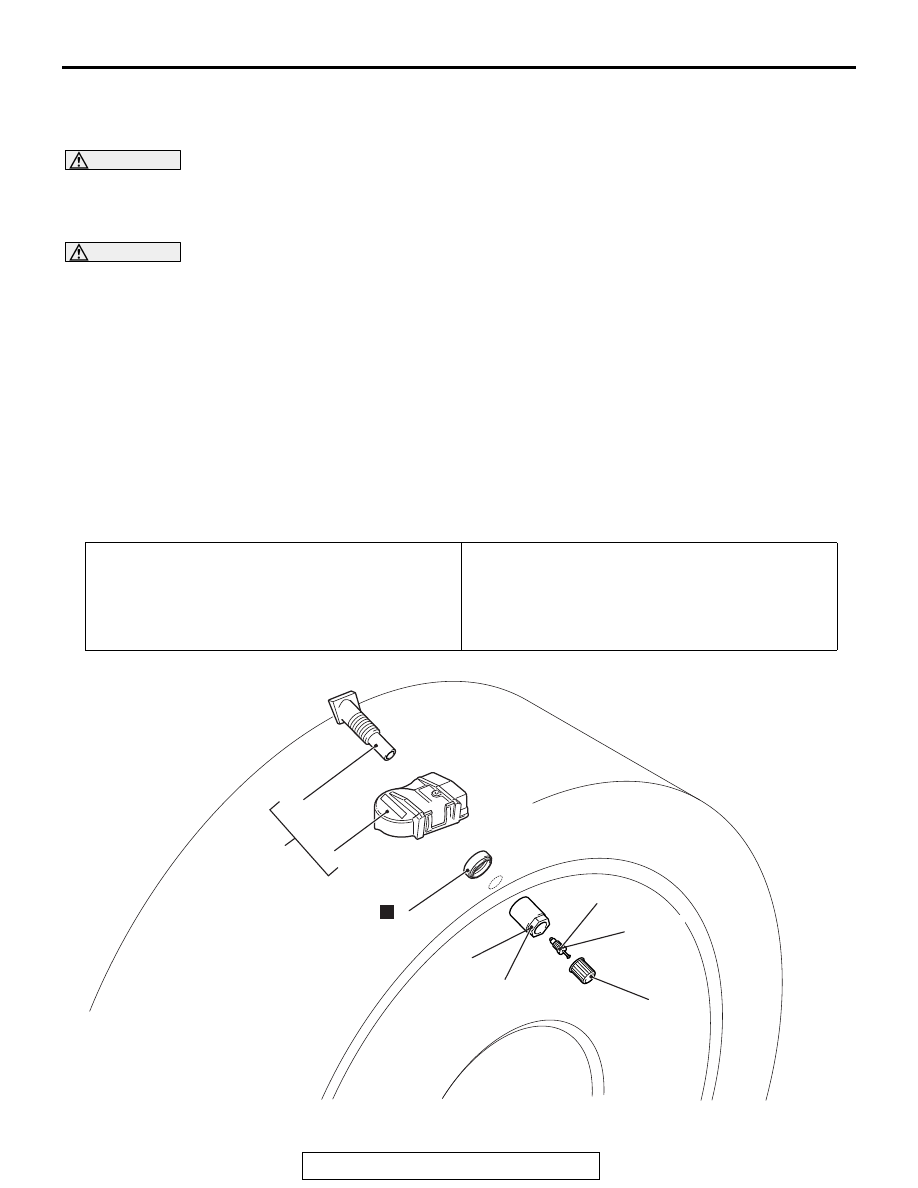

TPMS TRANSMITTER

REMOVAL AND INSTALLATION

M1427509300028

WARNING

Certain components of this vehicles, such as TPMS transmitters, may contain perchlorate
materials. Special handling may apply. For additional information, see www.dtsc.ca.gov/haz-
ardouswaste/perchlorate.

CAUTION

• Ensure valve cap is always in place except when adjusting tire pressure.
• If the valve core and valve cap are replaced, use a genuine replacement part. The valve core is

similar to a conventional one, but uses nickel plating to avoid corrosion.

• Replace the seal washer with a new one when the tire is replaced.
• Do not drop the TPMS transmitter from height greater than 1 meter (3.3 feet).
• Do not expose the TPMS transmitter to extraneous magnetic fields.
• TPMS transmitter should not be stored at temperatures above 80°C (176°F).
• TPMS transmitter should not be exposed to temperatures above 100°C (212°F).
• If the TPMS transmitter is replaced, execute "Tire Pressure Sensor ID Registration" on scan tool

MB991958 "Special Function."

• Be careful not to damage the TPMS transmitter.

Pre-removal Operation
• Wheel and Tire Removal

Post-installation Operation
• Wheel and Tire Installation

• Tire Pressure Sensor ID Registration If a new TPMS

transmitter is installed (Refer to

P.42B-15

).

• After the tire pressure sensor ID registration, check that

the TPMS warning light does not illuminate or flash.

AC808697

1

3

2

6

5

N

8.0 ± 0.5 N·m
71 ± 4 in-lb

0.25 N·m
2.5 in-lb

AC

7

4

TPMS TRANSMITTER

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-118

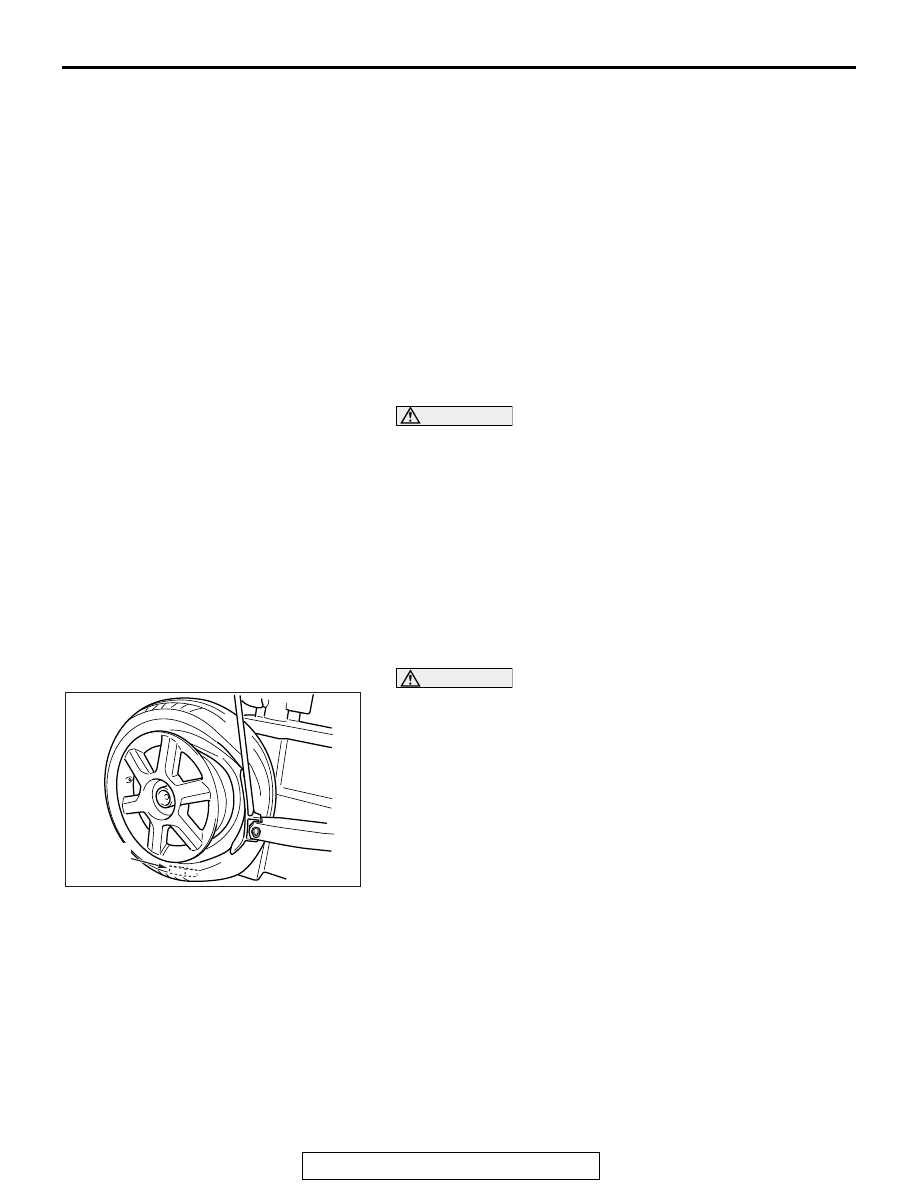

REMOVAL SERVICE POINTS

.

<<A>> CAP/VALVE CORE/NUT REMOVAL

CAUTION

Ensure cap is always in place except when adjusting tire
pressure.
1. Remove the valve cap.
2. Rotate tire so that valve stem is in the 6 o’clock position.
3. Use a long-reach 17.2 mm (0.68 inch) socket to unscrew the

valve nut a few turns. Slowly push valve stem into tire so
that tire pressure is relieved.

4. Once tire pressure is released, remove nut and let TPMS

transmitter fall into tire.

.

<<B>> TPMS TRANSMITTER REMOVAL

CAUTION

Be careful not to damage the TPMS transmitter.
1. Place on tire changing machine and break both tire beads

ensuring that the TPMS transmitter remains in the bottom of
the tire.

2. Lubricate tire well and remove outer side of the tire.
3. Reach inside the tire and remove the TPMS transmitter.
4. Remove tire from rim using proper tire changing equipment

procedures.

.

Removal steps

<<A>>

1.

Cap

<<A>>

2.

Valve core

<<A>>

3.

Nut

•

Let TPMS transmitter fall into
tire

•

Tire bead

<<B>>

4.

TPMS transmitter

<<C>>

5.

Seal washer

<<C>>

6.

Housing <Incase of removing
the valve>

7.

Valve <Incase of removing the
valve>

Installation steps

>>A<<

7.

Housing <In case of installing
the valve>

6.

Valve <In case of installing the
valve>

>>A<<

5.

Seal washer

>>A<<

4.

TPMS transmitter

>>A<<

3.

Nut

>>B<<

•

Tire bead mounting

2.

Valve core

>>C<<

•

Tire pressure inflation

>>C<<

•

Valve nut retightening

1.

Cap

AC611412AB

TPMS
transmitter
