ON-VEHICLE SERVICE

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-107

4. Check number of the keyless IDs registered.

.

"TIRE PRESSURE SENSOR ID REGISTRATION"
METHOD

1. Select "4tires ID Reg. (Change tire PRS.)" and start the tire

pressure sensor ID registration.

CAUTION

Register all tire pressure sensor IDs within twenty min-
utes.
2. "4 SNSR ID Registration Do you want to start? Note Finish

ID Registration within 20 minutes." is displayed. Then, press
"OK."
NOTE: If the ID code registration is not finished within 20
minutes, all the ID codes registered in the TPMS transmitter
before will be erased. For this reason, the ID codes need to
be registered again.

3. Decrease the tire pressure to 174 kPa (25.2 psi) or less by

changing 20 kPa (2.9 psi) or more, and register the TPMS
transmitter ID code of each wheel to WCM.
NOTE:

.

•

You can start out the operations from any TPMS trans-
mitter. The tire pressure sensor ID registration has no
order.

•

On completion of the TPMS transmitter ID code registra-
tion, the TPMS transmitter ID code is displayed on the
scan tool screen.

•

Scan tool cannot identify which registered TPMS trans-
mitter is used for each wheel. For this reason, write down
the tire number for each wheel when the tire number and
ID code is displayed on the scan tool during ID code reg-
istration.

•

It may take approximately one minute for the ID code to
be displayed on the scan tool screen after the tire pres-
sure is reduced.

•

If the ID code is not displayed, reduce the tire pressure
another 20 kPa (2.9 psi) or more. If the ID code is not
displayed yet, rotate the tire to displace the TPMS trans-
mitter, and reduce the tire pressure 20 kPa (2.9 psi) or
more again.

•

If the ID code cannot be registered for all the four
wheels, the WCM may be faulty, thus replace the WCM.

Item

Keyless ID Registration

Registered No. Status

Password

Work  of  registration

Completed

Check  the  number  of  registration.

Special Function

Keyless ID Registration

F.A.S.T./IMMO/Keyless/ TPMS

AC610067

ON-VEHICLE SERVICE

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-108

•

If the ID code can be registered for one wheel or more,
the TPMS transmitter in which the code cannot be regis-
tered may be faulty, thus replace that TPMS transmitter.

4. "4 SNSR ID Registration Completed." is displayed. Then,

select "OK."
NOTE: The TPMS indicator illuminates for tire pressure
alarm.

5. After one minute or more has passed, correct the tire

pressure for all wheels with ignition switch "ON".

6. Check the data list "Registered ID reception, Tire 1, 2, 3, 4" if

"YES" is displayed for each tire. When "NO" is displayed,
drive the vehicle for approximately 5 minutes, check the
display again. If "NO" is still displayed, register the ID code
again.

.

"TPMS TRANSMITTER CHECK" METHOD

According to the following procedures, identify which registered
TPMS transmitter corresponds to which wheel, and check the
tire pressure and acceleration value of each TPMS transmitter.
1. Check the data list "Air Pressure, Tire1, 2, 3, 4" and write

down the tire pressure for all wheels.
NOTE: The display at this time is the data received most
recently.

2. Perform the following procedures for four wheels in order,

identify the wheel by checking the tire pressure of each
wheel.

(1) Change the pressure of tire for 20 kPa (2.9 psi) or more

so that the TPMS transmitter sends the latest sensor data
(The tire pressure can either be decreased or increased).

(2) Check the data list screen to determine which tire number

corresponds to the wheel whose tire pressure has
changed.
NOTE:

.

•

It may take approximately one minute that the data of
tire pressure change is displayed on the scan tool
screen.

•

If the data of tire pressure change is not displayed on
the scan tool screen, the most possible cause is that
the radio wave sent from the TPMS transmitter cannot
be received. In this case, the radio wave may be
received by performing the procedures from (1) again
after turning the tire to change the TPMS transmitter
position. If the tire pressure change is still not dis-
played on the scan tool screen, the TPMS transmitter
in which the ID code is not registered may be
installed, or the TPMS transmitter may be faulty.
Therefore, perform ID code registration or replace the
TPMS transmitter according to the instructions of
troubleshooting for DTCs. (At this time, do not register
the ID codes or replace the TPMS transmitter.)

3. Check the tire pressure or acceleration value shown in the

screen (if needed).

ON-VEHICLE SERVICE

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-109

4. After checking by the tire pressure change, adjust the

checked tire pressure to the proper value.

.

"TIRE PRESSURE SENSOR ID CHECK" METHOD

1. Select "Tire Pressure Sensor ID Check".
2. Check the registered TPMS transmitter IDs on the scan tool

screen.

REGISTRATION NOT USING SCAN TOOL
MB991958 (M.U.T.-III SUB ASSEMBLY) USA ONLY

When the ignition key is lost or additional keys are requested,
the ignition key must be used to register key ID.

CAUTION

Two ignition keys that have been registered are needed.
1. Turn the ignition switch to the "ON" position using the

registered ignition key and keep it there for 5 seconds.

2. Turn the ignition switch to the "LOCK" (OFF) position, and

remove the registered ignition key.

3. Within 30 seconds after the ignition key is removed, insert

the other registered ignition key that has already been
registered and turn the ignition switch to the "ON" position.

4. The immobilizer indicator starts flashing in approximately 10

seconds after the ignition switch is turned to the "ON"
position.

5. When the immobilizer indicator starts flashing, turn the

ignition switch to the "LOCK" (OFF) position and remove the
ignition key.
NOTE: When an error occurs while the immobilizer indicator
is flashing, the immobilizer indicator extinguishes.

6. Within 30 seconds after the immobilizer indicator flashes in

Step 5, insert the ignition key to be added and turn the
ignition switch to the "ON" position.

7. When registering another ignition key, repeat the procedure

from the beginning.

NOTE:

.

When the additional ignition key cannot be registered

•

When the immobilizer indicator is not illuminated during reg-
istration

•

When the immobilizer indicator does not change in 3 sec-
onds after carrying out step 6

.

When the additional registration of the ignition key termi-

nates automatically

•

When 30 seconds have passed before inserting the ignition
key in Step 3 after the ignition key is removed in Step 2.

•

When 30 seconds have passed after the immobilizer indica-
tor flashed

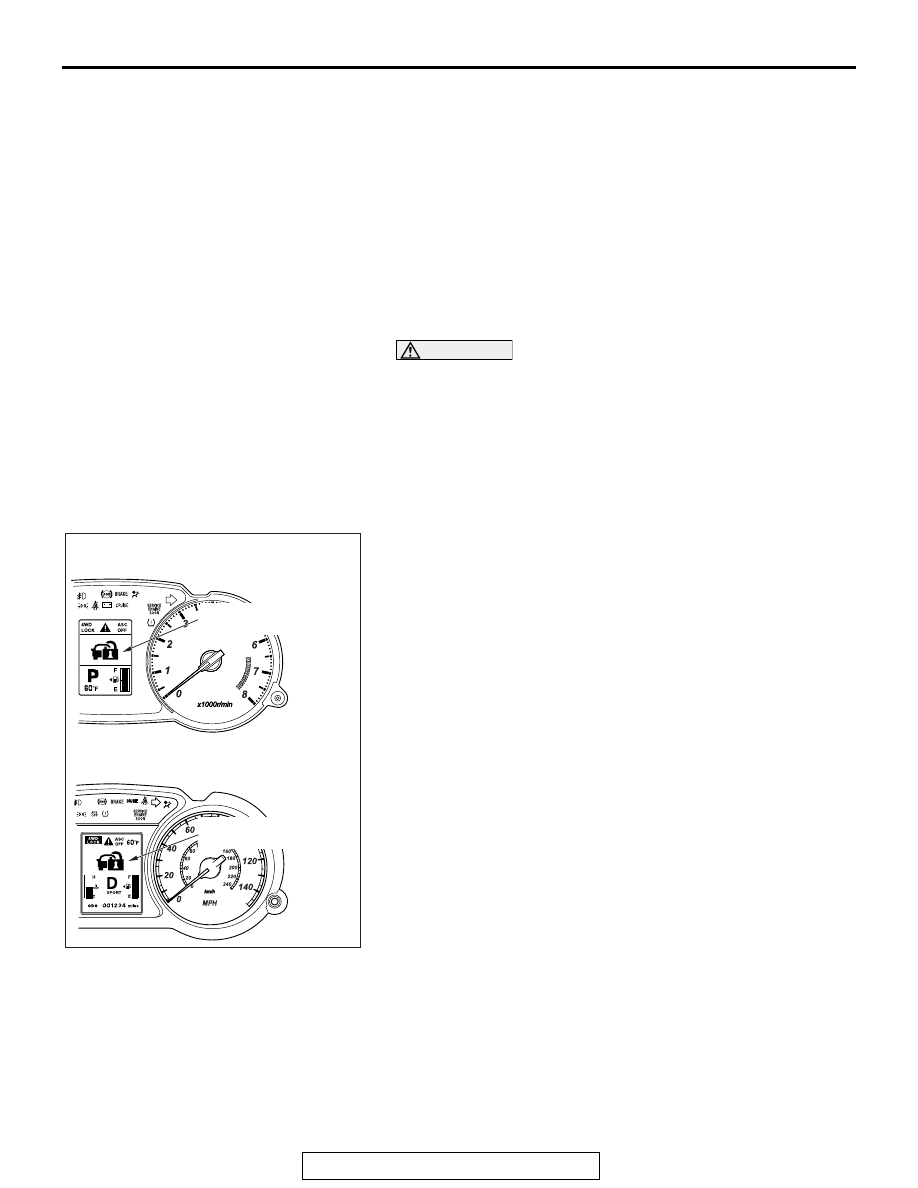

AC901499

AB

Multi information display
(Immobilizer indicator)

Multi information display
(Immobilizer indicator)

<Vehicles without color liquid crystal display>

<Vehicles with color liquid crystal display>

ON-VEHICLE SERVICE

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-110

KEYLESS ID NOT USING SCAN TOOL MB991958
(M.U.T.-III SUB ASSEMBLY) USA ONLY

When the keyless ID code is already registered in the transmit-
ter, the keyless ID code can be registered without using the
scan tool MB991958 (M.U.T.-III sub assembly) according to the
following procedures.
1. Prepare all the transmitters for ID code registration before

starting the operation.

2. Press the unlock button of the transmitter in which the

keyless ID code is registered.

3. After pressing the unlock button, press the lock button within

4 seconds to less than 10 seconds.

4. Release the lock button within 10 seconds after pressing it.
5. Release the unlock button 0.5 seconds after releasing the

lock button.
NOTE: The WCM erases the keyless ID codes of the trans-
mitters other than the operated transmitter.
NOTE: The WCM sets the transmitter registration number to
1.

6. When the operations from Step 1 to Step 4 are completed,

the door can be locked or unlocked, and the mode shifts to
the customer-programming mode. Within 1 minute after the
mode shifted to the customer-programming mode, the signal
for registration is transmitted from the transmitter to be
added.
NOTE: How to transmit the transmitter registration signal

.

1. Press the lock button and the unlock button of the trans-

mitter to be added for 1 second or more simultaneously.

2. Release the lock button and the unlock button simulta-

neously.

3. After releasing the lock button and unlock button simulta-

neously, when 0.5 seconds or more has elapsed, press
the unlock button.

NOTE: The WCM receives the registration signal, and
stores the keyless ID code of the transmitter.
NOTE: The WCM adds the transmitter registration number
by 1.

7. When the operation of Step 5 is finished, the door can be

locked or unlocked to notify that the transmitter registration
is completed.

8. To register another transmitter, repeat the operation of Step

5 within 1 minute after the previous transmitter registration.

9. The customer-programming mode is terminated by any of

the following conditions.

• When the registration of 8 transmitters are completed

• When 1 minute has elapsed without registration after the

shift to the customer-programming mode

• when 1 minute has elapsed after previous transmitter regis-

tration
