ON-VEHICLE SERVICE

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-99

ON-VEHICLE SERVICE

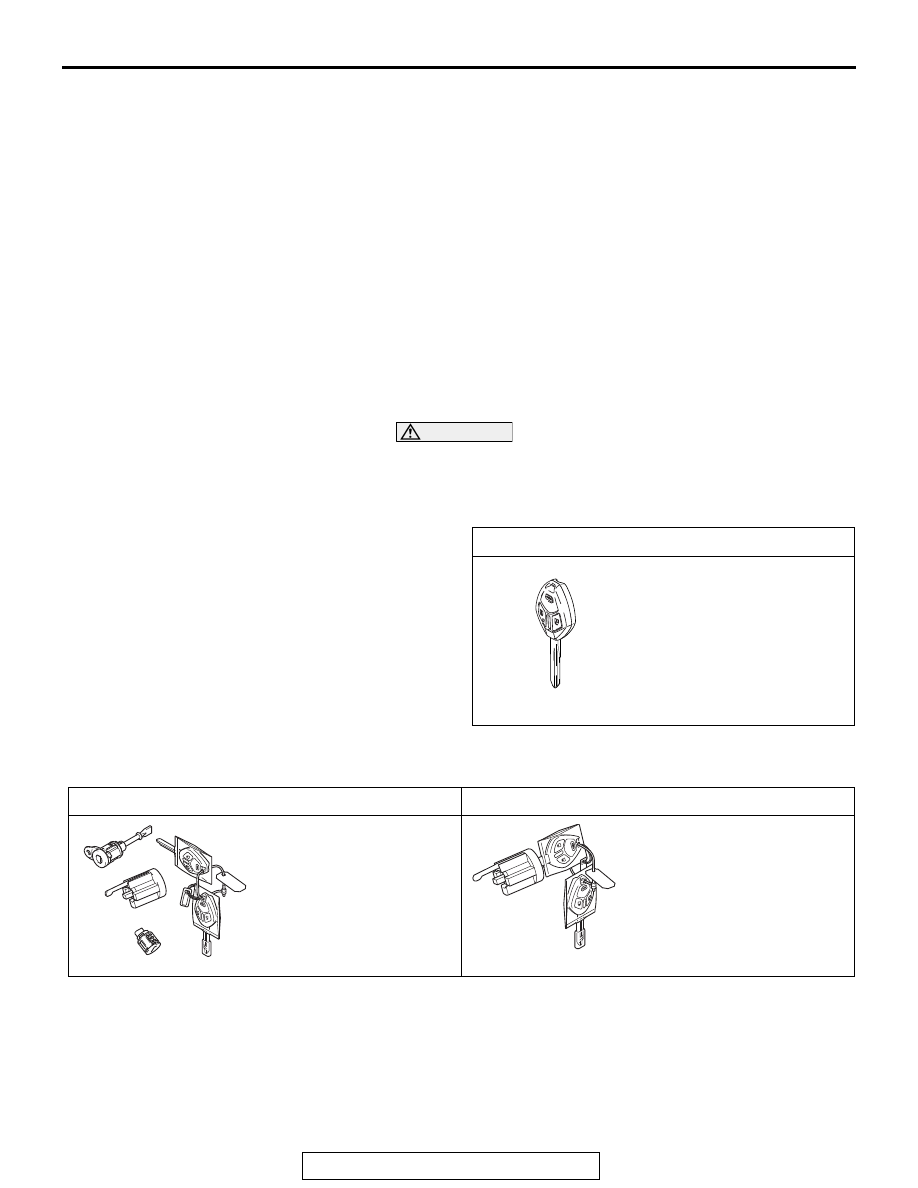

ID CODES REGISTRATION PROCEDURE

M1427506300739

REGISTRATION USING SCAN TOOL MB991958
(M.U.T.-III SUB ASSEMBLY)

Required Special Tools:

•  MB991958 Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827 M.U.T.-III USB Cable

• MB991910 M.U.T.-III Main Harness A

The ID codes necessary for the engine immobilizer system, the
keyless entry system and the TPMS can be registered using
the scan tool MB991958 (M.U.T.-III sub assembly). WCM and
keyless operation key are indicated as F.A.S.T and F.A.S.T.-key
respectively in the scan tool MB991958 (M.U.T.-III sub assem-
bly) screen.

CAUTION

Do not register the ignition key registered for other vehi-
cles.

SUPPLY UNIT LIST FOR INDIVIDUAL KEY

KEY SUPPLY UNIT LIST FOR OTHER THAN INDIVIDUAL KEY

Ignition key

AC709991

Full service key set

Steering lock service key set

AC901476

AC807905

ON-VEHICLE SERVICE

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-100

NOTE:

.

•

When re-registering the key (key ID and keyless ID), all the
keys (key ID and keyless ID) registered before must be
re-registered because all of them will be erased.

•

If the registration fails, repeat from the start.

•

After registering the keys, make sure that the engine is
started normally with all of the keys registered.

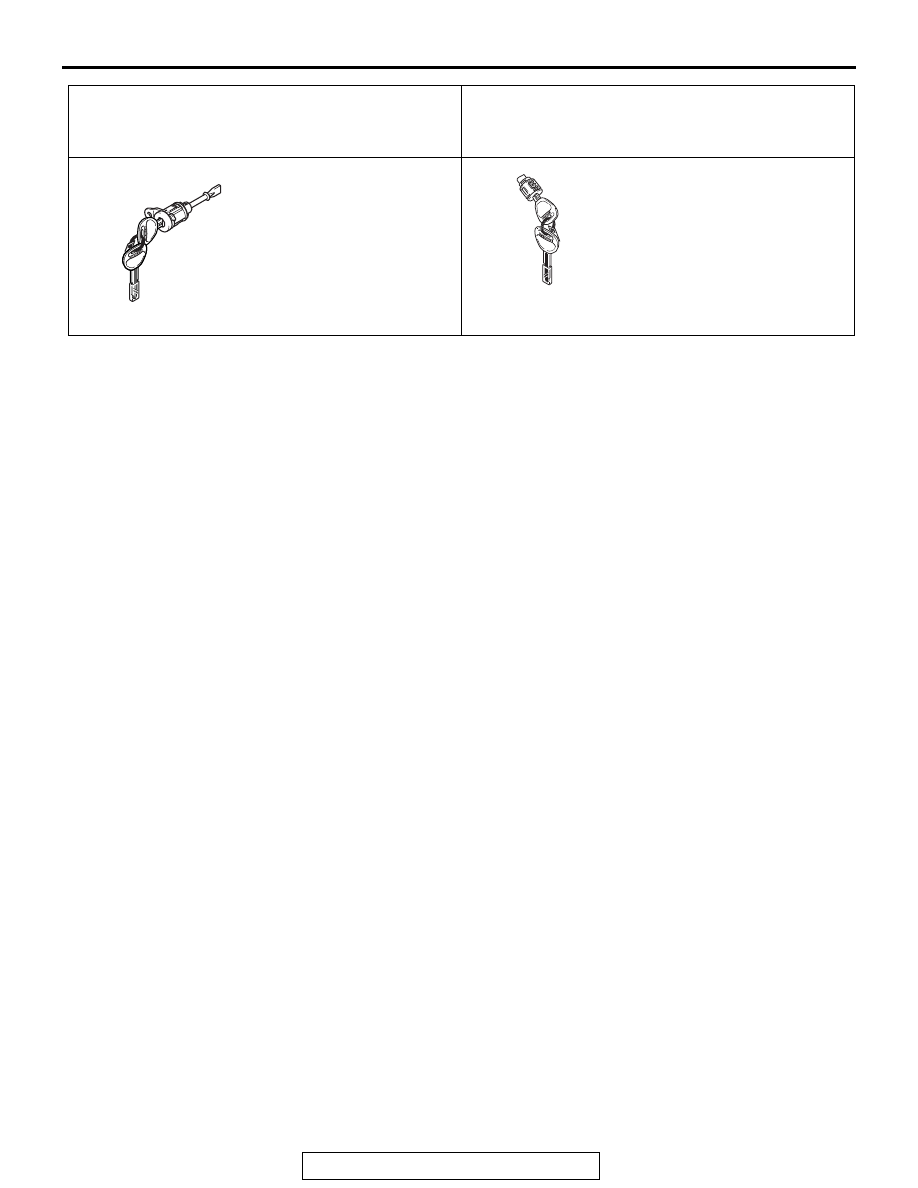

Door service key set
NOTE: It can only be used for locking and
unlocking, and it cannot start the engine.)

Glove box service key set
NOTE: It can only be used for locking and
unlocking, and it cannot start the engine.)

AC702143

AC607882

ON-VEHICLE SERVICE

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-101

AC802951AB

Screen flow of scan tool MB991958 (M.U.T.-III sub assembly)

Key Registration
(Barcode No.) *1

Key
Registration *1

Key &
F.A.S.T.-key
Registration *2

OK

OK

OK

OK

OK

OK

OK

OK

Key ID input

Execution
check

Barcode No.
registration
completed

Special
Function

F.A.S.T.-key
registration
Executing

F.A.S.T.-key
registration
completed

Registration
result display

Special
Function

ENG key code
& VIN Reg. *1, *2

OK

NOTE:
*1 Show the menu displayed when the vehicles for WCM.
*2 Show the menu displayed when the vehicles for KOS.

Cancel

Password input

Additional key
registration *1

Key registration

Completion and
an addition?

Password input

Password input

Go to A

Cancel

OK

Key registration

Completion and
an addition?

Special
Function

Refer to GROUP 00
How to Perform
VIN Writing

ENG key code
Reg. *1, *2

It doesn't use it

ON-VEHICLE SERVICE

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-102

AC611443AC

Keyless ID
Reg.*1

OK

Keyless ID
registration
Executing

Keyless ID
registration
Completed

OK

OK

Steering lock
unit Reg.*2

OK

Steering lock
unit registration
Executing

OK

Antenna select

Antenna
communication
test Executing

NOTE:
*1 Show the menu displayed when the vehicles for WCM.
*2 Show the menu displayed when the vehicles for KOS.
*3 Available if the TPMS activate tool is used. If the TPMS
    activate tool is not used, check the tire pressure sensor
    data by data list.

Steering lock
unit registration
Completed

Password input

Registration
result display

Comm.
Test *2

Antenna
communication
test Completed

Password input

A

Tire Pressure
Sensor ID
Registration *1,*2

Tire Pressure
Sensor Check
*1,*2, *3

Tire Pressure
Sensor ID
Check *1,*2

ID Check

Sensor Check

Sensor Check
Executing
Check

Sensor Check
Executing

Sensor Check
Completed

Sensor Check
Result
display

Sensor Check
Cancel Check

OK

OK

OK

OK

OK

Cancel

Cancel

Can
cel

ID Registration
Menu

ID Registration
Menu

ID Registration
Executing
Check

ID Registration
Executing

ID Registration
Completed

ID Registration
Cancel Check

ID Registration
Cancel
Completed

Select &
OK

Can
cel

OK

Can
cel

OK

OK

Can
cel

OK
