ON-VEHICLE SERVICE

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-199

TIRE PRESSURE SENSOR CHECK

M1429616000011

Refer to ID codes registration procedure

P.42B-188

.

TIRE PRESSURE SENSOR ID CHECK

M1429616100018

Refer to ID codes registration procedure

P.42B-188

.

CUSTOMIZATION FUNCTION

M1429611600944

Using the ETACS system of scan tool MB991958,
the following functions can be programmed. The pro-
grammed information is held even when the battery
is disconnected.

Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting contents
(scan tool MB991958
display)

Adjusting contents

Hazard answer
back

Adjustment of the
number of keyless
hazard warning light
answer back
flashes

Lock:1, Unlock:2

LOCK: Flashes once, UNLOCK: Flashes
twice (initial condition)

Lock:1, Unlock:0

LOCK: Flashes once, UNLOCK: No flash

Lock:0, Unlock:2

LOCK: No flash, UNLOCK: Flash twice

Lock:2, Unlock:1

LOCK: Flash twice, UNLOCK: Flash once

Lock:2, Unlock:0

LOCK: Flash twice, UNLOCK: No flash

Lock:0, Unlock:1

LOCK: No flash, UNLOCK: Flash once

Lock:0, Unlock:0

Without function

Door unlock
mode

Adjustment of
power door locks
with selective
unlocking

All doors unlock

Without function: The first operation of
keyless entry system or unlock operation
by KOS unlocks all doors.

Dr door unlock

With function: The first operation of
keyless entry system or unlock operation
by KOS unlocks the driver's door only, and
the second unlock operation within 2
seconds after that unlocks all doors. (initial
condition)

Auto door
unlock

Adjustment of the
auto door unlock
function

Disabled

Without function (initial condition)

Always (P pos)

With function: Operates when the shift
lever or the selector lever is moved to the
P position.

Always(Lock pos)

With function: Operates when the ignition
switch is moved to the LOCK (OFF)
position.

Duration of horn
chirp

Horn sounding time
during horn answer
back

Short

0.01 second (initial condition)

Long

0.02 second

ON-VEHICLE SERVICE

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-200

NOTE: *: F.A.S.T. (Free-hand Advanced Security
Transmitter)

Horn chirp by
keyless

Horn chirp by
keyless entry
system <vehicles
without auto light>

Not sound horn

No horn answerback function

Lock any time

The horn sounds when the lock button of
keyless entry transmitter is pressed once.

W lock any time

The horn sounds when the lock button of
keyless entry transmitter is pressed twice.
(initial condition)

Horn chirp by
keyless entry
system <vehicles
with auto light>

Not sound horn

No horn answerback function

Lock any time

The horn sounds when the lock button of
keyless entry transmitter is pressed once.

Lock/auto ON

During daytime, while the lighting switch is
in the AUTO position, the horn sounds
once when the lock is pressed once.

W lock any time

The horn sounds when the lock button of
keyless entry transmitter is pressed twice.
(initial condition)

Buzzer answer
back

Adjusts the tone
alarm answer back
function.

Not sound tone alarm

Without function

At keyless

Sounds when the keyless entry system is
activated.

At F.A.S.T.

*

Sounds when KOS is activated (initial
condition).

At Both

Sounds when the keyless entry system or
KOS is activated.

Timer lock timer Timer lock period

adjustment

30 sec

30 seconds (initial condition)

60 sec

60 seconds

120 sec

120 seconds

180 sec

180 seconds

Panic alarm
switch

With/without panic
alarm function

Disable

Without function

Enable

With function (initial condition)

F.A.S.T.

*

 key

detect out fm
window

With/without KOS
key exterior
detection function

Enable

Without function

Disable

With function (initial condition)

F.A.S.T.

*

 feature KOS function

adjustment

Both enable

All KOS functions are enabled (initial
condition).

DoorEntry enable

Only door entry function is enabled.

ENG strt enable

Only engine starting function is enabled.

Both disabled

All KOS functions are disabled.

F.A.S.T.

*

 unlock

disable time

Adjusts the door
unlock inhibition
period after door
lock is activated.

0 sec

0 second

3 sec

3 seconds (initial condition)

5 sec

5 seconds

Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting contents
(scan tool MB991958
display)

Adjusting contents

KOS-ECU

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-201

KOS-ECU

REMOVAL AND INSTALLATION

M1429605900139

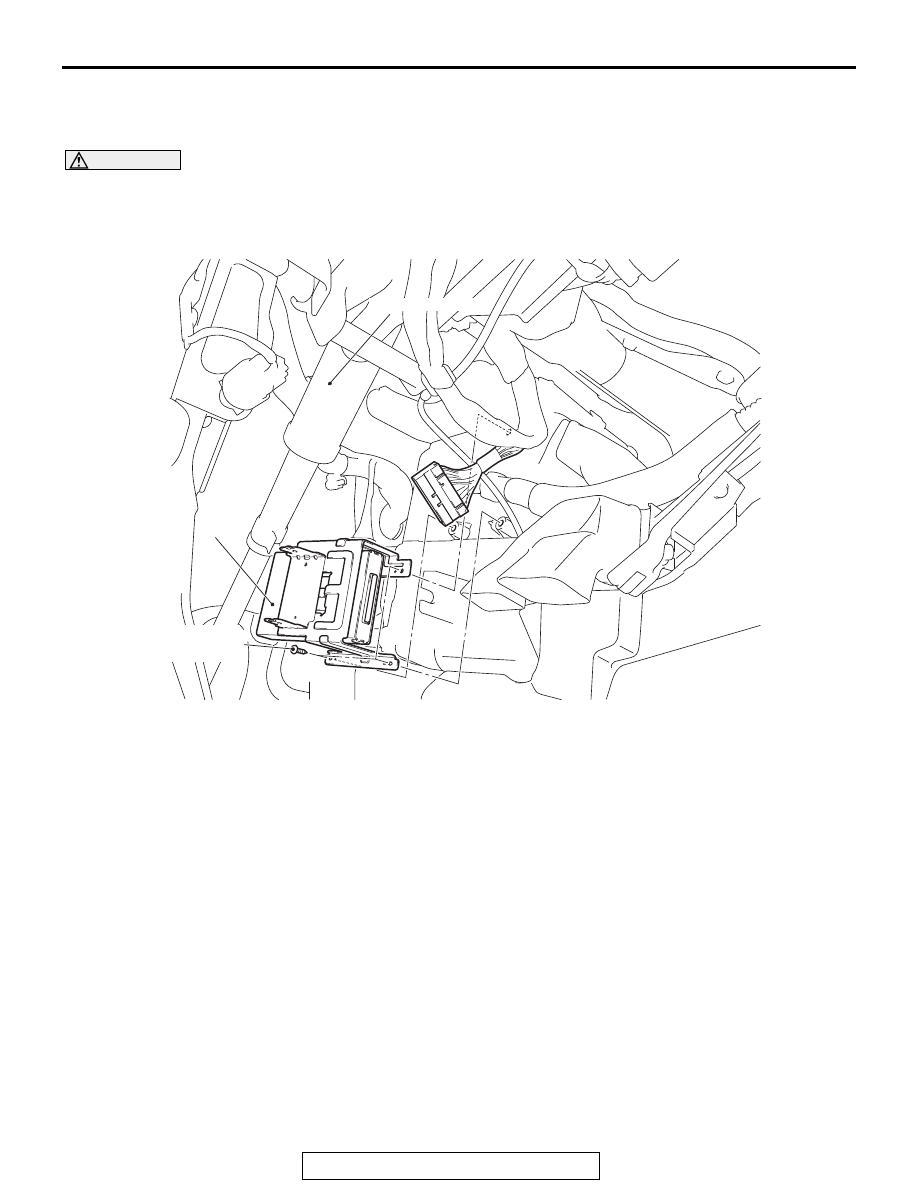

CAUTION

If KOS-ECU is replaced, refer to ID code registra-
tion need judgment table

P.42B-15

 to complete

the registration of each ID code.

AC607425

AB

1

5.0 ± 1.0 N·m
44 ± 9 in-lb

STEERING SHAFT

Removal



1.

KOS-ECU

EXTERIOR TRANSMITTER ANTENNA ASSEMBLY, INTERIOR TRANSMITTER ANTENNA

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-202

EXTERIOR TRANSMITTER ANTENNA ASSEMBLY,

INTERIOR TRANSMITTER ANTENNA ASSEMBLY,

RECEIVER ANTENNA MODULE

REMOVAL AND INSTALLATION

M1429606200520

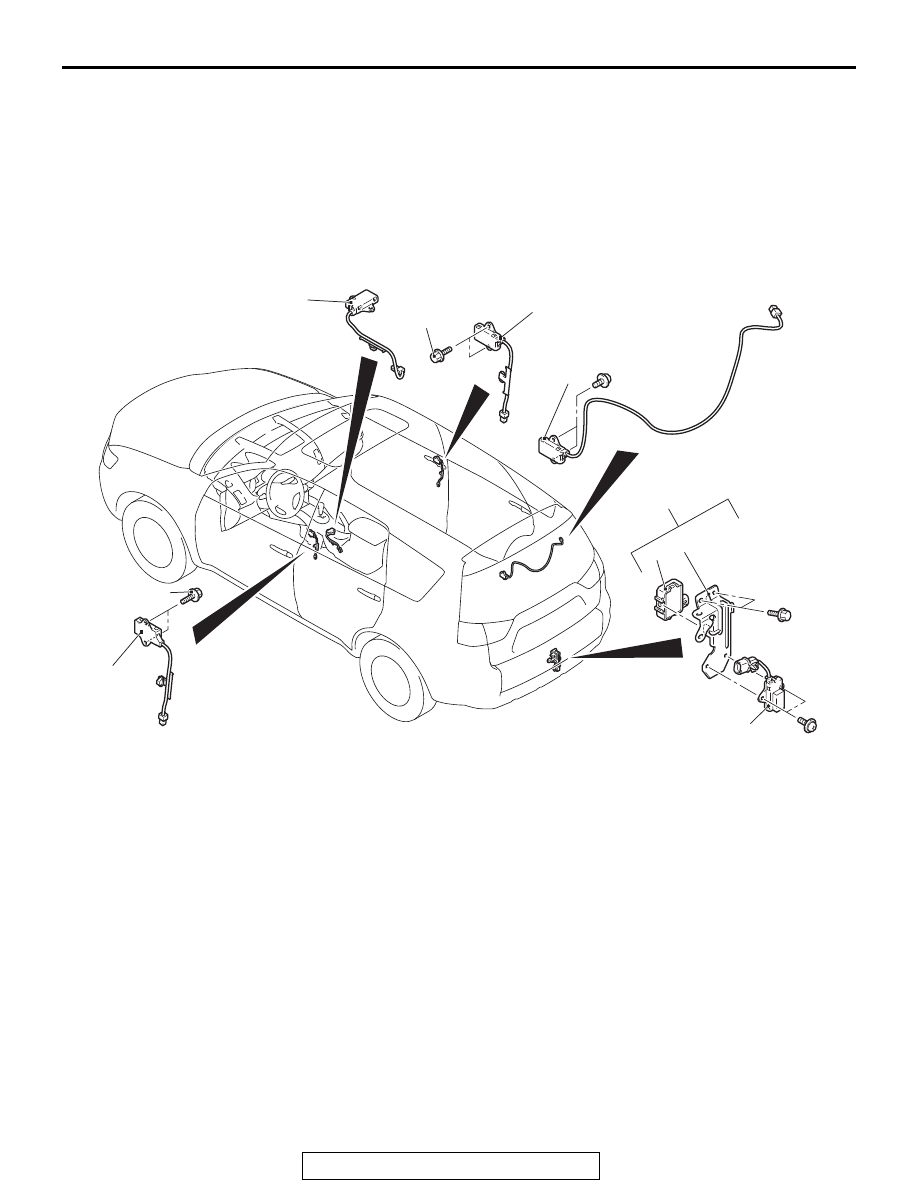

<EXTERIOR TRANSMITTER ANTENNA ASSEMBLY, INTERIOR TRANSMITTER
ANTENNA ASSEMBLY, ANTENNA AND BUZZER ASSEMBLY>

AC900171

2

1

3

6

4

5

8

7

AB

4.5 ± 0.5 N·m
40 ± 4 in-lb

4.5 ± 0.5 N·m
40 ± 4 in-lb

Exterior transmitter antenna
assembly (front passenger’s
side) removal steps

•

Center pillar trim, upper <RH>
(Refer to GROUP 52A

− Interior

Trim

P.52A-10

).

1.

Exterior transmitter antenna
assembly (front: passenger’s side)
Exterior transmitter antenna
assembly (driver’s side) removal
steps

•

Center pillar trim, upper <LH>
(Refer to GROUP 52A

− Interior

Trim

P.52A-10

).

2.

Exterior transmitter antenna
assembly (driver’s side)

Antenna and outer tone alarm
assembly removal steps

•

Rear bumper assembly (Refer to
GROUP 51

− Rear Bumper

Assembly

P.51-7

).

3.

Antenna and outer tone alarm
assembly

4.

Exterior transmitter antenna
assembly (liftgate)

5.

Outer tone alarm

6.

Bracket
Interior transmitter antenna
assembly (front) removal steps

•

Rear floor console assembly (Refer
to GROUP 52A

− Rear Floor

Console Assembly

P.52A-8

).

7.

Interior transmitter antenna
assembly (front)
