Mitsubishi Outlander GS45X. Manual - part 1153





ON-VEHICLE SERVICE

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-191

AC611443AD

Keyless ID
Reg.*1

OK

Keyless ID
registration
Executing

Keyless ID
registration
Completed

OK

OK

Steering lock
unit Reg.*2

OK

Steering lock
unit registration
Executing

OK

Antenna select

Antenna
communication
test Executing

NOTE:
*1 Show the menu displayed when the vehicles for WCM.
*2 Show the menu displayed when the vehicles for KOS.
*3 Available if the TPMS activate tool is used. If the TPMS
    activate tool is not used, check the tire pressure sensor
    data by data list.

Steering lock
unit registration
Completed

Password input

Registration
result display

Comm.
Test *2

Antenna
communication
test Completed

Password input

A

Tire Pressure
Sensor ID
Registration *1,*2

Tire Pressure
Sensor Check
*1,*2, *3

Tire Pressure
Sensor ID
Check *1,*2

ID Check

Sensor Check

Sensor Check
Executing
Confirmed

Sensor Check
Executing

Sensor Check
Completed

Sensor Check
Result Display

Sensor Check
Cancel
Confirmed

OK

OK

OK

OK

OK

Cancel

Cancel

Cancel

ID Registration
Menu

ID Registration
Menu

ID Registration
Executing
Confirmed

ID Registration
Executing

ID Registration
Completed

ID Registration
Cancel
Confirmed

ID Registration
Cancel
Completed

Select & OK

Cancel

OK

Cancel

OK

OK

Cancel

OK

ON-VEHICLE SERVICE

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-192

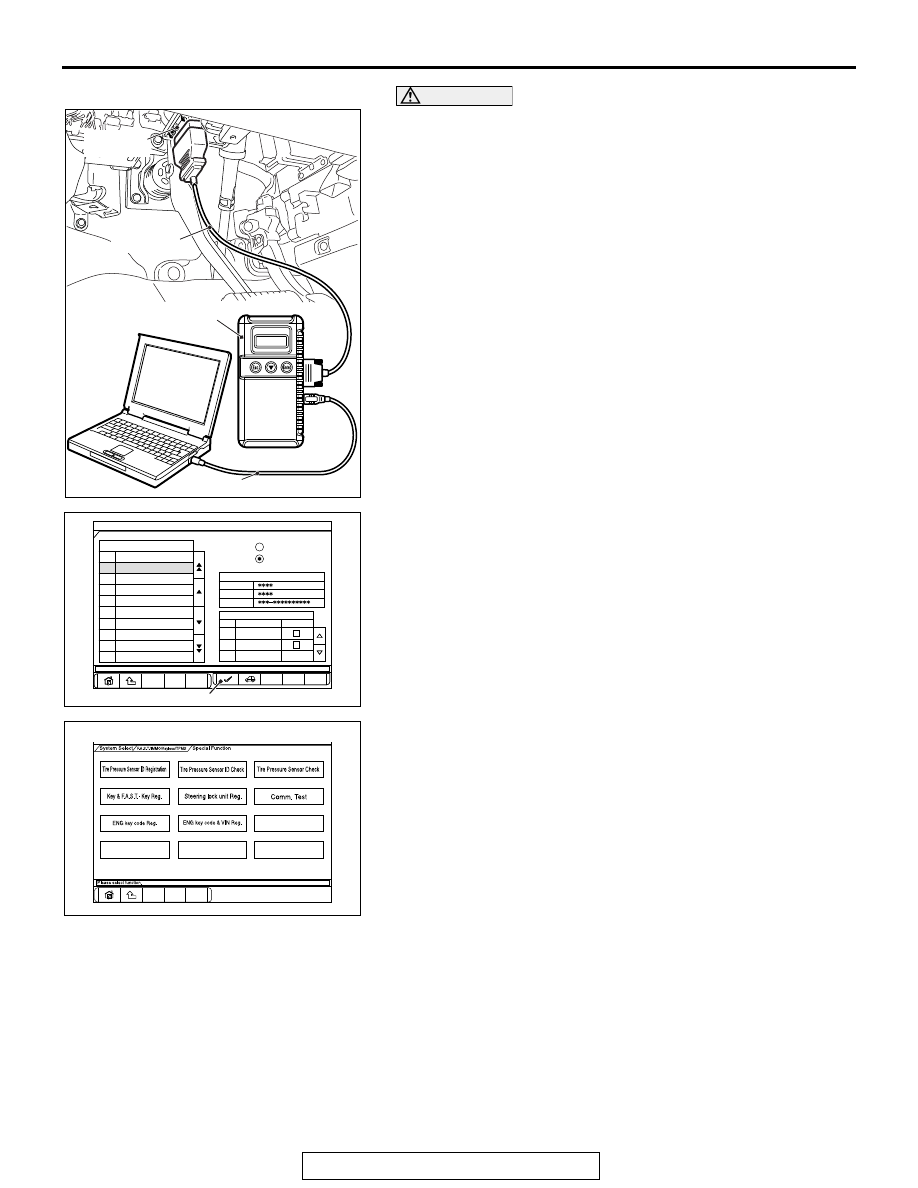

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
Connect the scan tool MB991958 to the 16-pin data link con-
nector as follows.
NOTE: For details on how to use the scan tool, refer to the
"M.U.T.-III User's Manual."
1. Start the scan tool MB991958 system on the personal

computer and turn the ignition switch to the "ON" position.

2. Select "F.A.S.T./IMMO/Keyless/TPMS" button from the

"System Select" screen. Then, select the applicable option
code item and push the OK button.

3. Select "Special Function" on the next screen.

4. Select the button of the operation to be performed from the

"Special Function" screen.

• "Tire Pressure Sensor ID Registration": When the TPMS

transmitter is replaced and/or the KOS-ECU is replaced.

• "Tire Pressure Sensor Check": When the tire pressure sen-

sor data is checked.

• "Tire Pressure Sensor ID Check": When the tire pressure

sensor ID is checked.

• "Key & F.A.S.T. -Key Reg.": When the keyless operation key

is lost and/or the KOS-ECU is replaced.

• "Steering lock unit Reg.": When KOS-ECU is replaced but

the steering lock assembly is not replaced.

• "Comm. Test": When the KOS antenna communication sta-

tus is checked.

• "ENG Key Code Reg.": It doesn’t use it.

• "ENG Key Code & VIN Reg.": When the engine control

module is replaced.

NOTE: For "ENG Key Code Reg, & VIN Writing" refer to
GROUP 00

 Precautions before Service

P.00-40

.

5. After operation check, turn the ignition switch to the "LOCK"

(OFF) position.

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

System Select

Select Model Year and System

System List

Model Year

Vehicle Information

Loading Option Setup

OPC

With Option

Option Name

IMMOBI & Keyless & TPMS

VF2

VF3

IMMOBI & F.A.S.T. & TPMS

Model Name

Model Year

Model Code

Up to 2005 MY

From to 2006 MY

1

2

3

4

5

6

7

8

9

10

MPI/GDI/Diesel

F.A.S.T./IMMO/Keyless/TPMS

AT/CVT/A-MT

ABS/ASC/ASTC

SAS

Multi Select 4WD

SRS Airbag

A/C

ETACS

Meter

AC609809

OK button

AB



AC802950

AB

Option: When IMMOBI & F.A.S.T. & TPMS is selected

ON-VEHICLE SERVICE

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-193

6. Remove the scan tool MB991958.

.

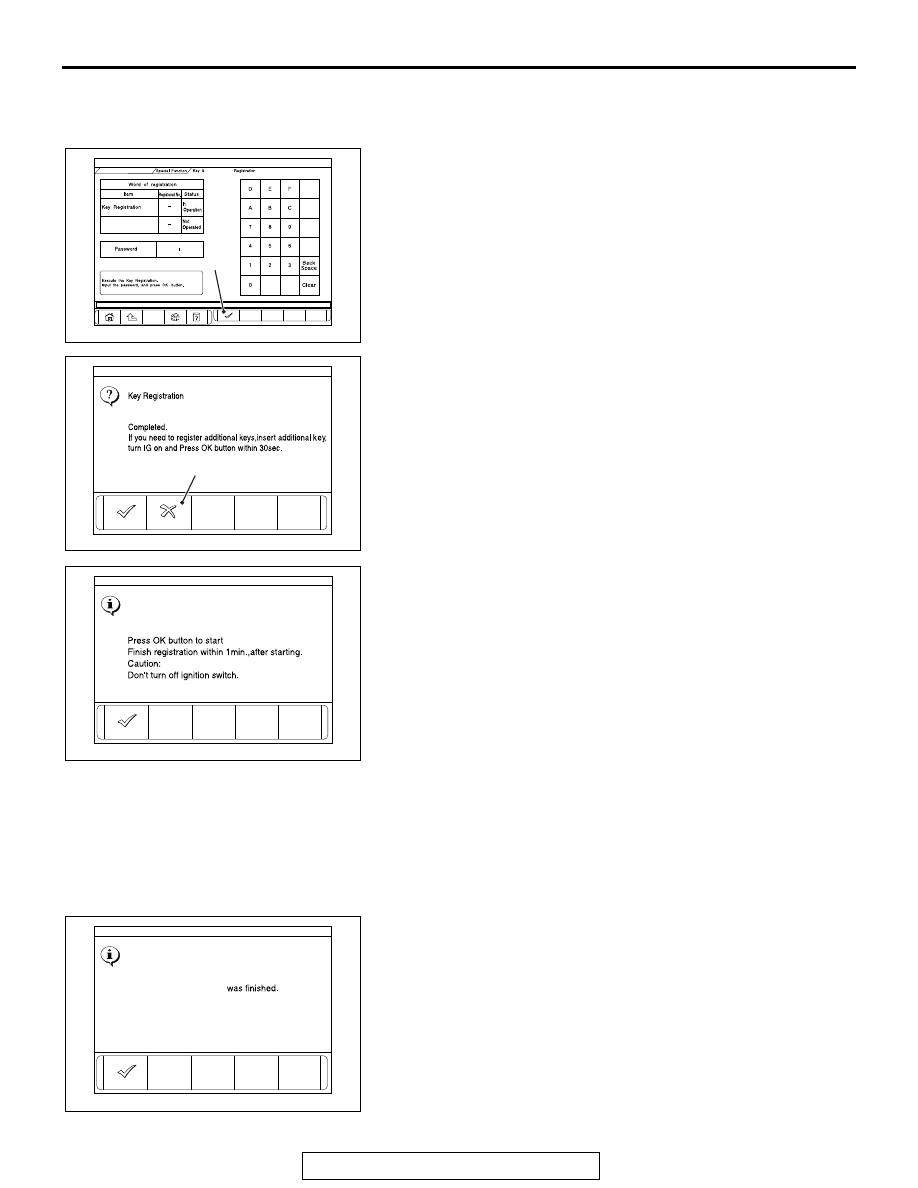

"KEY & F.A.S.T. -KEY REG" METHOD

1. When "Key & F.A.S.T. -Key Registration" screen is

displayed, enter the password for the key registration and
press the OK button. Then, "Executing!" is displayed and the
key registration process starts.
NOTE:

.

If the wrong password is entered consecutively 5 times,
the password entry for the key registration will be dis-
abled for 16 minutes.

The key registration cannot be cancelled during the
operation.

2. When the key registration is completed, "Completed." is

displayed. To continue the key registration, press the OK
button according to the screen instructions. Then
"Executing!" is displayed again and the next registration
process starts. To finish the key registration and start the
keyless operation key registration, press the cancel button.
Then "Press OK button to start KOS key registration" is
displayed.
NOTE:

.

In order to register another key consecutively after regis-
tering the first key, the ignition switch must be turned to
the ON position with the second key within 30 seconds
after turning it to the "LOCK" (OFF) position with the first
key. [When turning the ignition switch to the "ON" posi-
tion or "LOCK" (OFF) position, be sure that the emer-
gency key is connected to the keyless operation key. Do
not use the emergency key independently.]

Up to four keys can be registered.

3. Press the lock switch of the keyless operation key to be

registered twice within 1 minute to allow the keyless
operation key to be registered. Complete the registration
within 1 minute and press the OK button. Then the keyless
operation key registration ends.
NOTE:

.

Up to 4 keyless operation keys can be registered.

Register keyless operation keys inside the vehicle.

Register the keyless operation keys with the key
released from scan tool display.

4. Push the OK button after "F.A.S.T. -key Registration was

finished." is displayed.

F.A.S.T.- key

F.A.S.T./IMMO/Keyless/TPMS

F.A.S.T.- key Registration

AC609958

AB

OK button

AC609959

AB

Cancel button

F.A.S.T.- key registration.

F.A.S.T.- key Registration

AC609960

AB

F.A.S.T.- key Registration

F.A.S.T.- key Registration

AC609961

AB

ON-VEHICLE SERVICE

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-194

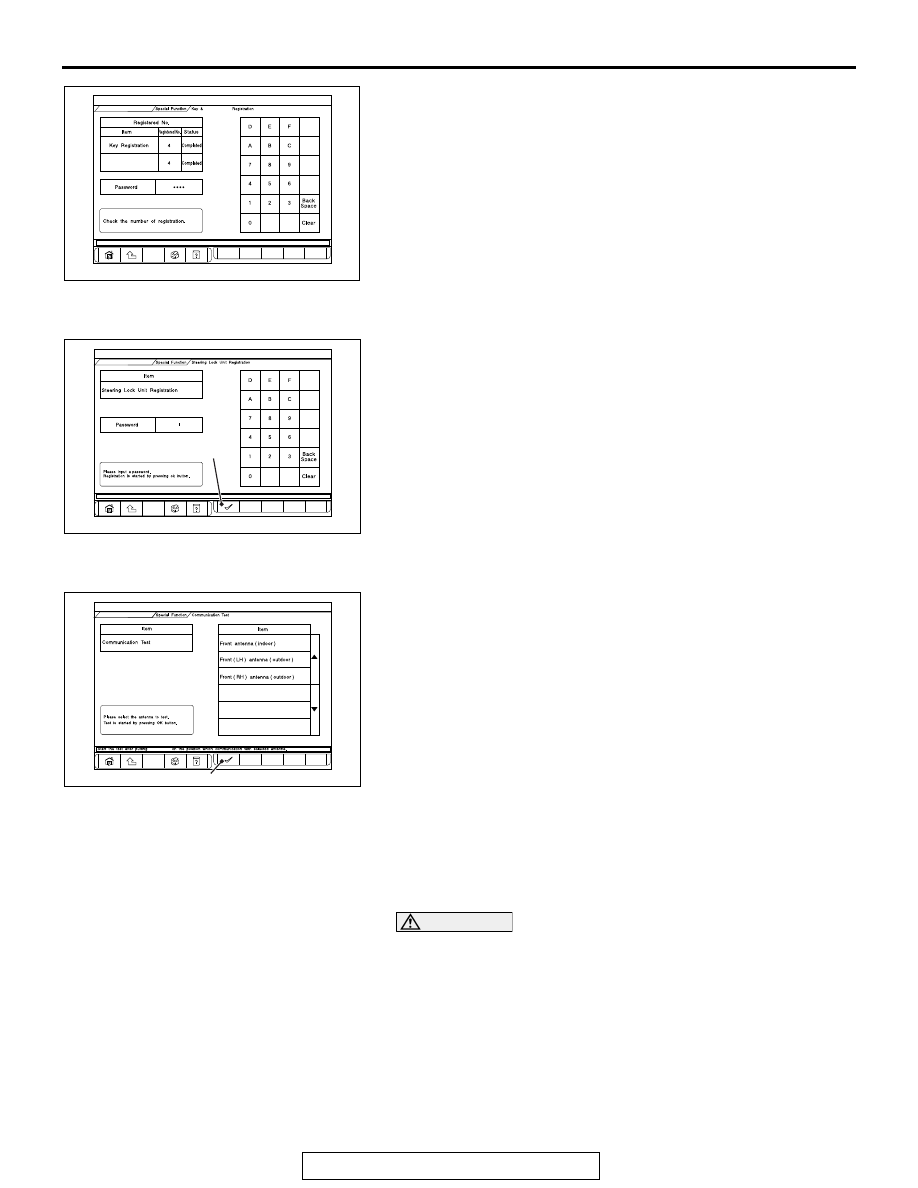

5. Check the number of the registered keys and keyless

operation keys.

NOTE: When the key cannot be registered using scan tool
MB991958, refer to Inspection Procedure 2 "The keyless oper-
ation key cannot be registered using scan tool

P.42B-177

.

.

"STEERING LOCK UNIT REG." METHOD

1. Enter the password on "Steering Lock Unit Registration"

screen and press the OK button to register the KOS ID.

2. Push the OK button after "Completed." is displayed.

.

"COMM. TEST" METHOD

1. Select the antenna to be tested on "Communication Test"

screen, and press the OK button with the keyless operation
key placed within the communication operational area.

2. Push the OK button after "Communication is normal." is

displayed.

.

"TIRE PRESSURE SENSOR ID REGISTRATION"
METHOD

1. Select "4tires ID Reg. (Change tire PRS.)" and start the tire

pressure sensor ID registration.

CAUTION

Register all tire pressure sensor IDs within twenty min-
utes.
2. "4 SNSR ID Registration Do you want to start? Note Finish

ID Registration within 20 minutes." is displayed. Then, press
"OK."
NOTE: If the ID code registration is not finished within 20
minutes, all the ID codes registered in the TPMS transmitter
before will be erased. For this reason, the ID codes need to
be registered again.

F.A.S.T./IMMO/Keyless/TPMS

F.A.S.T.- key Registration

F.A.S.T.- key

AC609962

F.A.S.T./IMMO/Keyless/TPMS

AC609956

OK button

AB

F.A.S.T./IMMO/Keyless/TPMS

F.A.S.T.-key

Trunk lid antenna ( outdoor )

Rear antenna ( indoor )

AC609957

OK button

AB
