• Coding Data

• VIN

• Tell-Tale Stack

• Chrono Stack

.

Coding Data

Coding Data : 4000h

Back

AC606345

VIN

current VIN

    0123456  0123456  012

Original VIN

    0123456  0123456  012

Back

AC606346

Tell-Tale Stack

Historical
    DTC : C197h
    Odometer : 0132h
Interrogation
    DTC Read Counter : 04h
    Odometer : 01a5h

Back

Next

Previ

2/8

AC606347

Chrono Stack

DTC Value : 0197h

DTC Status : A0h

Odometer Mileage : 1B27h

Accumulation Timer : 06C4h

IG Counter : 15h

Back

Next

Previ

2/8

AC606348

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-454

MEMORY INITIALIZATION

1. Select "Memory Initialization" on "Service" screen.

2. If you select "Start" on "Memory Initialization" screen, the

settings such as registered locations and music server will
be erased (initialized) from the memory.
NOTE: If the ignition switch is turned to "LOCK" (OFF) posi-
tion during the initialization, the initialization will be sus-
pended. If the ignition switch is turned to "ACC" or "ON"
position, the initialization will be resumed.

3. After the memory initialization is complete, the navigation

system will restart automatically.

.

TMC SENSITIVITY

1. Select "TMC sensitivity" on "Service" screen.

Service

Vehicle Signal Check

Monitor Check

Camera Setting

Speaker Check

Network/Connect Line Check

Versions Indication

1/2

Sensor Check

Hands Free Module

Memory Initialization

Back

Next

Previous

CAN Communication Confirmation

AC903640

AB

Back

Start

Memory Initialization

You can erase all of the back up data.

After erasing the data, the system will reboot.

If you push Start, the data will be deleted.

AC606338

AB

ln Early Period Of Memory

Please do not switch off until rebooting is completed.

AC606339

AB

Service

TMC Sensitivity

Versions Log Information

Touch Switch Confirmation

2/2

Back

Next

Previous

AC903642

AB

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-455

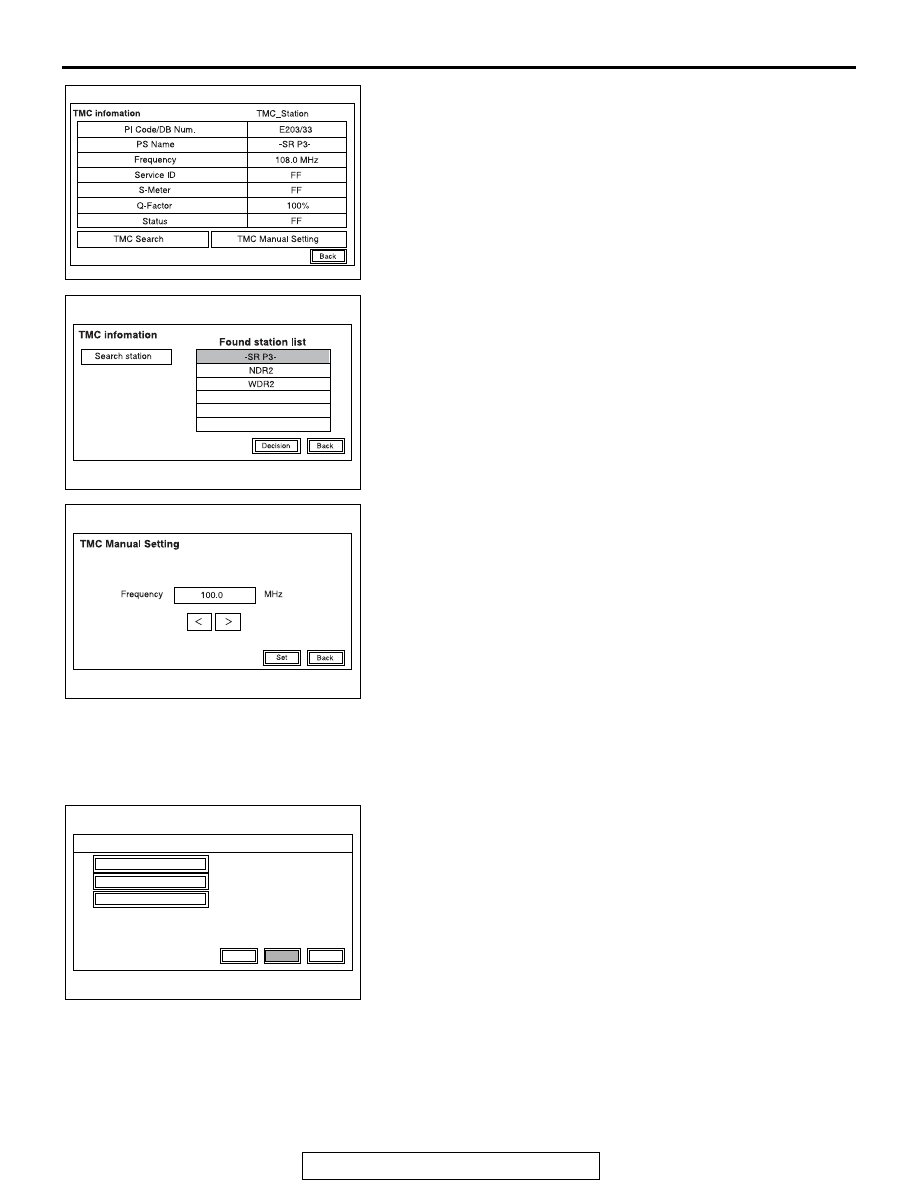

2. The information of TMC station is displayed.

NOTE: When the now-received information is from selected
TMC station, "TMC_station" is displayed on the upper right
of the screen. "

−

" is displayed when the information is not

received.

3. Select "TMC Search" on the "TMC information" screen to

search the TMC station that can be received, and update
and display the contents of "Found station list".

4. Select "TMC station" displayed on the "Found station list"

and press "decision" switch to update the received TMC
station and return to the "TMC information" screen. The
information of selected TMC station is displayed on the TMC
information screen.

5. Select "TMC Manual Search" on the "TMC information"

screen to set the frequency by "<" or ">" switch.

6. Update the received TMC station by "Set" switch and return

to the "TMC information" screen. The information of selected
TMC station is displayed on the TMC information screen.

.

VERSIONS LOG INFORMATION

Displays logs for drive and HDD.

Service Data Log

1. Select "Versions Log Information" on "Service" screen.

AC611547

AC

AC611548

AB

AC611549

AB

Service

TMC Sensitivity

Versions Log Information

Touch Switch Confirmation

2/2

Back

Next

Previous

AC903642

AB

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-456

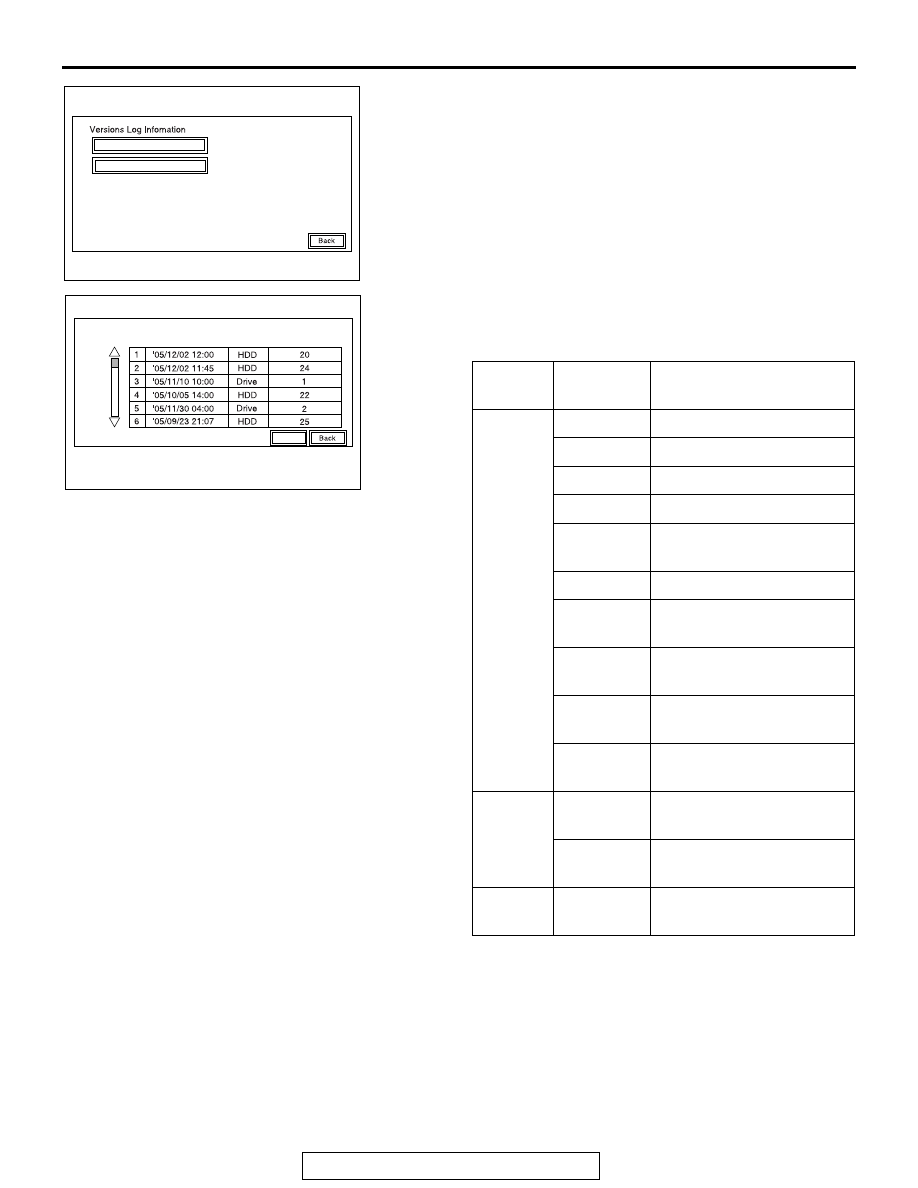

2. Select "Service Data Log" on the "Versions Log Information"

screen.

3. The logs are displayed from the latest one.
4. The log data is erased by pressing "Delete."
EACH LOG INFORMATION: FACTOR CODE TABLE

Item

Factor
number

Produced log

Drive

20

Log concerning focus

21

Log concerning disc type

22

Log concerning disc

25

Log concerning SEEK

26

Log concerning servo
start-up

27

Log concerning power-On

28

Log concerning loading /
eject operation

29

Log concerning pick-up
operation

30

Log concerning state of
mechanism

52

Log concerning TOC
reading

HDD

1

Log concerning high
temperature

2

Log concerning low
temperature

Monitor

1

Log concerning high
temperature

AC611719

Service Data Log

Time Adjustment Log

AC

AC611721

Service Data Log

Time

Item

Factor

Delete

AC
