2. Eight color bars will be displayed.

3. When "Enter" is pressed on the navigation unit joystick while

the eight color bars are shown, gray scale will be displayed
with a 16-step gradation.

4. When "Enter" is pressed while the gray scale is shown with

a 16-step gradation, a crosshatch pattern will be displayed
(Each cell should be square).

5. When "Enter" is pressed on the navigation unit joystick while

the crosshatch pattern is shown, the screen will turn white.

6. When "Enter" is pressed on the navigation unit joystick while

the screen is white, it will turn black.

AC611390

AD

AC606321

AC611391

AB

AC611392

AB

AC611393

AB

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-446

7. When "Enter" is pressed on the navigation unit joystick while

the screen is black, the screen will turn red.

8. When "Enter" is pressed on the navigation unit joystick while

the screen is red, it will turn green.

9. When "Enter" is pressed on the navigation unit joystick while

the screen is green, it will turn blue.

10.When "Enter" is pressed on the navigation unit joystick while

the screen is green, it will return to the "Service" screen.

.

CAMERA SETTING

1. Select "Camera Setting" on "Service" screen.

AC606322

AC606323

AC606324

Service

Vehicle Signal Check

Monitor Check

Camera Setting

Speaker Check

Network/Connect Line Check

Versions Indication

1/2

Sensor Check

Hands Free Module

Memory Initialization

Back

Next

Previous

CAN Communication Confirmation

AC903640

AB

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-447

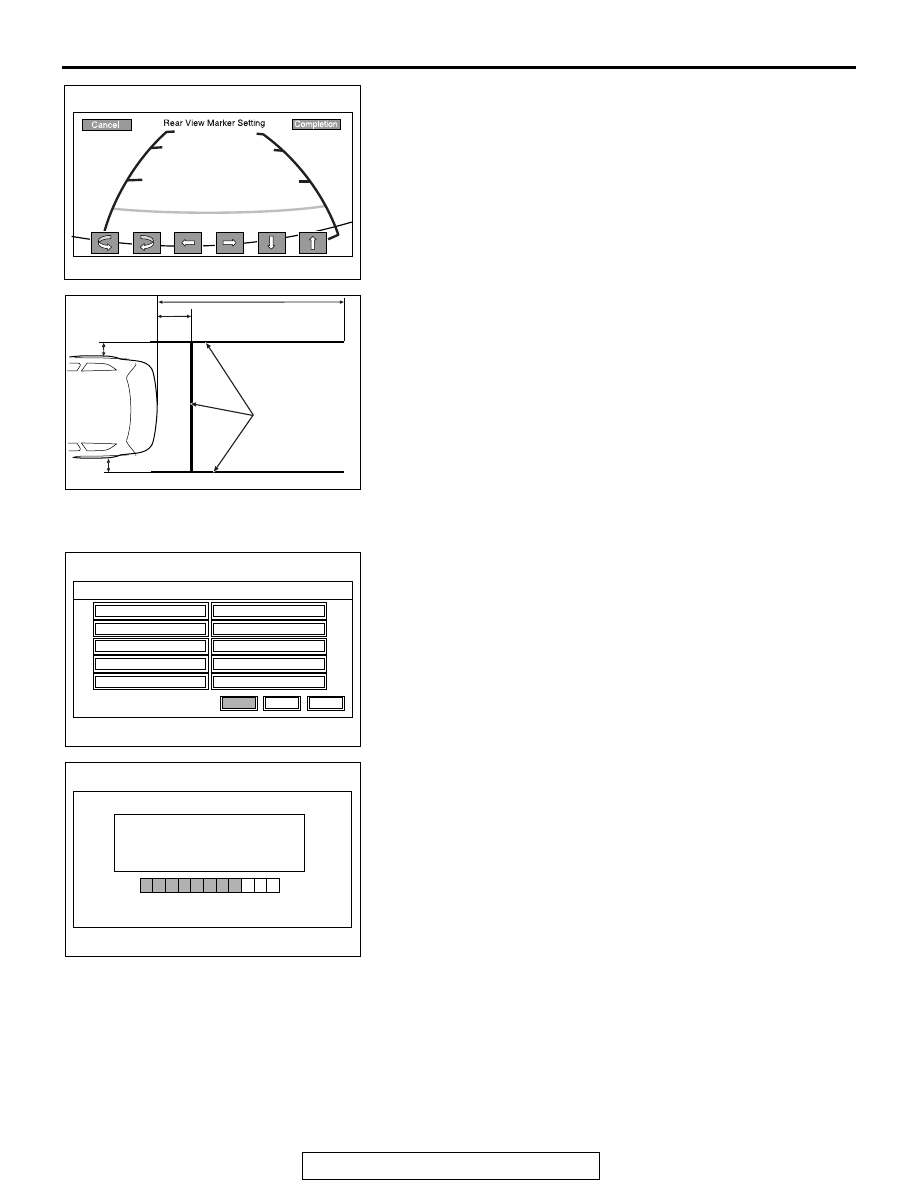

2. Draw base lines 0.5 m behind the vehicle and width +0.4 m

(+0.2 m each for right and left) and align the guide line over
the base lines.

.

NETWORK/CONNECT LINE CHECK

1. Select "Network/Connect Line Check" on "Service" screen.

2. A network and connect line check will be initiated. The

"Network/Connect Line Check" screen will display how the
check is in progress.

AC612226

AB

AC803227

0.2m

0.5m

3.0 m

AC

Base line

0.2m

Service

Vehicle Signal Check

Monitor Check

Camera Setting

Speaker Check

Network/Connect Line Check

Versions Indication

1/2

Sensor Check

Hands Free Module

Memory Initialization

Back

Next

Previous

CAN Communication Confirmation

AC903640

AB

Network/Connect Line Check

Now checking the connection of the line.

Please wait.

AC606325

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-448

3. When the network and connect line check is finished, the

screen will change to "Network/Connect Line Result" to
show the check results.
NOTE:

If there is "NG" or "N/A" as the check results, select

"NG Code" on the "Network/Connect Line Result" screen.
Then "NG code Indication" screen will show the NG code.

4. If "Back" is selected on "Network/Connect Line Result", the

screen will return to "Service" screen.

.

SPEAKER CHECK

1. Select "Speaker Check" on "Service" screen.

2. Select a speaker to be checked, and play test tone through

the speaker.
NOTE:

.

•

[FTWL] front tweeter (LH), [FTWR] front tweeter (RH)
and [RW] subwoofer are not displayed for vehicles with 6
speakers.

•

By operating the volume key, the volume can be
changed.

•

During the test, only the selected speaker sounds. If
"Back" is selected during the test, the test tone will disap-
pear.

.

Back

Network/Connect Line Result

DVD Drive

HDD Drive

SDRAM

Rear Camera

GPS Receiver

NG

OK

OK

N/A

OK

N/A

N/A

OK

OK

N/A

Premium Audio

Rear Seat Display

CAN BOX

Video Input

TMC Antenna

NG Code

AC606326

Back

NG Code Indication

DVD Driver

0103

AC606327

Service

Vehicle Signal Check

Monitor Check

Camera Setting

Speaker Check

Network/Connect Line Check

Versions Indication

1/2

Sensor Check

Hands Free Module

Memory Initialization

Back

Next

Previous

CAN Communication Confirmation

AC903640

AB

Speaker Check

F L

R L

F R

R R

RW

Back

AC611716
