GENERAL INFORMATION

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-11

.

POWER DOOR LOCKS WITH SELECTIVE
UNLOCKING

The power door lock with selective unlocking works
by pressing the lock/unlock switch of door outside
handle (driver's side). The other service procedures
are the same as before.

• When the lock/unlock switch of door outside han-

dle (driver's side) is pressed once, only the
driver's door is unlocked. When the lock/unlock
switch of door outside handle (driver's side) is
pressed once again within 2 seconds after the
driver's door is unlocked, the front passenger's
door, rear doors, and the liftgate are unlocked.

NOTE: When the lock/unlock switch of door out-
side handle (driver's side) is pressed once, only
the driver's door is unlocked. When the
lock/unlock switch of door outside handle (driver's
side) is pressed once again more than 2 seconds
after the driver's door is unlocked, the driver's
door only is unlocked.

• Using a customization function, the power door

locks with selective unlocking can be enabled or
disabled (Refer to

P.52B-25

).

Panic
alarm
system

Panic button Press once (press and hold for 1

second).

Starts the panic alarm (headlights flash
and horn honks for three minutes)

Lock button,
unlock
button or
panic button

Press again

Stops the panic alarm in progress

Power door locks with
selective unlocking

Press the unlock button once to
unlock the driver’s door, and within 2
seconds, press the unlock button
again to unlock the front passenger’s
door, rear doors and liftgate.

Power door locks with selective unlocking.
NOTE: Using a customization function,
the power door locks with selective
unlocking can be enabled or disabled.

Function

Keyless operation key operation

System operation

SPECIAL TOOLS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-12

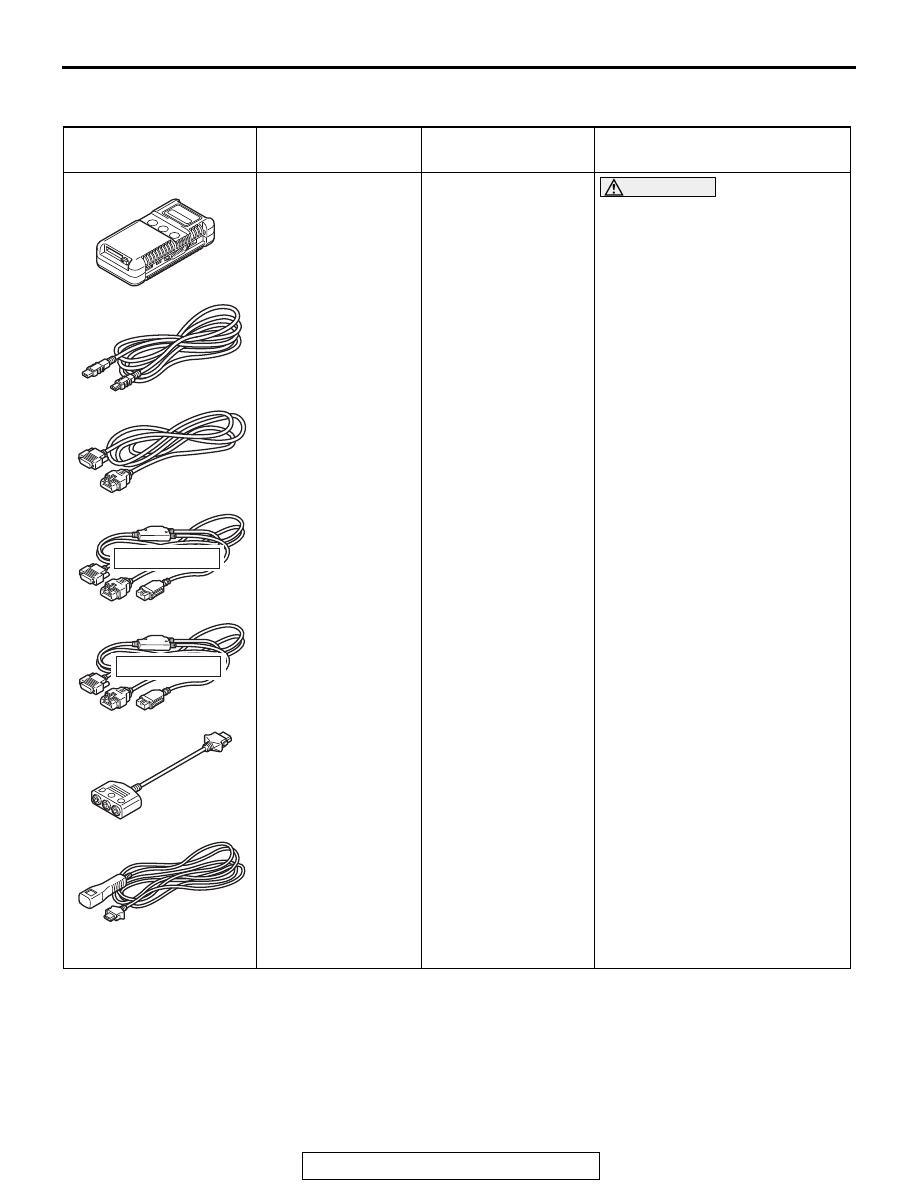

SPECIAL TOOLS

M1429604300123

Tool

Tool number and
name

Supersession

Application

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

M.U.T.-III sub
assembly

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e. M.U.T.-III main

harness C (for
Chrysler models
only)

f. M.U.T.-III

measurement
adapter

g. M.U.T.-III trigger

harness

MB991824-KIT
NOTE: G: MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

CAUTION

M.U.T.-III main harness A
(MB991910) should be used.
M.U.T.-III main harness B and C
should not be used for this
vehicle.
ETACS-ECU check (Diagnostic
trouble code, service data)

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

a

b

c

d

e

f

g

DO NOT USE

DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-13

DIAGNOSIS

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING

M1429604400078

Refer to GROUP 00

− How to Use Troubleshooting/Inspection

Service Points

P.00-7

.

DIAGNOSTIC FUNCTION

M1429605400134

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

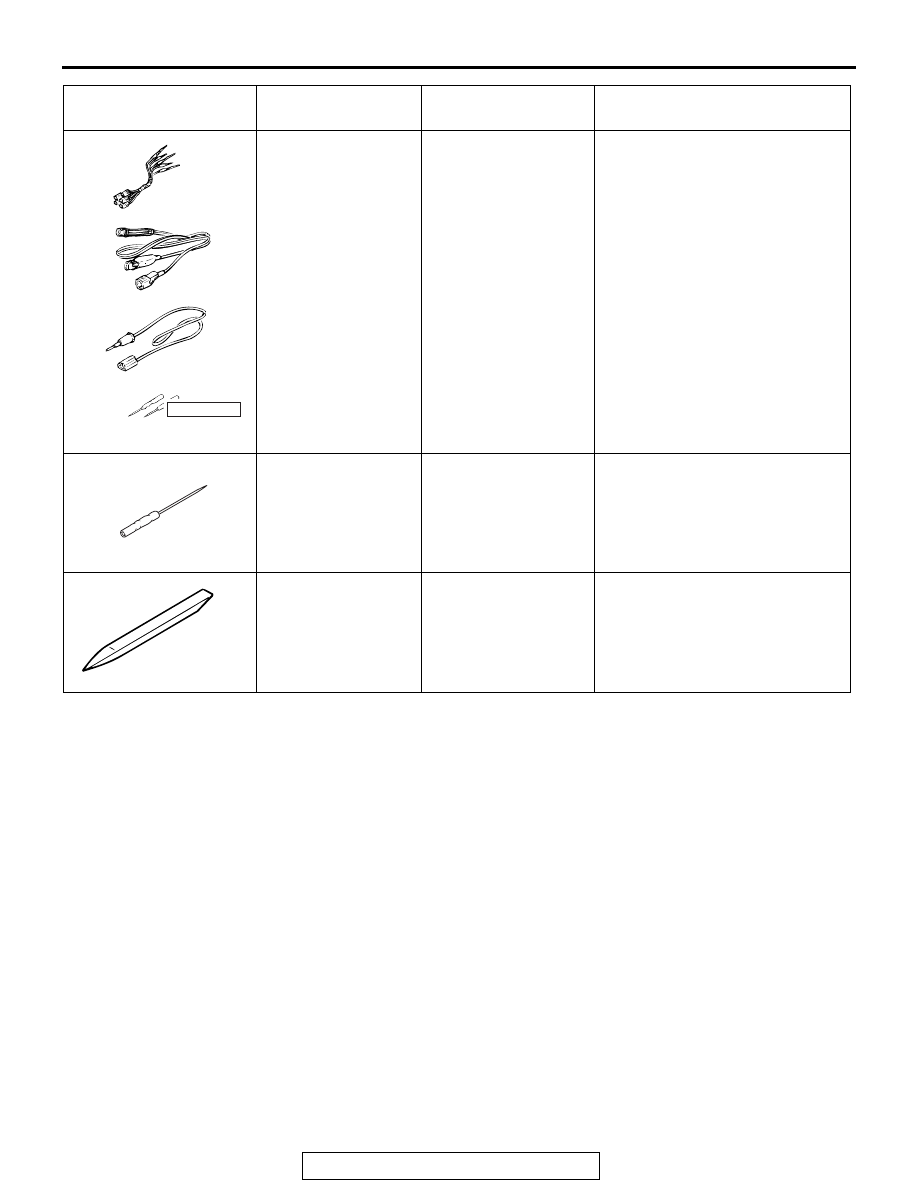

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Test harness
b. LED harness
c. LED harness

adaptor

d. Probe

General service tools Continuity check and voltage

measurement at harness wire or
connector for loose, corroded or
damaged terminals, or terminals
pushed back in the connector.

a. Connector pin contact

pressure inspection

b. Power circuit inspection
c. Power circuit inspection
d. Commercial tester connection

MB992006
Extra fine probe

−

Making voltage and resistance
measurement during
troubleshooting

MB990784
Ornament remover

General service tool

Removal of steering column
cover.

Tool

Tool number and
name

Supersession

Application

MB991223

a

d

c

b

DO NOT USE

BA

MB992006

MB990784

DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-14

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

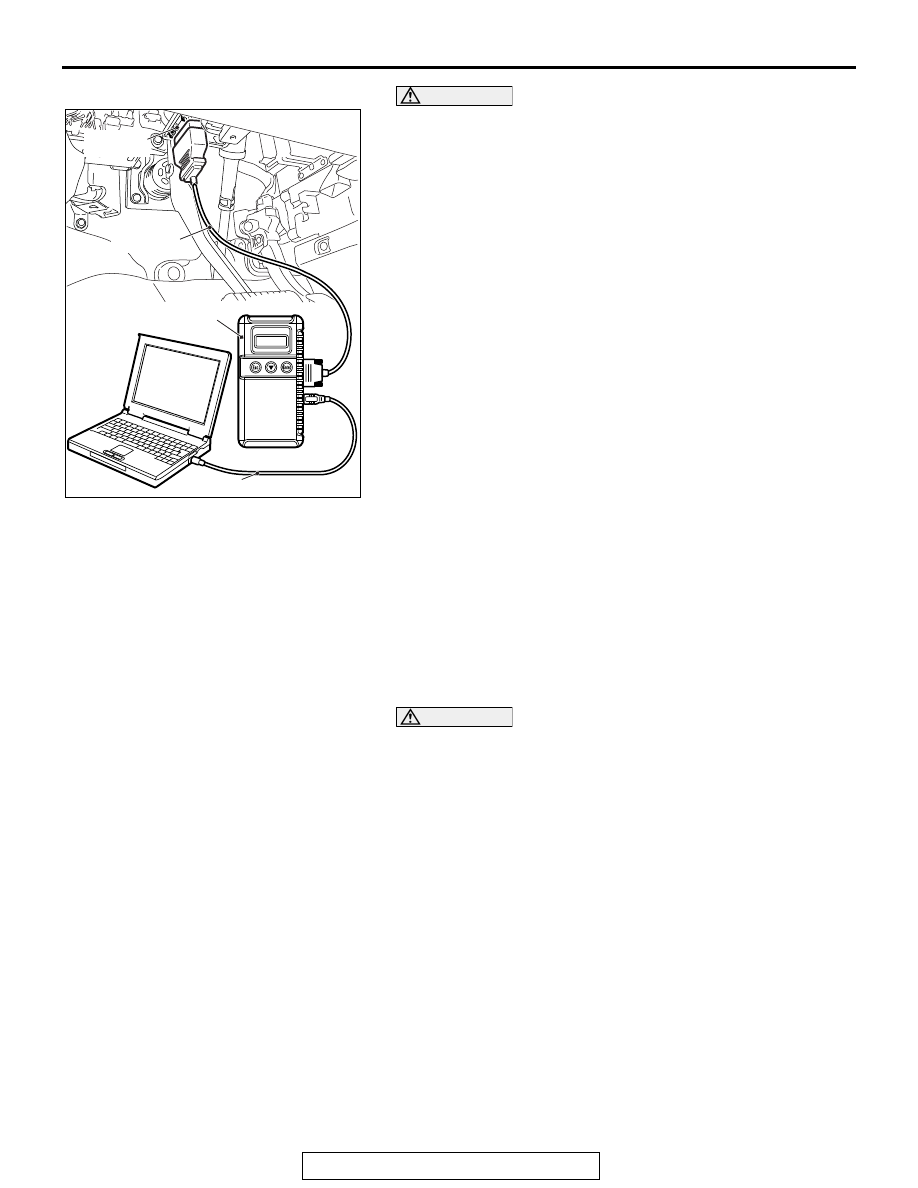

1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON"

position.
NOTE: When special tool MB991824 is energized, special
tool MB991824 indicator light will be illuminated in a green
color.

7. Start the M.U.T.-III system on the personal computer.
NOTE: Disconnecting scan tool MB991958 is the reverse of the
connecting sequence, making sure that the ignition switch is at
the "LOCK" (OFF) position.

HOW TO READ AND ERASE DIAGNOSTIC
TROUBLE CODES

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
NOTE: If the battery voltage is low, diagnostic trouble codes will
not be set. Check the battery if scan tool MB991958 does not
display.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "System select" from the start-up screen.
4. Select "From 2006 MY" of "Model Year." When the "Vehicle

Information" is displayed, check the contents.

5. Select "ETACS" from "System List", and press the "OK"

button.
NOTE: When the "Loading Option Setup" list is displayed,
check the applicable item.

6. Select "Diagnostic Trouble Code." to read the DTC.
7. If a DTC is set, it is shown.
8. Choose "Erase DTCs" to erase the DTC.

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector
