GENERAL INFORMATION

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-7

.

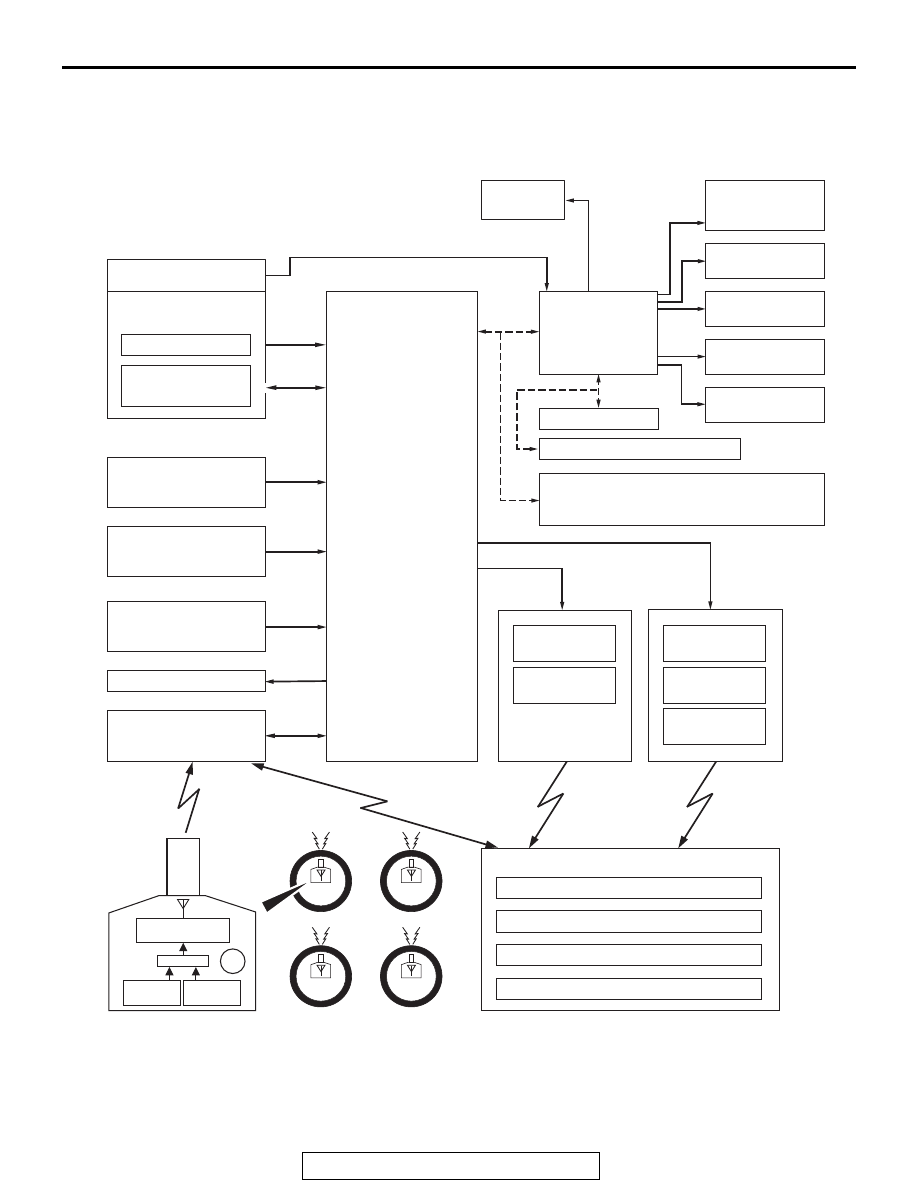

System configuration

AC702142

ECM

Combination meter (Multi information display,
TPMS warning light)

KOS-ECU

CAN-B
communi-
cation

CAN-C
communication

AJ

TPMS transmitter

CPU



Antenna

ASC-ECU

Steering lock

Push switch

Steering lock unit

Lock/unlock switch
(driver's side door)

Lock/unlock switch
(passenger's side door)

Outer tone alarm

Receiver antenna module

Radio
frequency
signal

Front

Rear

Driver's side

Front
passenger's side

Liftgate

Interior transmitter
antenna assembly

Exterior transmitter
antenna assembly

Radio
frequency
signal

Radio
frequency
signal

Radio
frequency
signal

Keyless operation key (with built-in transponder)

Lock / Unlock button

Panic button

Emergency key

Indicator light

Transmission circuit

Pressure

sensor

Acc.

sensor

Battery

Front tire (LH)

Rear tire (LH)

Front tire (RH)

Rear tire (RH)

Dome light

Horn

Door lock actuator

Turn-signal light

ETACS-ECU

Key reminder switch

Head light,
Tail light

Liftgate lock release
handle and lock switch
(liftgate)

Liftgate lock
actuator

GENERAL INFORMATION

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-8

DOOR ENTRY FUNCTION

Due to the abolishment of the unlock sensor for the
door outside handle (driver's/passenger's side), the
lock switch has been changed to a lock and unlock
switch. The unlock/lock control has been changed.
The other service procedures are the same as
before.

.

UNLOCKING OPERATION OF DOOR
ENTRY FUNCTION

The keyless operation key and KOS-ECU communi-
cate to certify the keyless operation key when the
lock/unlock switch on the driver-side/front passen-
ger-side door outside handle or the liftgate lock
release handle is turned ON. When KOS-ECU certi-
fies the registered keyless operation key on the outer
side of the vehicle, it requests ETACS-ECU to unlock
the doors and the liftgate.

AC903626

AC505249

AC505250

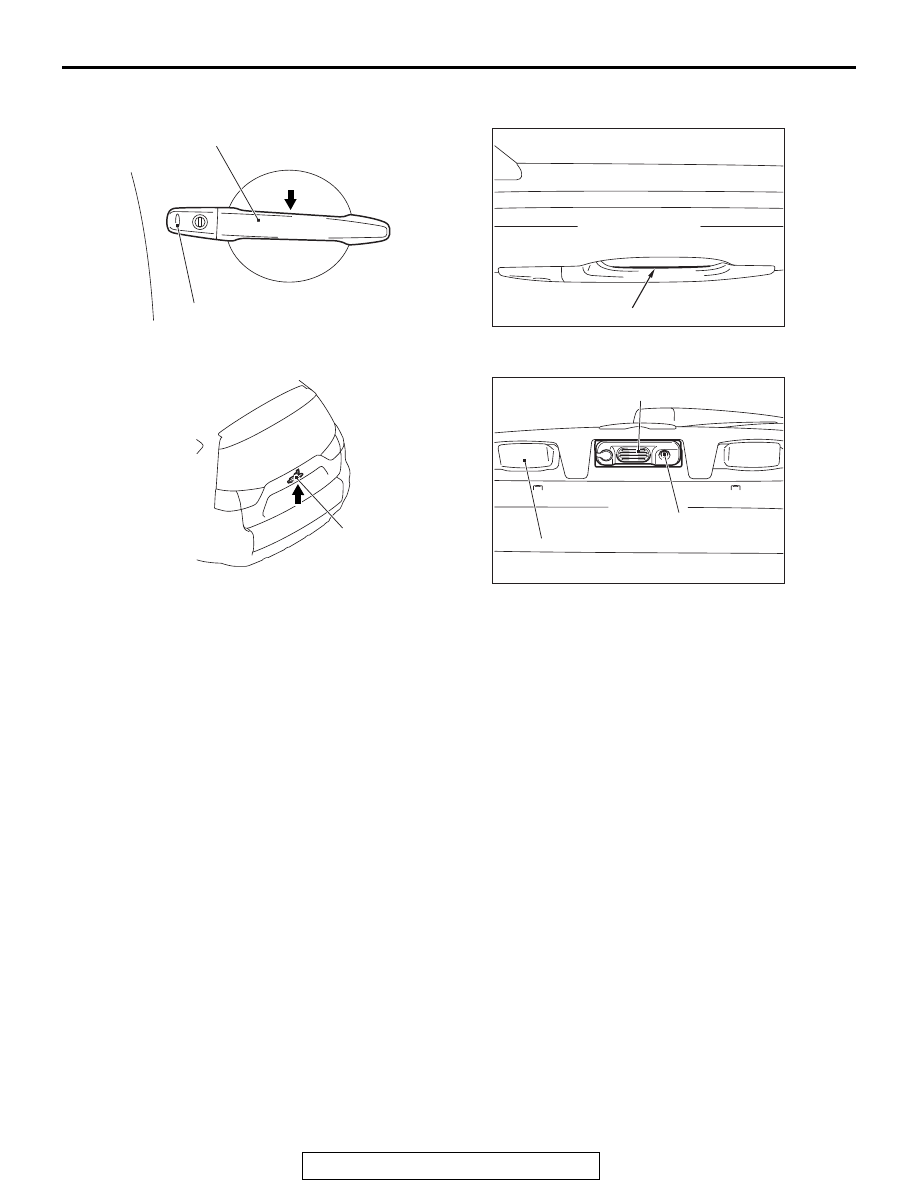

AB

A

Lock/unlock switch

Unlock sensor (deleted)

Front door outside handle (driver's side, passenger's side)

View A

ACA01166

AC505247
AC904907

AC506192

AC

B

View B

Lock switch

License plate lamp

Liftgate lock
release handle

Liftgate lock release handle

GENERAL INFORMATION

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-9

CONTROL OF UNLOCKING OPERATION

.

UNLOCKING OPERATION INHIBITION
TIME (WHEN THE LIFTGATE IS
OPERATED)

Considering that the customer operates the lock
switch of liftgate lock release handle to make sure
the doors are locked, the unlocking operation is pro-
hibited for 3 seconds after the locking operation is
performed by the lock switch of liftgate lock release
handle.

.

LOCKING OPERATION OF DOOR ENTRY
FUNCTION

The keyless operation key and KOS-ECU communi-
cate to certify the keyless operation key when the
lock/unlock switch on the driver-side/front passen-
ger-side door outside handle or the liftgate lock
release handle (lock switch) is turned ON. When
KOS-ECU certifies the registered keyless operation
key only on the outer side of the vehicle, it requests
ETACS-ECU to lock all the doors and the liftgate.
Dead lock function locks all the doors and liftgate,
when the lock/unlock switch of door outside handle
(driver's/passenger's side) is pressed once.
NOTE: When a keyless operation key is located
inside the vehicle, KOS-ECU does not output a
request for locking all the doors.

AC500829AS

ON

OFF

CAN

b

d

c

e

f

h

g

g

g

g

a

The lock/unlock switch of door outside
handle (driver's side, passenger's side)
or the liftgate lock release handle

Transmission

Communication

Un-communicating

Un-transmitting

Response

Un-answering

Transmission

Un-transmitting

Transmission

Un-transmitting

Keyless operation key
1 to 4 response

a: Exterior data transmitting start: 0.015 to 0.04 sec
b: Interior data transmitting start: 0.03 to 0.05 sec
c: Keyless operation key 1 response time of
   onset 0.035 to 0.06 sec
d: Keyless operation key 2 response time of
   onset 0.08 to 0.115 sec

e: Keyless operation key 3 response time of onset 0.135 to 0.18 sec
f: Keyless operation key 4 response time of onset 0.2 to 0.26 sec
g: CAN communication time of onset: to 0.03 sec
h: Retry time: It is variable by the registration number
    (at the time of 4 pieces registration 0.31 sec).

If there is no keyless operation key

response, retry is performed once.

Jamming is not transmitted at the time

of liftgate operation.

Exterior transmitter antenna
assembly opposite side

Interior transmitter antenna
assembly

Exterior transmitter antenna
assembly operation side

GENERAL INFORMATION

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-10

CONTROL OF LOCKING OPERATION

KEYLESS ENTRY FUNCTION

.

KEYLESS OPERATION KEY

The button operation of the keyless operation key
allows the system to operate as follows:

AC903655AD

ON

OFF

b

d

c

e

f

h

g

g

a

CAN

The lock/unlock switch of door

outside handle (driver's side,

passenger's side) or the lock

switch of liftgate lock release

 handle

Transmission

Communication

Un-communicating

Un-transmitting

Response

Un-answering

Transmission

Un-transmitting

Transmission

Un-transmitting

Keyless operation key

1 to 4 response

a: Exterior data transmitting start: 0.03 to 0.04 sec
b: Interior data transmitting start: 0.03 to 0.05 sec
c: Keyless operation key 1 response time of
   onset 0.035 to 0.06 sec
d: Keyless operation key 2 response time of
   onset 0.08 to 0.115 sec

e: Keyless operation key 3 response time of onset 0.135 to 0.18 sec
f: Keyless operation key 4 response time of onset 0.2 to 0.26 sec
g: Retry time: It is variable by the registration number
    (at the time of 4 pieces registration 0.31 sec).
h: CAN communication time of onset: to 0.65 sec

Jamming is not transmitted at the time of

liftgate operation.

If there is no keyless operation

key response, retry that keyless

operation key locates outside.

Exterior transmitter

antenna assembly

opposite side

Interior transmitter

antenna assembly

Exterior transmitter

antenna assembly

operation side

Function

Keyless operation key operation

System operation

Standard function
(lock/unlock)

Press the lock button once.

All doors (including the liftgate) are locked.
NOTE: If the retracting function of the
electric folding mirrors is added using a
customization function, it can be retracted
in synchronization with a lock operation.

Press the unlock button once.

All doors (including the liftgate) are
unlocked.
NOTE: If the opening function of the
electrical folding mirrors is added as an
adjustment function, it can be opened in
synchronization with an unlock operation.
