REAR VIEW CAMERA

TSB Revision

CHASSIS ELECTRICAL

54A-425

INSPECTION

AUDIO ADAPTER INSPECTION

M1544019000012

1. Remove the audio adapter.(Refer to

P.54A-423

)

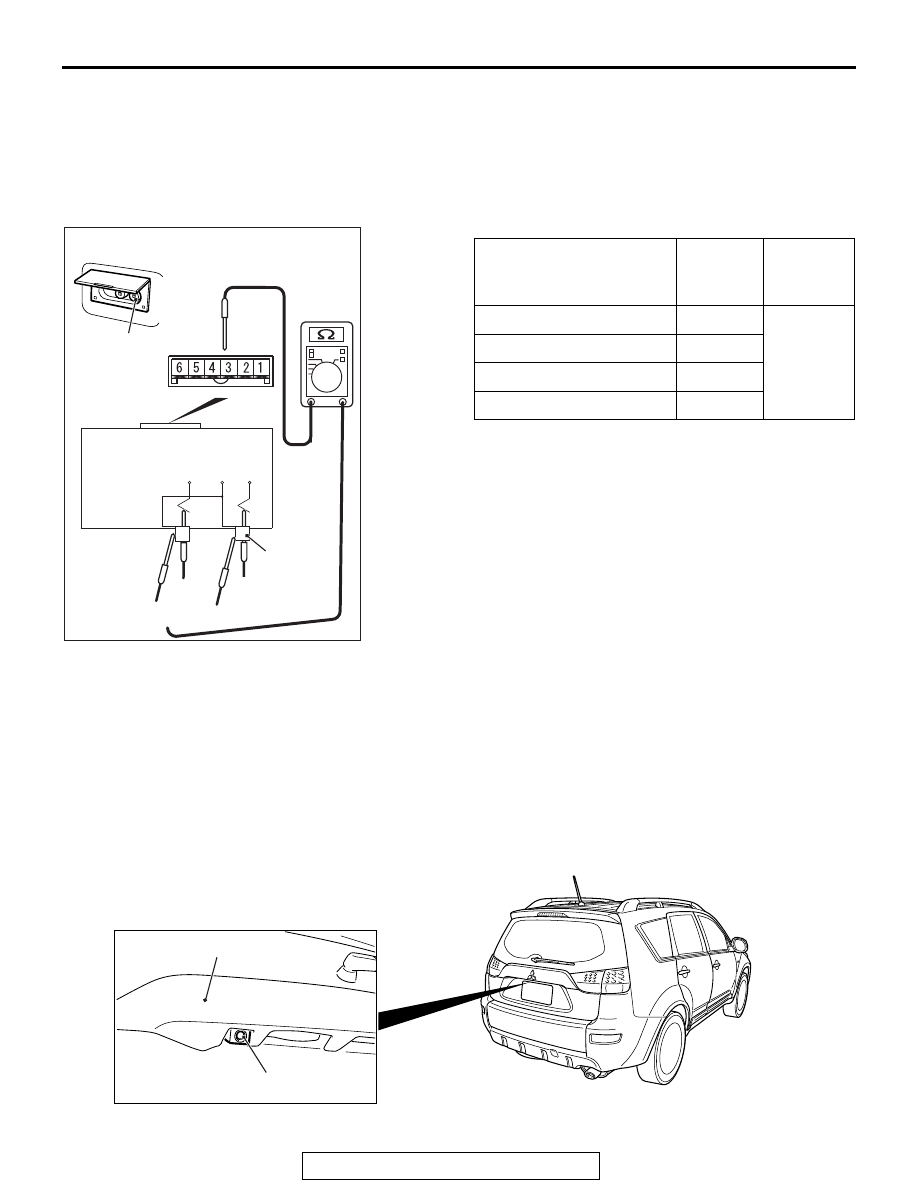

2. Check the continuity between terminals of audio adapter

and pin jack.

REAR VIEW CAMERA

GENERAL INFORMATION

M1540905600164

A rear view camera has been established to the lift-
gate garnish. The rear view camera displays the rear
view image of the vehicle on the multivision display
for easy confirmation of safety when driving back-
ward.

The connecting position
of pin jack side circuit
tester

Terminal
number

Measurem
ent value

1

5

Continuity
exists. (2

Ω

or less)

2

4

3

5

4

6

AC707486

Pin Jack

AUDIO

L (MONO)

AUDIO

R

Red

White

1

2

3

4

AB

Pin Jack

AC803219

Rear view camera

Liftgate garnish

AB

REAR VIEW CAMERA

TSB Revision

CHASSIS ELECTRICAL

54A-426

OPERATION

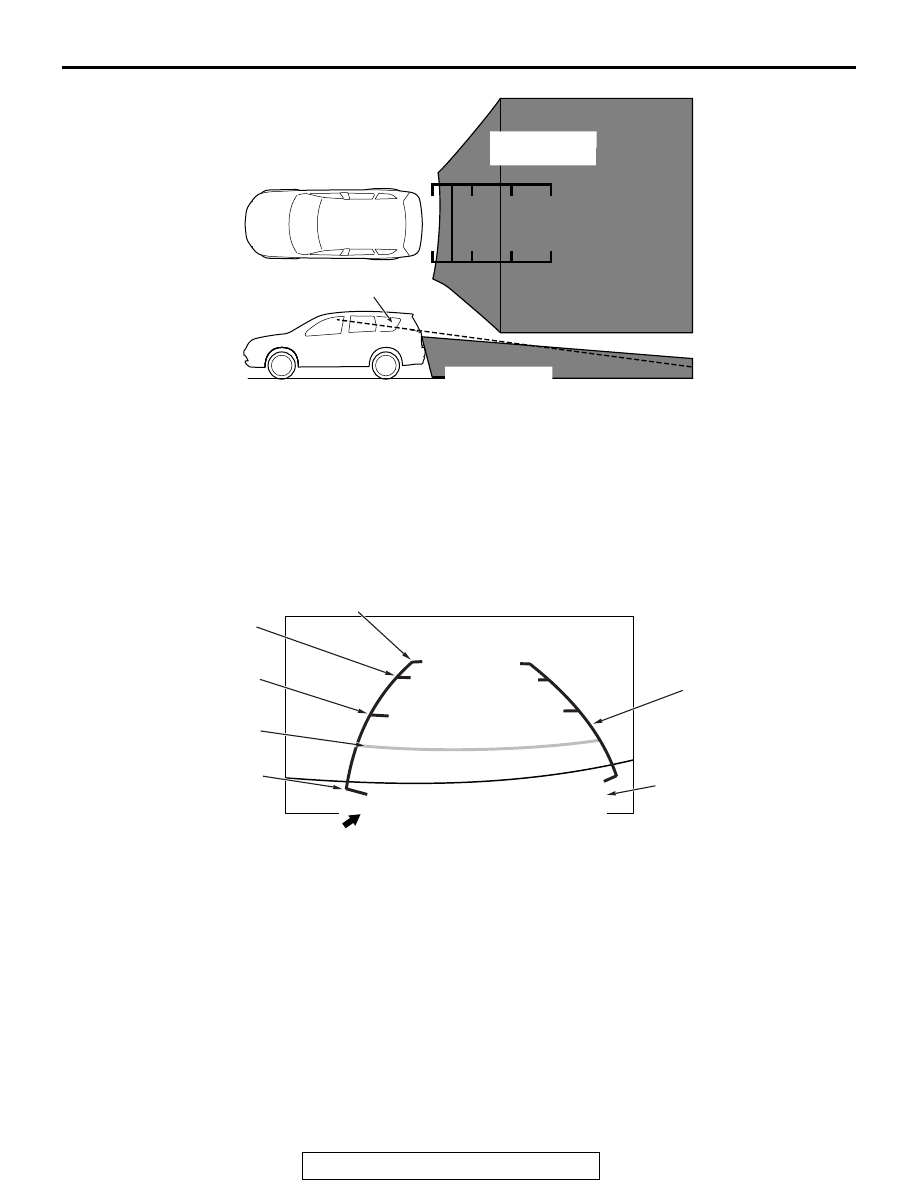

When the selector lever is moved to the R (reverse)
position with the ignition switch ON, the image of the
rear view camera is displayed on the multivision dis-
play screen.

.

Screen display

Displays rear view camera.

AC612214

AC

Display area of
rear view camera

Bottom edge line of direct vision

Display area of
rear view camera

AC612475

AC

Caution message

Approx. 0 m
behind the vehicle

Approx. 1 m
behind the vehicle

Approx. 2 m
behind the vehicle

Approx. 3 m behind the vehicle

Extended line of
"vehicle width + 0.2 m"
(Displayed in green)

Check surrounding for safety

Approx. 0.5 m
behind the vehicle
(Displayed in red)

liftgate

REAR VIEW CAMERA

TSB Revision

CHASSIS ELECTRICAL

54A-427

SPECIAL TOOLS

M1540902100041

Tool

Tool number and
name

Supersession

Application

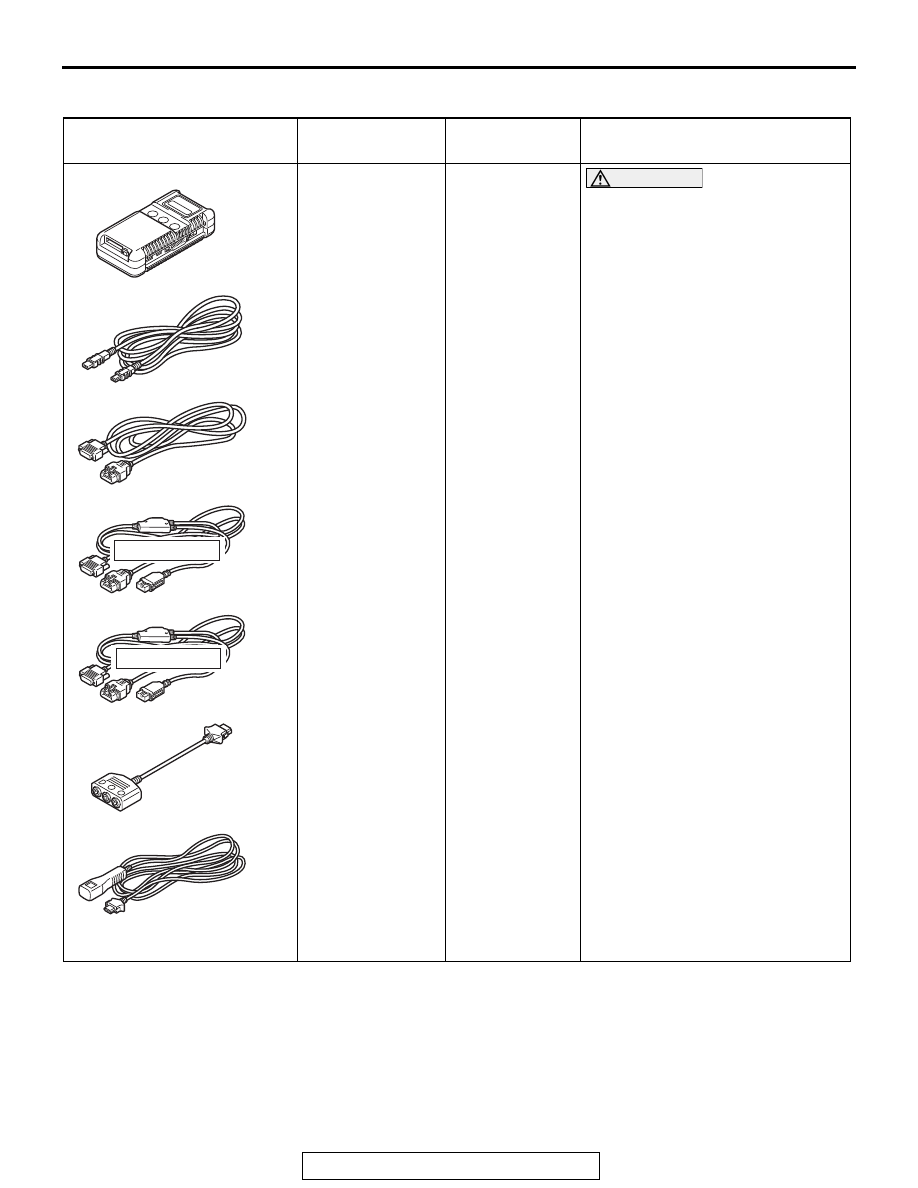

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

M.U.T.-III sub
assembly

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles
without CAN
communication
system)

e. M.U.T.-III main

harness C (for
Chrysler
models only)

f. M.U.T.-III

measurement
adapter

g. M.U.T.-III trigger

harness

MB991824-KIT
NOTE: G:
MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I.
ENTER key.

CAUTION

M.U.T.-III main harness A
(MB991910) should be used.
M.U.T.-III main harness B and C
should not be used for this
vehicle.
Diagnostic trouble code or service
data check.

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

a

b

c

d

e

f

g

DO NOT USE

REAR VIEW CAMERA

TSB Revision

CHASSIS ELECTRICAL

54A-428

TROUBLESHOOTING

STANDARD FLOW OF DIAGNOSTIC TROUBLESHOOTING

M1540902300067

Refer to GROUP 00

− Contents of troubleshooting

P.00-7

.

TROUBLE SYMPTOM CHART

M1540900300072

MB991223

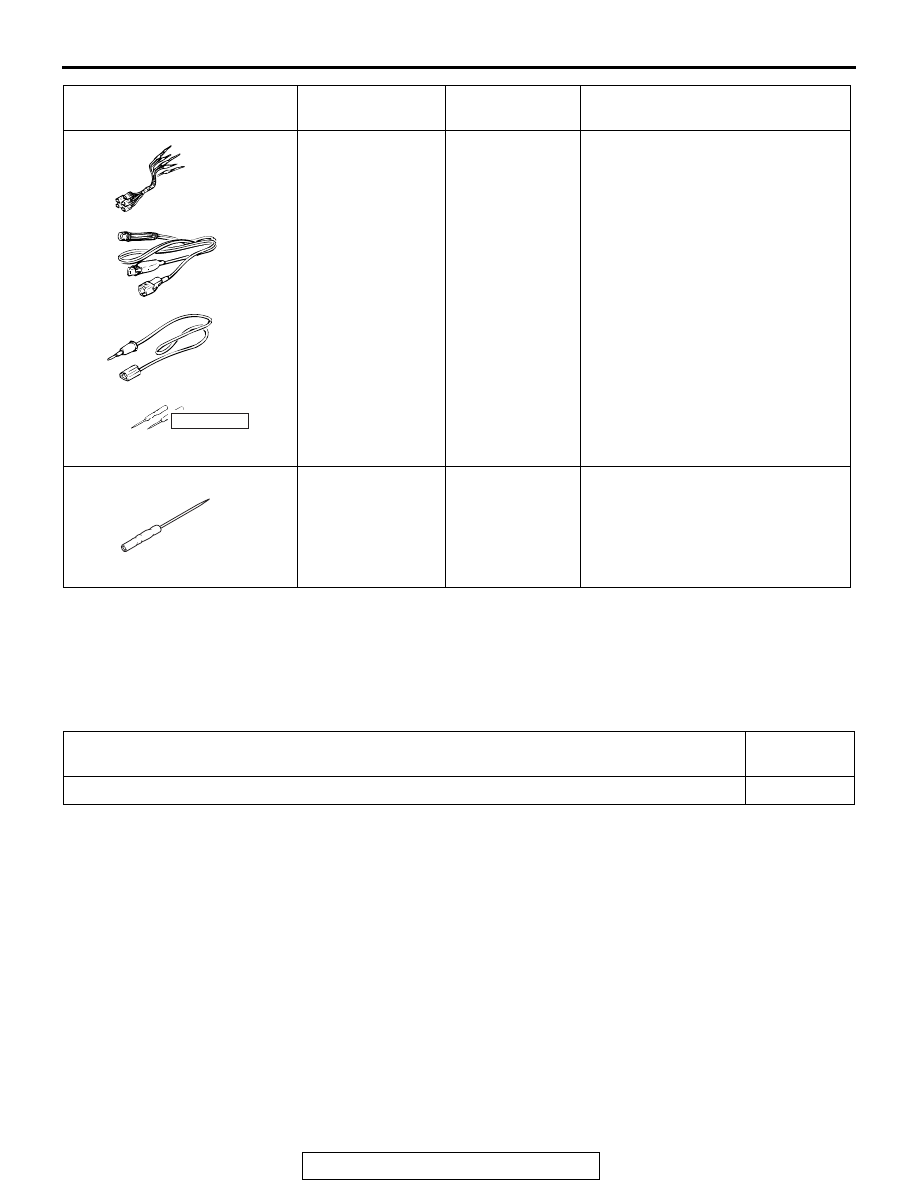

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Test harness
b. LED harness
c. LED harness

adaptor

d. Probe

General service
tools

Continuity check and voltage
measurement at harness wire or
connector for loose, corroded or
damaged terminals, or terminals
pushed back in the connector.

a. Connector pin contact pressure

inspection

b. Power circuit inspection
c. Power circuit inspection
d. Commercial tester connection

MB992006
Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector for loose, corroded or
damaged terminals, or terminals
pushed back in the connector.

Tool

Tool number and
name

Supersession

Application

MB991223

a

d

c

b

DO NOT USE

BA

MB992006

Trouble symptom

Reference
page

Rear view camera image is not correctly displayed

P.54A-429
